DIODE DYNAMICS · 2021–2025 Ford Bronco with the supported factory steel bumper
Fog lighting for the road. More light for the trail.

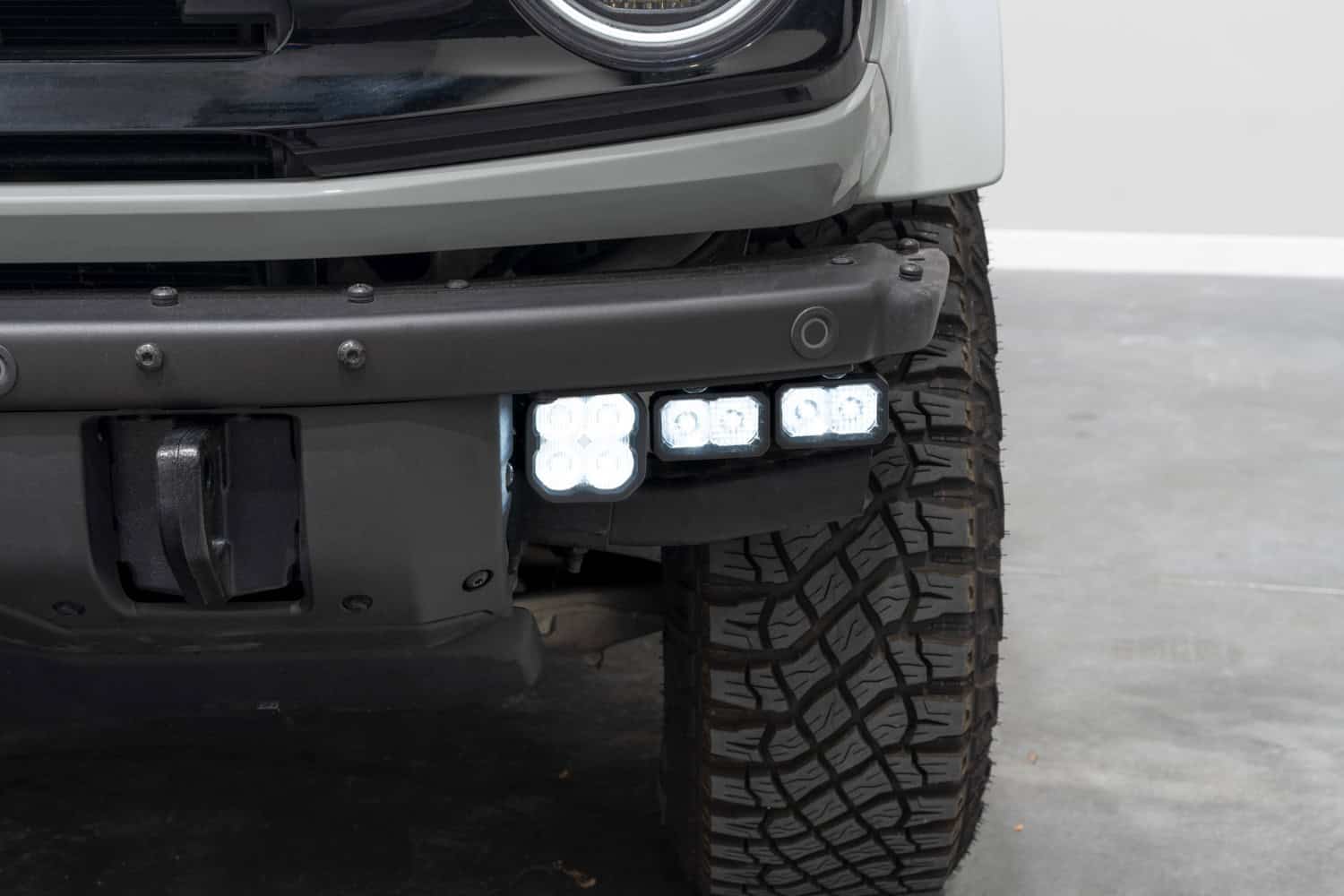

Fill both factory steel-bumper pockets with a matched six-pod system: one SS3 fog light and two compact off-road lights on each side. The supplied brackets and harnesses bring the functions together without treating every pod as a road-going fog light.
- 6 pods totalThree per bumper pocket
- Separate functionsFog / off-road / amber accent
- Sport · Pro · MaxWhite or yellow fog pair
PURPOSEFUL LIGHTING
A kit built around the job

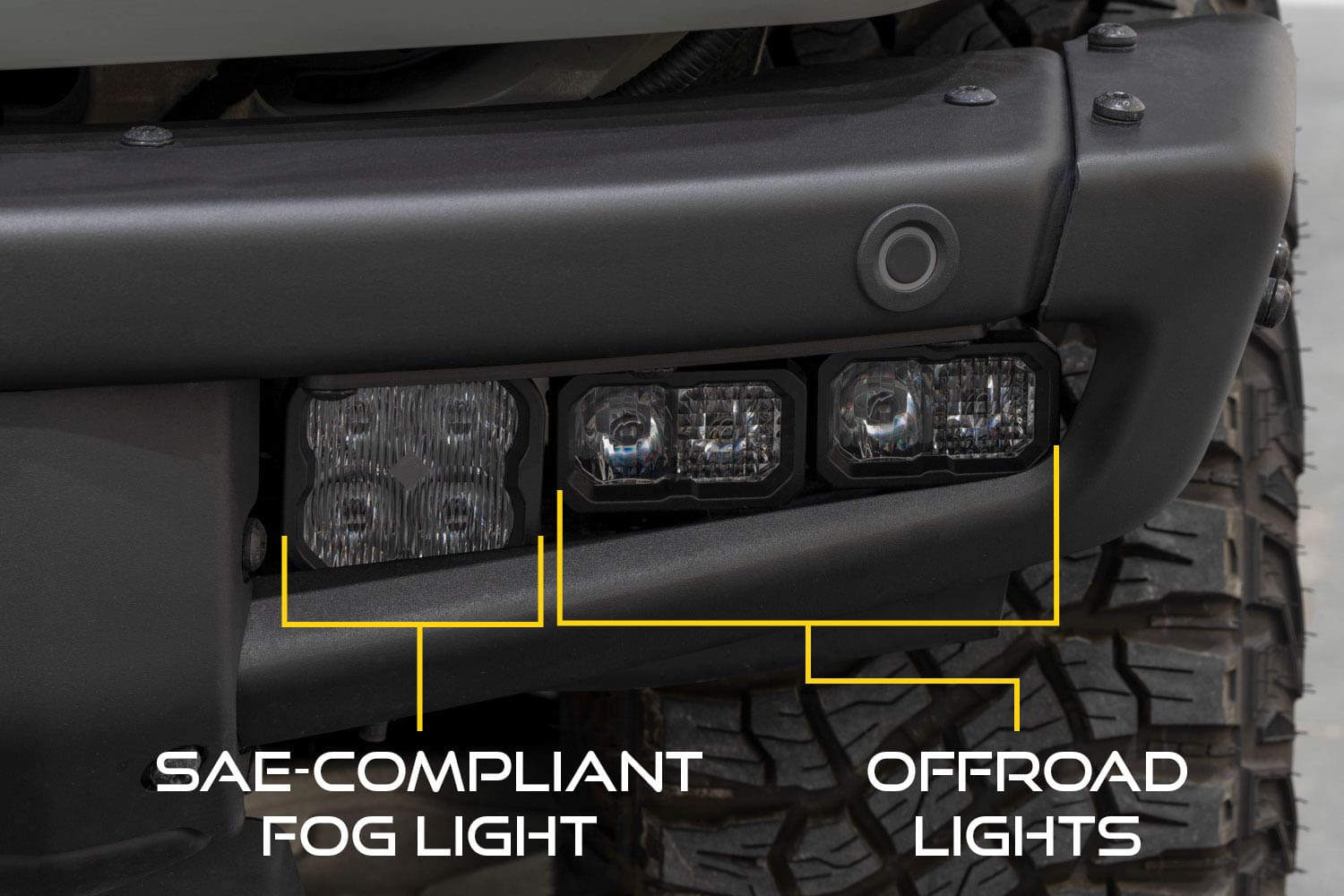

Keep the functions distinct
The inboard SS3 pods use the fog beam. The compact outer pods provide additional off-road Combo light. Use the supplied harnesses to control the road and trail functions appropriately.
Choose a coordinated power tier
Sport uses Sport pods. Pro uses Pro pods. Max pairs SS3 Max fog pods with Pro compact off-road pods, rather than six Max pods.

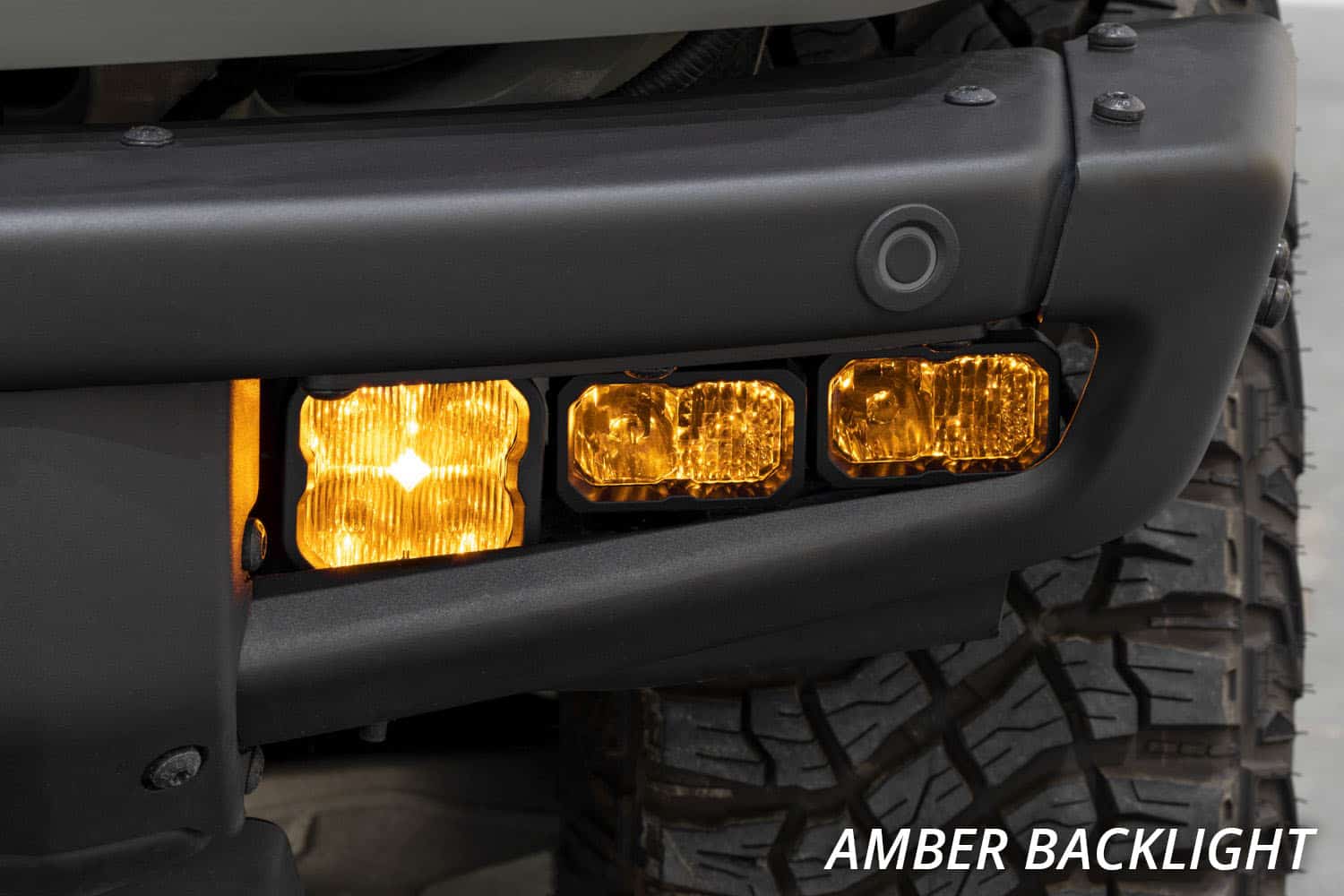

Amber accent lighting
The pods include amber backlights for a different look when the main beams are not needed. The backlight colour does not change with the White/Yellow fog selection.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | Ford Bronco, model years 2021–2025 |
| Bumper | Supported factory steel bumper and pocket arrangement shown in the guide |
| Not compatible | Factory plastic bumper; Bronco Sport is a different vehicle |
| Aftermarket bumper / end caps | Not established by this kit listing; verify clearance before ordering |
| Pods per side | One SS3 fog pod plus two compact off-road pods |
| Yellow option | Two Yellow fog pods plus four White off-road pods |
MATCH THE SKU TO YOUR SELECTION
Choose your output and main-beam colour
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7178 | Sport | White fog only | SAE fog + White off-road Combo |
| DD7179 | Sport | Yellow fog only | SAE fog + White off-road Combo |
| DD7180 | Pro | White fog only | SAE fog + White off-road Combo |
| DD7181 | Pro | Yellow fog only | SAE fog + White off-road Combo |
| DD7182 | Max | White fog only | SAE fog + White off-road Combo |
| DD7183 | Max | Yellow fog only | SAE fog + White off-road Combo |
Choose the output and colour combination above. The SKU table identifies the kit supplied with each selection.
WHAT THE KIT SUPPLIES
The parts belong together
- Two Bronco fog-pocket brackets (left and right)
- Two SS3 fog pods in the selected White/Yellow colour and Sport/Pro/Max tier
- Four White compact Combo pods: Sport with Sport kit, Pro with Pro or Max kit
- One dual-output fog harness
- One Heavy Duty Dual Output 4-pin Wiring Harness
- Two three-way backlight splitters
- Mounting hardware, zip ties and installation guide
The labelled package photograph shows the Max White configuration. Select the required tier and fog colour above. Each kit includes six pods: two SS3 fog lights and four compact off-road lights.
MOUNT · WIRE · AIM
Plan the installation before the trail
Remove the bumper-pocket hardware shown in the official guide and secure the handed left/right brackets. Install the SS3 inboard and the compact pods in the two outer positions. Follow the guide’s separate instructions for added cabin switches or factory AUX/upfitter controls. The fog activation lead needs the specified lighting signal; the guide warns against constant 12 V or ignition power for that activation input. Aim the fog cutoff after installation.
Read the official installation guide
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Light count | Six: two SS3 fog + four compact off-road Combo pods |
| Fog choices | White 6000K or Yellow 3000K |
| Off-road main beams | White 6000K on both colour choices |
| Accent | Amber backlight |
| Bracket construction | Powder-coated stainless steel |
| Control | Supplied fog and off-road harnesses; follow chosen control method |
| Optic | Stage Series TIR |
| Protection | Manufacturer IP69K pod intrusion rating |
| Warranty | Eligible lamps: manufacturer limited lifetime; separate accessory terms |
Output by option
| Kit tier | Fog pair | Four off-road pods |
|---|---|---|
| Sport | SS3 Sport | Sport compact Combo |
| Pro | SS3 Pro | Pro compact Combo |
| Max | SS3 Max | Pro compact Combo |
Choose the complete pod combination shown in this table. Max upgrades the SS3 fog pair; the four compact off-road pods remain the Pro tier.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.

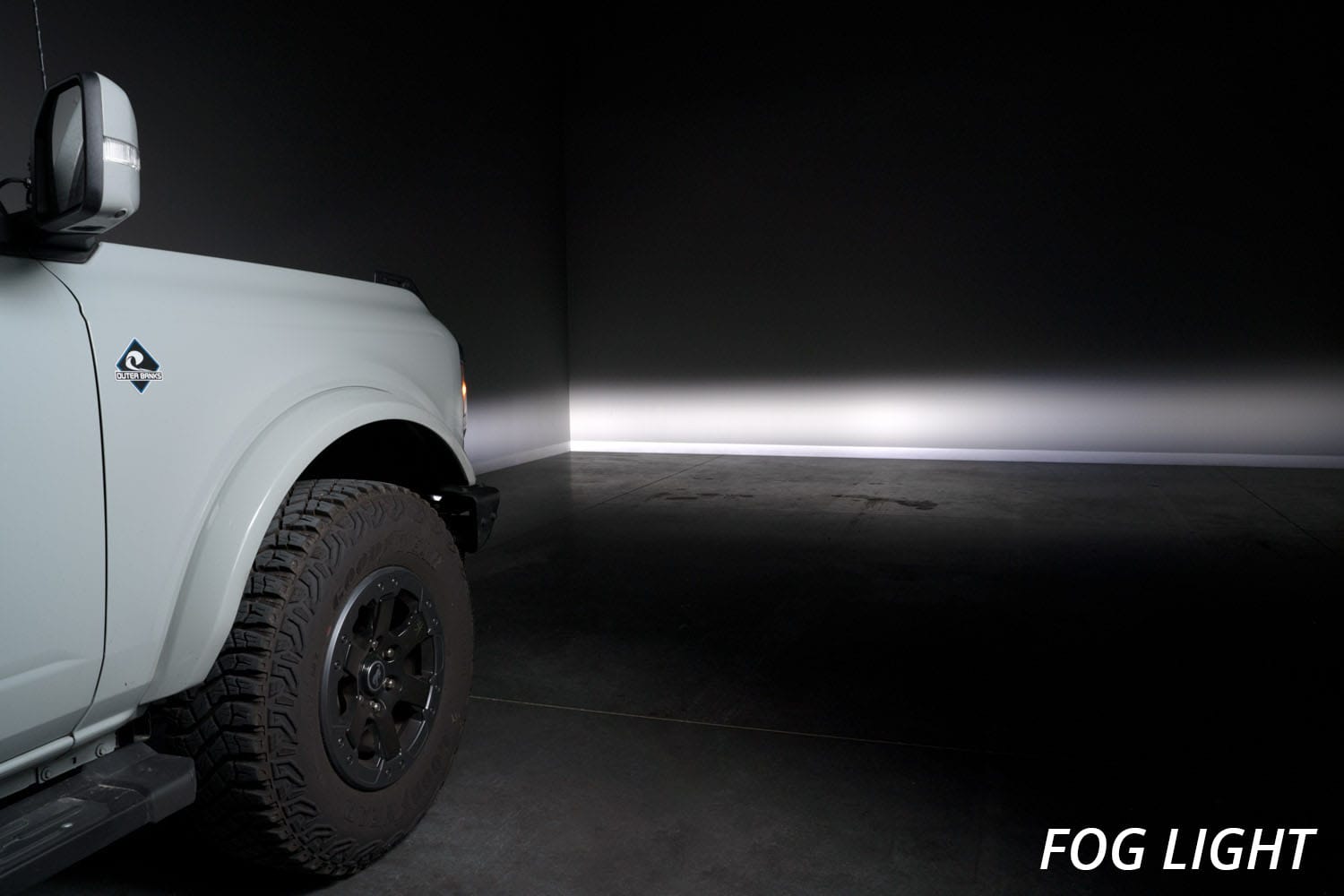

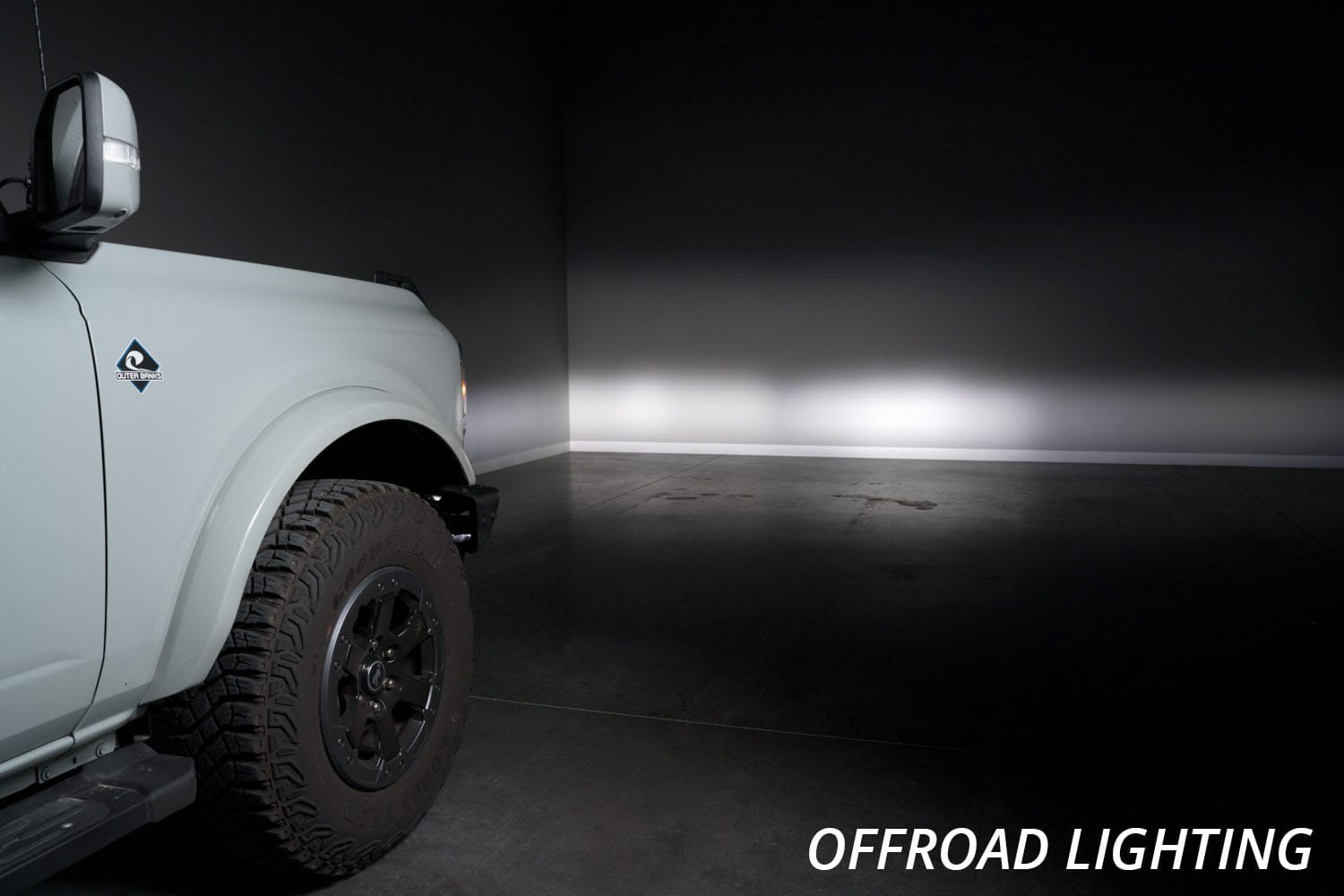

MANUFACTURER OUTPUT PHOTOGRAPHY
See the beam’s purpose
Compare the manufacturer’s beam photographs and choose the light for your route.
Choose the complete pod combination shown in this table. Max upgrades the SS3 fog pair; the four compact off-road pods remain the Pro tier.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How to Install Stage Series Fog Pocket Kit for 21+ Bronco | Diode Dynamics
Follow the written kit instructions alongside the video.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
CLEAR ANSWERS
Before you order
Does Yellow mean every pod is yellow?
No. Only the two SS3 fog lights are Yellow. The four compact off-road lights are White in every colour choice.
Is Max a set of six Max pods?
No. Max includes an SS3 Max fog pair and four Pro compact off-road pods.
Are all six lights intended for use on public roads?
No. The manufacturer identifies the fog pods as SAE-compliant fog lights when properly installed and aimed. The additional Combo-light function is for off-road use.
Will it work with my modified bumper end caps?
Compatibility with modified end caps is not established by the standard kit listing. Send BTS a clear bumper photo and the end-cap model before ordering.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; the complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
THE DETAILS MATTER
A closer look at the selected hardware
