DIODE DYNAMICS · 2021–2025 Ford Bronco
Use the mounting points Ford already provided.
A pair of SS3 pods fits the Bronco’s factory Accessory Ready points near the A-pillars. The kit brings the mounts, hardware and heavy-duty harness together, with Sport or Pro output and a White or Yellow Combo main beam.
- 2 SS3 podsSport or Pro
- Factory mountingAccessory Ready points
- Amber accentSeparate from the main beam
PURPOSEFUL LIGHTING
A kit built around the job
A clean factory mounting location

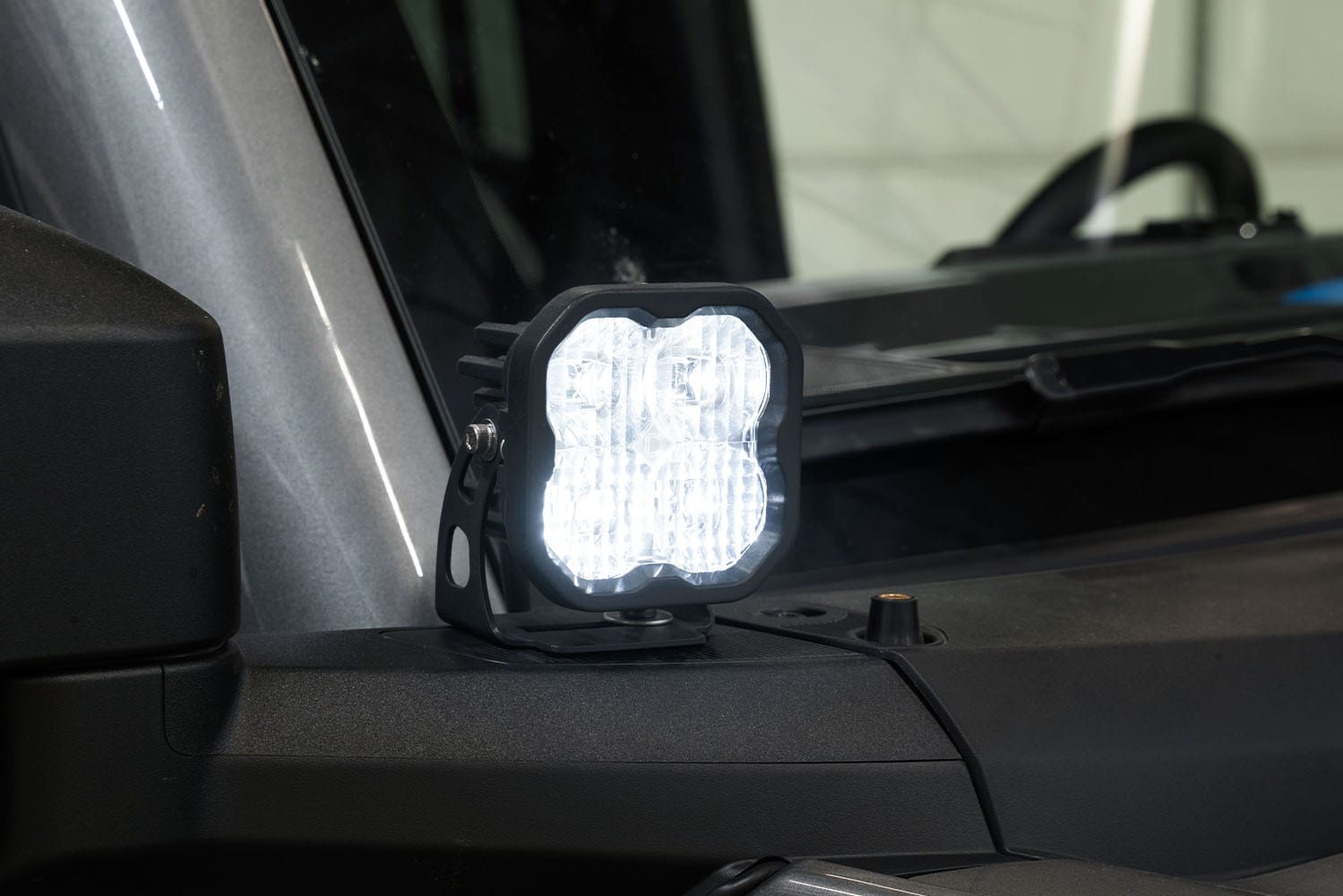

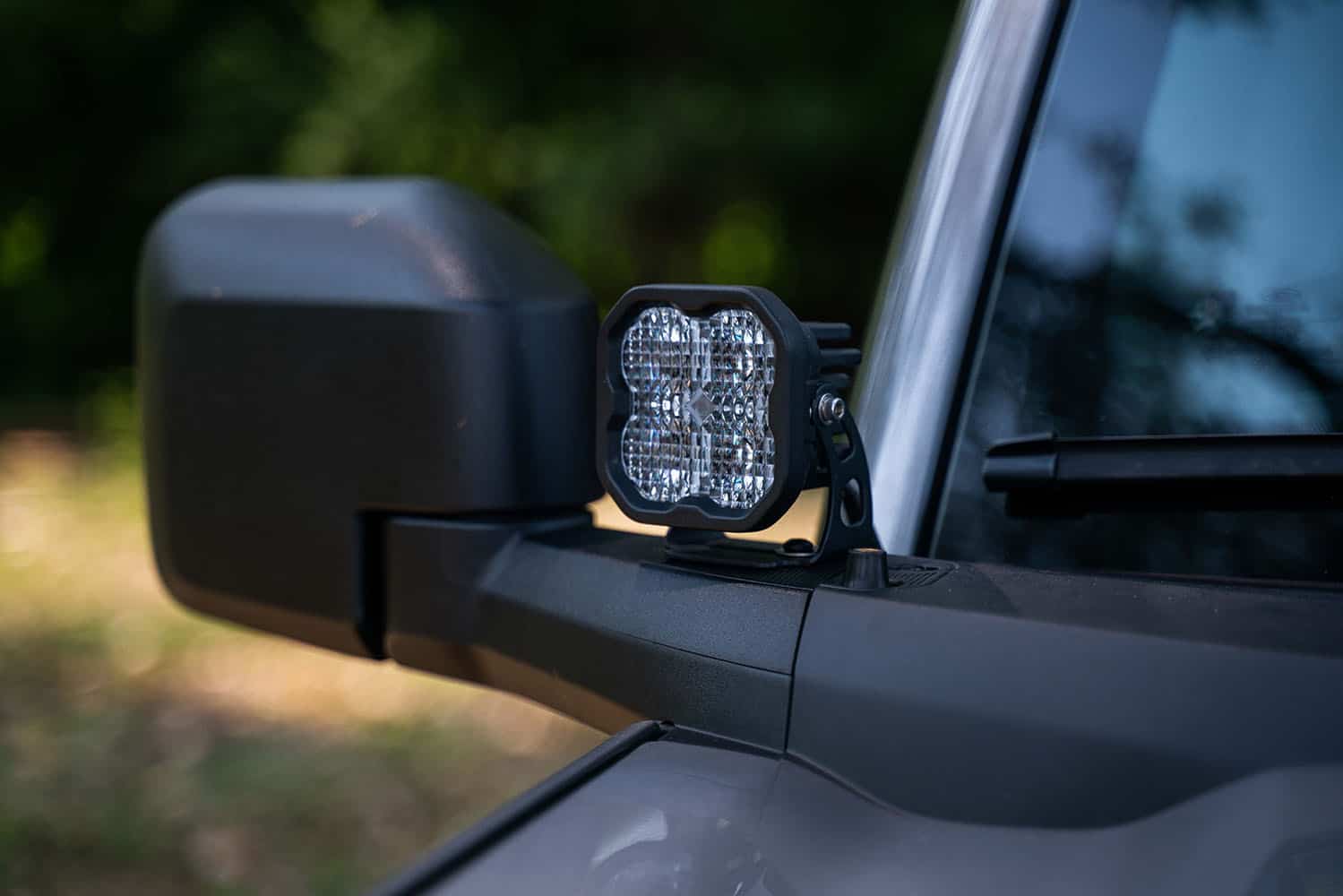

The SS3 brackets use the Bronco’s Accessory Ready points above the hood. The manufacturer designed this arrangement to clear the antenna and normal hood movement.
Choose the beam you need
The 80° × 30° Combo/Driving spread combines forward reach and wider illumination. Choose the fixed White or Yellow main-beam colour and Sport or Pro output level.

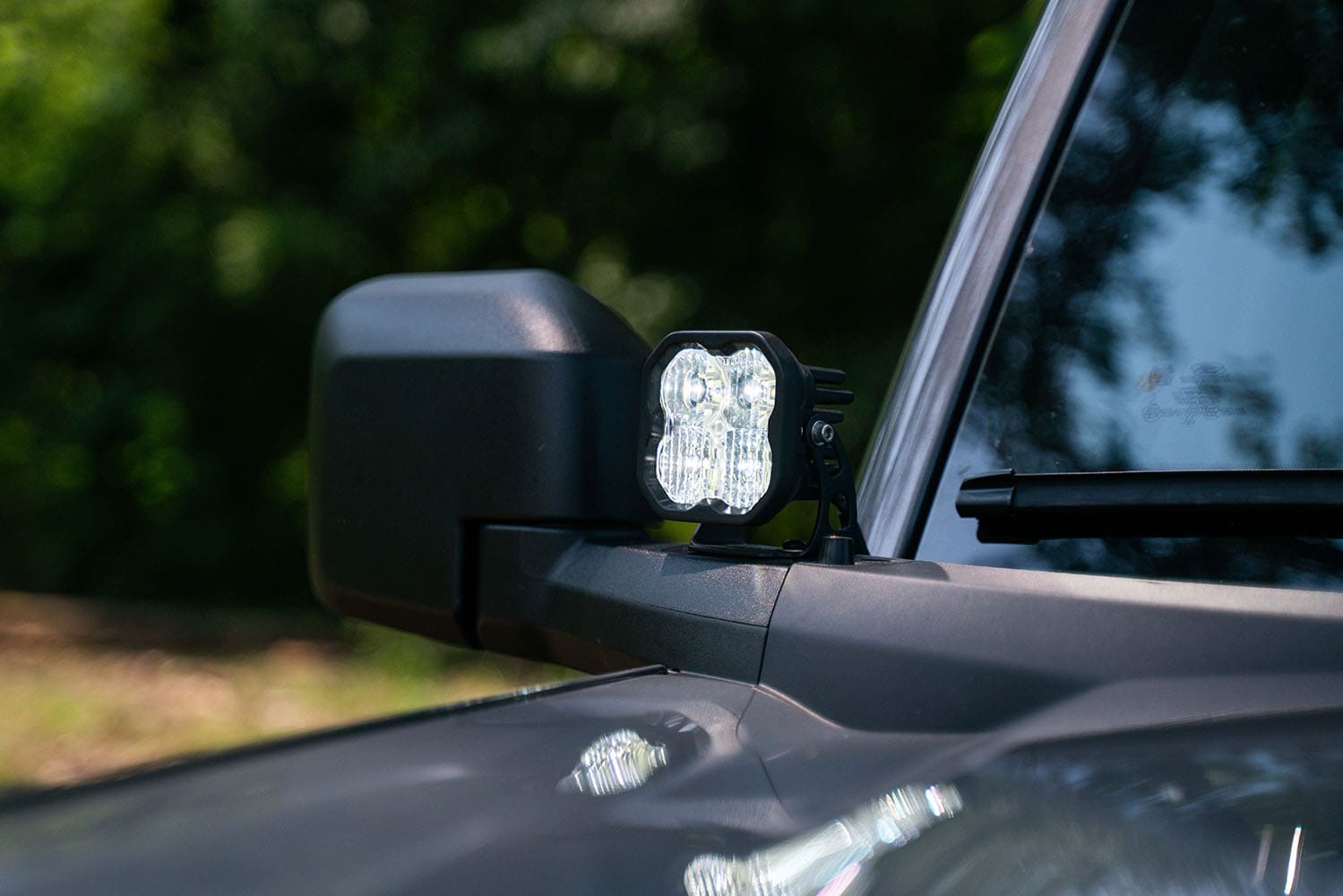

Main beam and amber accent
The amber backlight gives a separate accent mode. Follow the current supplied harness instructions when choosing factory AUX controls or the included switch.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | Ford Bronco, model years 2021–2025 |
| Mounting points | Factory Accessory Ready points by the A-pillars |
| Pods | SS3 Standard, pair |
| Not this application | Bronco Sport or a vehicle without the shown factory mounting arrangement |
| Aftermarket accessories | Confirm clearance around cowl, hood, antenna and other mounts |
MATCH THE SKU TO YOUR SELECTION
Choose your output and main-beam colour
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7184 | Sport | White | Combo |
| DD7185 | Sport | Yellow | Combo |
| DD7186 | Pro | White | Combo |
| DD7187 | Pro | Yellow | Combo |
Choose the output and colour combination above. The SKU table identifies the kit supplied with each selection.

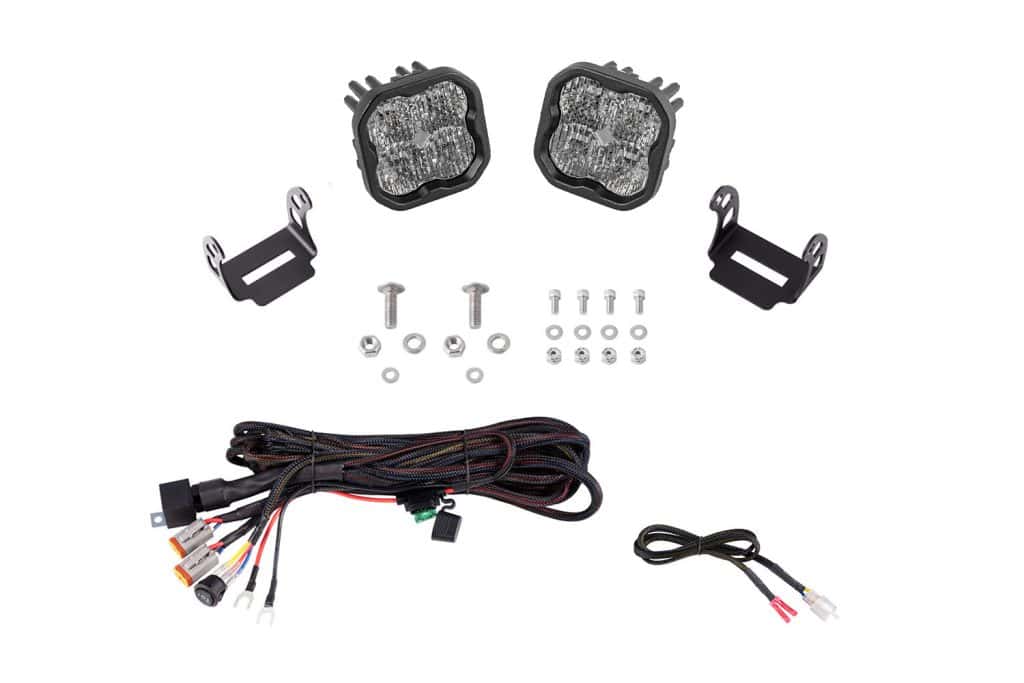

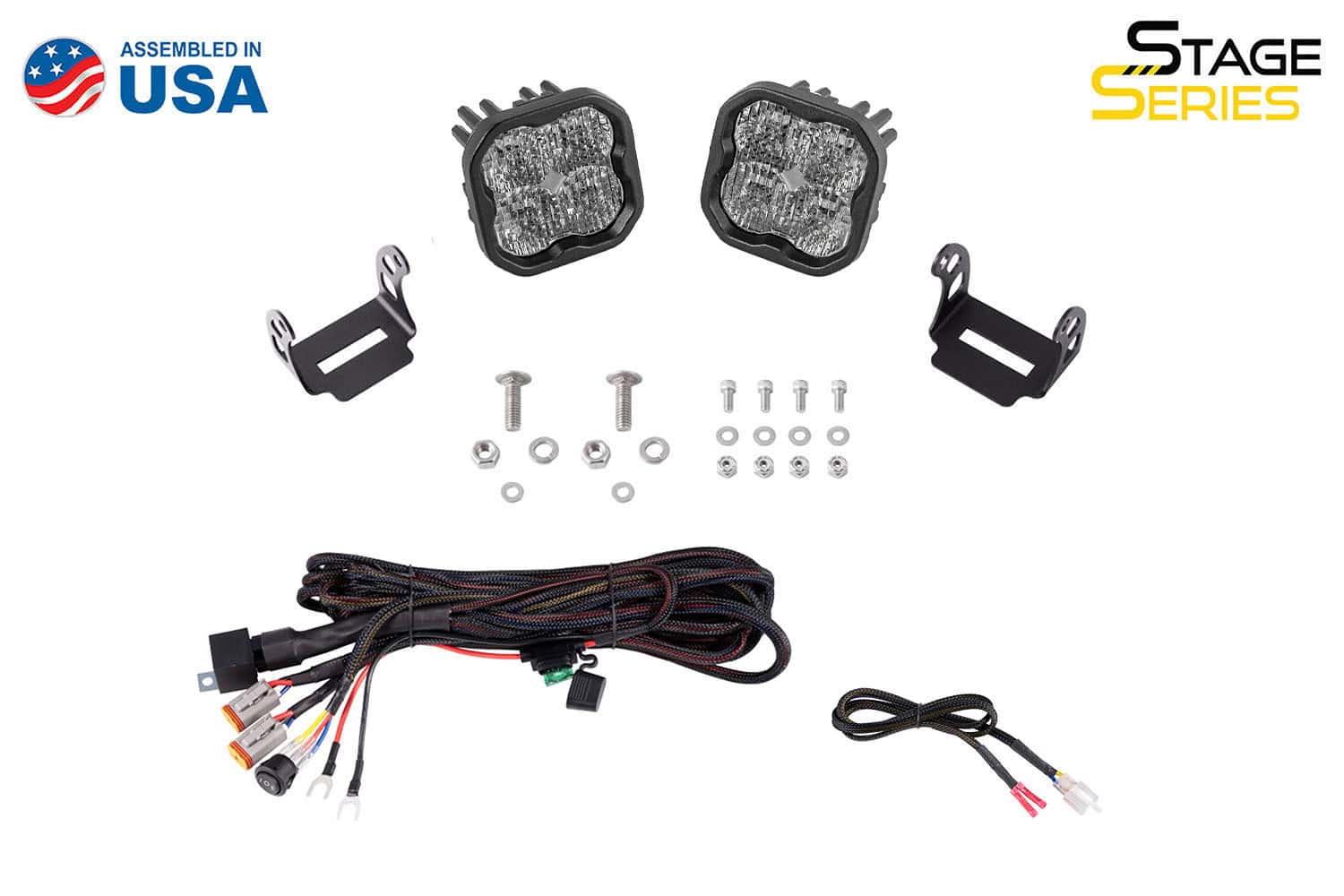

WHAT THE KIT SUPPLIES
The parts belong together
- Two SS3 Standard LED pods in the selected variant
- Two SS3 universal pod brackets (DD6260P pair)
- One DD4093 Heavy Duty Dual Output 4-pin Wiring Harness
- Mounting hardware
Unlike the Tacoma kit, this Bronco application uses the factory Accessory Ready points with SS3 universal brackets; it does not include Tacoma-style hood-hinge brackets. Other vehicle lights shown in photos are separate products.
MOUNT · WIRE · AIM
Plan the installation before the trail
Install and aim the pods at the factory Accessory Ready points. Check hood and antenna clearance before tightening. Follow the SS3 assembly guide and the current heavy-duty harness guide for electrical connections. Diode Dynamics’ current product Q&A specifically says to retain the relay and connect the harness power/ground at the battery. The older AUX overview below explains the switch system; it is not a replacement for the supplied harness instructions.
Read the official installation guide
Use the current guide supplied with the Heavy Duty Dual Output 4-pin harness. Retain its relay and battery connections even when a factory AUX switch controls the lights.
UNDERSTAND THE EXACT HARDWARE

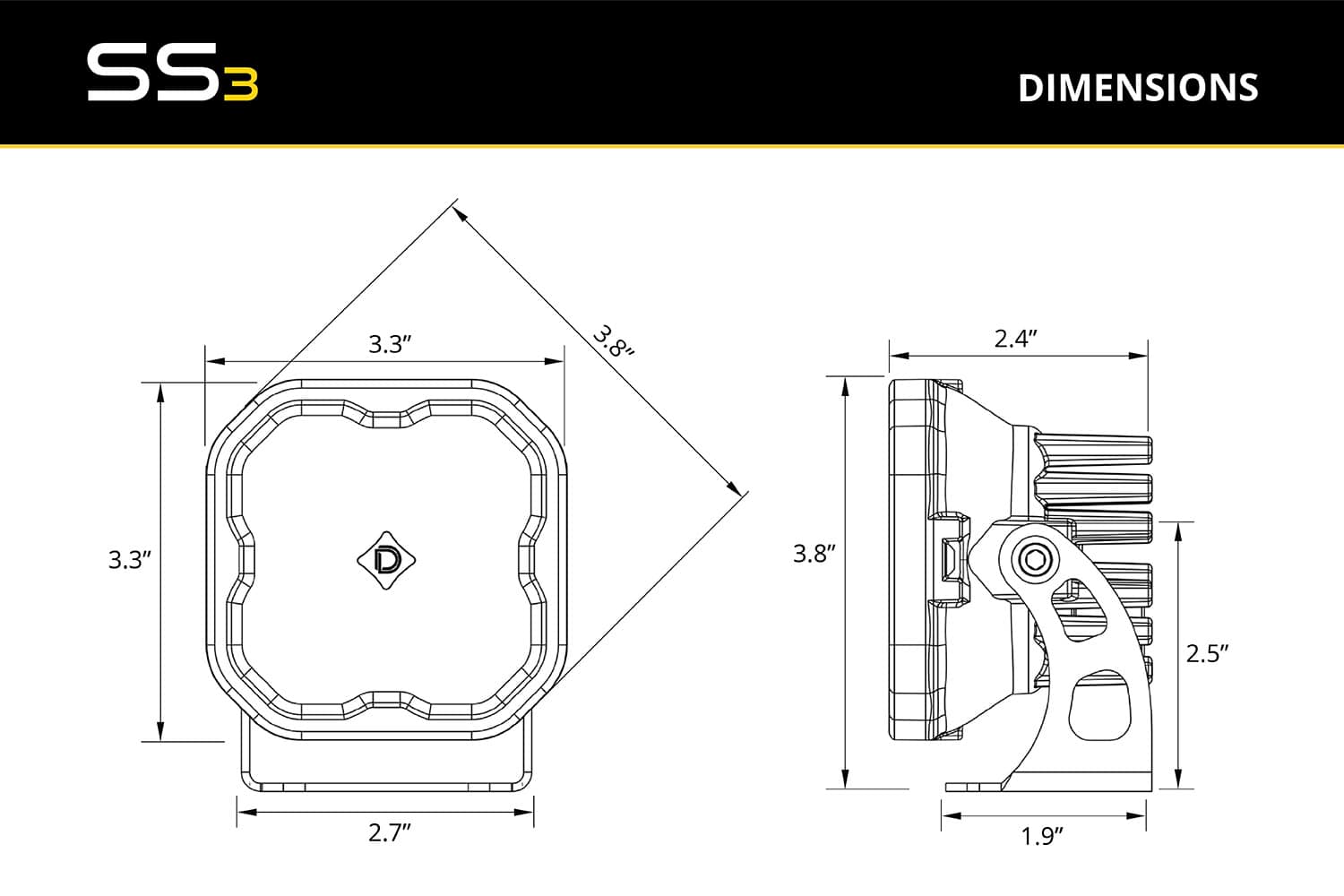

Technical specifications
| Detail | This kit |
|---|---|
| Pod family | SS3 Standard |
| Main pattern | Combo/Driving, manufacturer 80° × 30° |
| Main-beam colour | White 6000K or Yellow 3000K |
| Accent | Amber backlight |
| Power per pod | Sport 14.5 W / Pro 36 W |
| Optic | TIR |
| Connector | Integrated Deutsch-style input |
| Protection | Manufacturer IP69K intrusion rating |
| Warranty | Eligible lamps: manufacturer limited lifetime; separate accessory terms |
Output by option
| Variant | Peak intensity per pod | Measured output per pod |
|---|---|---|
| Sport White | 31,500 cd | 1,520 lm |
| Sport Yellow | 28,100 cd | 1,300 lm |
| Pro White | 35,100 cd | 3,000 lm |
| Pro Yellow | 33,406 cd | 2,700 lm |
Manufacturer values for one SS3 Combo pod, not a pair. Output photos are manufacturer examples; aiming and mounting position affect the result on the vehicle.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
MANUFACTURER OUTPUT PHOTOGRAPHY
See the beam’s purpose
Compare the manufacturer’s beam photographs and choose the light for your route.
Manufacturer values for one SS3 Combo pod, not a pair. Output photos are manufacturer examples; aiming and mounting position affect the result on the vehicle.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How-to: Wiring the Auxiliary Switches on the 2021 Ford Bronco
Older Bronco auxiliary-switch overview, not a substitute for the supplied current relay-harness instructions. Keep the relay and battery power/ground; connect AUX only as the harness instructions specify.
TIR Optics | Stage Series by Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
CLEAR ANSWERS
Before you order
Does this fit a Bronco Sport?
No. The source application is the Bronco with the shown Accessory Ready mounting points, not the separate Bronco Sport.
Can I remove the relay when using an AUX switch?
No. Current manufacturer guidance for this kit says to keep the relay and the battery power/ground connection. Use the AUX input only as directed by the current harness instructions.
Will the mounts block the hood or antenna?
The factory installation is designed to clear both. Check the actual vehicle and any aftermarket accessories before final tightening.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; the complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
THE DETAILS MATTER
A closer look at the selected hardware
