DIODE DYNAMICS · 2021–2025 FORD BRONCO
See what is behind the spare.
Add a matched pair of C2 2.0 White Flood pods beside the Bronco’s spare tyre. The vehicle bracket and inline taillight harness make the rear-lighting functions work together: white light in reverse and red accents with the taillights. Choose Sport or Pro output.
- 2 C2 2.0 PODSMatched rear-light pair
- WHITE FLOODReverse illumination
- RED ACCENTSeparate backlight
- SPARE-CARRIERVehicle-specific bracket
PURPOSEFUL LIGHTING
A kit built around the job
Useful light behind the vehicle

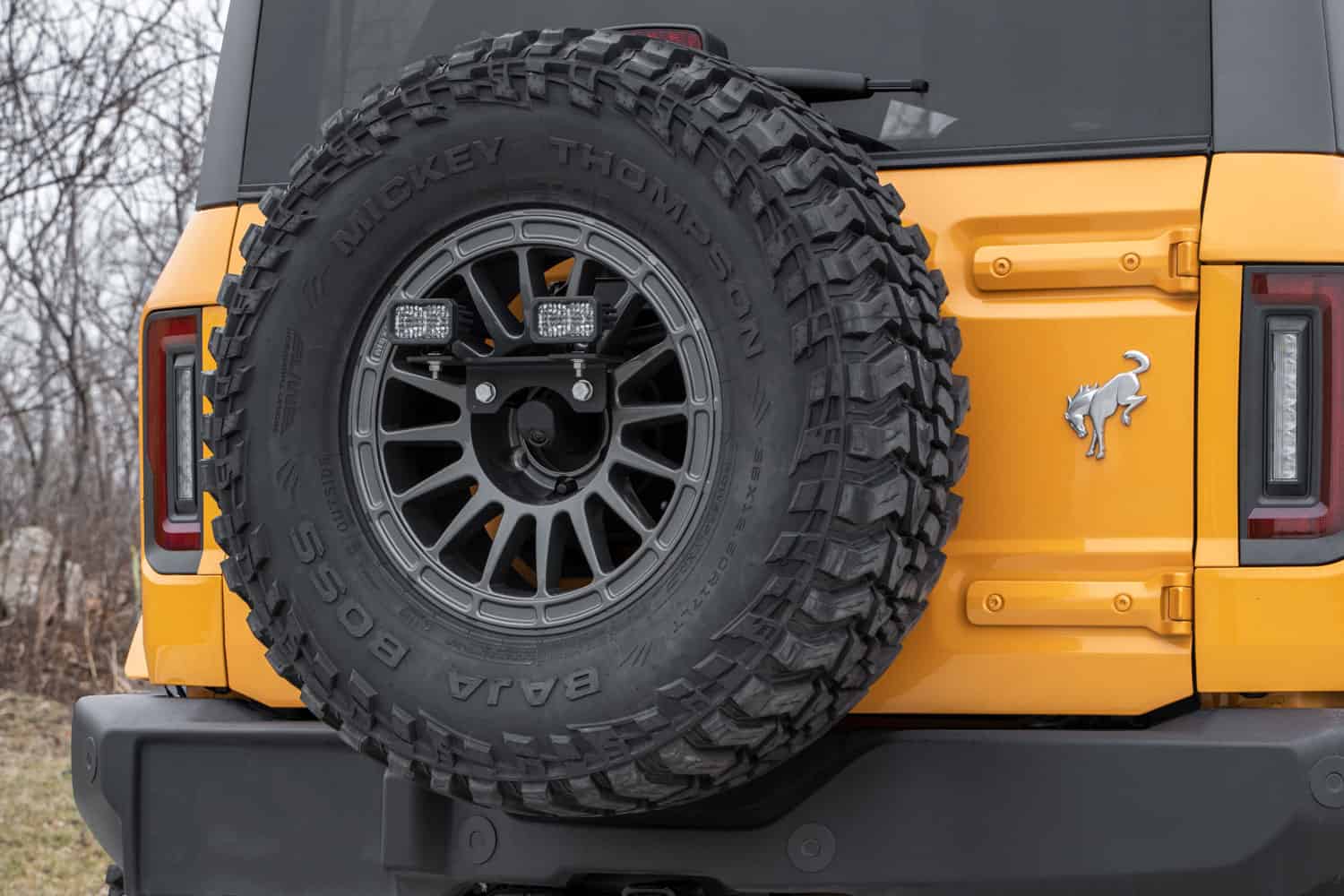

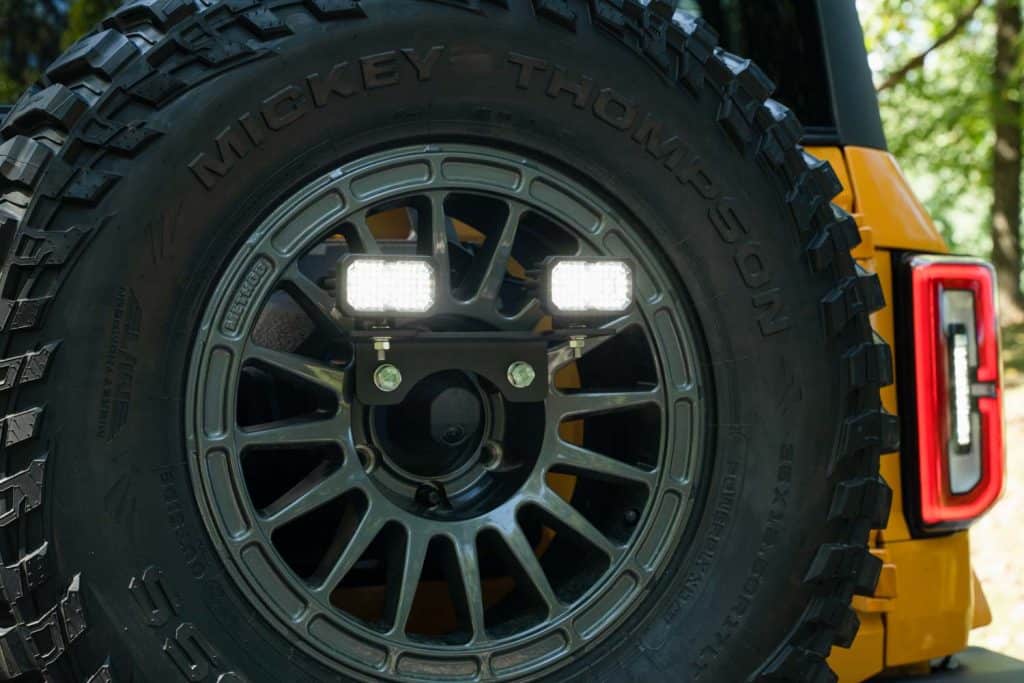

A Flood pattern spreads light across the area behind the Bronco. The lamps sit beside the spare tyre, with their aim adjusted during installation.
Reverse and accent functions
The supplied vehicle harness connects inline at the factory taillight wiring. White output follows reverse; the red backlights follow the taillights.
Manual control when you need it
The guide includes an optional factory-AUX connection for independent white-light control. That option requires additional routing and crimp connections; it is not automatic high-beam or brake-light operation.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2021–2025 Ford Bronco |
| Excluded model | Bronco Raptor |
| Factory taillights | Compatible with OEM halogen and LED taillights. |
| Spare wheel / carrier | Designed around factory wheels; aggressive offset or an aftermarket carrier can interfere. |
| Pod family | C2 2.0 only on this page. Other pod families are separate listings. |
| Vehicle harness / bracket | DD4133 inline taillight harness with DD7352P Bronco reverse bracket kit. |
MATCH THE SKU TO YOUR SELECTION
Choose your configuration
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7355 | Sport | White | Flood |
| DD7356 | Pro | White | Flood |
Use the choices above to select your kit. The SKU table identifies the configuration supplied with each selection.

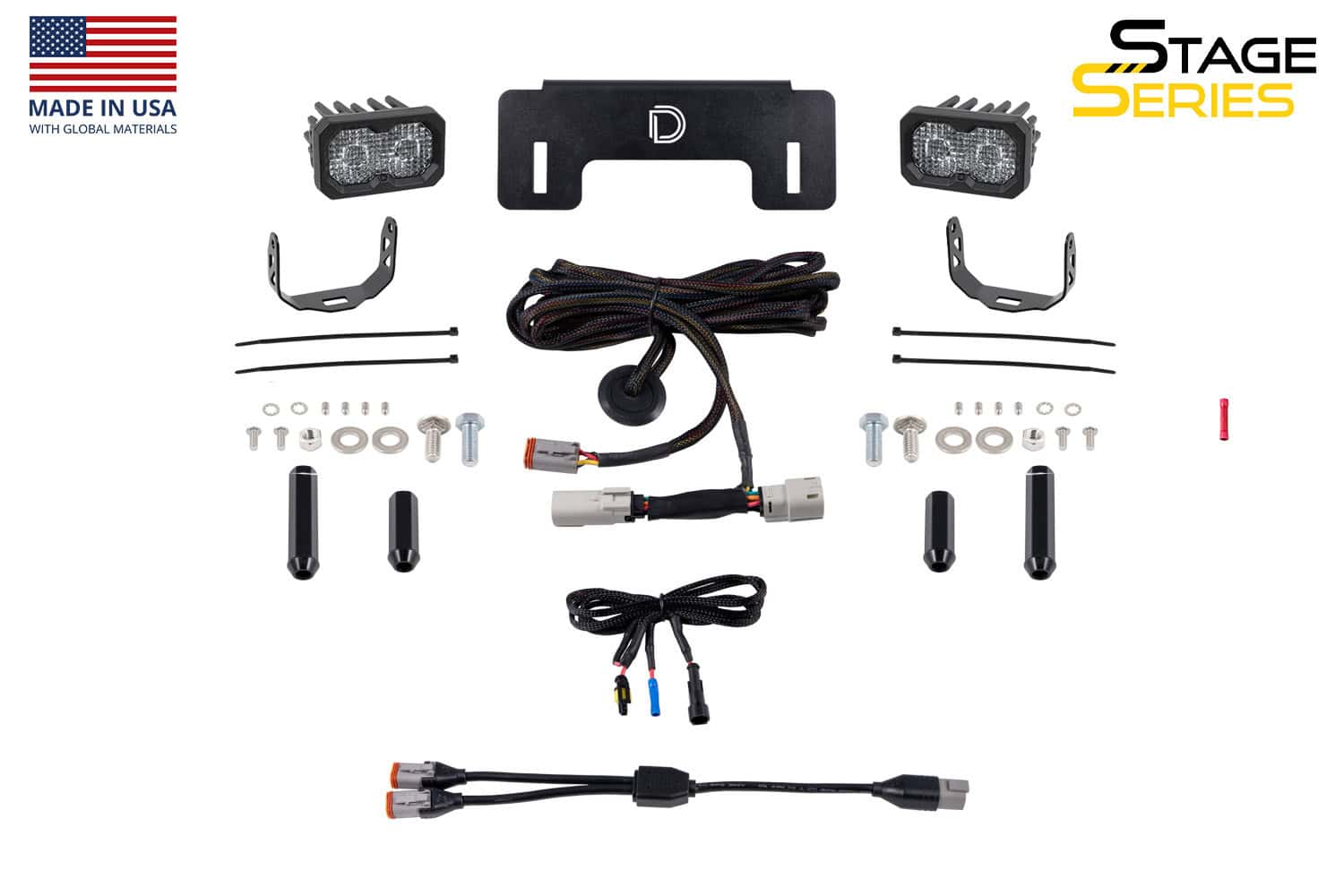

WHAT THE KIT SUPPLIES
The parts belong together
- Two C2 2.0 White Flood pods with red backlights in the chosen output level
- Bronco spare-carrier mounting bracket
- DD4133 inline taillight harness
- DT 4-pin splitter
- Two 60 mm and two 90 mm extension lug nuts
- Mounting hardware and cable ties
- Installation guide
Extension lug nuts may be supplied in black or silver. Shared mounting photographs may show C2 pods; the captions identify them. This page supplies the selected C2 2.0 kit, not an additional hitch-mounted brake light.
MOUNT · WIRE · AIM
Plan the installation before the trail
Read the guide before removing the spare wheel. The procedure accesses the tailgate/cargo trim and taillight connector, routes the harness through the specified grommet and heat-shield area, and fits the bracket with the correct extension lug nuts. Retain the bottom factory lug as instructed. Secure wiring away from heat and moving parts, reinstall the spare and trim, then aim both pods. Optional AUX override needs further wiring and crimps in the locations identified by the guide.
Read the official installation guide
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Pod family | C2 2.0 |
| Quantity | Two pods |
| Output levels | Sport or Pro |
| Main beam | 6000K White Flood |
| Accent backlight | Red |
| Power per pod | Sport 15 W / Pro 23 W |
| Operating voltage | 9–16 V DC |
| Protection | IP69K |
| Operating temperature | −40°C to 85°C |
| Lamp components | DD6394P Sport / DD6415P Pro |
Output by option
| Per-pod option | Peak intensity | Raw output |
|---|---|---|
| C2 2.0 Sport | 750 cd | 1,190 lm |
| C2 2.0 Pro | 1,550 cd | 3,140 lm |
Manufacturer figures are per pod. Raw lumens describe the LED source before optical losses, not measured light leaving the lamp. Installation photographs illustrate mounting; only an explicitly labelled exact-family comparison demonstrates that family’s beam.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How to Install Stage Series Reverse Light Bracket Kit for 2021+ Ford Bronco | Diode Dynamics
The installation uses the common Bronco reverse bracket. Use the selected pod family’s hardware and the written guide; optional AUX wiring is a separate step.
TIR Optics | Stage Series by Diode Dynamics
General TIR optics education; use this kit’s exact specifications.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General light-output terminology; not an exact-kit performance test.
CLEAR ANSWERS
Before you order
Does this work with the Raptor?
No. The manufacturer excludes Bronco Raptor. The bracket is designed around factory spare-wheel geometry; aggressive-offset wheels and aftermarket carriers require a fit check.
Will it work with halogen or LED taillights?
The manufacturer lists both OEM halogen and LED taillights for this 2021–2025 Bronco kit, excluding Raptor.
How do the white and red lights turn on?
With the harness installed as instructed, white output follows reverse and red accents follow the taillights. Optional AUX wiring can provide independent white-light control.
Is the optional AUX control plug-and-play?
The base kit uses an inline taillight harness. The optional AUX override needs additional wire routing and crimps shown in the guide.
Does it add a flashing brake light?
No. This kit provides reverse illumination and red accent backlights. It is not the separate C1R HitchMount brake/strobe product.
What warranty applies?
Eligible Stage Series pods have a manufacturer limited lifetime warranty for purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. Wiring and other accessories have their own terms; proof of purchase and the complete manufacturer conditions apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
