Why Choose The Diode Dynamics Stand-Off D-Switch Hub Mounting Kit
The Diode Dynamics Stand-Off D-Switch Hub Mounting Kit is built for installs where the standard D-Switch mounting options do not work. It gives you more mounting flexibility for fuse block lids, battery boxes, firewalls, and other flat surfaces while keeping the D-Switch Hub accessible for service or wiring changes.
Features include:
- Universal D-Switch Hub mounting solution
- Stand-off mounting option
- Side-mounting slot option
- Multiple mounting configurations
- Works with various fuse box sizes
- Powder-coated 10-gauge stainless steel construction
- 15mm spacers included with bracket-only kit
- Made in the USA using global materials
- 3-year warranty
Key Features & Benefits
Flexible Stand-Off & Side-Mount Design
This D-Switch hub mount is designed for installation flexibility when the standard mounting method is not ideal.
Features include:
- Stand-off mounting option
- Side-mounting slots
- Multiple mounting points
- Flat-surface installation
- Universal fitment approach
This makes it easier to mount the D-Switch Hub on fuse block lids, battery boxes, firewalls, and other suitable flat surfaces.
Supports Multiple Fuse Box Sizes
The bracket is designed with multiple mounting configurations to accommodate different layouts.
Features include:
- Multiple mounting points
- Designed for various fuse box sizes
- Versatile bracket positioning
- Easy hub access after installation
This helps installers find a cleaner mounting position without forcing the hub into a poor location.

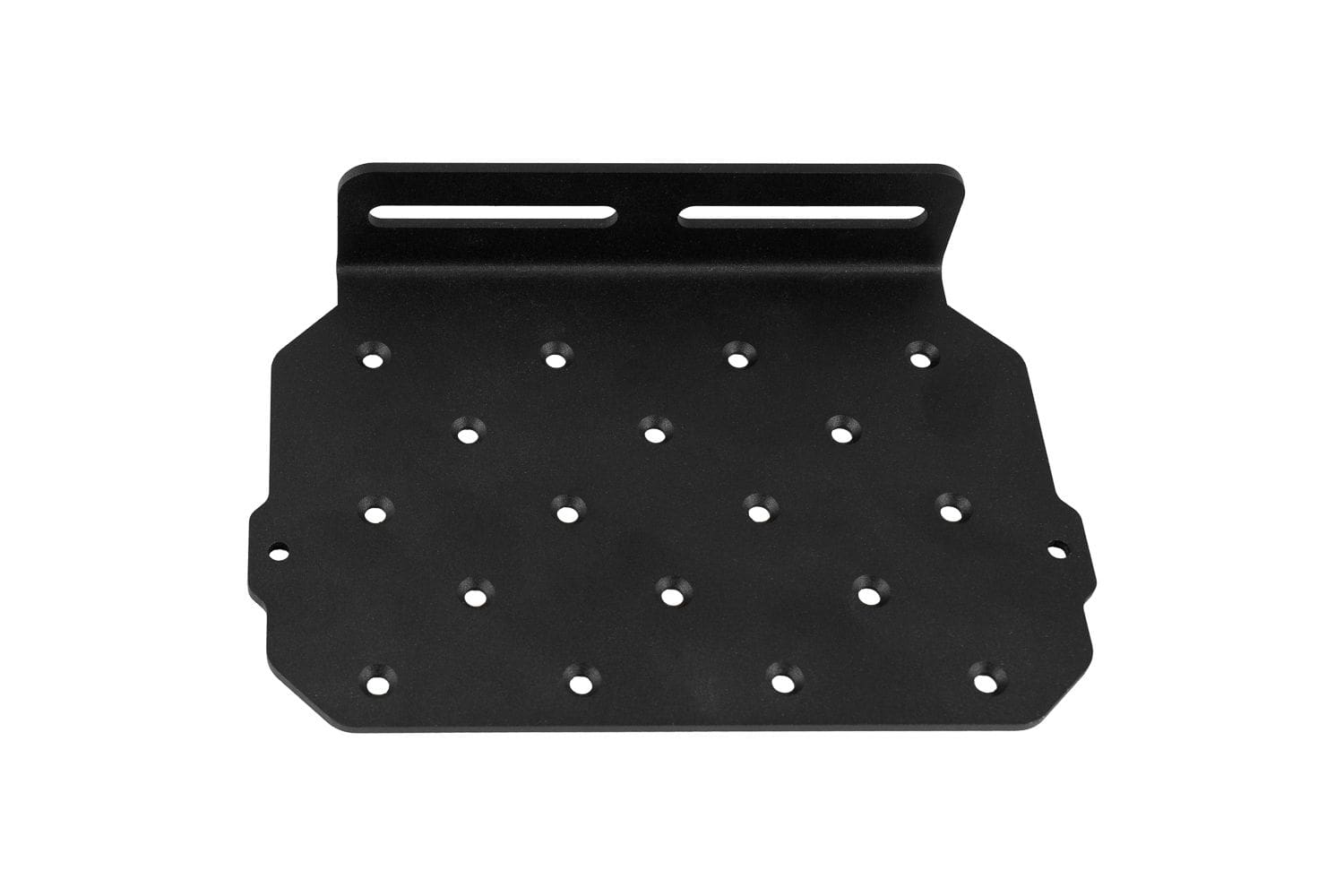

10-Gauge Stainless Steel Construction
The mounting bracket is built from powder-coated 10-gauge stainless steel for long-term durability.
Features include:
- 10-gauge stainless steel construction
- Durable powder-coated finish
- Built for engine bay and vehicle accessory installs
- Strong support for the D-Switch Hub
This gives the hub a more secure mounting point compared to improvised brackets or adhesive-only installs.
Performance, Compatibility & Use Case
Universal D-Switch Mounting
This is a universal mounting kit for the Diode Dynamics D-Switch Hub.
Designed mounting locations may include:
- Fuse block lids
- Battery boxes
- Firewalls
- Other suitable flat surfaces
Fitment depends on available space, wire routing, heat exposure, and mounting surface strength. Confirm your install location before drilling or mounting.
Tested Vehicle Fitments
This is a universal kit, but Diode Dynamics lists tested fitment for several vehicles:
| Vehicle | Years | Engine Notes |
|---|---|---|
| Toyota Tundra | 2022+ | 3.5L TT, 3.5L Hybrid |
| Toyota Tacoma | 2024+ | 2.4L, 2.4L Hybrid |
| Toyota 4Runner | 2025 | 2.4L, 2.4L Hybrid |
| Lexus GX | 2010-2023 | 4.6L, 4.7L |
| GMC Canyon | 2023+ | 2.7L Turbomax |
| Subaru Crosstrek | 2013-2017 | 2.0L |
Application & Use Case
Designed for:
- Diode Dynamics D-Switch Hub installs
- 8-channel switch panel mounting
- Off-road lighting control setups
- Auxiliary lighting wiring projects
- 12V accessory control systems
- Engine bay and flat-surface mounting locations
- Custom vehicle electrical installs
This kit is ideal when you need a cleaner, stronger, and more accessible mounting solution for the D-Switch Hub.
Installation & Technical Details
Installation Overview
The Universal D-Switch Hub Mount Kit allows the D-Switch Hub to mount to suitable flat surfaces using stand-offs or side-mounting slots.
Installation details:
- Product type: D-Switch Hub mounting kit
- Mounting style: Stand-off or side-mount
- Bracket material: 10-gauge stainless steel
- Finish: Powder-coated
- Mounting surface: Suitable flat surface
- Spacer size: 15mm spacers included with bracket-only kit
- Application: Universal
- Made in: USA using global materials
Professional installation is recommended, especially when mounting near electrical systems, fuse boxes, batteries, or engine bay components.

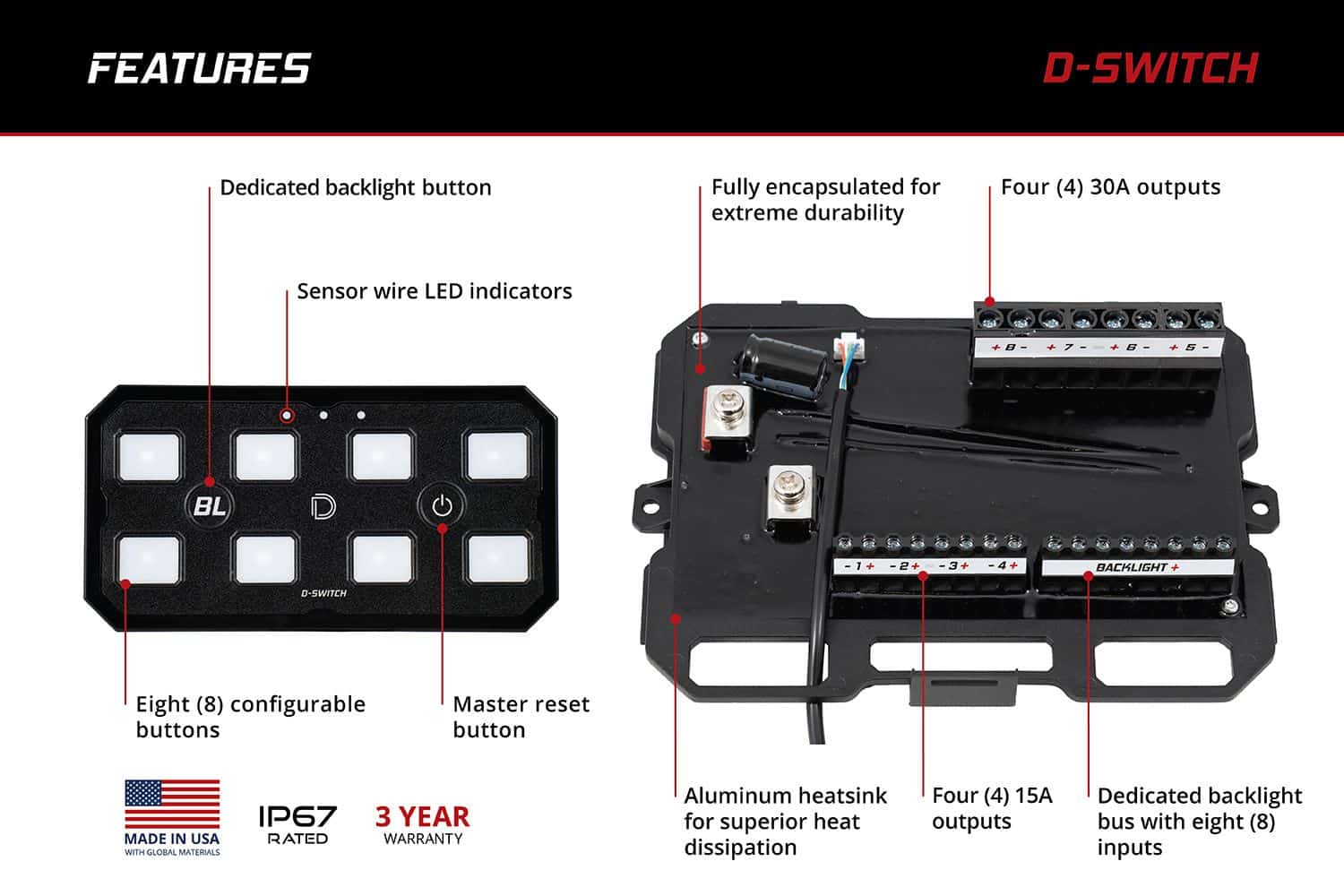

D-Switch System Features
8-Channel Accessory Control
The D-Switch is an advanced 8-channel switch panel designed to control 12V accessories.
D-Switch output layout:
- Four 30A outputs
- Four 15A outputs
- Eight customizable output channels
- Physical controller support
- Bluetooth app control
This makes it a strong controller option for off-road lights, work lights, backlights, and other 12V accessories.
Dedicated Backlight Channel
The D-Switch includes a dedicated backlight channel for accent lighting.
Features include:
- 9th button for backlight control
- Backlight bus bar
- Eight extra backlight outputs
- Controls multiple backlit accessories at once
- Preserves main outputs for primary accessories
This is especially useful for builds running multiple Diode Dynamics backlit lights or accent lighting accessories.
Dynamic Channel Assignment
The D-Switch allows flexible button and channel programming.
Features include:
- Assign multiple outputs to one button
- Control one output with different button behaviors
- Program strobe patterns
- Customize each button function
- Supports advanced lighting setups
This gives you more control than a traditional one-button-to-one-output switch panel.
Bluetooth, CarPlay & Android Auto Control
The D-Switch can be controlled through the included controller or through the Bluetooth app.
Control options include:
- Physical controller
- Bluetooth app for iOS and Android
- Apple CarPlay compatibility
- Android Auto compatibility
- Custom button names
- Custom images
- Custom button colors
- Pair up to four D-Switch units
Once configured, the custom button layout can be accessed through supported vehicle infotainment screens.
OEM Signal Integration
The D-Switch includes trigger wiring for vehicle signal integration.
Features include:
- Dedicated ignition wire
- Trigger wires for 12V factory signals
- Night Mode wire
- Automatic activation from vehicle signals
- Support for high beam, fog light, reverse light, and other signal-based triggers
This allows accessories to activate automatically based on programmed vehicle inputs.
Build Quality, Materials & Warranty
Durable Mount & D-Switch System Design
The mount is built for long-lasting durability, while the D-Switch system is designed for demanding 12V accessory control.
Key details:
- Powder-coated 10-gauge stainless steel bracket
- Solid-state D-Switch design
- No mechanical relays
- No physical fuses to replace
- Encapsulated hub with aluminum heatsink
- IP67 weather resistance rating for hub and controller electronics, excluding wiring terminals
Proper installation and wiring are important for long-term reliability.
Warranty Coverage
This product includes a 3-year warranty.
The supplied product information also lists a 30-day return policy with no restocking fee and a 100% satisfaction guarantee.
What’s Included
Bracket Only
Included:
- 1 × Universal D-Switch Hub Bracket
- 4 × 15mm Spacers
- Installation Hardware

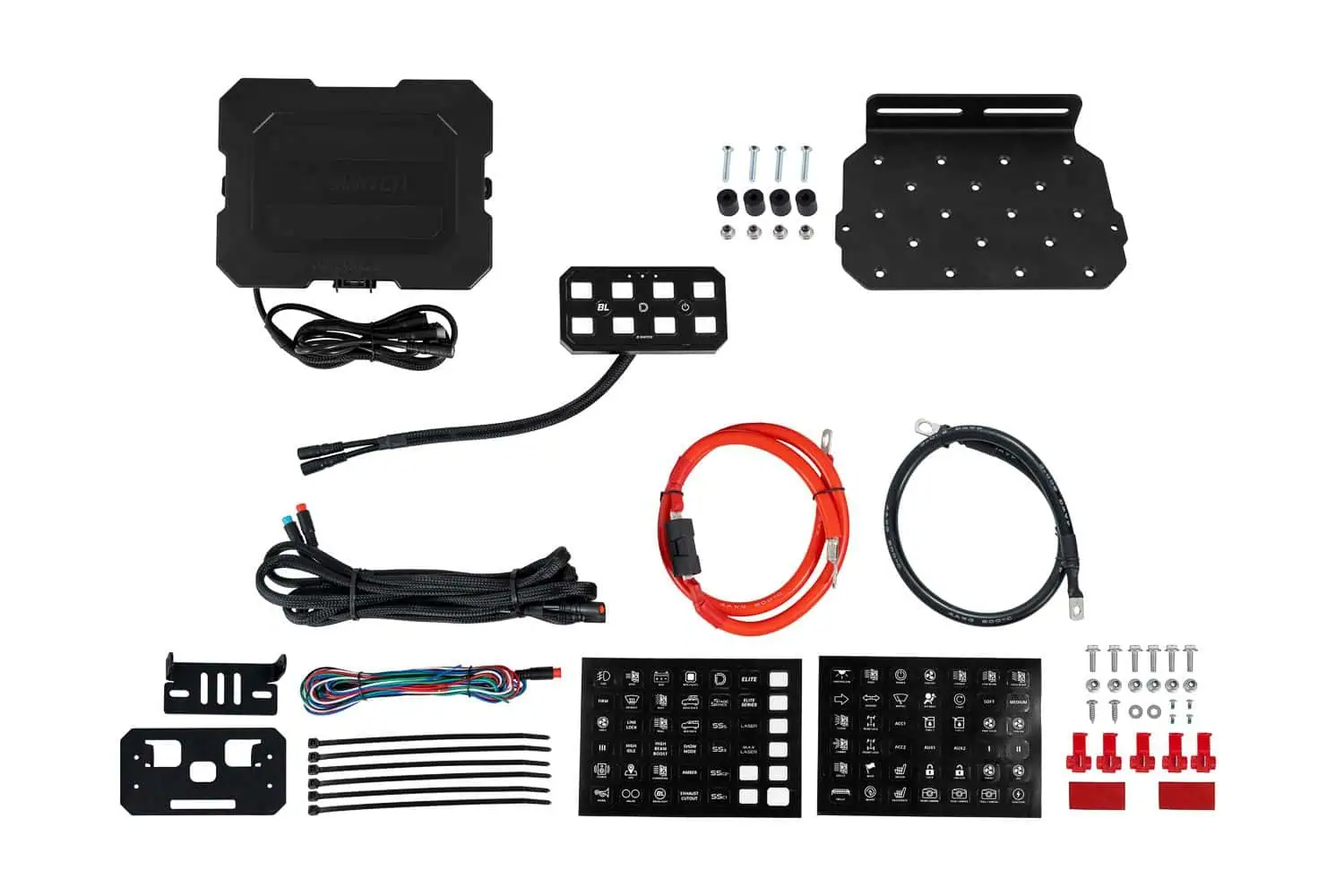

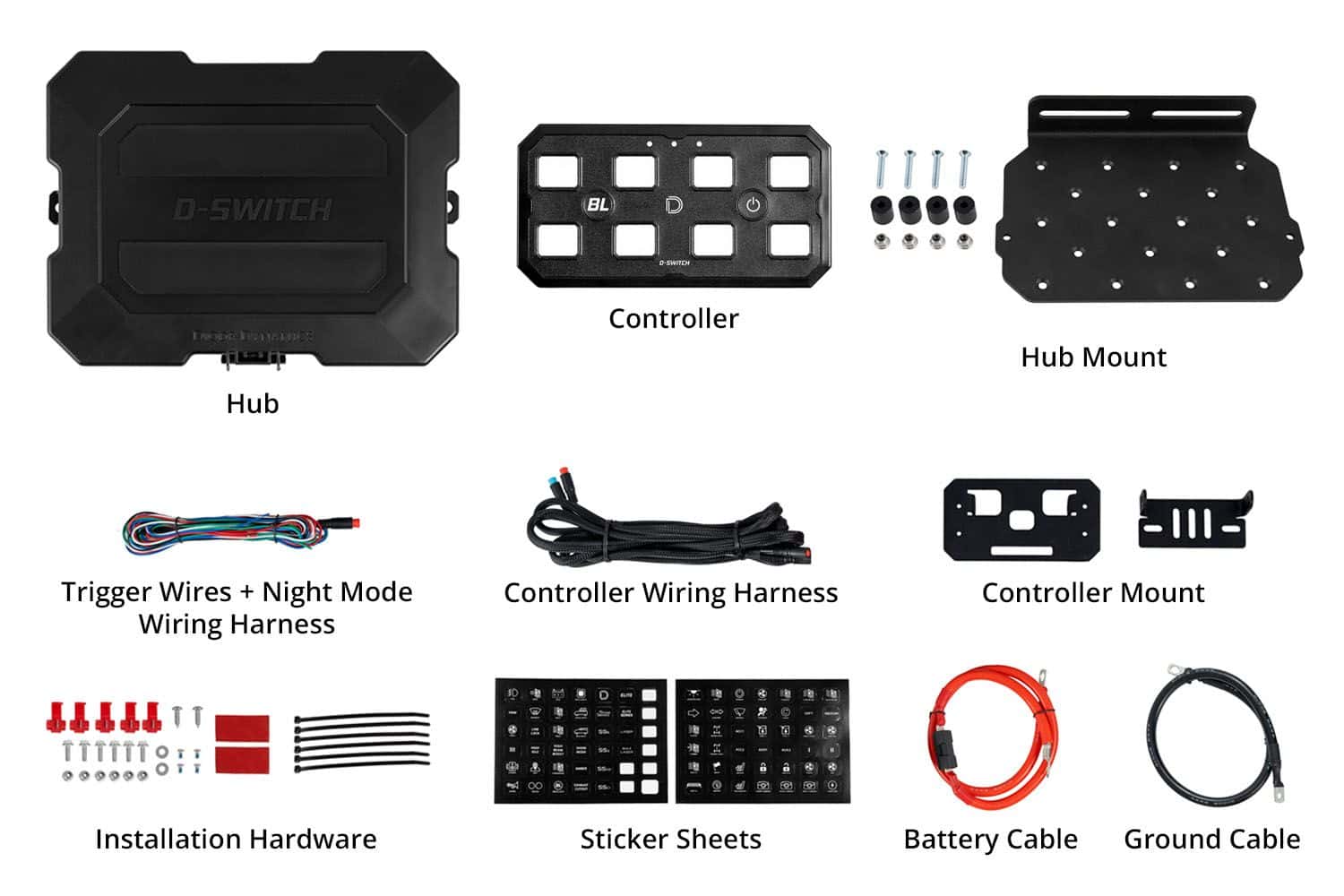

D-Switch With Bracket
Included:
- 1 × Switch Panel Hub
- 1 × Switch Panel Controller
- 1 × Controller Universal Mounting Bracket
- 1 × Universal D-Switch Hub Bracket
- 1 × 10-Foot Controller Wiring Harness
- 1 × Trigger Wires + Night Mode Wiring Harness
- 1 × 3-Foot 4AWG Battery Cable
- 1 × 3-Foot 4AWG Ground Cable
- 2 × Button Sticker Sheets
- 5 × T-Taps
- 6 × Zip Ties
- 4 × 15mm Spacers
- Double-Sided Tape
- Installation Hardware
- Installation & Programming Guide
Quantity:
- 1 × Kit
Frequently Asked Questions About The Diode Dynamics D-Switch Hub Mount Kit
What does the Diode Dynamics Stand-Off D-Switch Hub Mounting Kit do?
This kit gives you more ways to mount the Diode Dynamics D-Switch Hub.
It allows stand-off or side-mount installation on suitable flat surfaces like fuse block lids, battery boxes, or firewalls.
Is this a universal mounting kit?
Yes. This is a universal D-Switch Hub mounting kit.
Diode Dynamics also lists tested fitment for select Toyota, Lexus, GMC, and Subaru vehicles.
What is the bracket made from?
The bracket is made from 10-gauge stainless steel.
It also has a powder-coated finish for durability.
Can this mount to a fuse box lid?
Yes. The kit is designed to accommodate a range of fuse box sizes and can mount to suitable fuse block lids.
Confirm space, clearance, and surface strength before installation.
Is the D-Switch included?
It depends on the version selected.
The bracket-only version includes the hub bracket, spacers, and hardware. The D-Switch with bracket version includes the D-Switch Hub, controller, bracket, wiring, cables, and installation components.
What does the D-Switch control?
The D-Switch controls 12V accessories, including off-road lights, work lights, backlights, and other electrical accessories.
It has eight main output channels plus a dedicated backlight channel.
Does the D-Switch work with Bluetooth?
Yes. The D-Switch can be configured and controlled through the Bluetooth app for iOS and Android.
It is also listed as compatible with Apple CarPlay and Android Auto once configured.
What outputs does the D-Switch have?
The D-Switch includes four 30A outputs and four 15A outputs.
It also includes a dedicated backlight bus with eight extra outputs for backlit accessories.
Is the D-Switch weather resistant?
The hub and controller electronics are listed with an IP67 weather resistance rating, excluding wiring terminals.
Proper installation and wiring protection are still important.
What warranty is included?
This product includes a 3-year warranty.
The supplied product information also lists a 30-day return policy with no restocking fee and a 100% satisfaction guarantee.
