Product Overview
Dual-color watermelon lights are everywhere—but most rely on plastic lenses, scattered diode arrays, and generic switchback logic. These designs often suffer from weak beam focus, moisture intrusion, and inconsistent color output.
The Glass is Class Duo Gen 2 solves those problems at the source.
By pairing a real tempered-glass star lens with the machine-built AlphaFit Duo bulb, this system produces intense, razor-sharp beam lines with zero center dark spot—something multi-diode competitors simply can’t replicate. The Amber/White configuration gives you a true amber primary color for classic marker use, with a powerful white secondary that instantly overrides the amber when triggered.
This is not a gimmick dual-color light. It’s a precision optical system.
Key Features & Benefits
Amber Primary / White Secondary Dual-Color Output
The AlphaFit Duo bulb uses two dedicated LED chip banks per side—one amber, one white.
-
Amber for traditional marker or clearance lighting
-
White for auxiliary, work, or show illumination
When both color wires receive power, white overrides amber automatically, eliminating flicker or mixed color bleed.
AlphaFit Duo 23-Watt LED Bulb – Gen 2 Platform
At the core of the Gen 2 Duo is the 23-watt AlphaFit Duo bulb, engineered specifically for Glass is Class optics.
-
Single-function per color (no dim/bright cycling)
-
Consistent full-power output
-
Optimized chip spacing for maximum beam fill
Unlike the original hand-assembled Duo bulbs, the Gen 2 AlphaFit Duo is machine-manufactured with tight tolerances and strict QC, dramatically improving reliability and longevity.
Advanced Cooling & Moisture Control
Just like the single-color Gen 2 AlphaFit, the Duo version features:
-
Oversized anodized aluminum body
-
Internal active cooling fan
-
Passive heat-sink structure beneath the LED chips
This design actively pulls heat away from the LEDs while creating positive internal pressure, allowing moisture to escape through vent membranes instead of being trapped inside the lamp.
Real Tempered-Glass Star Lens
Plastic lenses scatter light. Glass controls it.
The Glass is Class star-pattern glass lens:
-
Produces long, defined beam lines
-
Eliminates the center dark void common in multi-LED designs
-
Resists yellowing, hazing, and heat deformation
The result is a beam pattern that looks sharper, travels farther, and simply hits different.
Simple 3-Wire Control – No Mandatory 3-Way Switch
The AlphaFit Duo uses a 3-wire configuration:
-
Ground
-
Primary color (amber)
-
Secondary color (white)
You can:
-
Tie amber into marker lights and trigger white separately
-
Use a 3-way switch if desired
-
Or run white full-time as an override
Some competitors require a 3-way switch to function correctly. The Glass is Class Duo does not.
Performance / Compatibility / Use-Case
The Amber/White Duo Gen 2 is ideal for:
-
Show trucks needing classic amber styling with white accent capability
-
Work trucks requiring amber markers with instant white utility light
-
Custom builds where beam quality and optical sharpness matter
Thanks to the small emission surface area and precision chip placement, the Duo Gen 2 produces a full, uniform beam with no dead center, outperforming 17- and 19-diode “dual revolution” style lights.

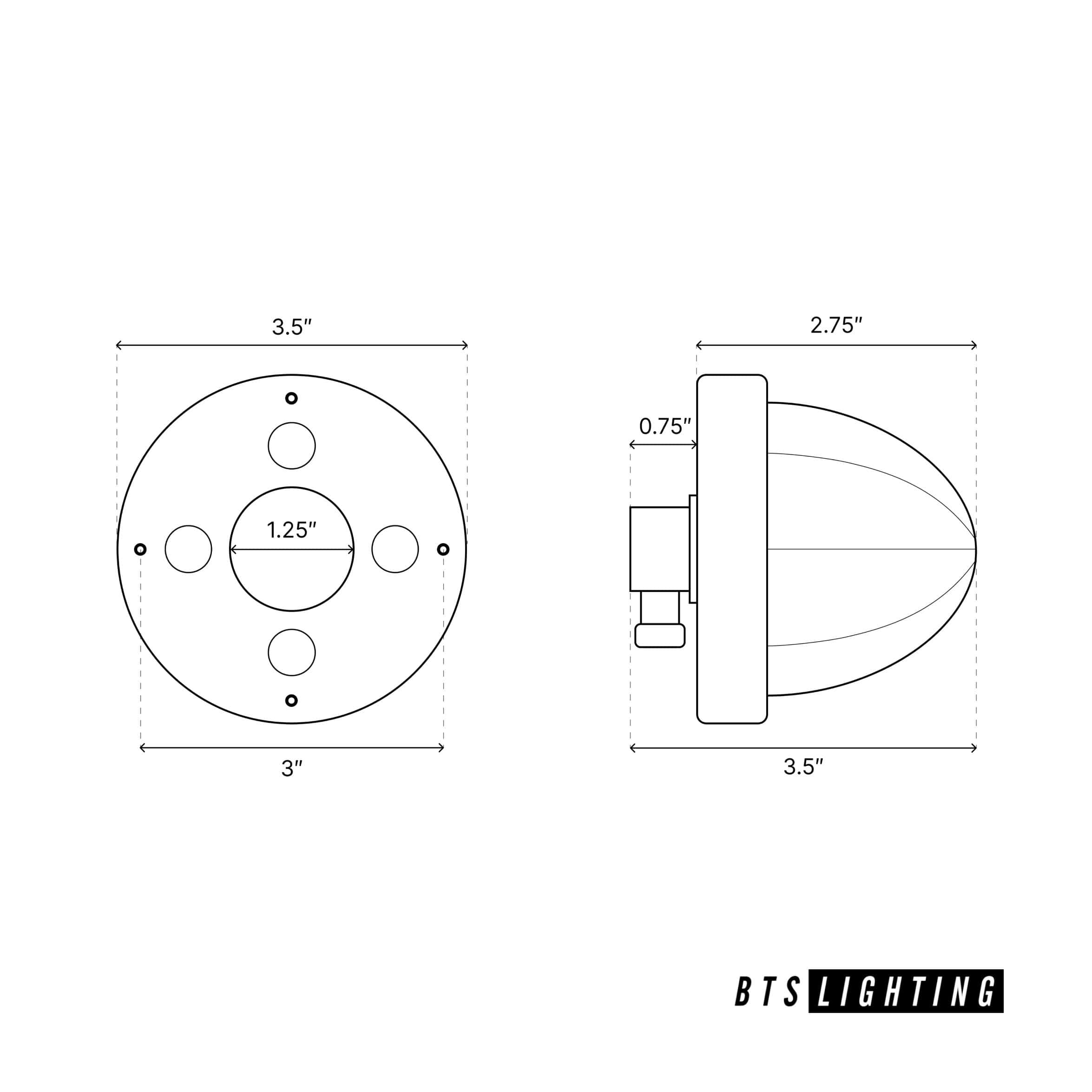

Installation / Fitment / Technical Details
-
Voltage: 12V & 24V compatible
-
Power Draw: 23W (active color)
-
Bulb Base: Custom AlphaFit Duo (H11-style fitment)
-
Wiring: 3-wire (ground, amber, white)
-
Cooling: Active + passive hybrid system
-
Lens: Tempered glass star pattern
Mounting brackets sold separately.
Build Quality / Warranty
The Gen 2 Glass is Class Duo represents a major leap forward from the original Duo line:
-
Machine-built bulbs instead of hand-assembled
-
Tighter tolerances
-
Lower failure rates
-
Improved thermal control
Warranty: 1-Year Limited Warranty
Designed and tested by Alpha Series Lighting for real-world truck applications.
⚠️ Not SAE/DOT compliant
These lights are intended for show, off-road, and auxiliary use only due to extreme brightness.
What’s Included
-
(1) Glass is Class Duo Gen 2 Watermelon Light – Amber/White
-
(1) Pre-installed AlphaFit Duo 23W LED bulb
-
Integrated cooling system and venting
-
Mounting bracket not included
Frequently Asked Questions
How does Amber/White differ from Amber/White single-color lights?
The Duo version allows instant color switching, not brightness change. Amber and white are separate LED banks, each running at full output.
Does white override amber automatically?
Yes. If both wires receive power, white overrides amber every time—no delay, no mixed color.
Can I run this without a 3-way switch?
Absolutely. Many users wire amber to markers and trigger white separately.
Is this waterproof?
The glass lens is sealed, and the AlphaFit Duo uses positive-pressure venting. It is weather-resistant and moisture-managed, not a cheap sealed plastic unit.
Is this the same bulb as the single-color AlphaFit?
Same engineering, cooling, and housing—but with dual LED chip banks and single-function color control.
