Holley RetroBright 4×6 • LED • high beam only • one lamp
Classic 4×6 styling with a serviceable LED high beam
Holley RetroBright gives classic vehicles a high-beam-only LED upgrade with a shallow cast-aluminium housing and replaceable LED cartridge. Choose LFRB121 3000K Classic White, LFRB141 5700K Modern White or LFRB101 with a yellow lens and 5700K LED source.
High beam only
Each LFRB1x1 selection supplies 3,000 lumens and 37,000 candela for the high-beam position.
Three appearances

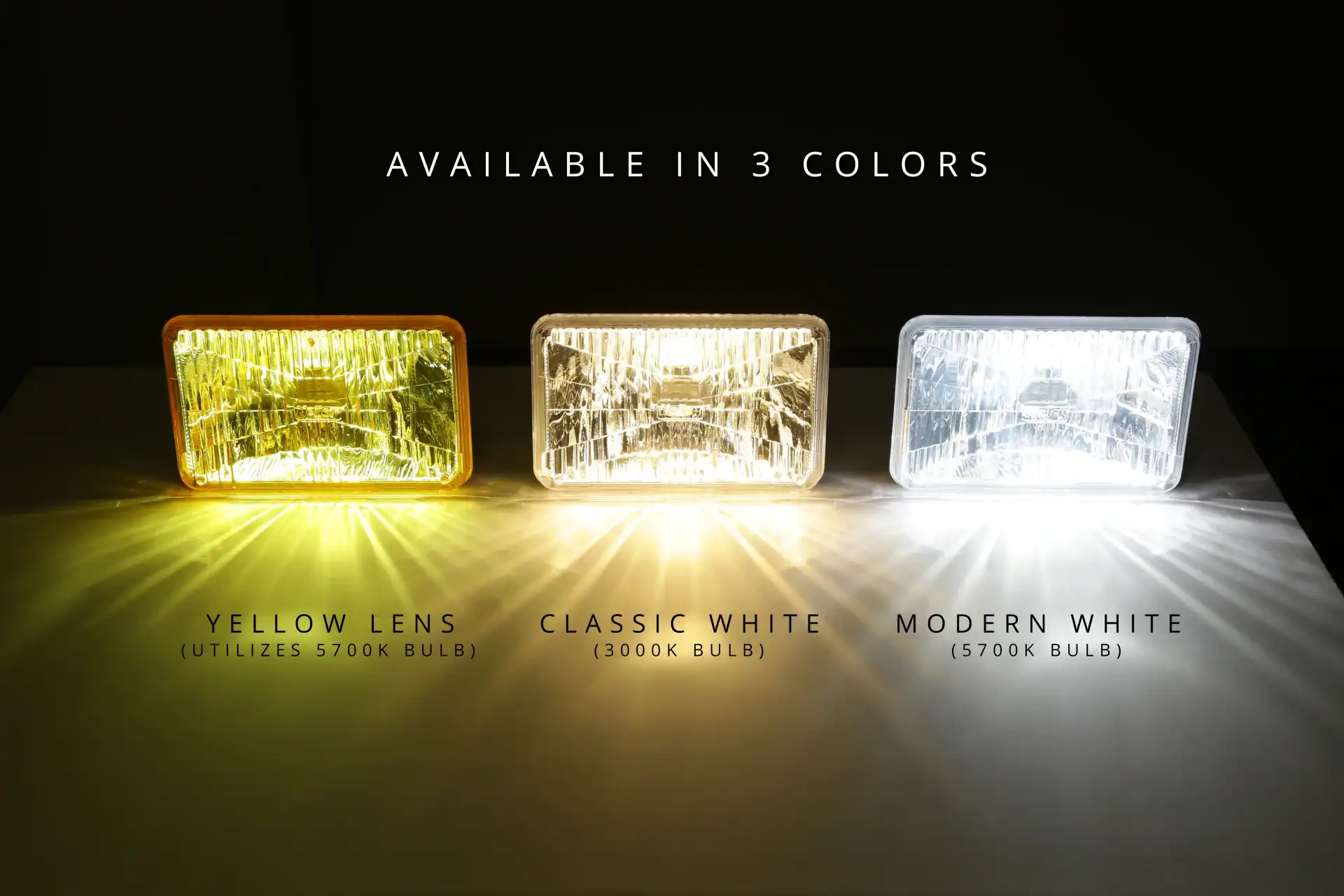

Choose warm 3000K, modern 5700K or a yellow lens with a 5700K source.
One serviceable lamp
Each selection is sold individually and uses a replaceable LED cartridge.
Product details
Road-use, connection and construction facts
9–18V DC
All three high-beam SKUs use an H4 connection and are specified for left-hand-drive vehicles.
DOT beam pattern
Holley lists DOT compliance and says the beam pattern meets or exceeds SAE and DOT requirements.
Shallow construction

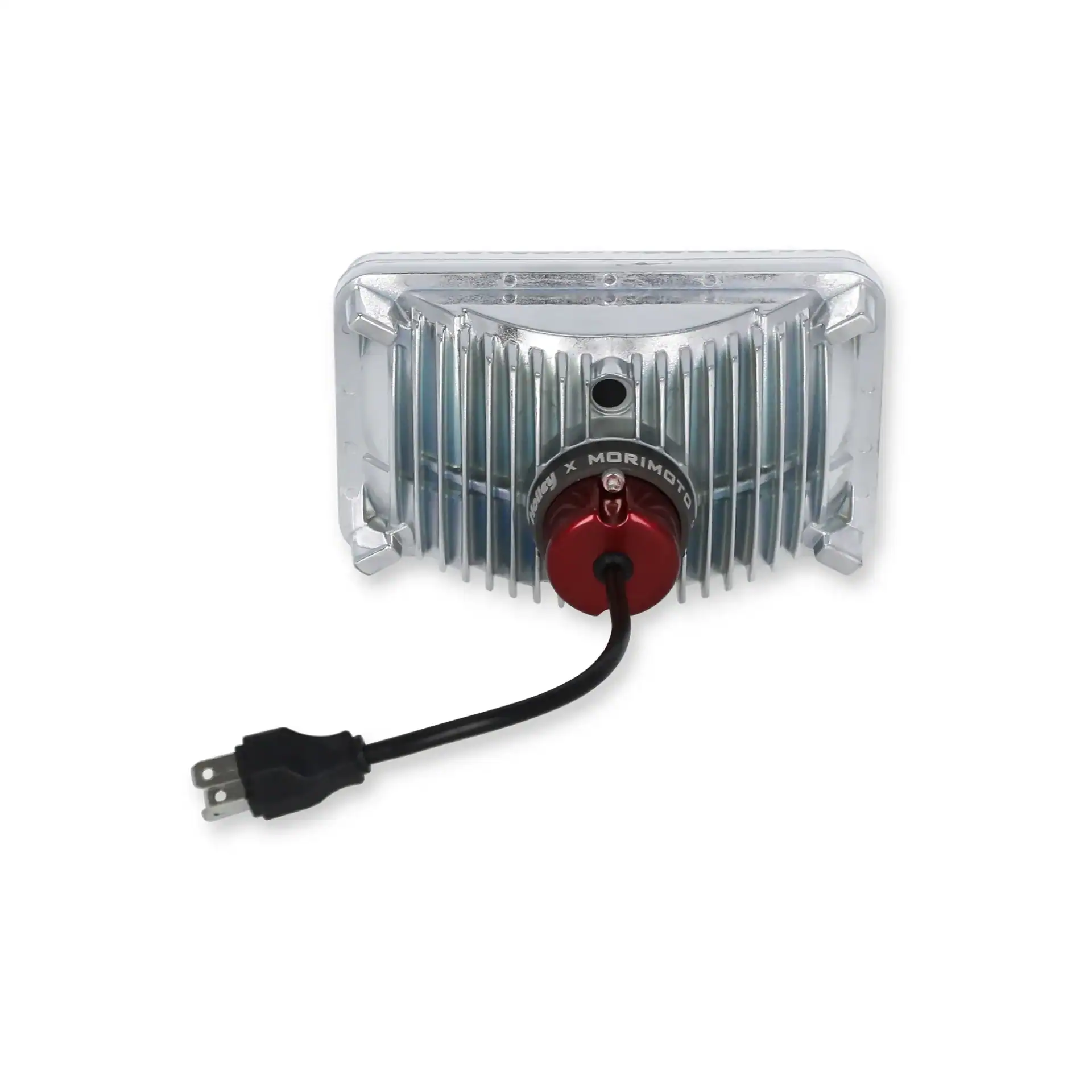

Cast-aluminium housing and a UV-treated polycarbonate lens support installation in many shallow classic-vehicle buckets.
Before ordering
Check the high-beam position, bucket and H4 wiring
Review Holley’s high-beam product details, then confirm the original high-beam position, 9–18V electrical system, H4 pinout, ground strategy, mounting and rear clearance. Some older Toyota applications require the H840 switched-ground harness.
LFRB121, LFRB141 and LFRB101 are high-beam-only products. The separate LFRB120-1, LFRB140-1 and LFRB100-1 models provide combined high/low beam and are separate products from the high-beam lamps offered here.
Package contents
One selected high-beam lamp
Included: one selected high-beam lamp with replaceable LED cartridge and mounting hardware. LFRB121 and LFRB141 also list an H820 harness and unterminated male connector for applications that are not direct plug-and-play.
Installation resources

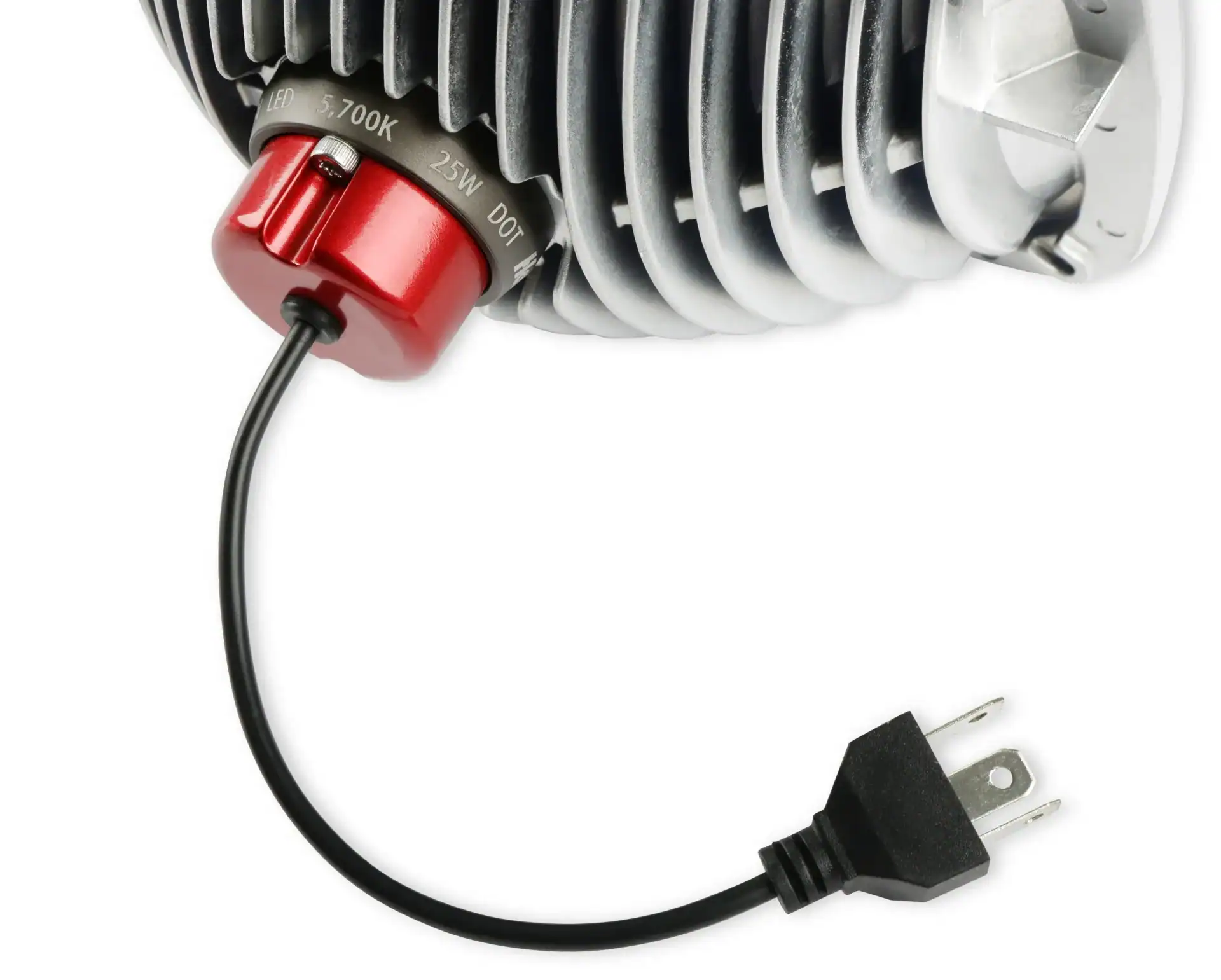

Check the correct H4 pinout
Choose the diagram for the lamp’s beam function and compare the connector orientation with the actual lamp and vehicle wiring. The reference separates combined high/low and high-beam-only connections.
Questions before ordering
Holley RetroBright high-beam FAQ
Does this lamp provide low beam?
No. LFRB121, LFRB141 and LFRB101 are high-beam-only lamps for use with the vehicle’s regular low-beam headlights.
Which colour SKUs can I choose?
LFRB121 is 3000K Classic White, LFRB141 is 5700K Modern White and LFRB101 uses a yellow lens with a 5700K source.
How much light does each model produce?
Holley lists 3,000 high-beam lumens and 37,000 candela for each of these high-beam SKUs.
Is each selection sold individually?
Yes. Each selected LFRB1x1 model is one high-beam lamp.
Can wiring changes be required?
Yes. Confirm the H4 pinout and ground strategy. Some older Toyota applications require H840, and some non-standard connectors require pin changes using the supplied standard H4 connection.
Compare 4×6 options
Compare RetroBright beam functions and wiring
Warranty
Two-year limited manufacturer warranty
Holley lists a two-year limited manufacturer warranty. Coverage remains subject to Holley’s current terms and exclusions.
