J.W. Speaker Model 8800 EVO-X • heated 5-in-1 • combined high/low • one lamp
Five functions in one heated 4×6 lamp

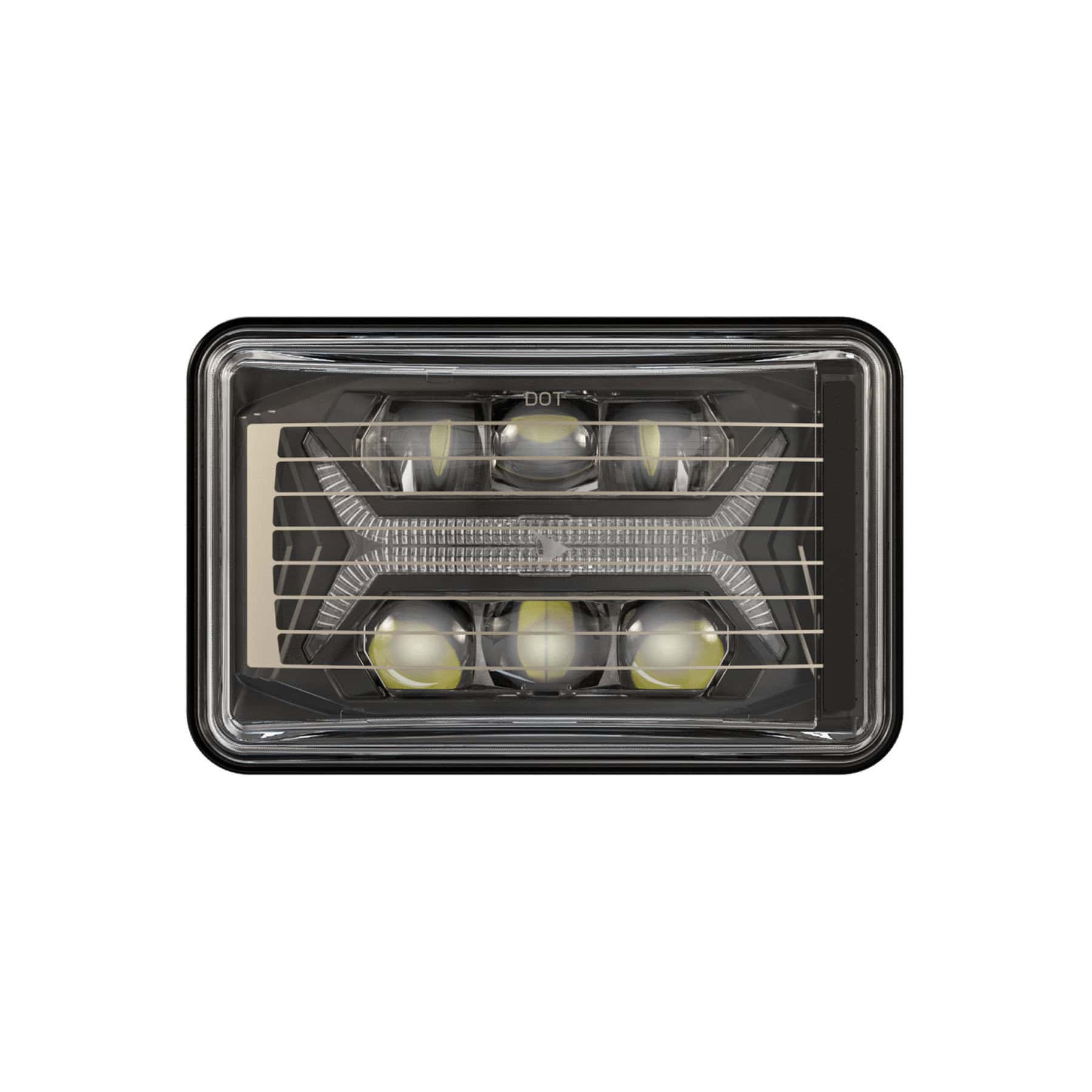

The J.W. Speaker Model 8800 EVO-X combines daytime running light, high beam, low beam, front position light and front turn indicator in one heated LED headlight. Choose 0562121 with a black bezel or 0562131 with a chrome bezel.
Heated 5-in-1
SmartHeat helps clear the lens while the lamp integrates five lighting functions.
High and low beam
Effective output is 1,420 lumens high beam and 740 lumens low beam, with 60,000 candela listed.
One lamp
Each bezel selection is sold individually.
Product details
Electrical, optical and environmental specifications
Electrical connection
12–24V DC input, 9–32V DC operating range and an integrated six-pin Deutsch connector. The mating connector is Deutsch DT06-6S.
Output and colour
Raw output is 3,740 high / 2,330 low lumens; effective output is 1,420 high / 740 low lumens. Nominal colour temperature is 5700K.
Built for exposure
Hard-coated polycarbonate lens and manufacturer-listed IEC IP67 and IP69K protection.
J.W. Speaker lists applicable FMVSS 108, SAE and ECE standards for these exact SKUs. The integrated direction indicator is specifically not DOT compliant; confirm its permitted use and the vehicle’s required signalling arrangement.
Before ordering
Match all six connector positions and available space
Review the official Model 8800 EVO-X specifications, then confirm every required function, connector pinout, mounting, rear clearance, traffic pattern and quantity. The lamp measures 6.6 × 4.22 × 3.41 inches and retrofits 1A1 and 2A1 4×6 sealed beams.
These 0562xxx EVO-X parts are distinct from older 055xxxx Model 8800 Evolution 2 lamps. Optional J.W. Speaker harnesses may support selected H4 functions, but they do not establish universal electrical fit.
Package contents
One selected EVO-X lamp
Included: one heated Model 8800 EVO-X 5-in-1 headlight in the selected bezel finish. Black 0562121 is currently listed with an 8–10 week lead time; chrome 0562131 is the alternate finish.
Questions before ordering
Model 8800 EVO-X 5-in-1 FAQ
Which five functions are integrated?
Daytime running light, high beam, low beam, front position light and front turn indicator.
Which SKU matches each bezel?
0562121 has a black bezel and 0562131 has a chrome bezel.
What connector does the lamp use?
It has an integrated six-pin Deutsch connector; the listed mating connector is DT06-6S.
Is every integrated function DOT compliant?
No. J.W. Speaker specifically states that the direction indicator is not DOT compliant. Confirm permitted use for the vehicle and jurisdiction.
Is this listing for a pair?
No. Each black or chrome selection is sold as one lamp.
Compare 4×6 options
Compare EVO-X functions and finishes
Warranty
Two-year limited warranty
J.W. Speaker covers heated lights with a two-year limited warranty. Warranty claims are initiated through the authorized dealer where the light was purchased and remain subject to the manufacturer’s current terms and exclusions.
