Bright & Reliable
Provides dependable illumination for real-world driving conditions.
Easy Installation
Dedicated low/high lamps use a10-inch Deutsch-to-H4 lead. The5-in-1 version uses a6-pin Deutsch connection; verify the matching harness and vehicle pinout.
Smart Design
Combines advanced lighting performance with a distinctive visual signature.
Performance that delivers
Engineered with Purpose.
The8800EVO-X range includes dedicated low-beam, dedicated high-beam and combined5-in-1 lamps. Choose the required beam position first; Dual Burn applies to the combined configuration, not to every lamp in the family.
SmartHeat helps manage snow and ice on the lens; conditions can still require clearing.
Choose from Low Beam Heated Headlight, High Beam Heated Headlight, or 5-in-1 Heated (lo/hi) Headlight, with black or chrome bezel options.
- Agriculture
- Automotive
- Construction
- Industrial
- Mining
- Motorcycle
- Off-Road 4×4
- Powersports
- Specialty Vehicles
- Truck & Bus
- Commercial Truck
- Material Handling
- Railroad

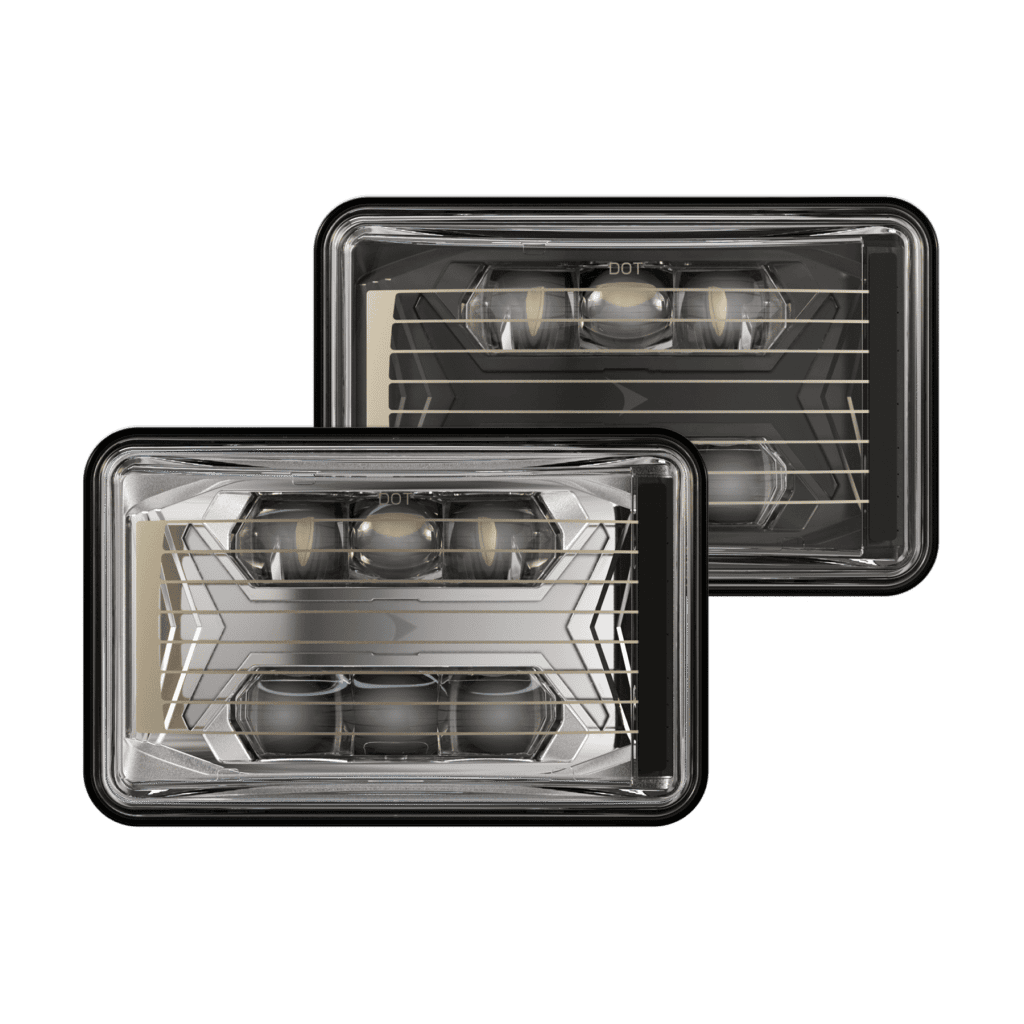

Model 8800 4” x 6” EVO-X
LED Low Beam Heated Headlight
Full brightness at minimum voltage.
Input Voltage: 12-24V DC
Operating Voltage: 9-32V DC
Yellow Wire: Power
Black Wire: Ground
Current Draw: 5.00A @ 12V DC, 2.50A @ 24V DC
Raw Lumen Output: 3,600
Effective Lumen Output: 1,090
Candela Output: 21,400
Nominal LED Color Temperature: 5700 K
Beam Pattern(s): Forward Lighting – Low Beam (DOT)

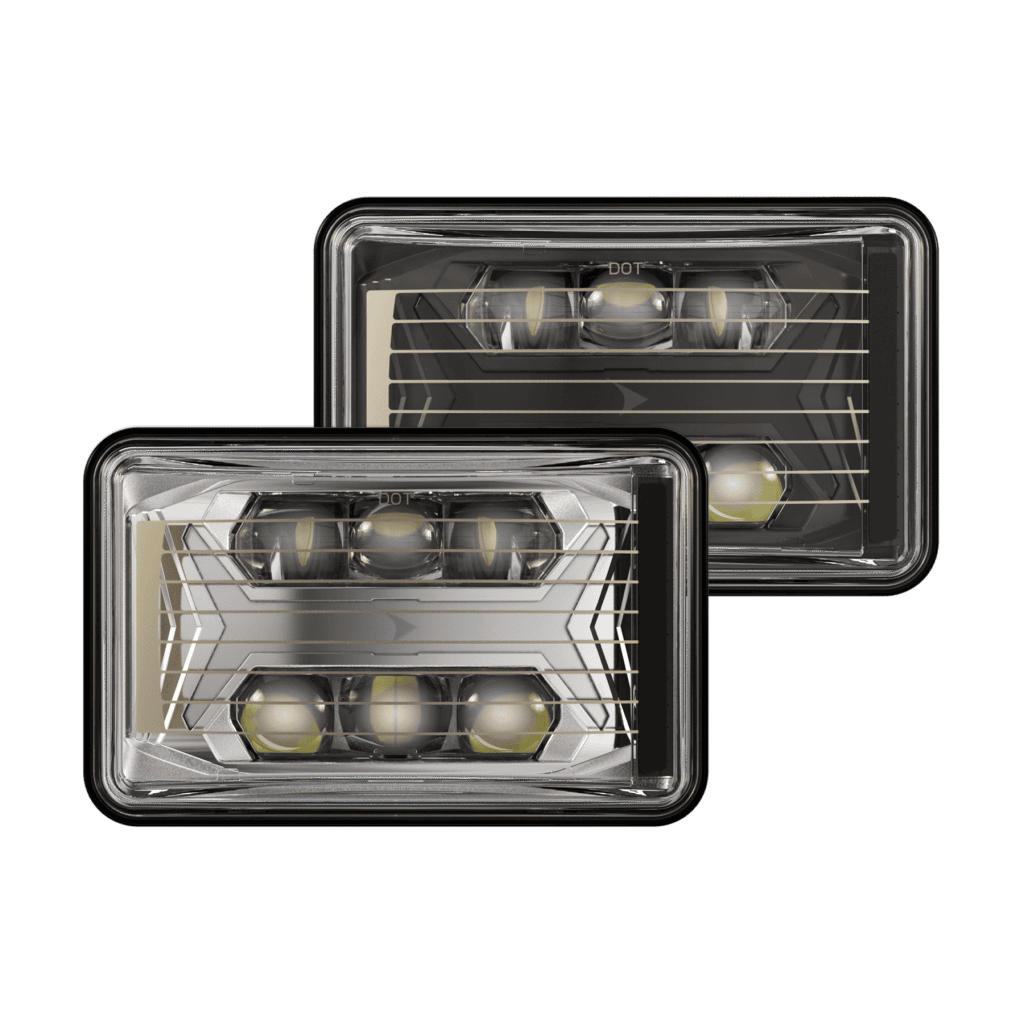

Model 8800 4” x 6” EVO-X
LED High Beam Heated Headlight
Designed to perform in the harshest conditions.
Input Voltage: 12-24V DC
Operating Voltage: 9-32V DC
Red Wire: Power
Black Wire: Ground
Current Draw: 5.00A @ 12V DC, 2.50A @ 24V DC
Raw Lumen Output: 3,425
Effective Lumen Output: 1,390
Candela Output: 66,000
Nominal LED Color Temperature: 5700 K
Beam Pattern(s): Forward Lighting – High Beam (DOT)

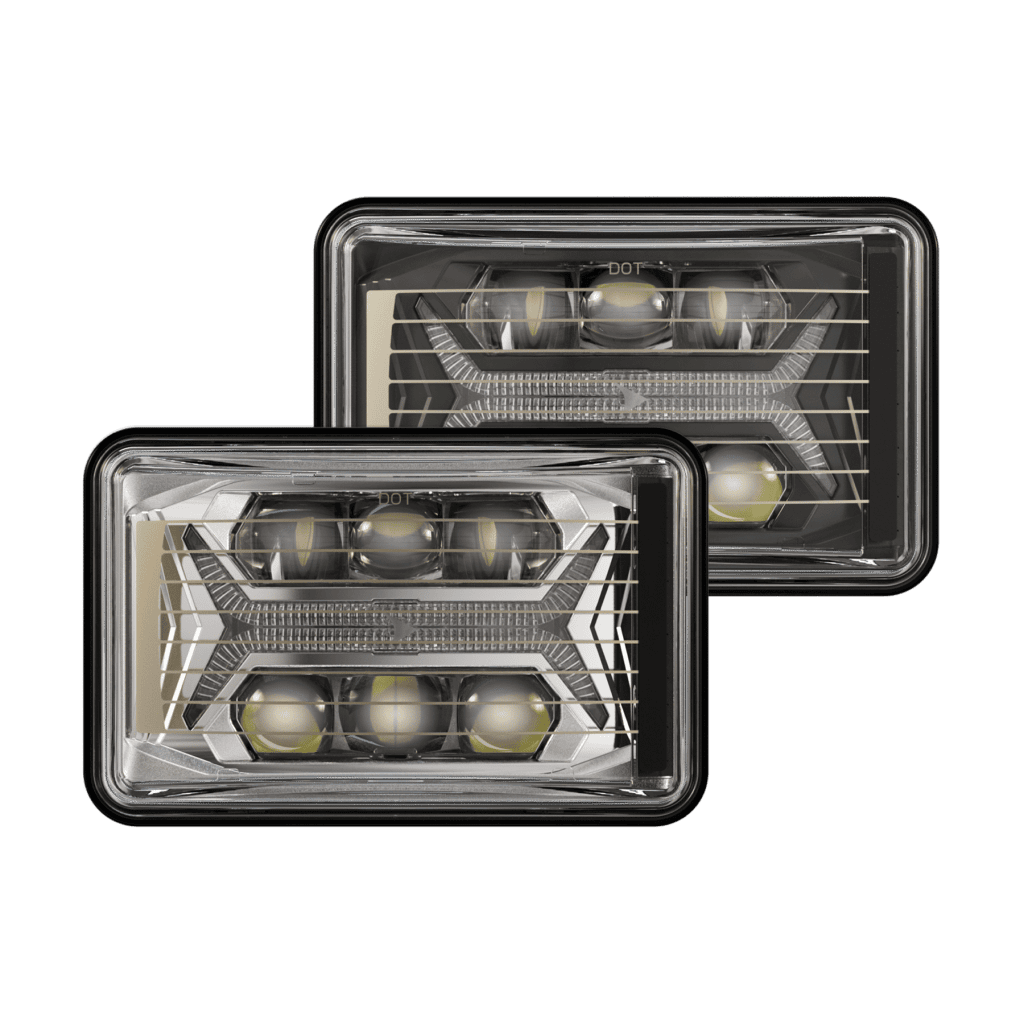

Model 8800 4” x 6” EVO-X
LED 5-in-1 Heated Headlight
J.W. Speaker Dual Burn on the combined low/high configuration.
Input Voltage: 12-24V DC
Operating Voltage: 9-32V DC
Current Draw:
4.69A @ 12V DC (Low Beam)
2.39A @ 24V DC (Low Beam)
7.25A @ 12V DC (High Beam)
3.51A @ 24V DC (High Beam)
0.26A @ 12V DC (Front Position)
0.15A @ 24V DC (Front Position)
5.16A @ 12V DC (DRL)
2.53A @ 24V DC (DRL)
2.98A @ 12V DC (Direction Indicator)
1.53A @ 24V DC (Direction Indicator)
Raw Lumen Output: 3,740 (High beam), 2,330 (Low Beam)
Effective Lumen Output: 1,420 (High Beam), 740 (Low beam)
Candela Output: 60,000
Nominal LED Color Temperature: 5700 K

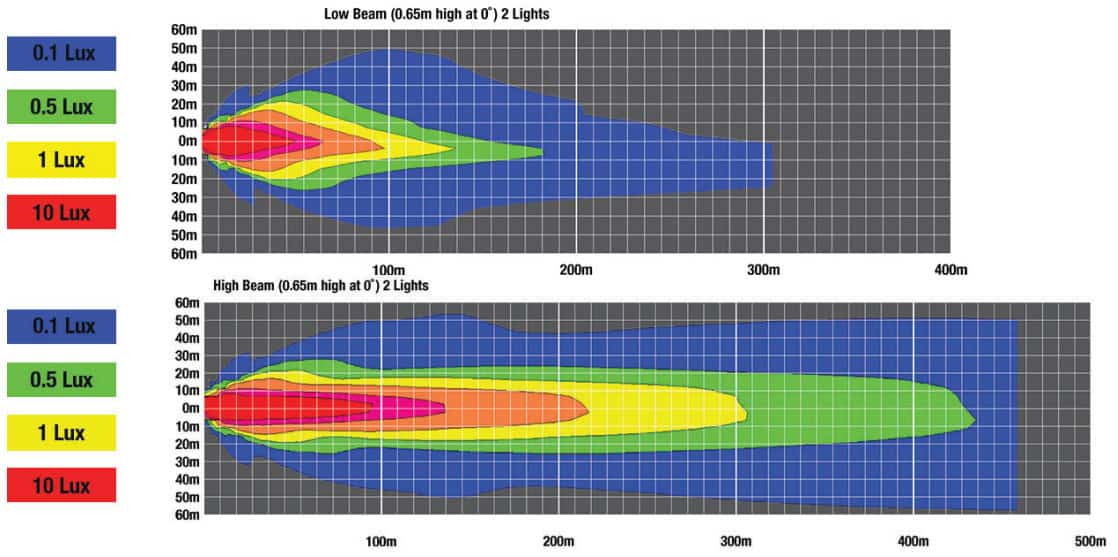

Beam Pattern(s):
Forward Lighting – Daytime Running Light
Forward Lighting – High Beam (ECE)
Forward Lighting – Low Beam (ECE Right Hand)
Signalization – Front Position
Signalization – Turn (Front)
JW Speaker
Model 8800 EVO-X Headlight
Featuring the unmistakable “X” optic, the 8800 EVO X™ combines advanced lighting performance with a distinctive visual signature.
Tech specs
Features
Built with a modular optic design, the 8800 EVO X™ simplifies vehicle integration across OEM programs and aftermarket upgrades.
Ease of Use
- Dedicated low, dedicated high and combined configurations
- Modular optic design
- Check exact lamp connector, harness, mounting and aiming
- Five functions on the 5-in-1 version only
Industry Leading Technology
- SmartHeat helps manage snow and ice on the lens
- J.W. Speaker Dual Burn on the combined low/high configuration
Competencies
- Full brightness at minimum voltage
- Check exact part and function approvals; direction indicator is not DOT compliant
- Buy American Act compliant
Applicable warranty terms depend on the exact lamp. Review the manufacturer’s current warranty policy and confirm the selected 8800part with BTS.
The4x6 format does not establish vehicle fit by itself. Compare mounting depth, retaining hardware and connector pinout. Low/high lamps and the 5-in-1 configuration require different harness arrangements.
Compare the exact lamp’s raw and effective output ratings, beam function and installation drawing. These specifications are not a controlled comparison with every existing headlight.
