NX543 – 5″ LED Work Light (12–24V, 7,200 Lumens, 90W, Flood Beam)
Built Strong. Shines Bright. Ready for Anything.
The NX543 5″ LED Work Light delivers serious brightness in a mid-size housing made for extreme environments. With 7,200 raw lumens of powerful 5700K white light and a wide flood beam, this rugged 90W work light is designed for hard use in off-road, agricultural, commercial, and industrial settings.
Equipped with a heavy-duty stainless steel mounting bracket, IP69K waterproof rating, and impact-resistant polycarbonate lens, the NX543 offers the durability and performance needed to get the job done — no matter the conditions.
Key Features & Benefits
-
High-Performance Output: Blasts 7,200 lumens of daylight-white light for optimal visibility.
-
Flood Beam Pattern: Broad and even spread — perfect for illuminating work zones, machinery, and rear utility lighting.
-
Mid-Size Footprint: 5″ housing strikes the ideal balance between compact size and powerful light coverage.
-
Wide Voltage Compatibility: Runs on 9–32V DC — suitable for both 12V and 24V systems.
-
Built Tough: Features a stainless steel bracket for high-vibration environments.
-
IP69K Waterproof Rating: Fully sealed to handle mud, rain, dust, and high-pressure washing.
-
Impact-Resistant Lens: Durable polycarbonate construction resists cracking and chipping in tough conditions.
-
Clear, Crisp Visibility: 5700K color temperature provides clean white light for enhanced clarity and reduced fatigue.
-
Quick-Connect Installation: Comes with DT plug and fly lead for a fast, sealed connection.
-
5-Year Warranty: Supported by Noxsolis for long-lasting performance and peace of mind.
Built for Real Work, Wherever You Mount It
The NX543 is made to perform in demanding situations — from harsh job sites and muddy back roads to remote trailers and recovery rigs. Its 90W output ensures excellent visibility, while its compact 5″ frame fits easily on bumpers, racks, fenders, and machinery frames. Whether you’re lighting up a construction site, a field, or a trail, this light doesn’t hold back.
Vehicle & Application Compatibility
Perfect for:
-
Off-road trucks, UTVs, ATVs, and 4x4s
-
Agricultural equipment and machinery
-
Utility trailers, flatbeds, and work trucks
-
Construction and mining vehicles
-
Emergency response, service, and fleet vehicles
Compatible with 12V and 24V systems.
Technical Specifications
-
Light Output: 7,200 Lumens (Raw)
-
Power Consumption: 90W
-
Beam Type: Flood
-
Voltage Range: 9–32V DC
-
Color Temperature: 5700K
-
Lens Material: Polycarbonate
-
Mounting Bracket: Stainless Steel
-
Connector: DT Plug with Fly Lead
-
Waterproof Rating: IP69K
-

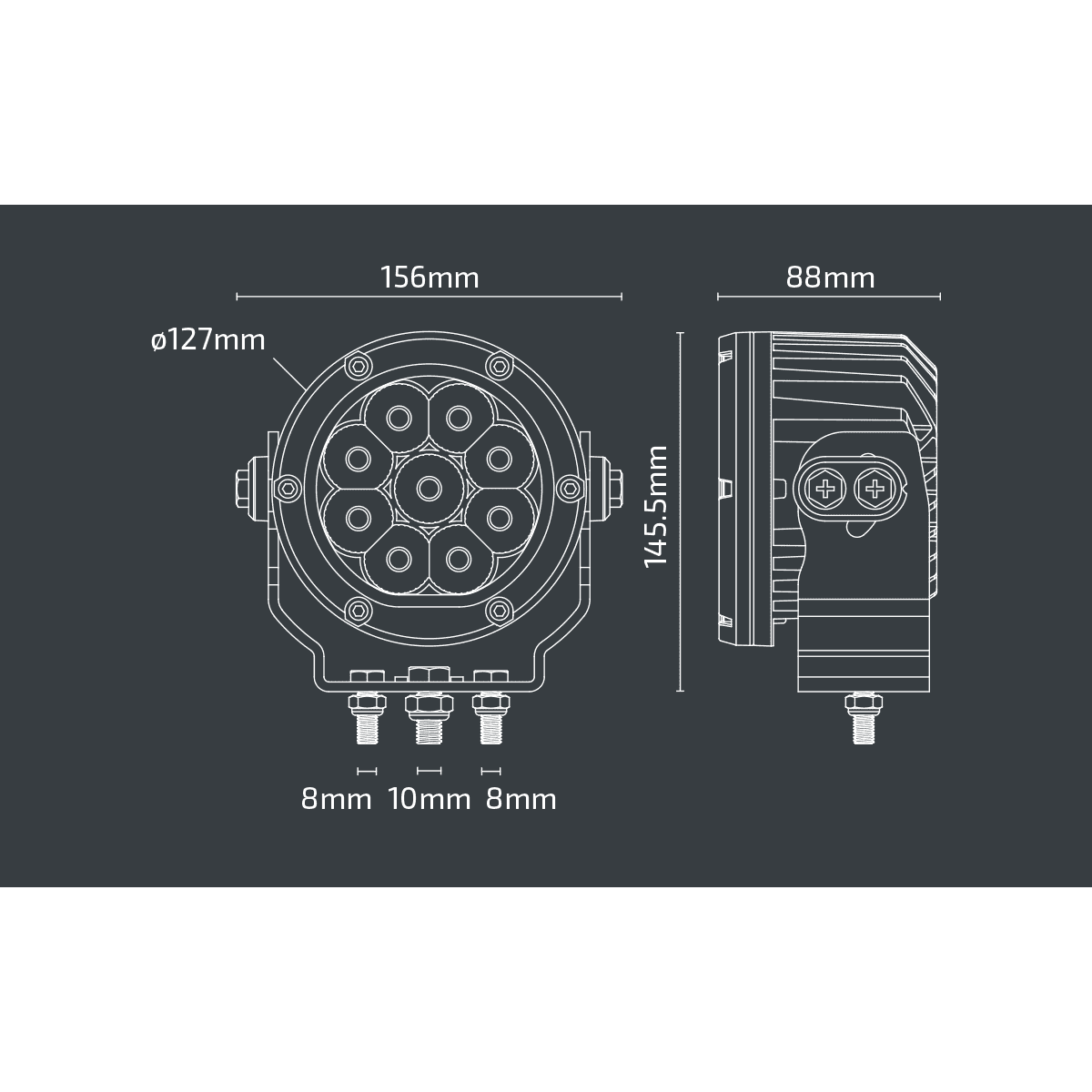

Housing Size: 5″
-
Warranty: 5-Year Limited Warranty
What’s Included
-
1x NX543 5″ LED Work Light (Flood Beam)
-
All stainless steel mounting hardware
-
DT Connector with fly lead
Now Available at BTS Lighting — Mid-Size Power, Full-Sized Performance
The NX543 combines impressive brightness, rugged construction, and reliable design in one versatile lighting solution. It’s the perfect upgrade for work vehicles, machinery, and trail rigs that need serious lighting — without going oversized.
