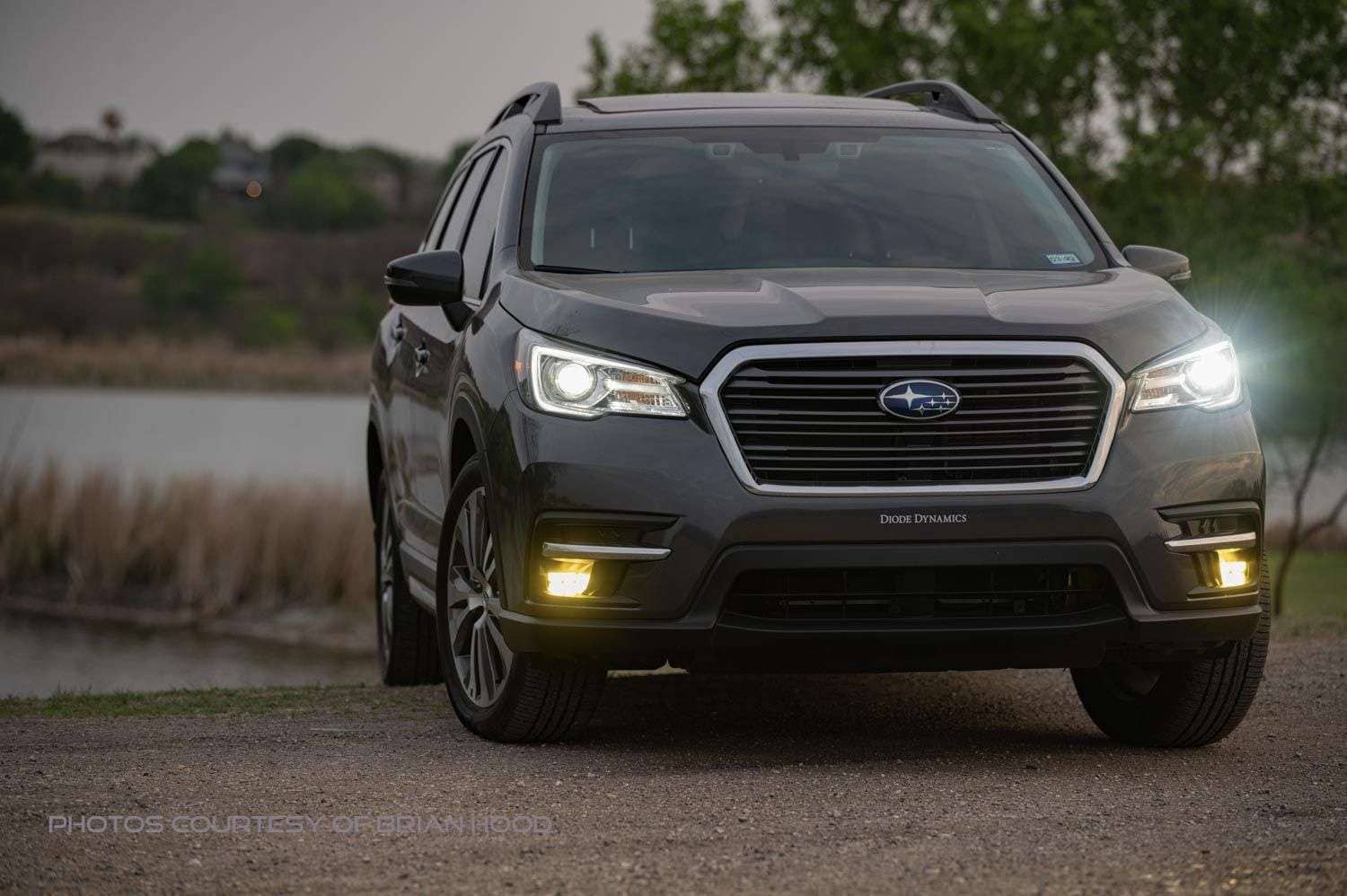

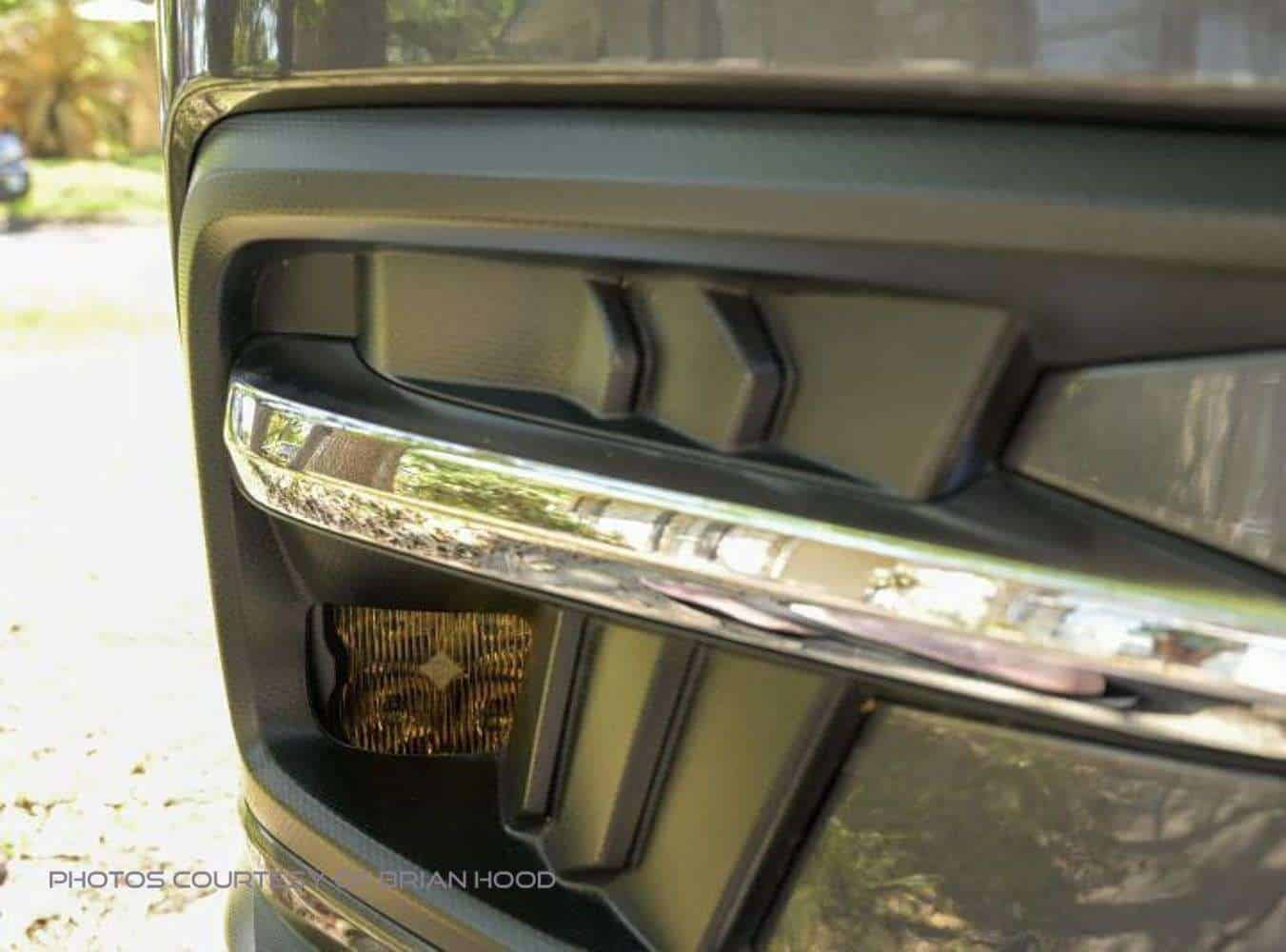

Subaru Ascent 2019–2022 | SS3 LED Fog Light Kit
Features
-
Direct replacement for Subaru Ascent OEM fog lamps
-
SAE-compliant, road-legal output
-
Custom bracket with bezel for a clean, factory-style fit
-
Plug-and-play installation—no modifications required
-
Advanced TIR optics for maximum efficiency and focus
-
Durable powder-coated aluminum die-cast housing
-
Engineered and assembled in the USA
Overview
Premium Lighting Upgrade
Enhance your Subaru Ascent with the SS3 Fog Light Kit, delivering higher output intensity than any other 3” light in its class. Featuring custom-engineered TIR optics, the SS3 provides sharp, functional beam patterns in a durable housing with a sleek OEM-style appearance.
Easy Installation
The included custom-molded brackets allow for a quick, bolt-on installation. Simply replace your factory fog lamp assembly, plug in the wire adapters, and you’re ready to go—no cutting or extra wiring required.
Optimized Optics
Traditional reflectors and lenses scatter light and create glare. The SS3’s advanced Total Internal Reflection (TIR) optic directs every bit of LED output exactly where it’s needed, improving efficiency and reducing wasted light. The result: brighter, cleaner performance compared to standard fog lamps.
SAE-Compliant Performance
-
SAE Fog Pattern (J583): Wide 80° beam spread using FineLine optics, ideal for cutting through poor weather.
-
SAE Driving Pattern (J581): An 18°x8° spread for long-range visibility—perfect for supplementing your high beams.
Both patterns are legal for road use when installed and aimed correctly.
Backlight Accent
Each SS3 pod includes an integrated amber backlight for a modern accent. This illuminates the optic itself, creating a unique style compared to standard indicator LEDs. Powered via the included harness, it can be wired to your desired function.
Color Options
-
Cool White (6000K): Crisp, bright light to match factory LEDs
-
Selective Yellow (3000K): Improves contrast in fog, rain, or snow while offering a distinctive look
Power Levels
Choose the output that fits your needs:
-
Sport: High-intensity LEDs for great performance and value
-
Pro: Double the output for serious illumination
-
Max: Cutting-edge emitters delivering extreme brightness and intensity
Proven Reliability
Tested for long-term performance under extreme conditions:
-
Operates from -40°F to 185°F
-
Resistant to vibration, moisture, and corrosion
-
Validated to SAE standards for durability and quality
What’s Included
-
Two (2) SS3 3” Standard LED Pods
-
Two (2) Type A Brackets with bezels
-
Two (2) H11 4-pin DT Backlight Tap Wires
-
Mounting hardware
-
Mounting guide
Quantity: Pair (Left and Right Side)
Warranty: Limited Lifetime Warranty
Return Policy: 30-day return, no restocking fee, 100% satisfaction guarantee
Fitment
Application: Fog Light Replacement Kit
Make: Subaru
Model: Ascent
Years: 2019, 2020, 2021, 2022
⚠️ Note: This kit is designed as a direct replacement for OEM fog lamps. Vehicles without factory fog lights may require additional hardware or wiring.
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD6988 | SS3 Sport Type AS Kit ABL White SAE Fog |
| DD6989 | SS3 Sport Type AS Kit ABL Yellow SAE Fog |
| DD6991 | SS3 Pro Type AS Kit ABL White SAE Fog |
| DD6992 | SS3 Pro Type AS Kit ABL Yellow SAE Fog |
| DD6993 | SS3 Max Type AS Kit ABL White SAE Fog |
| DD6994 | SS3 Max Type AS Kit ABL Yellow SAE Fog |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD6988, DD6989, DD6991, DD6992, DD6993, DD6994; each row is a real product configuration.
What is included?
Two (2) SS3 3” Standard LED Pods; Two (2) Type A brackets; Two (2) H11 4-pin DT backlight tap wires; Mounting hardware; Mounting guide
What vehicle details must match?
Match the stated model years, model and any bumper, trim or factory-equipment requirements. A kit for one bumper or fog-light opening is not automatically compatible with another configuration of the same vehicle.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
