Subaru WRX/STi | Forester | Crosstrek | BRZ | SS3 LED Fog Light Kit
Features
-
Direct replacement for Subaru WRX STi fog lamps
-
SAE-compliant road-legal output
-
Includes round bezel for factory-style appearance
-
Plug-and-play, no modifications required
-
Advanced TIR optics for maximum efficiency and focus
-
Durable powder-coated aluminum die-cast housing
-
Engineered and assembled in the USA
Overview
Premium Upgrade

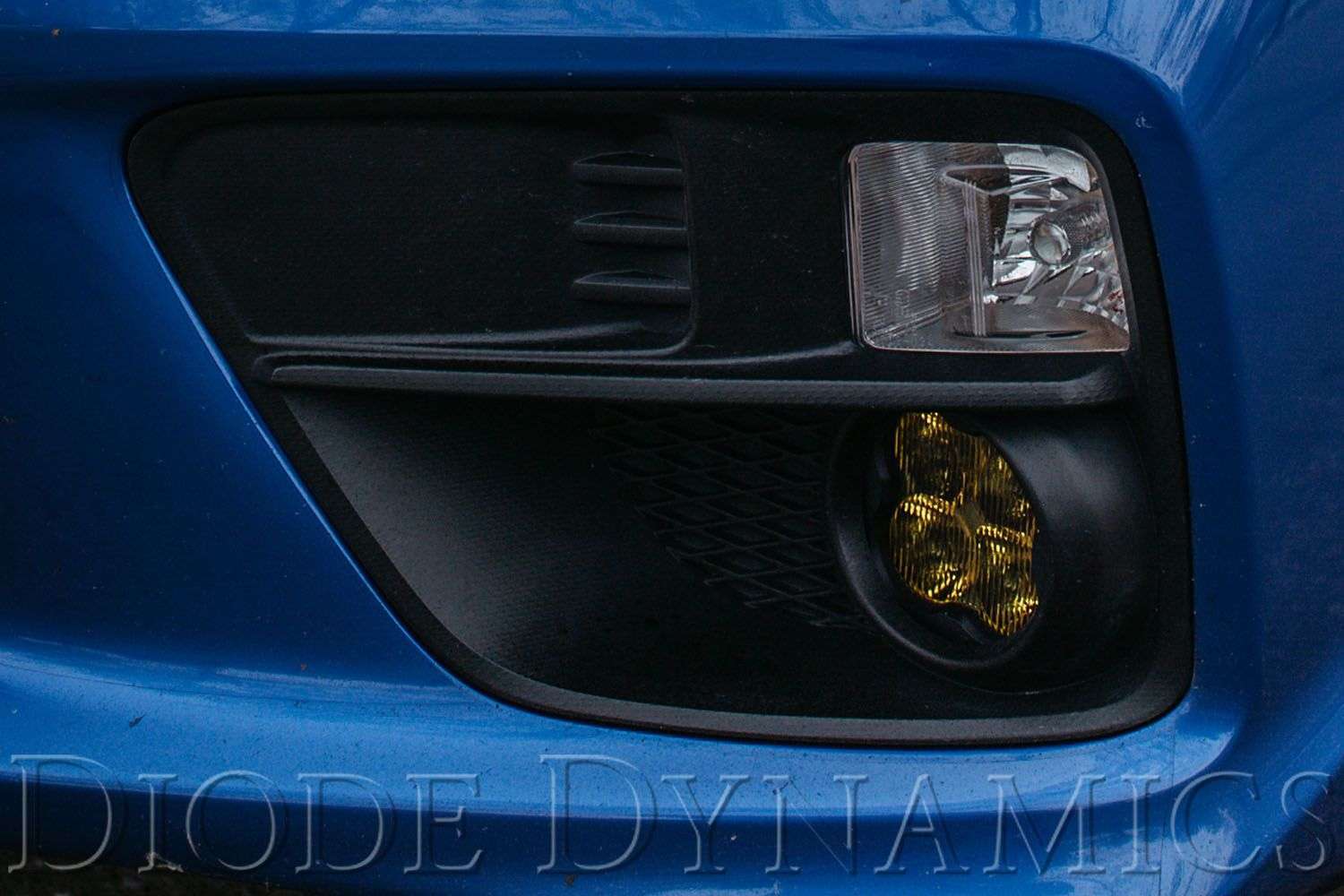

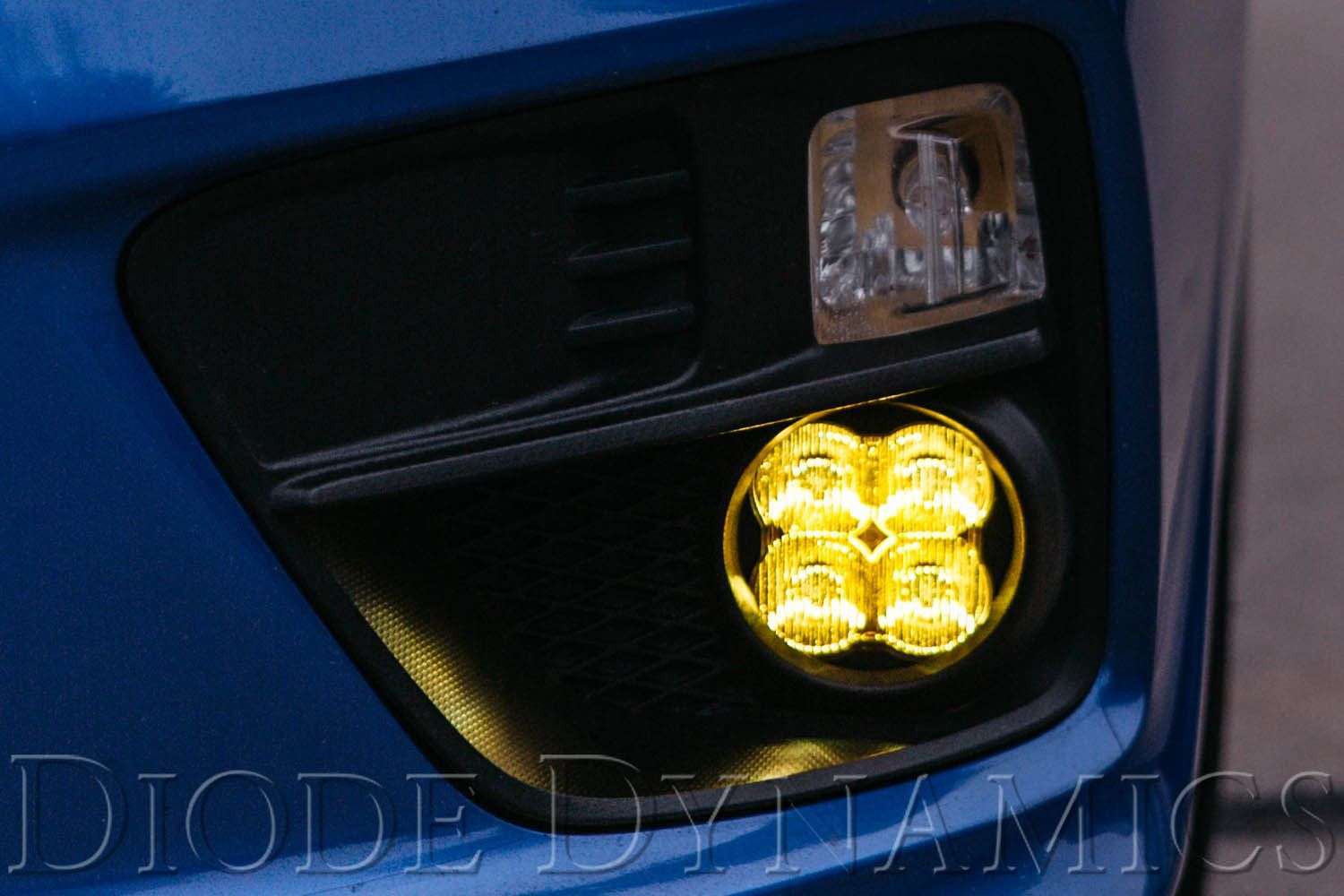

Upgrade the fog lights on your Subaru with the SS3 Fog Light Bracket Kit. Featuring the highest output intensity in its class, these LED pods utilize custom-engineered TIR optics for superior performance and functional beam patterns, all in a rugged, durable housing. With the included round bezel, the SS3 Fog Kit maintains a clean, factory-style look—only much brighter.
Easy Installation
Thanks to precision-molded brackets, the SS3 Fog Light Kit installs in just minutes. Simply remove the factory fog light assembly and bolt in the SS3 assembly. Wire adapters are included for a seamless plug-and-play connection—no cutting or splicing required.
Focused Output
Unlike traditional reflector-style optics, the SS3’s custom TIR lens captures and directs light with precision, minimizing glare and maximizing usable output. Combined with high-intensity LED chips, the SS3 delivers greater efficiency and performance than competing fog light options.
SAE-Compliant Beam Patterns
-
Driving (SAE J581) – Wide 18×8° beam, ideal for supplementing high beams and general illumination.
-
Fog (SAE J583) – FineLine optic delivers an ultra-wide 80° spread, perfect for cutting through poor weather.
Choose between cool white (6000K) for a modern factory-match look, or selective yellow (3000K) for improved contrast in fog, snow, and rain.
Backlight Functionality
The SS3 features a built-in amber backlight, fully illuminating the TIR optic for a modern, distinctive appearance. Easily wired using the included harness to your desired vehicle function.
Power Levels
-
Sport – High-efficiency LEDs, best value performance.
-
Pro – Double the power of Sport, for higher output.
-
Max – Cutting-edge emitters for extreme intensity and maximum performance.
Proven Reliability
Engineered to SAE standards, the SS3 has undergone rigorous testing for:
-
Extreme temperatures (-40° to 185°F)
-
Vibration resistance
-
Moisture intrusion
-
Corrosion protection
Trusted by enthusiasts and racers alike, Diode Dynamics ensures long-term durability and reliability.
What’s Included
-
Two (2) SS3 3” Round LED Pods
-
Two (2) Type A brackets
-
Two (2) H11 4-pin DT backlight tap wires
-
Mounting hardware
-
Mounting guide
Quantity: Two (2)
Warranty: Lifetime Warranty
Return Policy: 30-day return, no restocking fee, 100% satisfaction guarantee
Fitment
Application: Fog Light Replacement Kit
-
2015–2017 Subaru WRX/STi
-
2019–2024 Subaru Forester
-
2013–2015 Subaru XV Crosstrek
-
2016–2025 Subaru Crosstrek
-
2013–2016 Subaru BRZ
⚠️ Note: This kit is a direct replacement for OEM fog lamps. Vehicles without factory fog lamps may require additional hardware and wiring.
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD6980 | SS3 Sport Type A Kit ABL White SAE Fog |
| DD6981 | SS3 Sport Type A Kit ABL Yellow SAE Fog |
| DD6983 | SS3 Pro Type A Kit ABL White SAE Fog |
| DD6984 | SS3 Pro Type A Kit ABL Yellow SAE Fog |
| DD6985 | SS3 Max Type A Kit ABL White SAE Fog |
| DD6986 | SS3 Max Type A Kit ABL Yellow SAE Fog |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD6980, DD6981, DD6983, DD6984, DD6985, DD6986; each row is a real product configuration.
What is included?
Two (2) SS3 3” Round LED Pods; Two (2) Type A brackets; Two (2) H11 4-pin DT backlight tap wires; Mounting hardware; Mounting guide
What vehicle details must match?
Match the stated model years, model and any bumper, trim or factory-equipment requirements. A kit for one bumper or fog-light opening is not automatically compatible with another configuration of the same vehicle.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
