BTS application guide · LMX2-531

Apply clear film to 4Runner XB Evo headlights

Check LF2-531 or LF2-531Y on the headlights and LMX2-531 on the film package. The original diagrams below show a general round-lens technique; they do not show the 4Runner pre-cut outline.

Check the cut and prepare the lens

Leave the backing attached while checking the left and right shapes against the headlights. Clean the lenses thoroughly and work away from dust and direct heat. Follow the instructions supplied with the film for preparation and application solution.

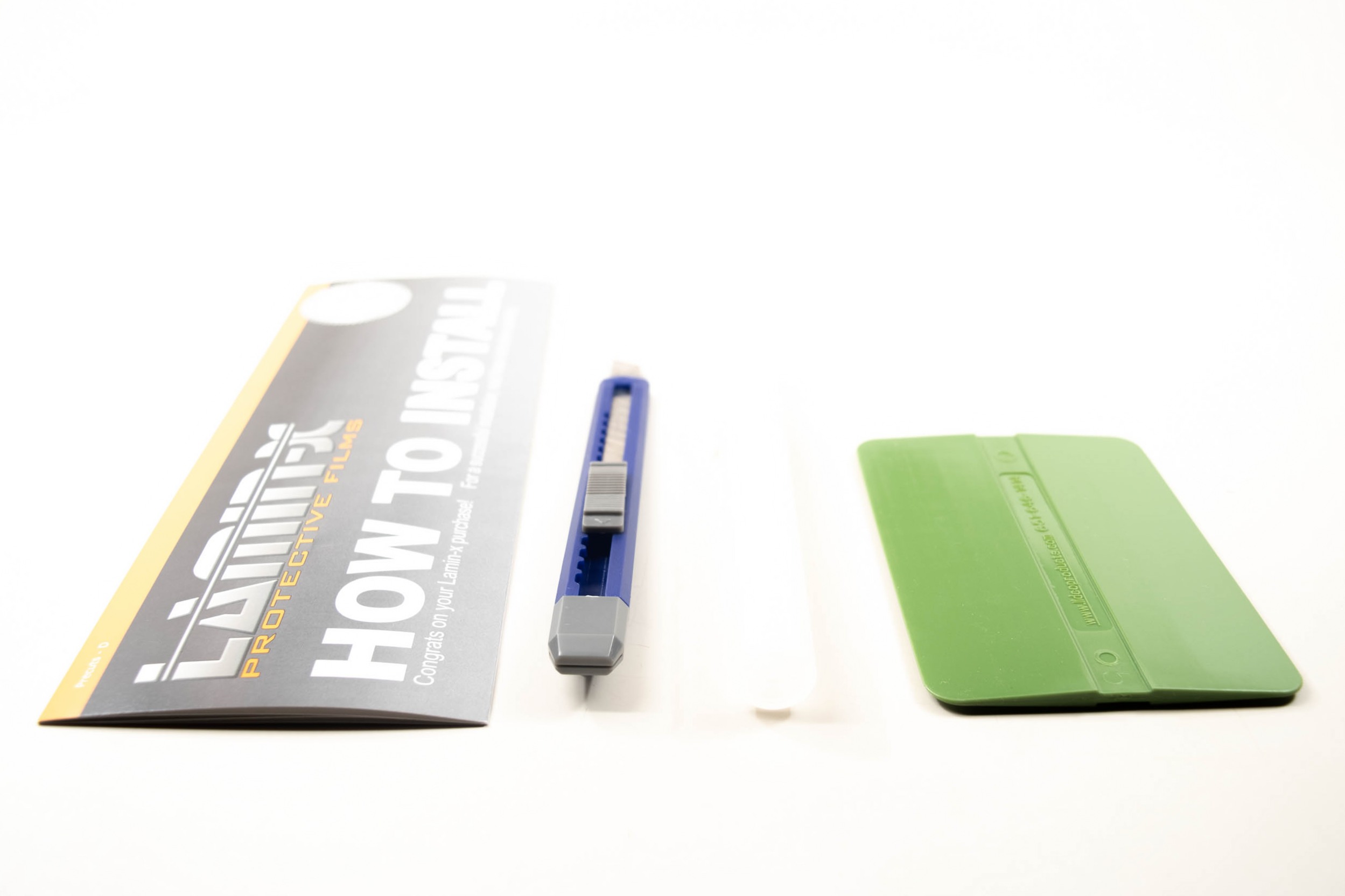

Representative application tools and instruction leaflet; check the contents supplied with your film.
Representative application tools and instruction leaflet; check the contents supplied with your film. View full size

1. Lightly mist and position

The original diagram shows peeling the backing and lightly misting the adhesive with water. Hold the edges and align the cut without pulling it out of shape.

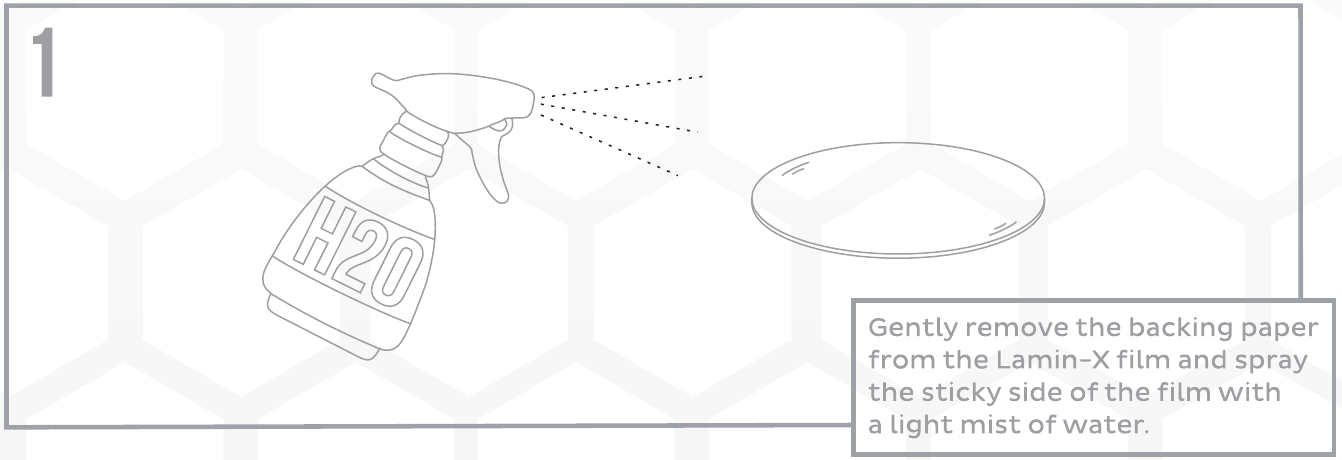

Original Lamin-X diagram 1: general round-lens application, not the 4Runner film shape.
Original Lamin-X diagram 1: general round-lens application, not the 4Runner film shape. View full size

2. Smooth from the centre

Press the centre gently, then work outward with even pressure to move trapped water toward the edges. Keep checking alignment as the film settles.

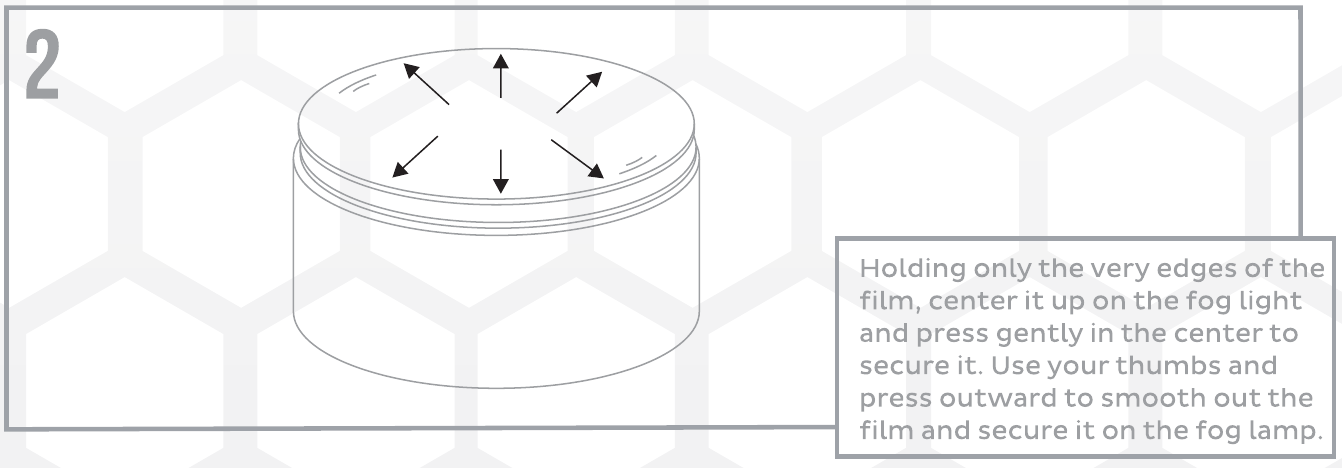

Original Lamin-X diagram 2: general round-lens application, not the 4Runner film shape.
Original Lamin-X diagram 2: general round-lens application, not the 4Runner film shape. View full size

3. Finish lifting areas carefully

If needed, the general instructions allow gentle blow-dryer warmth to help a lifting area conform. Avoid overheating the film or lens. Follow the supplied directions for handling tabs and curing before washing.

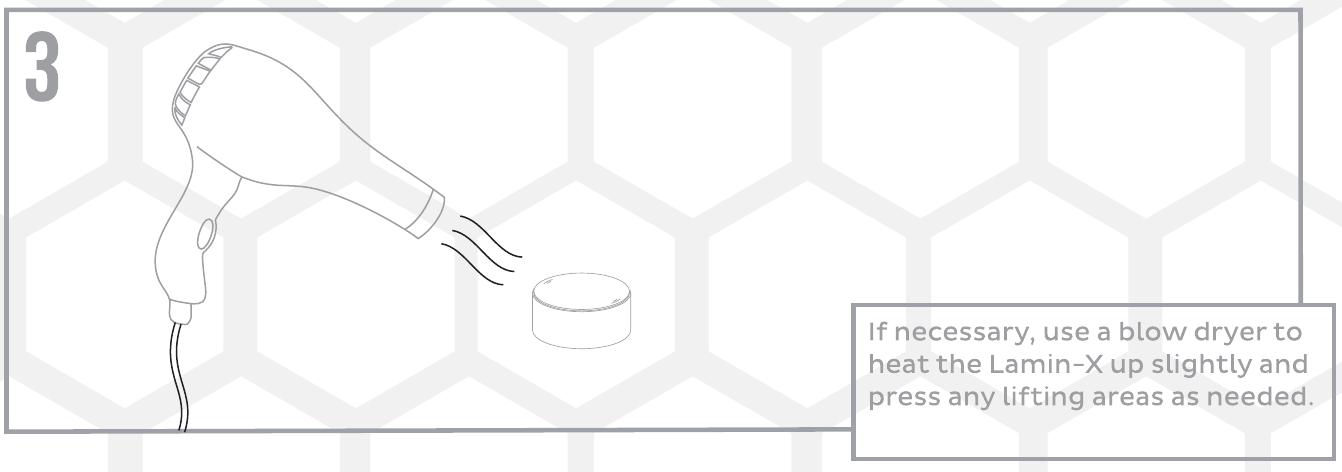

Original Lamin-X diagram 3: general round-lens application, not the 4Runner film shape.
Original Lamin-X diagram 3: general round-lens application, not the 4Runner film shape. View full size

See the general technique

Manufacturer demonstration on an Audi Q7. Use the LMX2-531 shape and supplied instructions for your 4Runner headlights.

Watch on YouTube

Keep the original instructions

Open the original two-page Lamin-X application PDF. If the cut does not align, keep the adhesive protected and ask BTS for help before trimming it.

LMX2-531 clear film

For the LF2-531 XB Evo and LF2-531Y XB Evo Hybrid headlight pair.
