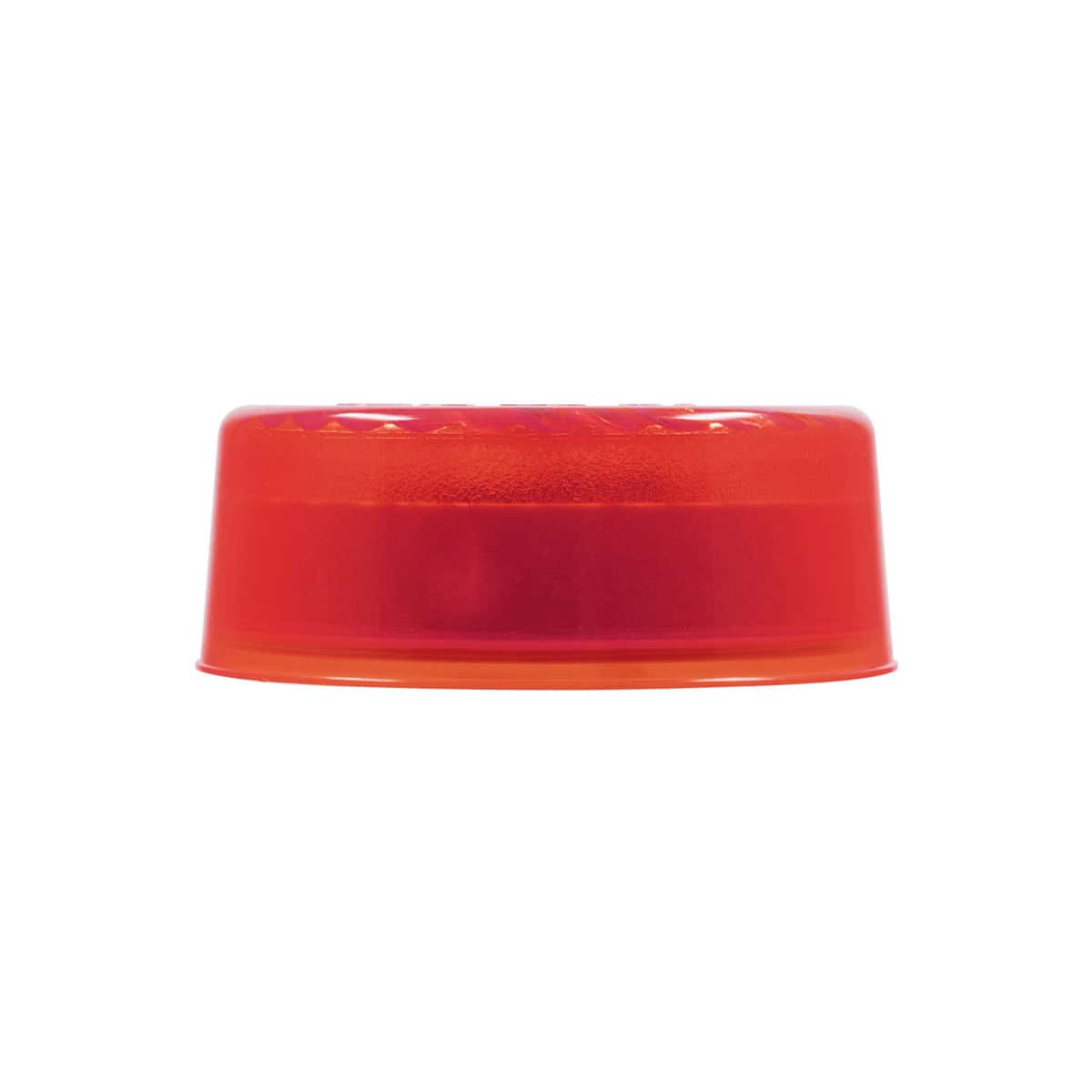

Turbine 2.5″ Round Red LED Clearance/Marker Light

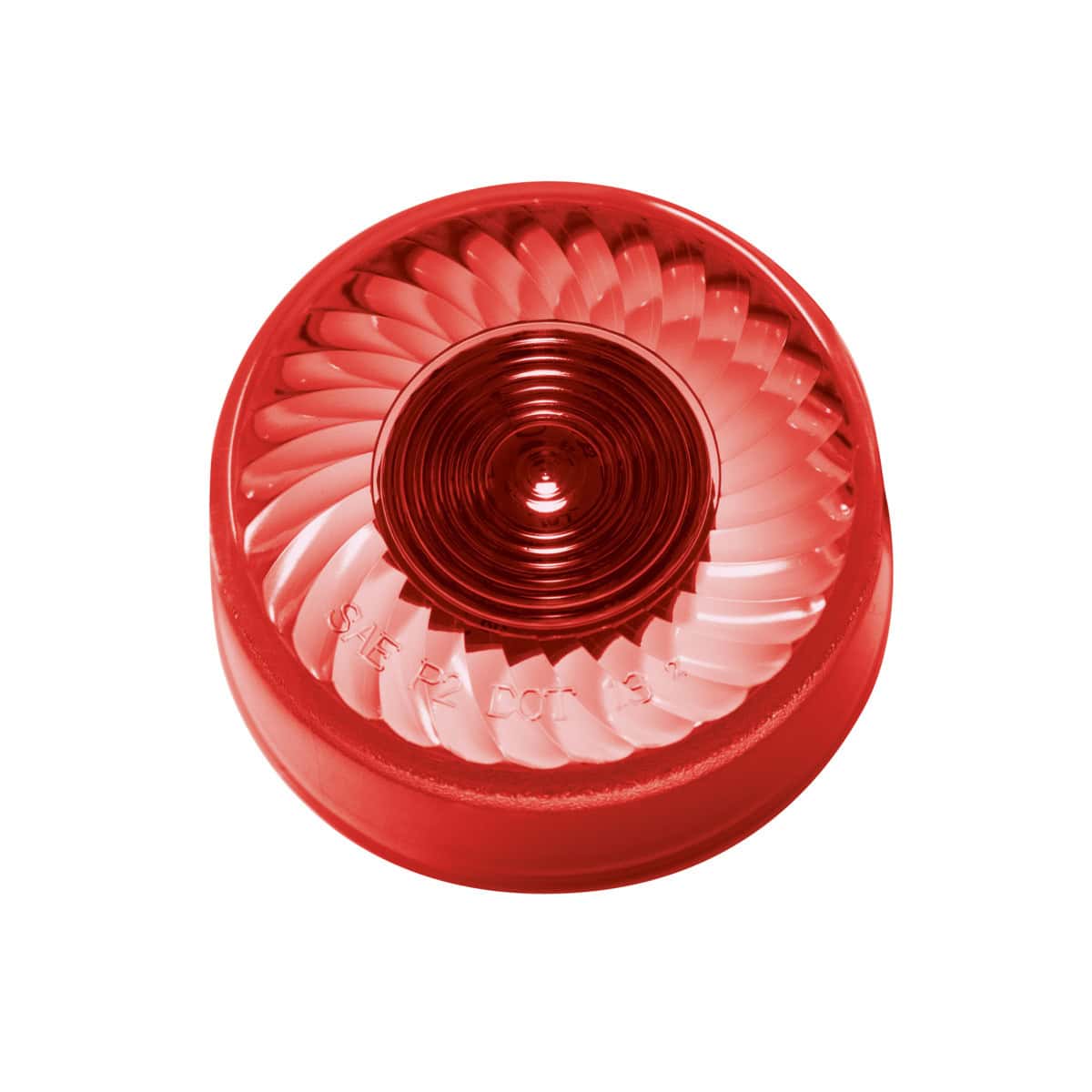

This Turbine clearance/marker light combines 10 red SMD LEDs with a red lens in a 2.5″ round design. Its turbine fin outer rim adds a distinctive detail to the light’s appearance.
Polycarbonate Lens and Sealed Housing
The polycarbonate lens is sonically sealed to the housing to help prevent moisture intrusion. The light carries a listed IP67 water resistance rating.
10 SMD LEDs
Ten red SMD LEDs provide the light output behind the red lens. This model is intended for clearance and marker lighting applications.
2-Pin Electrical Connection
The rear housing features a 2-pin female contact terminal. The recommended mating plugs are:
- Item #34247
- Item #34242
- Item #34241
These 2-pin male plugs are not included. Confirm the light’s operating voltage and your wiring requirements before installation.
Rubber Grommet Mounting
The recommended mounting method uses a rubber push-in grommet, item #31506 or #31508. Grommets are not included.
Check the selected grommet’s mounting requirements and the available installation space before ordering.
Product Details
- Style: Turbine round clearance/marker light

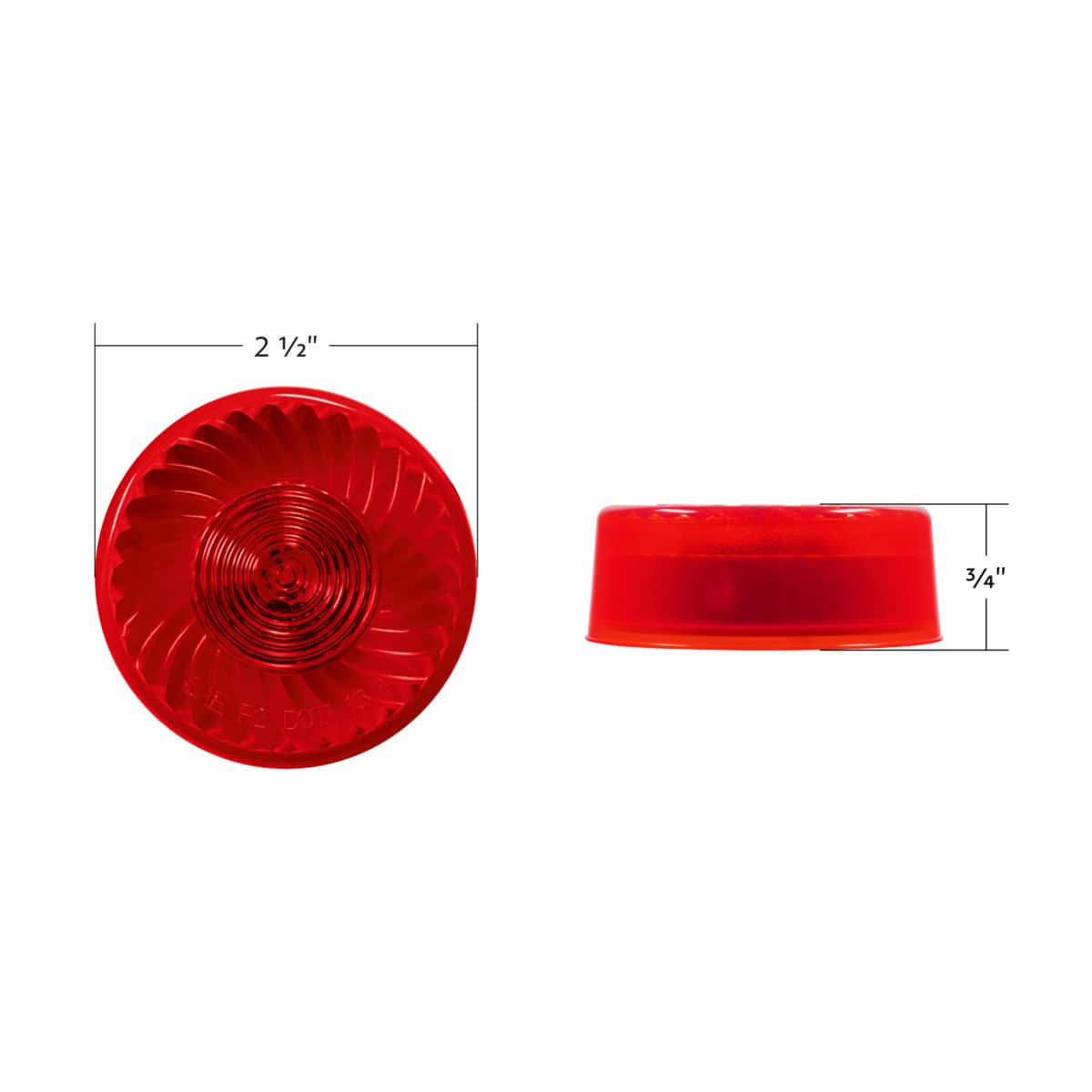

- Listed size: 2.5″
- LED count: 10
- LED type: SMD
- LED colour: Red
- Lens colour: Red
- Lens material: Polycarbonate
- Lens seal: Sonically sealed to housing

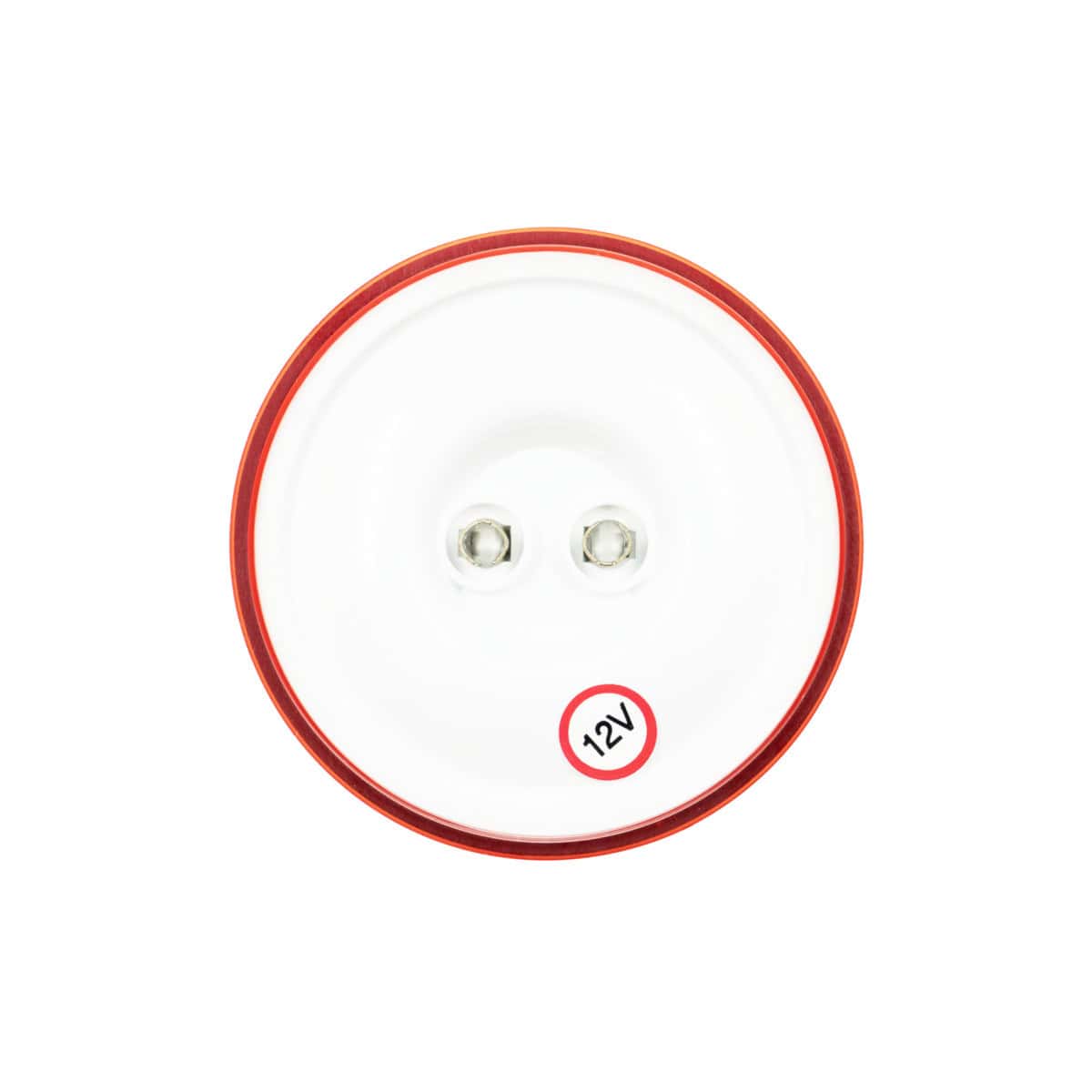

- Connector: Rear 2-pin female contact terminal
- Water resistance: IP67
- Listed compliance: DOT/SAE, FMVSS 108
- Warranty: Lifetime; coverage terms and exclusions require confirmation
- Recommended plugs and grommets: Not included
FAQs
What colour is this clearance/marker light?
This version has red LEDs and a red lens.
How many LEDs does the light contain?
The light contains 10 SMD LEDs.
What connector does it use?
The rear housing has a 2-pin female contact terminal. Recommended 2-pin male plugs are items #34247, #34242 and #34241, sold separately.
How is the light mounted?
A rubber push-in grommet is recommended. Compatible recommended options are items #31506 and #31508, neither of which is included.
What is the water resistance rating?
The supplied specifications list an IP67 water resistance rating. The polycarbonate lens is also sonically sealed to the housing to help prevent moisture intrusion.
Does this light operate on 12V or 24V?
Operating voltage was not provided. Confirm the voltage specification before connecting the light to your vehicle.
What warranty is included?
The supplied product information lists a lifetime warranty.
