Product Overview

Watermelon lights are a staple in custom and show truck builds. This version maintains the traditional rounded profile while upgrading to a 6 LED dual-function configuration for improved brightness and flexibility.

The dual-function wiring allows independent low and high intensity operation, making it ideal for clearance, marker, or auxiliary lighting applications.

Key Features & Benefits

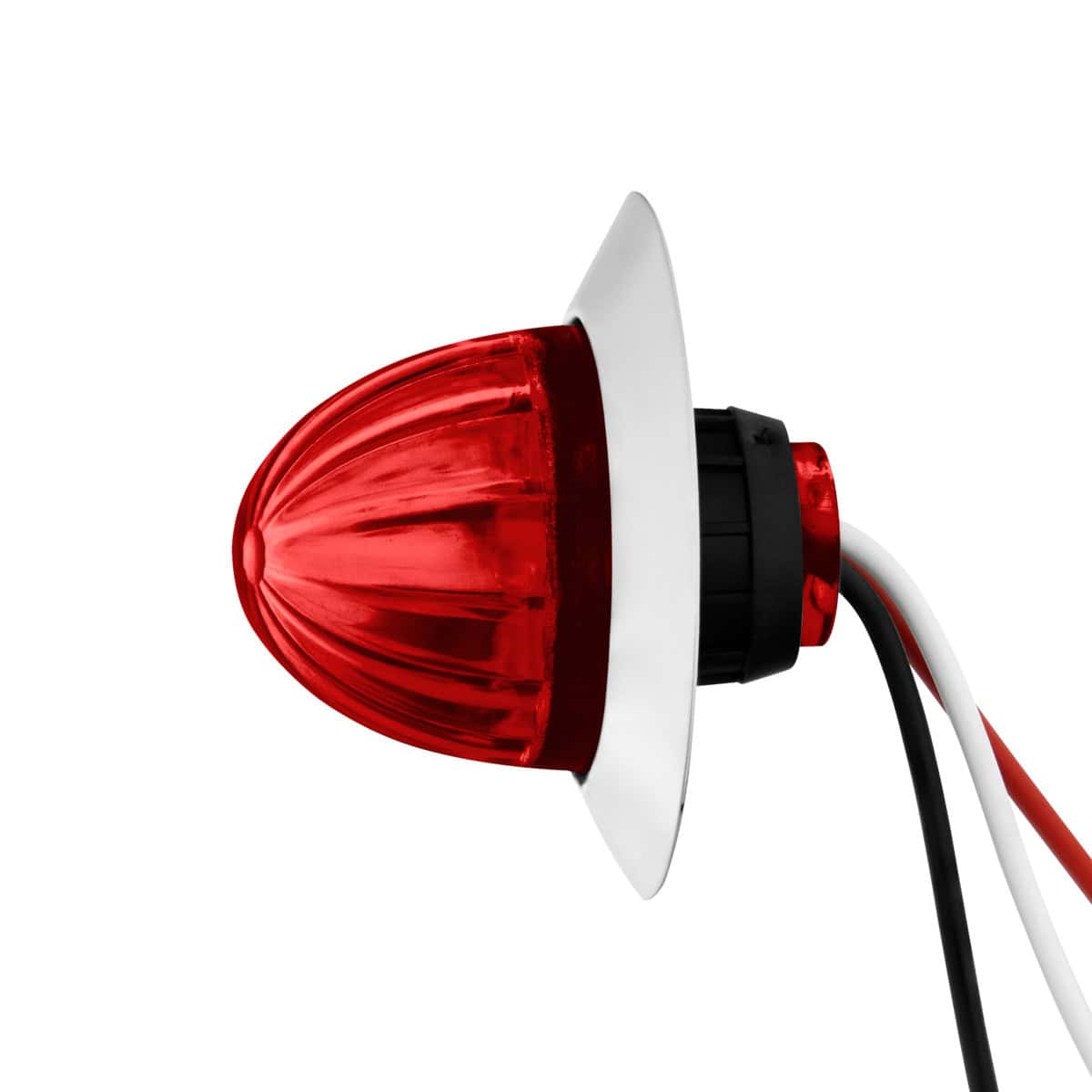

Watermelon-Style Polycarbonate Lens

The quality polycarbonate lens features a traditional watermelon design and is epoxy sealed to prevent moisture intrusion.

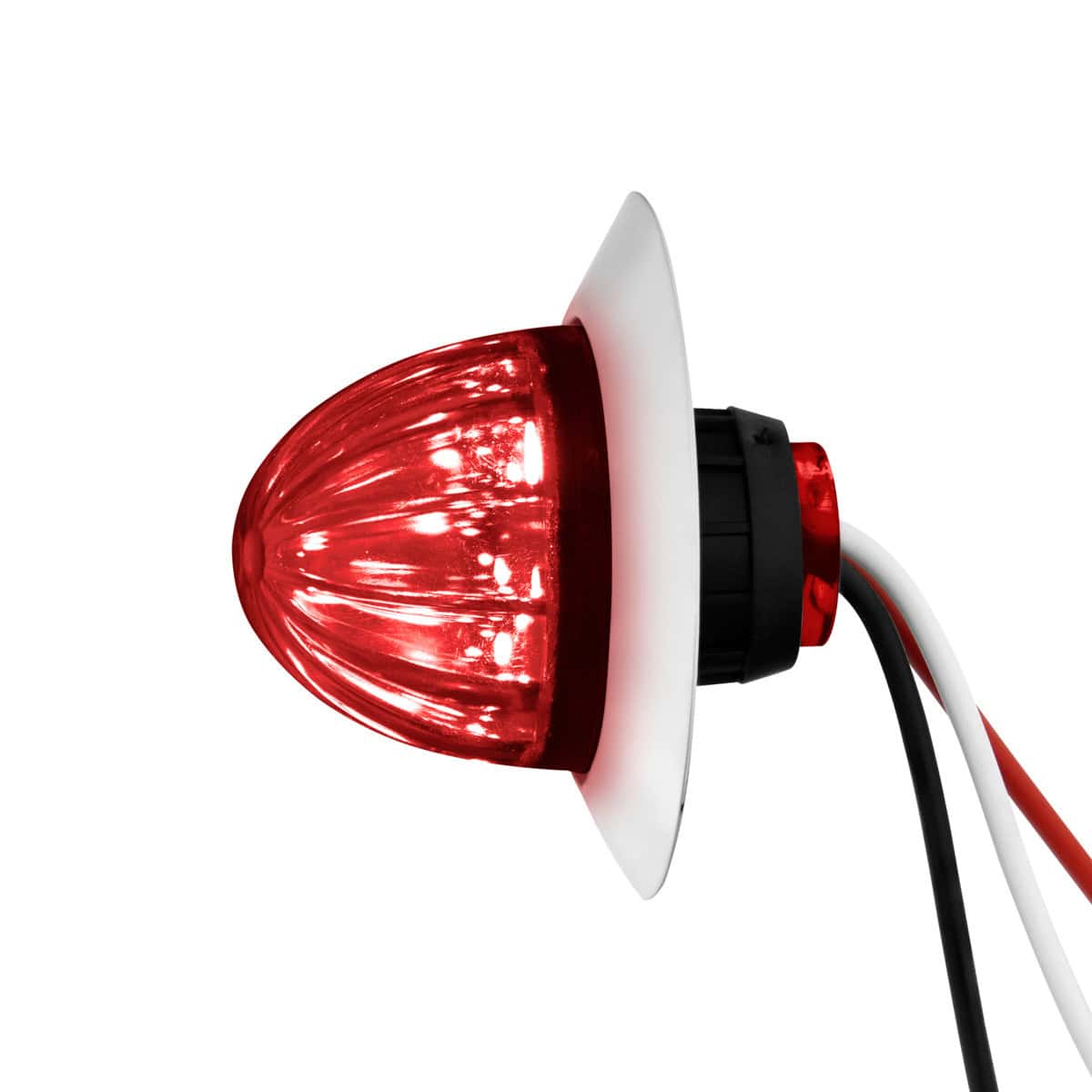

6 Super Bright Dual-Function LEDs

Equipped with six high-output LEDs, providing strong illumination in both low and high modes.

Polished Stainless Steel Bezel

The stainless steel bezel offers corrosion resistance and a premium finish that complements chrome and stainless exterior components.

IP67 Water Resistance

Rated IP67, protecting against dust and water exposure in demanding environments.

Performance / Compatibility / Use-Case

This 1-1/4″ Dual Function Watermelon Light is commonly used on:

• Semi trucks and big rigs

• Commercial trailers

• Utility and livestock trailers

• RVs and buses

• Custom and show vehicles

Installation / Fitment / Technical Details

Grommet Mount Setup

Installs using the included rubber grommet, ensuring a secure and vibration-resistant fit.

Mounting Requirements

• Requires a 3/4″ diameter mounting hole

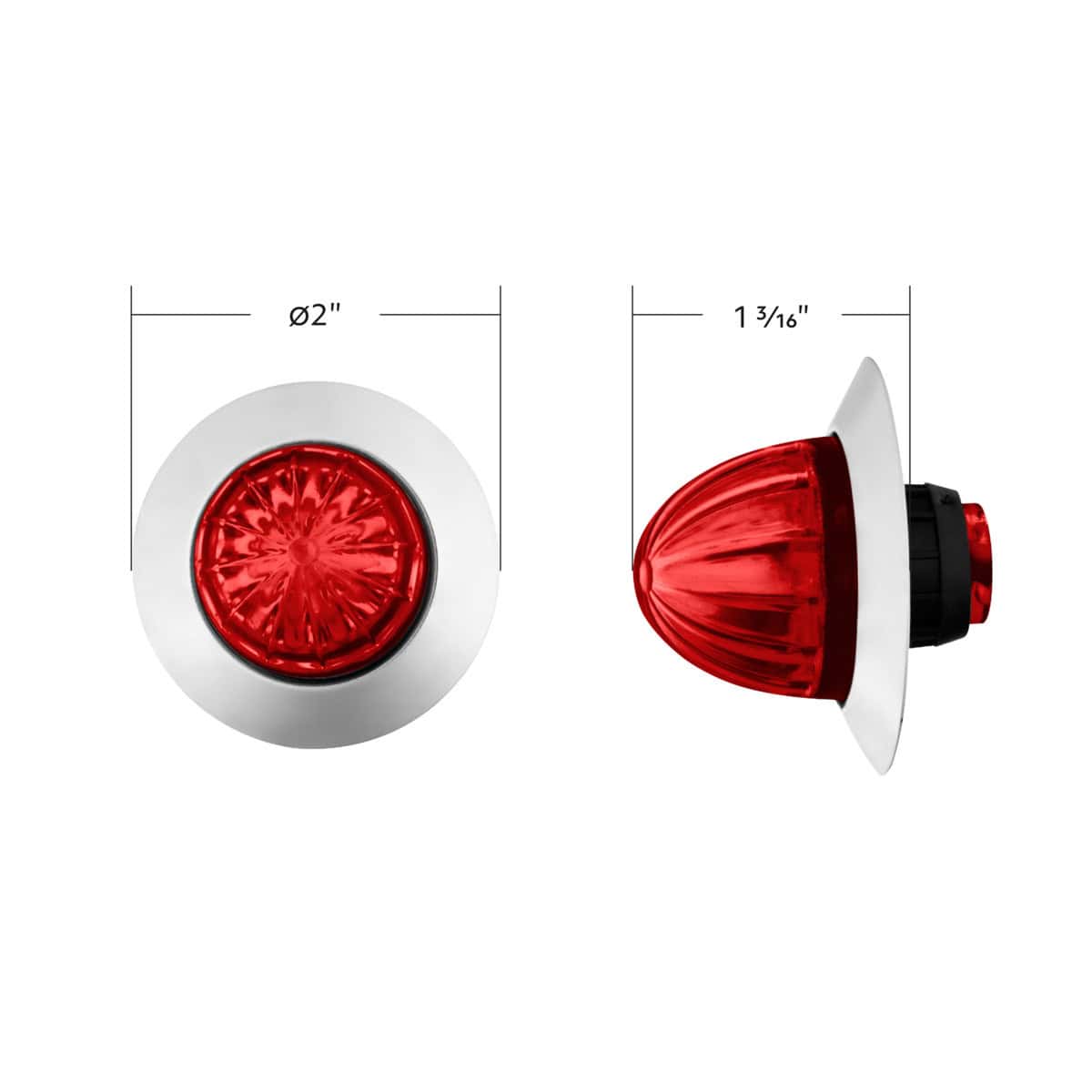

• Compact 1-1/4″ overall light size

Electrical Specifications

• 12V DC

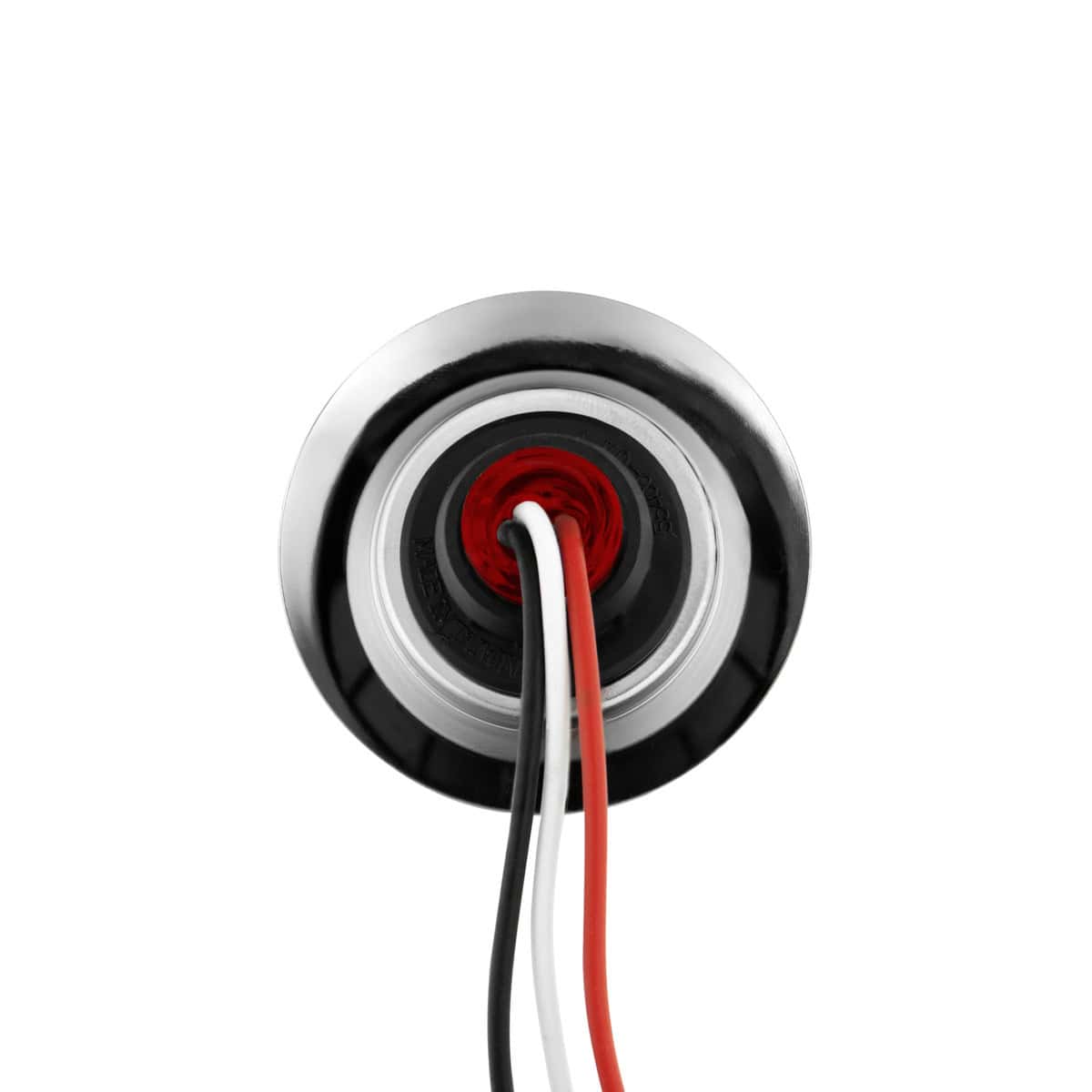

• 3-wire hookup with 0.180″ bullet connectors

• Wiring color code:

  • White: Ground (-)

  • Black: Low function (+)

  • Red: High function (+)

Build Quality / Warranty

Constructed with sealed electronics, impact-resistant materials, and stainless trim, this watermelon light is built for long-term performance in commercial and custom truck applications.

Warranty: 3-year manufacturer warranty.

What’s Included

• 1 × 6 LED 1-1/4″ dual-function watermelon light

• 1 × Rubber mounting grommet

Frequently Asked Questions

What size hole is required for installation?

A 3/4″ diameter hole is required.

Is this a dual-function light?

Yes. It supports both low and high intensity operation via the 3-wire configuration.

What voltage system does it operate on?

It is designed for 12V DC systems.

Is this light waterproof?

Yes. It carries an IP67 rating and features epoxy-sealed electronics.

What material is the bezel made from?

The bezel is made from polished stainless steel.

What warranty is included?

This product includes a 3-year warranty.
