Product Overview

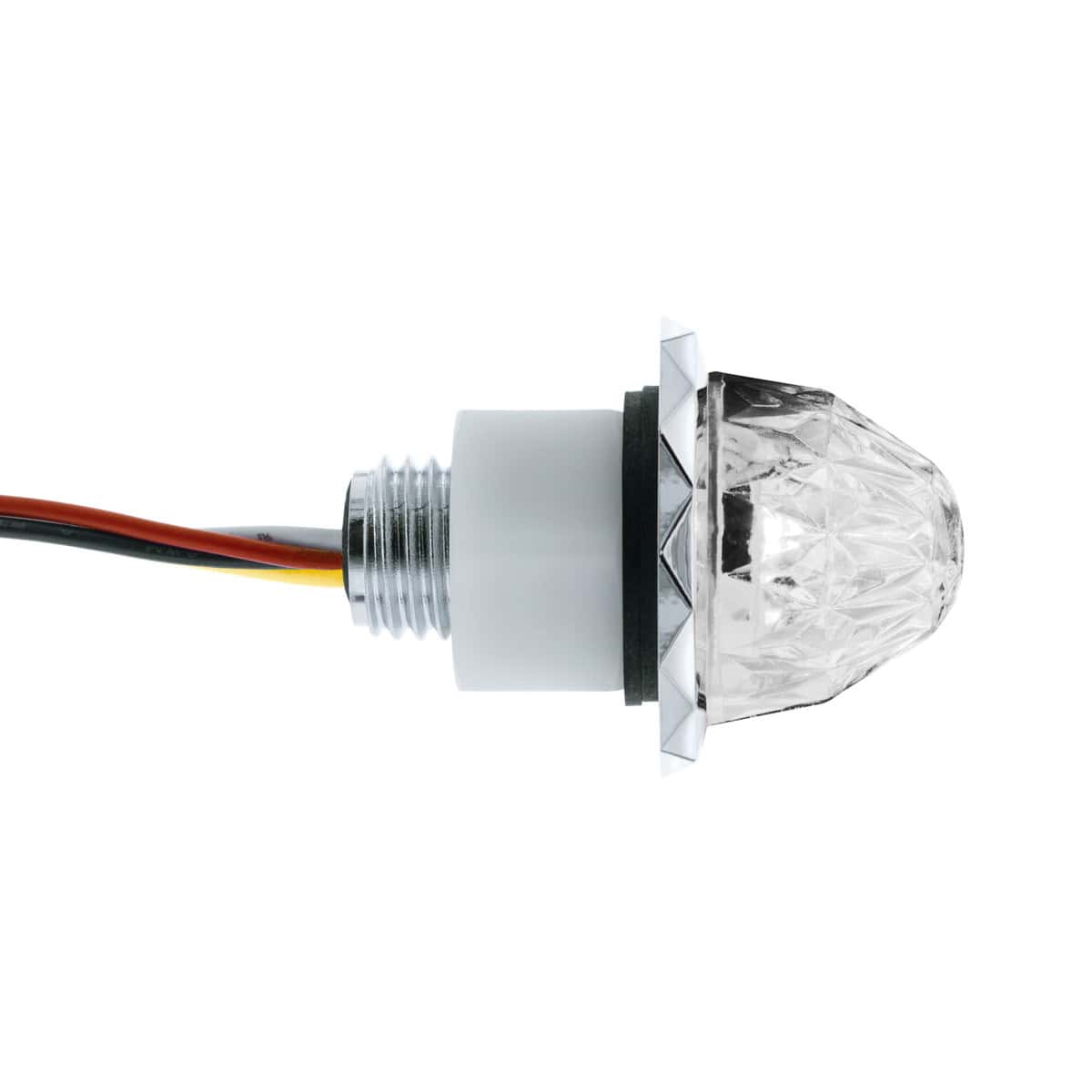

This Double Fury crystal watermelon light features two independently controlled LED circuits:
-
Primary LED: Amber – DOT/SAE compliant for front or side clearance/marker use
-
Secondary LED: White – Activates separately and overrides the primary when powered
When both circuits receive power, the white LED overrides the amber LED, allowing flexible configurations for:
-
Auxiliary lighting
-
Accent lighting
-
Work light applications
-
Custom switch-controlled setups
⚠️ The white secondary LED is typically intended for auxiliary or off-road use only. Confirm local regulations before public-road installation.
Key Features & Benefits
Four High-Intensity Dual-Function LEDs
Delivers bright, energy-efficient illumination in both primary and secondary circuits.
Crystal Polycarbonate Lens
Injection-molded, impact-resistant lens designed for long-term clarity and durability.
Chrome Plastic Bezel
Provides a polished, professional finish that complements chrome and stainless trim packages.
Epoxy-Sealed Housing
Fully sealed to resist:
-
Moisture intrusion
-
Road salt
-
Dust and debris
-
Heavy vibration
IP67 Rated
Built to withstand harsh weather and demanding road conditions.
Independent Secondary Circuit
Yellow wire allows separate activation of the white LED for flexible wiring setups.
Performance / Compatibility / Use-Case
The 1-1/8″ crystal-cut lens offers:
-
Greater visual presence than 3/4″ minis
-
Enhanced light dispersion
-
A sharper, faceted look compared to smooth dome watermelon lights
Ideal for:
-
Cab roof clearance rows
-
Sleeper panel lighting
-
Trailer perimeter lighting
-
Livestock and utility trailers
-
Custom and show builds
The clear crystal lens maximizes LED brightness while maintaining a clean appearance when unlit.
This 1-1/8″ Crystal Double Fury Watermelon Light is ideal for:
-
Semi trucks and big rigs
-
Commercial trailers
-
Utility and livestock trailers
-
RVs and buses
-
Custom and show vehicles
The primary amber LED meets DOT/SAE FMVSS 108 standards for clearance/marker use when installed appropriately. The secondary white LED is generally used for auxiliary or accent lighting applications.
Installation / Fitment / Technical Details
LED Count: 4 Dual-Function LEDs
Lens Diameter: 1-1/8″
Mounting Hole Required: 3/4″ Diameter
Voltage: 12V DC
Waterproof Rating: IP67
Compliance: DOT / SAE, FMVSS 108 (Primary Only)
Warranty: 3 Years
4-Wire Hookup (Male Bullet Plugs)
-
White = Ground (-)
-
Red = Primary High (+)
-
Black = Primary Low (+)
-
Yellow = Secondary (+)
Build Quality / Warranty
-
Injection-molded crystal polycarbonate lens
-
Chrome plastic bezel
-
Epoxy-sealed electronics
-
Threaded stud installation with nylon nut
-
Designed for vibration-heavy commercial environments
This is a professional-grade clearance light engineered for real-world trucking and serious custom builds.
Warranty: 3-year manufacturer warranty.
What’s Included
-
(1) Double Fury 4 LED 1-1/8″ Crystal Watermelon Light – Amber & White LED
-
Nylon mounting nut with threaded stud
-
Installation hardware
Frequently Asked Questions
What does “Double Fury” mean?
Double Fury refers to the dual-color LED configuration with independent primary and secondary circuits. The secondary color overrides the primary when activated.
Is the white LED street legal?
The white LED is typically intended for auxiliary or off-road use only. The amber primary LED meets DOT/SAE FMVSS 108 standards for clearance lighting.
Does this require a 1-1/8″ mounting hole?
No. The lens measures 1-1/8″, but installation requires a 3/4″ mounting hole.
Is this light waterproof?
Yes. It is IP67 rated and features epoxy-sealed electronics for moisture protection.
Can I wire the white LED to a separate switch?
Yes. The yellow wire allows independent control of the secondary LED.
Crystal Clarity. Dual-Color Control. Road-Ready Performance.
The Double Fury 4 LED 1-1/8″ Crystal Watermelon Light – Amber & White delivers strong clearance visibility, flexible wiring control, and bold styling in one premium lighting solution. Ideal for drivers who want compliance, customization, and maximum visual presence.
