4Runner 2025 TRD Pro Grille SS20
Add auxiliary lighting behind the grille with an SS20 20-inch Standard LED light bar and vehicle-specific mounting brackets. Choose Sport or Pro output, white or yellow light, and Combo or Driving optics from the configurations below. Each listed kit includes an amber-backlit light bar.
- Built for the extreme with IP69K waterproof rating.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Made in USA with Global Materials.
- Patented TIR Optics for maximum efficiency and output.
- True amber backlight provides unique accent lighting.
Available configurations
| Manufacturer SKU | Configuration |
|---|---|
| DD8732 | 4Runner 2025 TRD Pro Grille SS20 Sport White Combo |
| DD8733 | 4Runner 2025 TRD Pro Grille SS20 Sport Yellow Combo |
| DD8734 | 4Runner 2025 TRD Pro Grille SS20 Pro White Combo |
| DD8735 | 4Runner 2025 TRD Pro Grille SS20 Pro Yellow Combo |
| DD8736 | 4Runner 2025 TRD Pro Grille SS20 Sport White Driving |
| DD8737 | 4Runner 2025 TRD Pro Grille SS20 Sport Yellow Driving |
| DD8738 | 4Runner 2025 TRD Pro Grille SS20 Pro White Driving |
| DD8739 | 4Runner 2025 TRD Pro Grille SS20 Pro Yellow Driving |

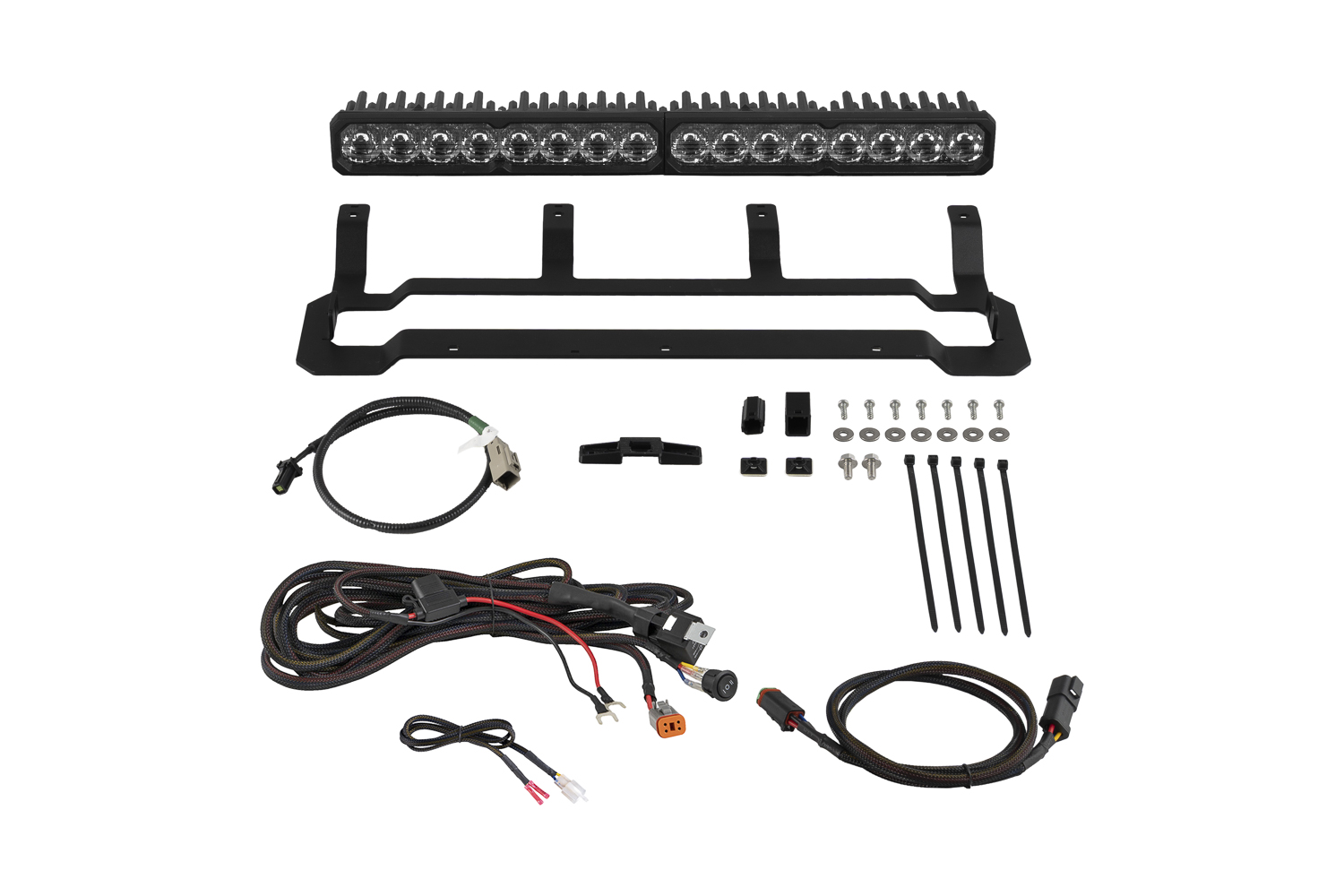

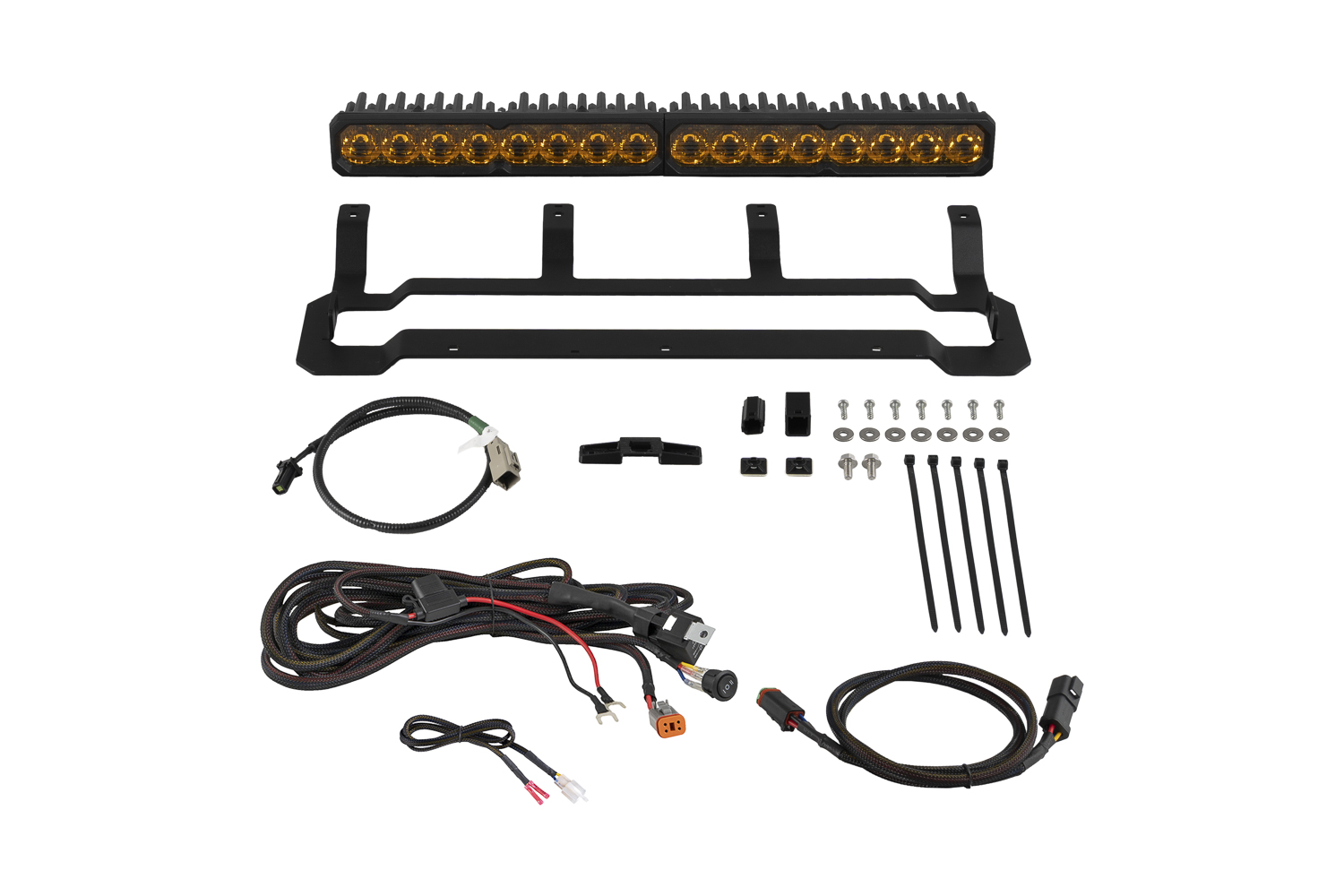

What is included?
Every DD8732–DD8739 configuration on this page includes:
- One SS20 Standard LED light bar in the selected output level, color and beam pattern
- One TRD Pro grille mounting bracket kit
- One wiring harness
- One front-camera relocation kit
- Five zip ties
- Mounting hardware
Controls: These Standard light bars do not have SmartSelect functionality. For a TRD Pro installation, use the supplied harness with a new switch; the factory light-bar switch cannot operate this kit.
Specifications
| Ingress rating | IP69K Waterproof High Pressure |
|---|---|
| Operating temperature | -40C to 85C (-40F to 185F) |
| Operating voltage | 9-30 V DC |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD8732, DD8733, DD8734, DD8735, DD8736, DD8737, DD8738, DD8739; each row is a real product configuration.
What vehicle details must match?
Match the stated model years, model and any bumper, trim or factory-equipment requirements. A kit for one bumper or fog-light opening is not automatically compatible with another configuration of the same vehicle.
Build the right lighting setup
Browse off-road pod lights, vehicle-specific off-road kits, off-road wiring harnesses, mounts and lighting accessories.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
