DIODE DYNAMICS · 9005 / 9011 / H10 · SL2
Focused light. Fanless design.
Choose a 6000K White or 3000K Yellow pair with a passive heatsink and an internal driver. Standard SL2 puts the LED light source near the original filament position, while keeping the assembly compact enough to avoid a separate driver box.

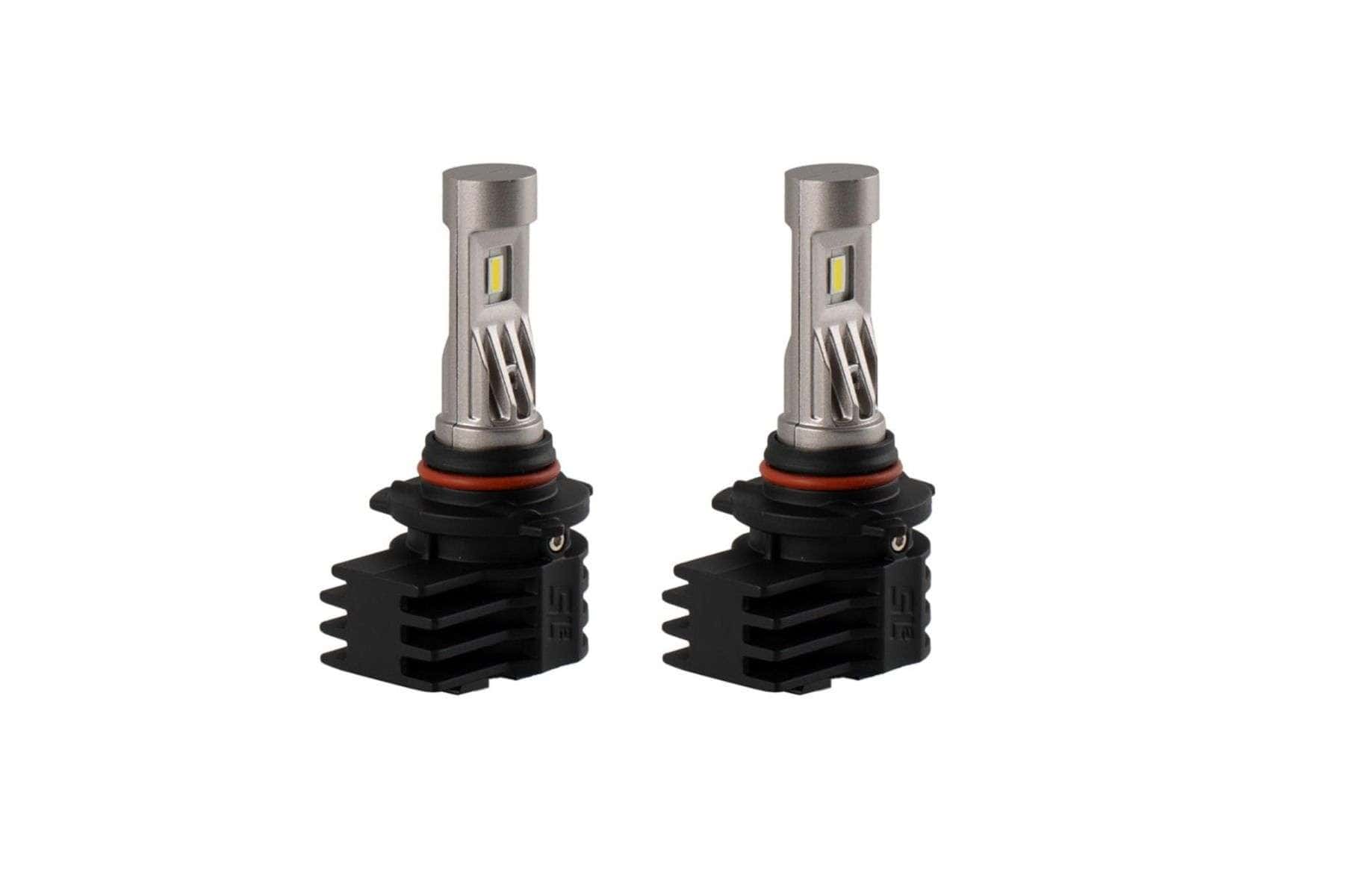

- Pair of two bulbs
- White or Yellow
- Fanless · integrated driver

Pick the colour you want
6000K White · DD0463P
A cool-white single-colour pair. Diode lists 1,400 lumens per White bulb.
3000K Yellow · DD0464P
A selective-yellow single-colour pair. These are separate fixed-colour choices, not switchable bulbs.

Cooling without a fan

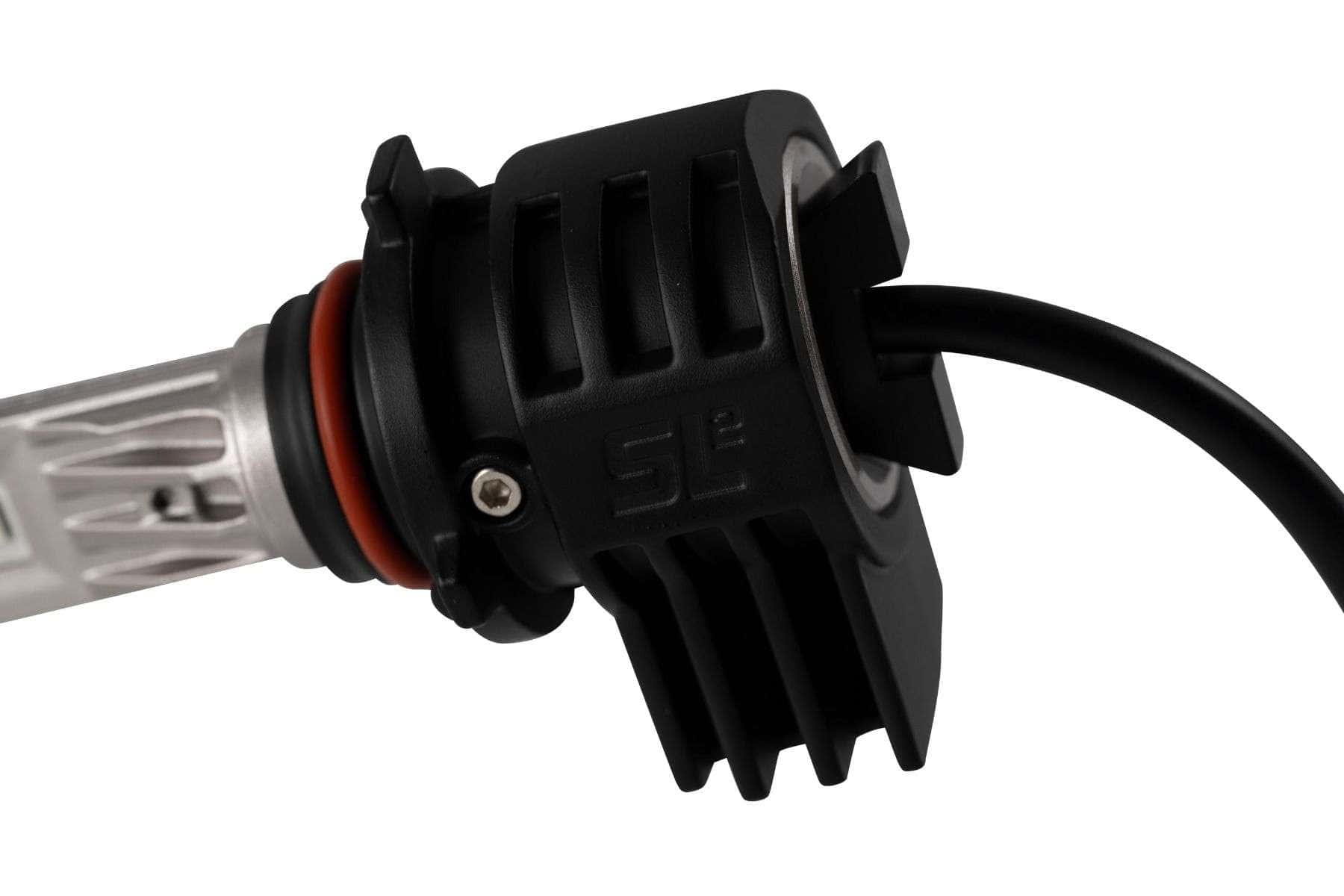

Standard SL2 uses a passive heatsink, copper-core circuit board and integrated electronics. It draws 14W per bulb and has no cooling fan or external driver box. The fan-cooled SL2 Pro is a different product; this listing keeps the standard SL2 identity.

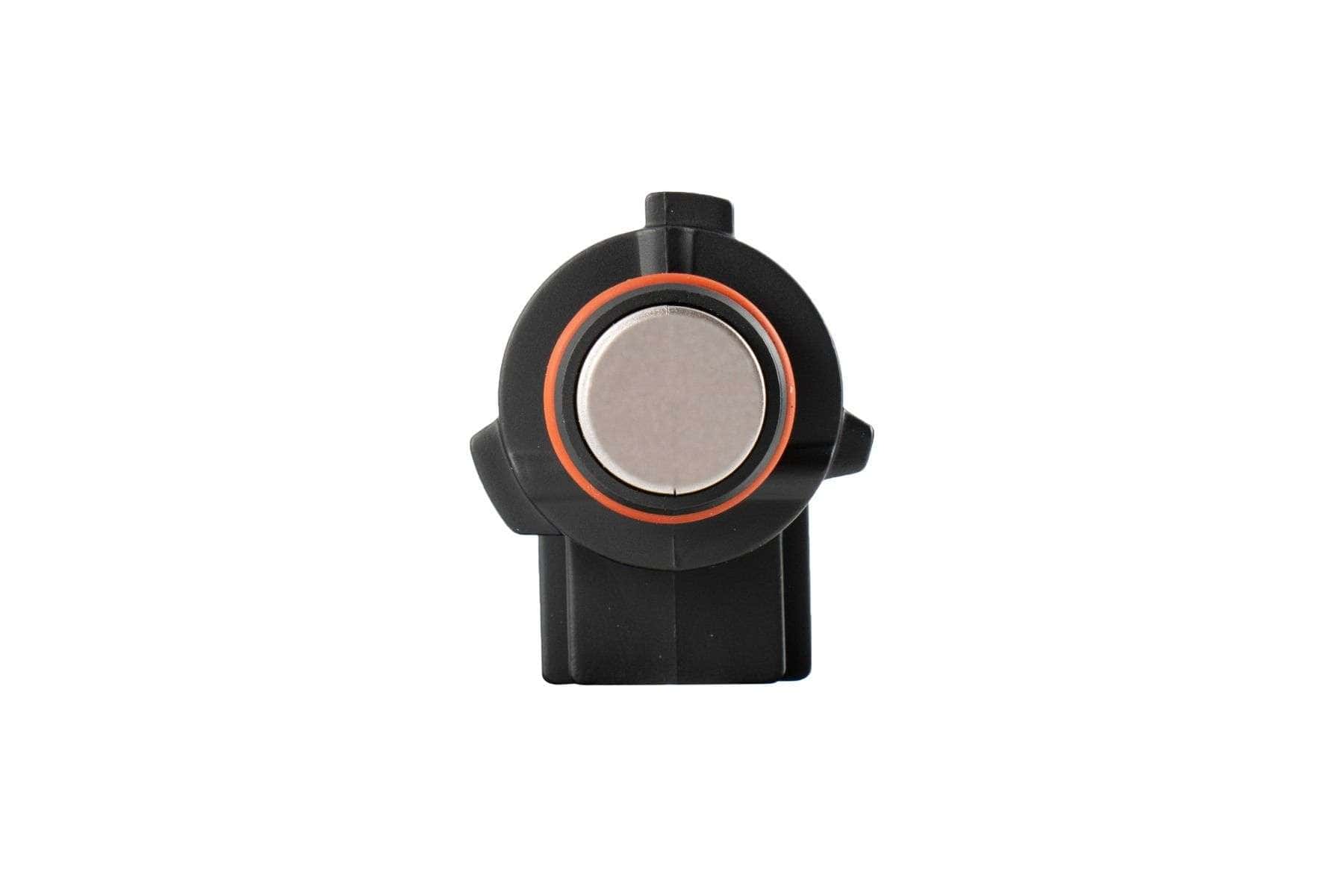

Check the retaining collar, bulb seating and room behind the lamp. A matching connector does not by itself confirm electrical compatibility with bulb monitoring or daytime-running-light circuits.

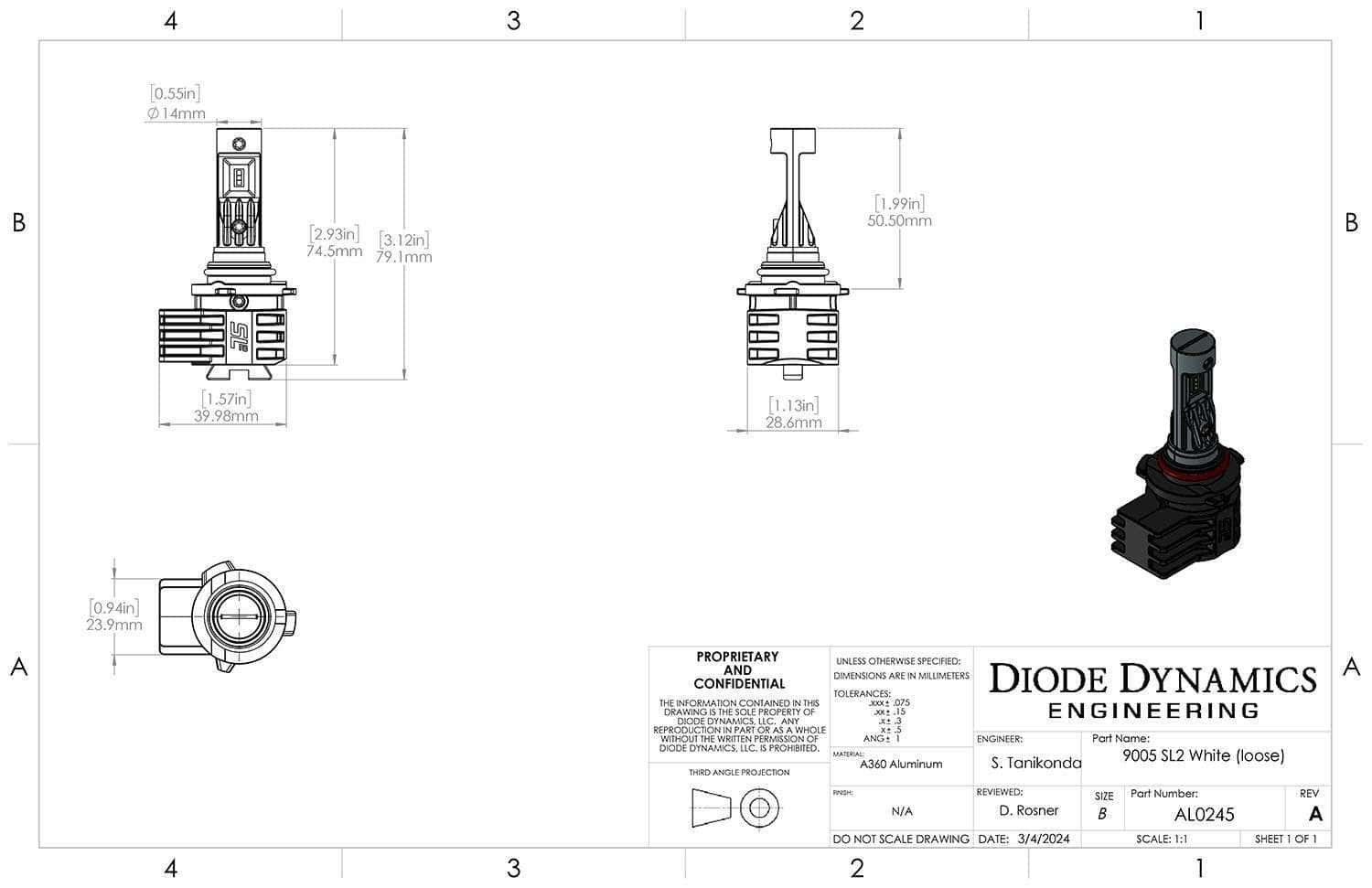

Explore the standard SL2 design










Manufacturer installation demonstration for SL2 and SL2 Pro on a 2018–2023 F-150. Follow only the procedure and bulb version matching your application; this page supplies standard SL2 bulbs only.
The details for this pair

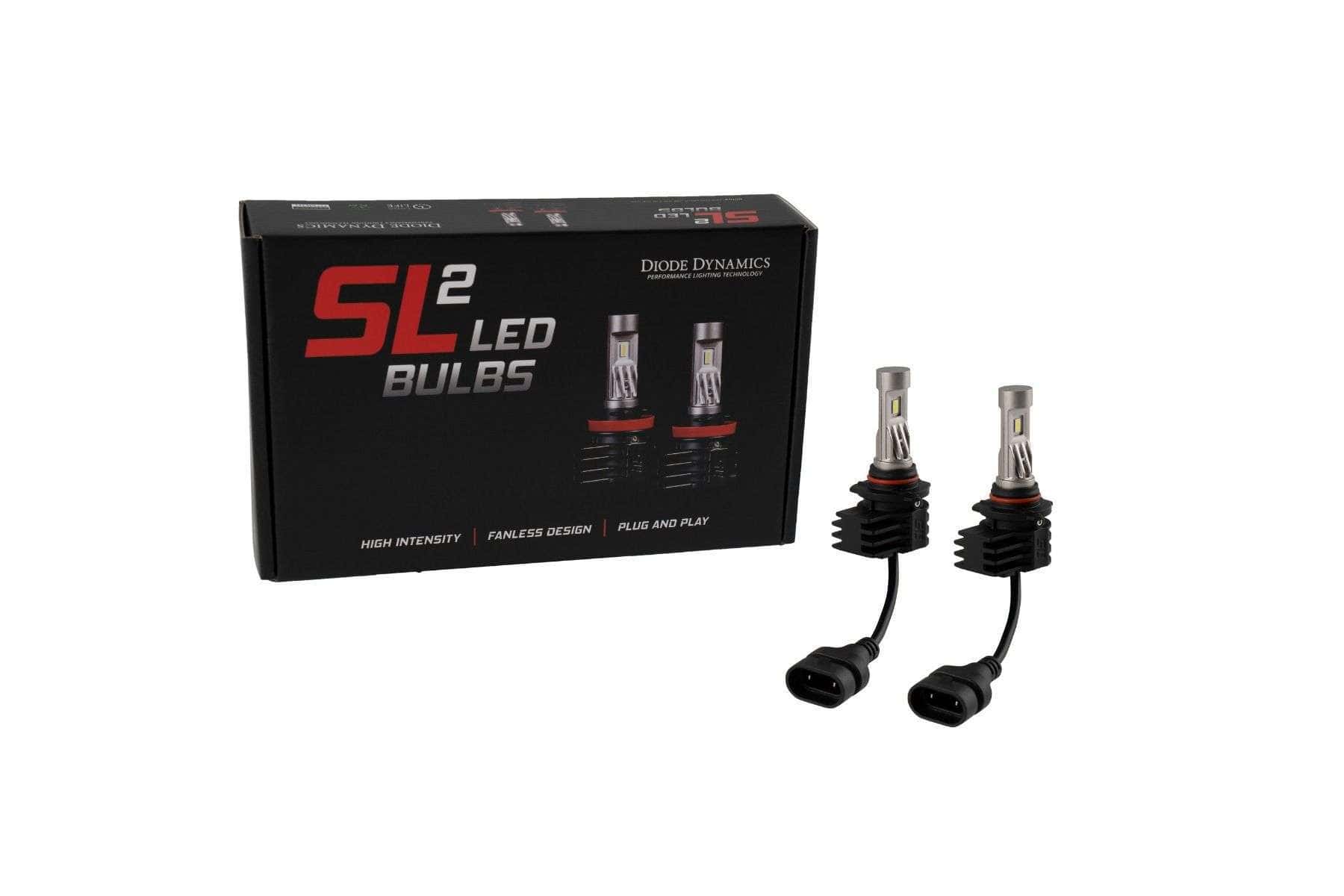

- Package
- Two bulbs
- Exact part
- DD0463P White / DD0464P Yellow
- Bulb family
- 9005 / 9011 / H10
- Light colour
- White or Yellow
- Listed output
- 1400 lumens per bulb (White)
- Power
- 14W per bulb
- Operating voltage
- 9–30V
- Cooling / driver
- Passive heatsink / internal
- Manufacturer warranty
- Limited lifetime, subject to terms
Check the actual lamp
Match the original bulb, the lamp position and the manufacturer’s vehicle application before ordering. These are individual replacement bulbs, not complete lamp housings. They do not replace the LEDs built into a factory LED assembly.
For the 2018–2023 F-150 fog application, Diode lists the H10 replaceable-bulb assembly. Integrated factory LED fog lamps require a complete assembly upgrade instead. The 9005/9011/H10 family name is not a guarantee for every housing using one of those bases.
Diode does not approve these LED replacement bulbs for public-road headlight use in the United States. Match the intended application and the rules where you use the vehicle.
Install, test, then close the housing
- Switch the lighting off and let the original bulb cool before removal.
- Compare the base, retaining features and connector. Seat the replacement fully without forcing it.
- Check operation before refitting covers. For a polarity-sensitive wedge bulb, turn the power off before reversing its orientation if the supplied instructions allow it.
- Refit seals and covers, inspect the finished operation, and aim any forward-facing lamp correctly.
Bulb-out warnings or flicker require an application-specific electrical check; do not assume an anti-flicker module is included with these bulb-only pairs.
Before you fit the bulbs
Read the BTS SL2 installation guide for bulb alignment, retaining collars, seals and electrical checks. Vehicle examples do not replace an application check.
Questions before ordering
Does one package contain a pair?
Yes. DD0463P includes two bulbs in the selected colour. The White and Yellow SKUs are different pairs.
Does it replace a factory LED assembly?
No. This product replaces a specified removable incandescent bulb. An integrated factory LED lamp needs its own compatible assembly.
Are extra modules or a new housing included?
No. This listing is for the bulb pair. Any application-specific anti-flicker modules, wiring or lamp housings are separate unless expressly listed.
What warranty applies?
Diode specifies a limited lifetime warranty for standard SL2 bulbs. Manufacturer terms, exclusions and installation requirements apply.
