Diode Dynamics Kuat IBEX Bed Rack with SS10 Chase Light Kit

The Diode Dynamics Kuat IBEX Bed Rack with SS10 Chase Light Kit is built for truck owners who want a serious overland rack with integrated trail lighting. It combines the Kuat IBEX modular bed rack with Diode Dynamics rear-facing SS10 Chase Light functions and Stage Series bed lights for visibility behind the truck and inside the bed.

Features include:

• Kuat IBEX truck bed rack
• Integrated Diode Dynamics SS10 Chase Lightbar
• Programmable yellow chase light
• 21 selectable strobing patterns
• SafetyStrobe brake light with 3 programmable patterns
• Additional high-power reverse light
• Four Stage Series Rock Lights for bed lighting
• White and amber rock light lens options
• Lightweight powder-coated aluminum rack construction
• Adjustable T-channels for mounting gear
• Full-height and mid-height rack configurations
• Limited lifetime warranty

---

Key Features & Benefits

Integrated Kuat IBEX Bed Rack System

The Kuat IBEX bed rack is built as a modular truck rack for overland gear, trail equipment, and everyday bed utility.

Features include:

• Lightweight aluminum construction
• Durable powder-coated finish
• Modular rack design
• Full-height configuration
• Mid-height configuration
• Adjustable telescopic crossbars
• Multiple T-channels for accessories
• Mounting support for select retractable tonneau cover setups

This gives truck owners a rack system that can carry gear while supporting integrated Diode Dynamics lighting.

---

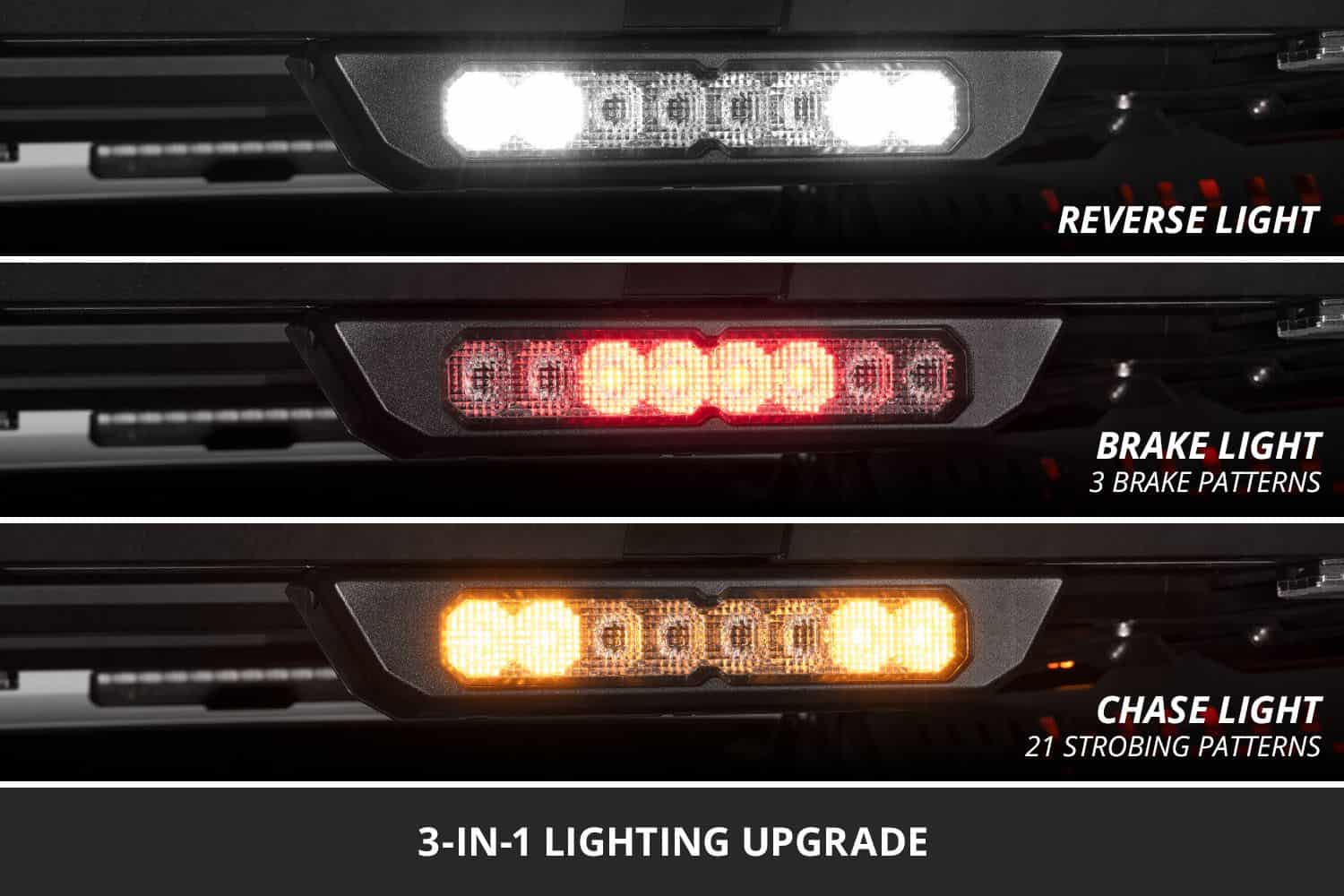

SS10 Chase Lightbar

The integrated SS10 Chase Light adds rear-facing visibility for off-road and trail use.

Features include:

• SS10 Chase Lightbar included
• Custom-designed IBEX mounting enclosure
• Programmable yellow chase light
• 21 selectable strobing patterns
• SmartTap programming
• Magnetic programming tool included
• Rear-facing visibility support

The chase light is designed to help make your truck more visible to others behind you in dust, low visibility, and off-road conditions.

---

SafetyStrobe Brake Light Function

The SS10 Chase Light also includes a high-power brake light function with selectable modes.

Brake light options include:

• Solid illumination
• Triple-flash SafetyStrobe mode
• Slower pulsing mode for off-road use

The brake light mode can be programmed using the included magnet tool.

---

High-Power Reverse Light

The SS10 Chase Light provides additional reverse light output for backing up at night or on the trail.

Features include:

• High-power reverse light function
• Patented TIR optics
• High-power LEDs
• Additional rear-facing illumination
• Can be wired to activate when the vehicle is placed in reverse, if desired

This helps add usable rear light output beyond factory reverse bulbs.

---

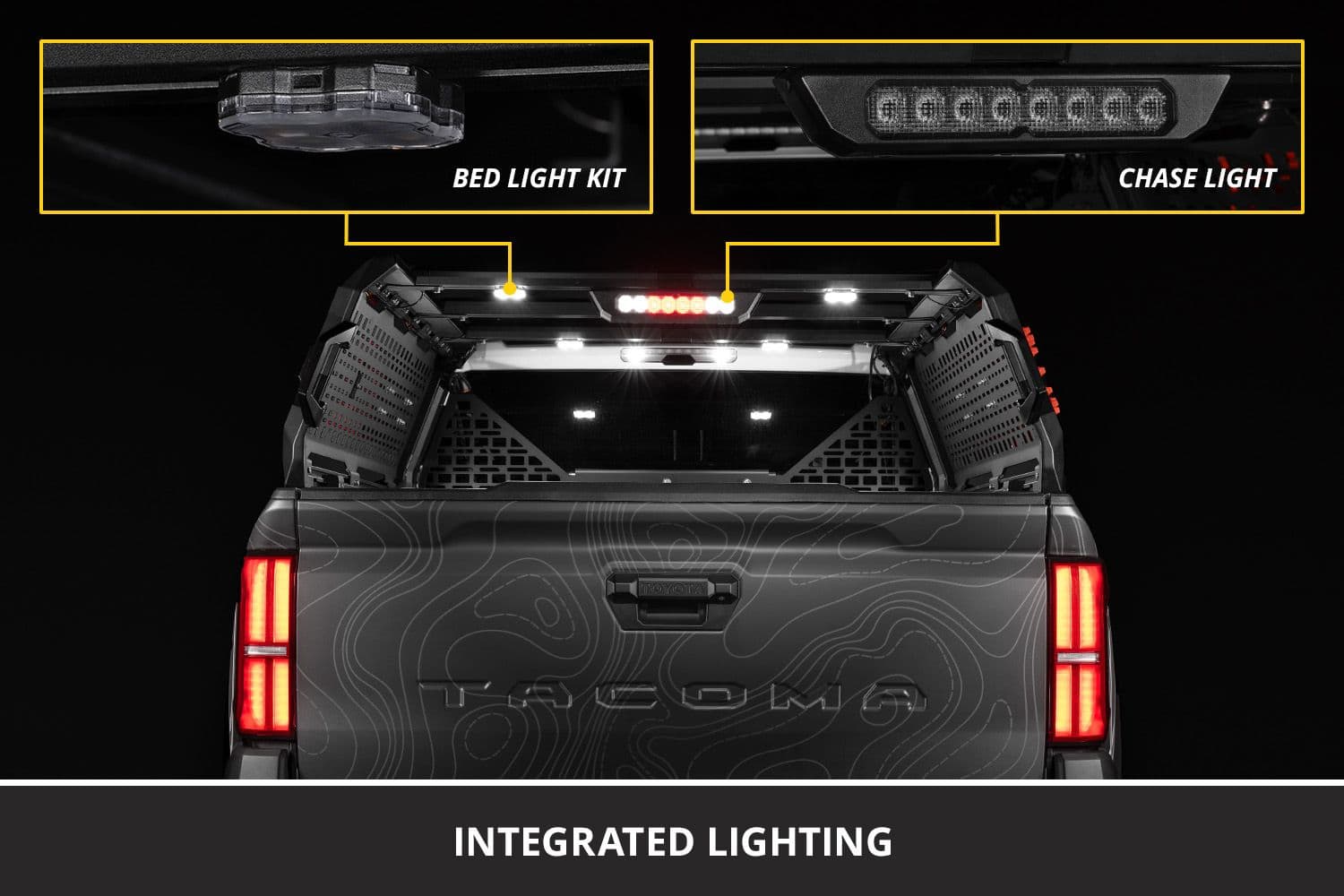

Integrated Stage Series Bed Lighting

The included Stage Series Bed Light Kit adds practical lighting inside the truck bed.

Features include:

• Four Stage Series Rock Lights
• Mounts to the IBEX crossbars
• White diffused rock light lenses included
• Amber rock light lenses included
• Helps illuminate cargo and gear
• Useful for loading and unloading after dark

The included amber lenses allow you to switch between cool white and amber output based on preference or conditions.

---

Adventure-Ready Rack Strength

The Kuat IBEX bed rack is built for carrying gear on and off the trail.

Capacity details:

• Static weight capacity: 1,200 lb
• Dynamic weight capacity: 300 lb

This makes the rack suitable for many overland and adventure setups when installed and loaded correctly.

---

Fitment

The Kuat IBEX is available in multiple frame sizes to accommodate different truck models and bed sizes. Measure your truck before ordering to choose the correct kit type.

Measure the following before selecting your rack:

• Distance between the bed rail and the top of the cab
• Bed length inside the bed rails
• Inside width between the bed rails

Choose the kit type that fits your truck without exceeding your measurements.

IBEX Kit Size Chart

Known Fitments By Kit Type

---

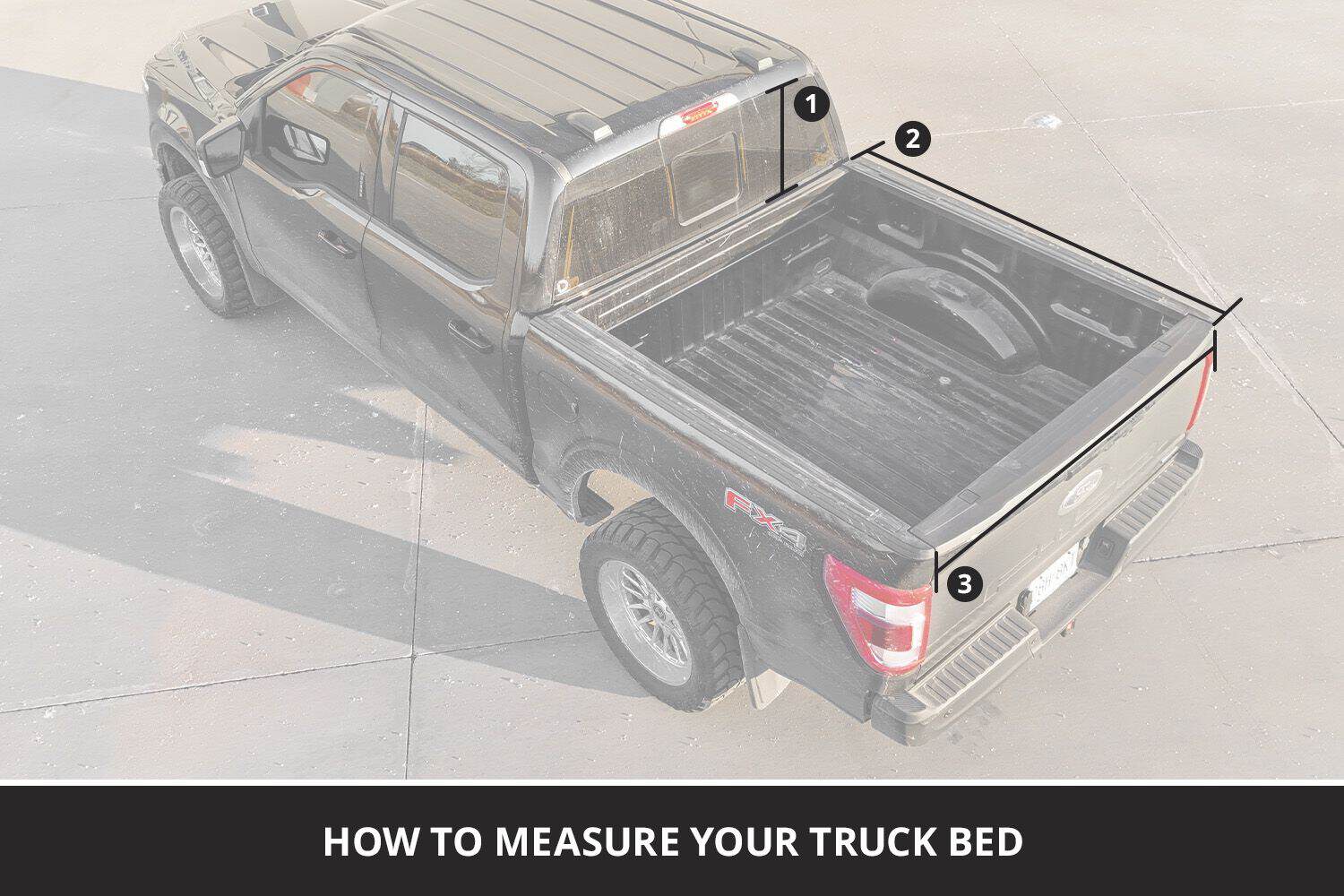

Measuring For Fitment

Measure your truck bed before ordering.

Measurement points:

• Distance between the bedrail and top of cab
• Bed length inside the bed rails
• Inside width of the bed rails

Choose the IBEX kit type that fits your measurements without going over.

---

Application & Use Case

Designed for:

• Off-road trucks
• Overland builds
• Trail rigs
• Camping and adventure setups
• Bed rack lighting upgrades
• Chase light visibility
• Rear reverse lighting
• Truck bed cargo lighting
• Gear mounting and rack accessory setups

This kit is intended for off-road applications. Check local laws before using chase, strobe, or auxiliary lighting on public roads.

---

Installation & Technical Details

Installation Overview

This package includes the Kuat IBEX bed rack, integrated SS10 Chase Lightbar, Stage Series Rock Lights, wiring, brackets, and installation hardware.

Installation details:

• Product type: Truck bed rack with integrated lighting
• Rack material: Powder-coated aluminum
• Chase light: SS10 Chase Lightbar
• Bed lights: Four Stage Series Rock Lights
• Chase patterns: 21 selectable strobing patterns
• Brake patterns: 3 programmable patterns
• Reverse light: Included
• Rock light lens options: White diffused and amber
• Wiring: Included harnesses and extensions
• Application: Off-road

Professional installation is recommended for proper rack mounting, wiring, lighting function, and accessory setup.

---

SS10 Chase Lightbar Specifications

Supplied SS10 Chase Lightbar specifications:

• Raw lumens: White 960, Red 220, Amber 220
• Intensity: White 650 cd, Red 125 cd, Amber 450 cd
• Color temperature: 3000K, 5700K
• Power: White 4W, Red 2.5W, Amber 4W
• Operating voltage: 9-16V
• Current at 12.8V: White 0.3A, Red 0.2A, Amber 0.3A
• Wire size: 18 AWG
• Polarity: Polarity specific
• Operating temperature: -40°C to 85°C, -40°F to 185°F
• Connector: Deutsch DT input
• Materials: FR4 PCB, ASA plastic
• Cooling: Passive, no heatsink
• Intrusion rating: IP69K waterproof, high pressure

---

Build Quality, Reliability & Warranty

Proven Diode Dynamics Lighting

Diode Dynamics Stage Series lighting is tested for long-term durability and real-world use.

Testing includes:

• Operation from -40°F to 185°F
• Vibration testing
• Moisture intrusion testing
• Corrosion testing
• SAE-standard testing processes

Diode Dynamics directly manufactures and engineers its products in the United States using globally sourced materials.

---

Kuat Rack Construction

The Kuat IBEX rack is built from lightweight powder-coated aluminum for durability and modular use.

Key details:

• Powder-coated aluminum construction
• Adjustable T-channel system
• Modular frame design
• Full-height and mid-height configurations
• Telescopic crossbars
• Gear and accessory mounting capability

---

Warranty Coverage

This product includes a lifetime warranty.

The supplied product information also lists a 30-day return policy with no restocking fee and a 100% satisfaction guarantee.

---

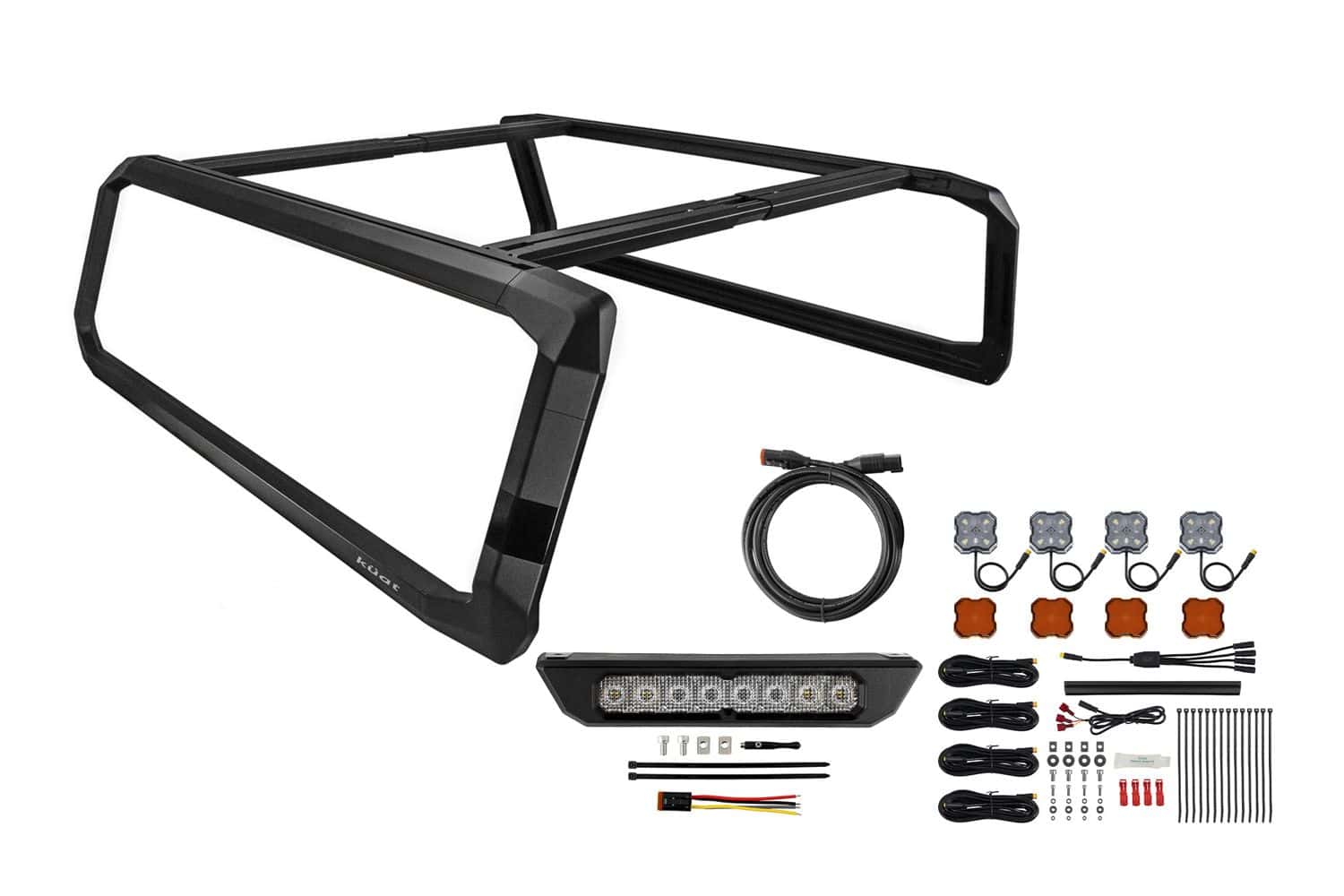

What’s Included

Included in the kit:

• 1 × Diode Dynamics Kuat IBEX Bed Rack
• 1 × SS10 Chase Lightbar
• 1 × Magnetic Programming Tool
• 4 × Stage Series Rock Lights
• 4 × White Diffused Rock Light Lenses
• 4 × Amber Rock Light Lenses
• 1 × DT 4-Pin 3M Extension Wire
• 4 × 5M M8 Extension Wires
• 1 × M8 4-Way Splitter
• 1 × DT 4-Pin Pigtail
• 1 × T-Tap Harness
• 4 × T-Taps
• 16 × Zip Ties
• Wire Retention Strip
• Mounting Hardware
• Installation Guide

Quantity:

• 1 × Complete Kit

---

Frequently Asked Questions About The Diode Dynamics Kuat IBEX Bed Rack Chase Light Kit

What is included with the Diode Dynamics Kuat IBEX Bed Rack Chase Light Kit?

This kit includes the Kuat IBEX bed rack, SS10 Chase Lightbar, magnetic programming tool, four Stage Series Rock Lights, white and amber rock light lenses, wiring, hardware, and installation guide.

It is a complete bed rack and lighting package for supported truck applications.

---

What does the SS10 Chase Light do?

The SS10 Chase Light provides rear-facing chase, brake, and reverse light functions.

It includes a programmable yellow chase light, SafetyStrobe brake light modes, and additional high-power reverse lighting.

---

How many chase light patterns are available?

The SS10 Chase Light includes 21 selectable strobing patterns.

SmartTap programming lets you cycle through patterns using the included magnetic programming tool.

---

Does the brake light have different modes?

Yes. The brake light has three programmable patterns.

Available modes include solid illumination, triple-flash SafetyStrobe mode, and a slower pulsing mode designed for off-road use.

---

Does this kit include bed lights?

Yes. This kit includes four Stage Series Rock Lights for bed lighting.

It also includes white diffused lenses and amber lenses so you can choose the output style that works best for your setup.

---

What is the rack made from?

The Kuat IBEX bed rack is made from lightweight powder-coated aluminum.

It is designed to be durable while keeping weight down for overland and truck bed applications.

---

What is the weight capacity of the rack?

The supplied product information lists a static weight capacity of 1,200 lb and a dynamic weight capacity of 300 lb.

Always load the rack safely and follow the manufacturer’s installation and usage guidelines.

---

Will this fit my truck?

Fitment depends on your truck model, bed length, bed width, and cab height measurements.

Measure your truck bed and choose the correct IBEX kit type before ordering.

---

Is this kit for street use?

The supplied fitment information lists the application as off-road.

Use chase, strobe, and auxiliary lighting only where permitted by local laws.

---

What warranty is included?

This product includes a lifetime warranty.

The supplied product information also lists a 30-day return policy with no restocking fee and a 100% satisfaction guarantee.

Weight	100 lbs
Dimensions	70 × 21 × 10 in
Kit Type:	A1, A2, A3, B2, C1, D2, D3
