DIODE DYNAMICS · 2015–2020 COLORADO / CANYON
Thirty inches of light. A factory grille finish.

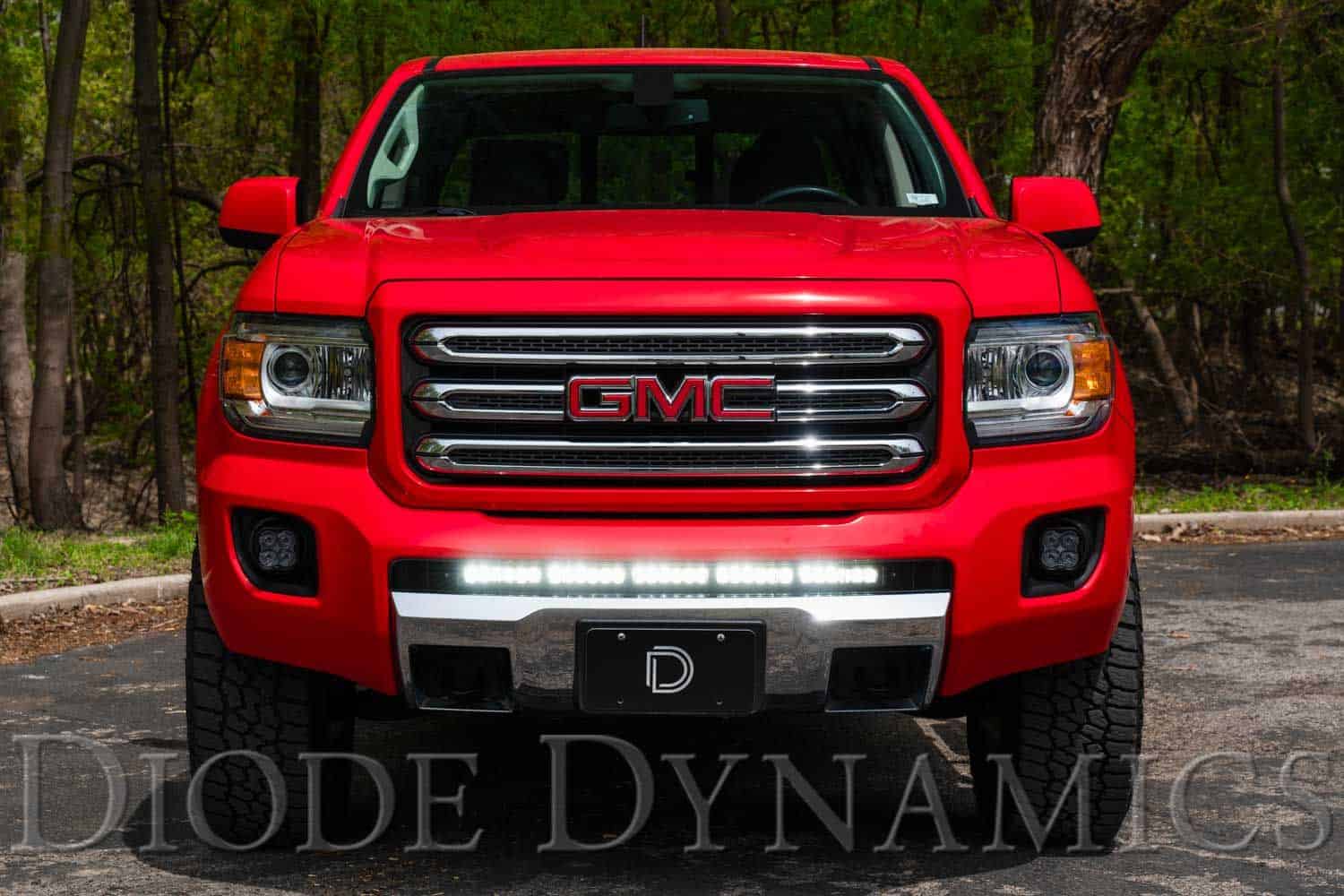

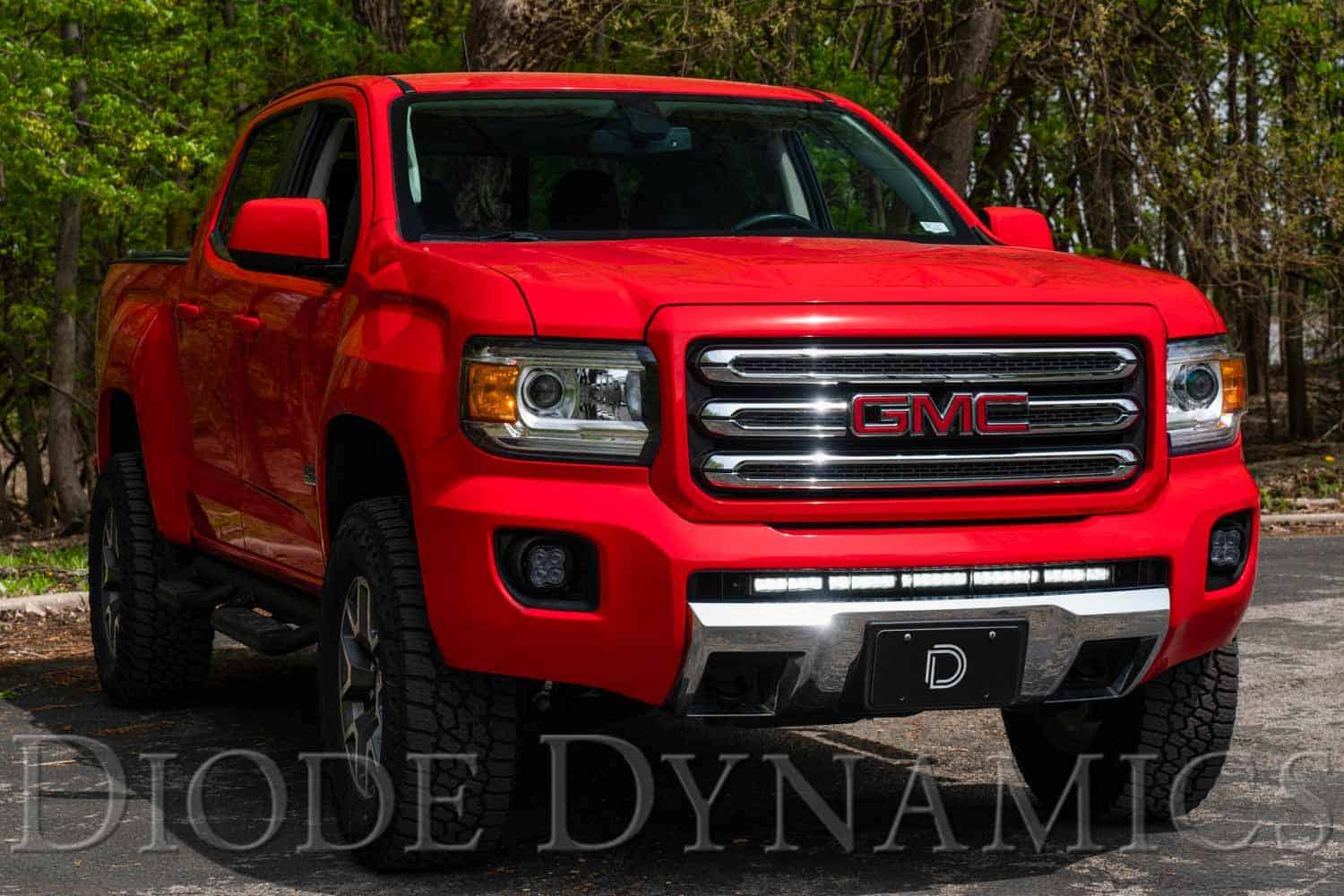

DD6357 places a 30-inch Stage Series White Driving bar behind the lower grille of the 2015–2020 Chevrolet Colorado or GMC Canyon. Purpose-built brackets and supplied wiring keep the kit coordinated while the original grille stays in place.
- 30-INCHOne Stage Series bar
- WHITE DRIVING6000K · 20° × 8°
- STEALTH MOUNTBehind the lower grille
- 8 YEARSLimited bar warranty
PURPOSEFUL LIGHTING
A kit built around the job
Focused forward light

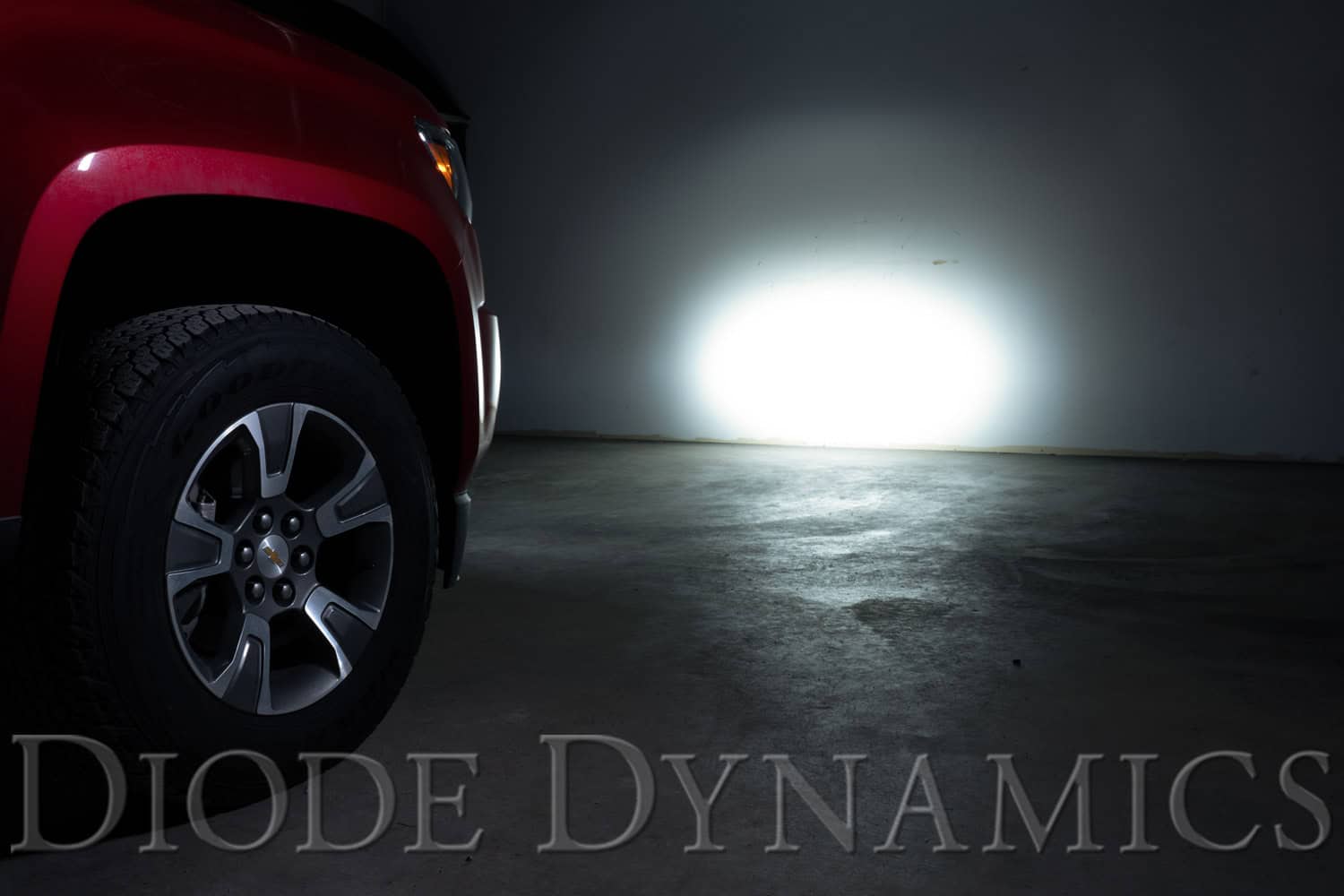

The 20° × 8° Driving pattern concentrates light ahead for off-road visibility. This listing supplies White Driving, not Flood, Combo or Amber.
Keep the original grille

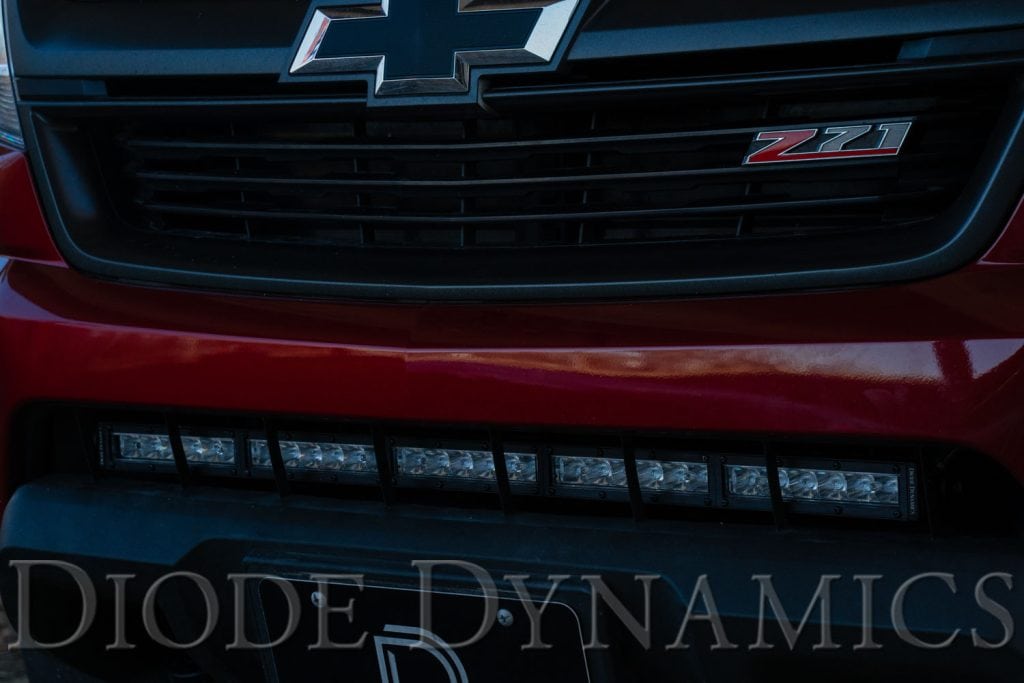

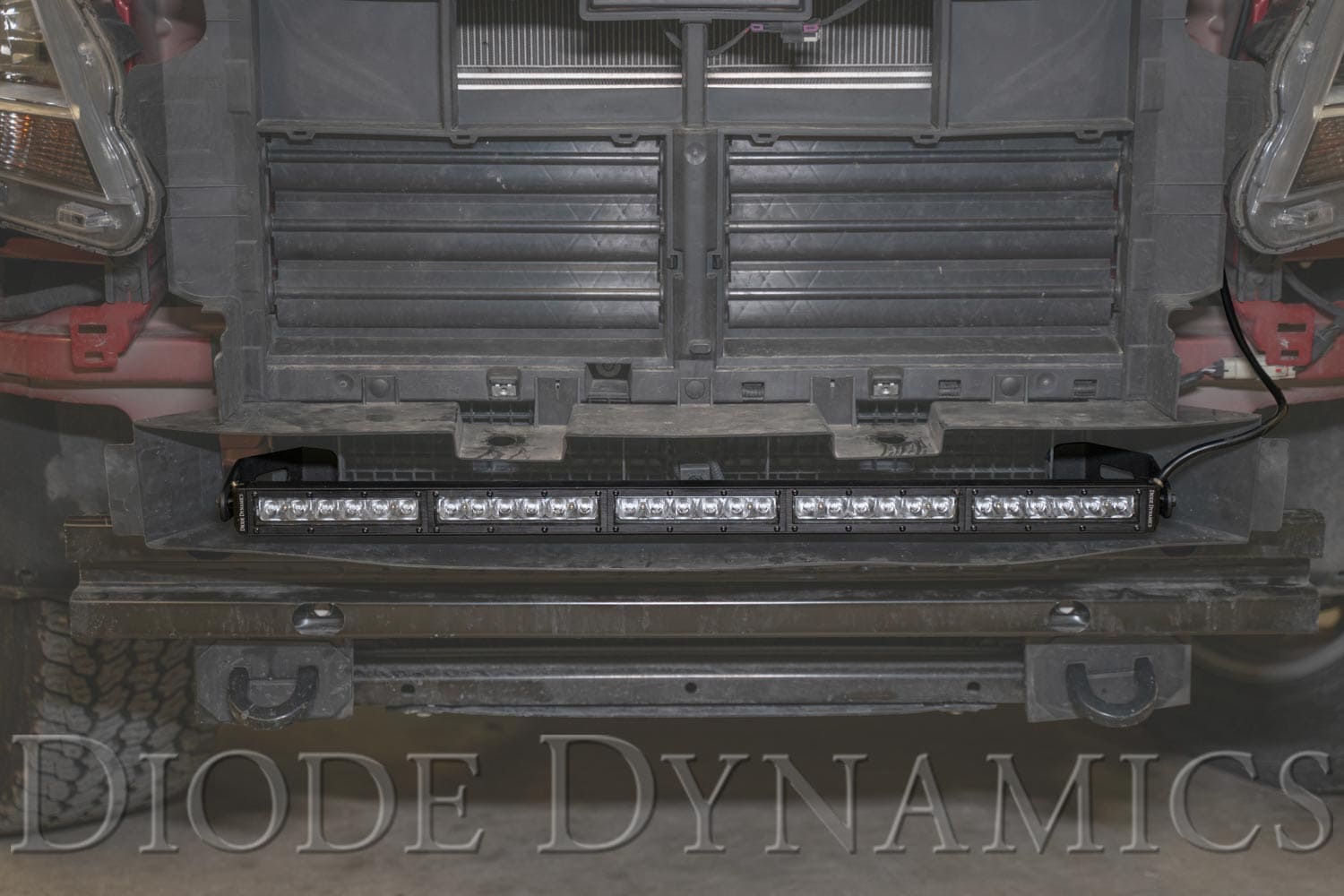

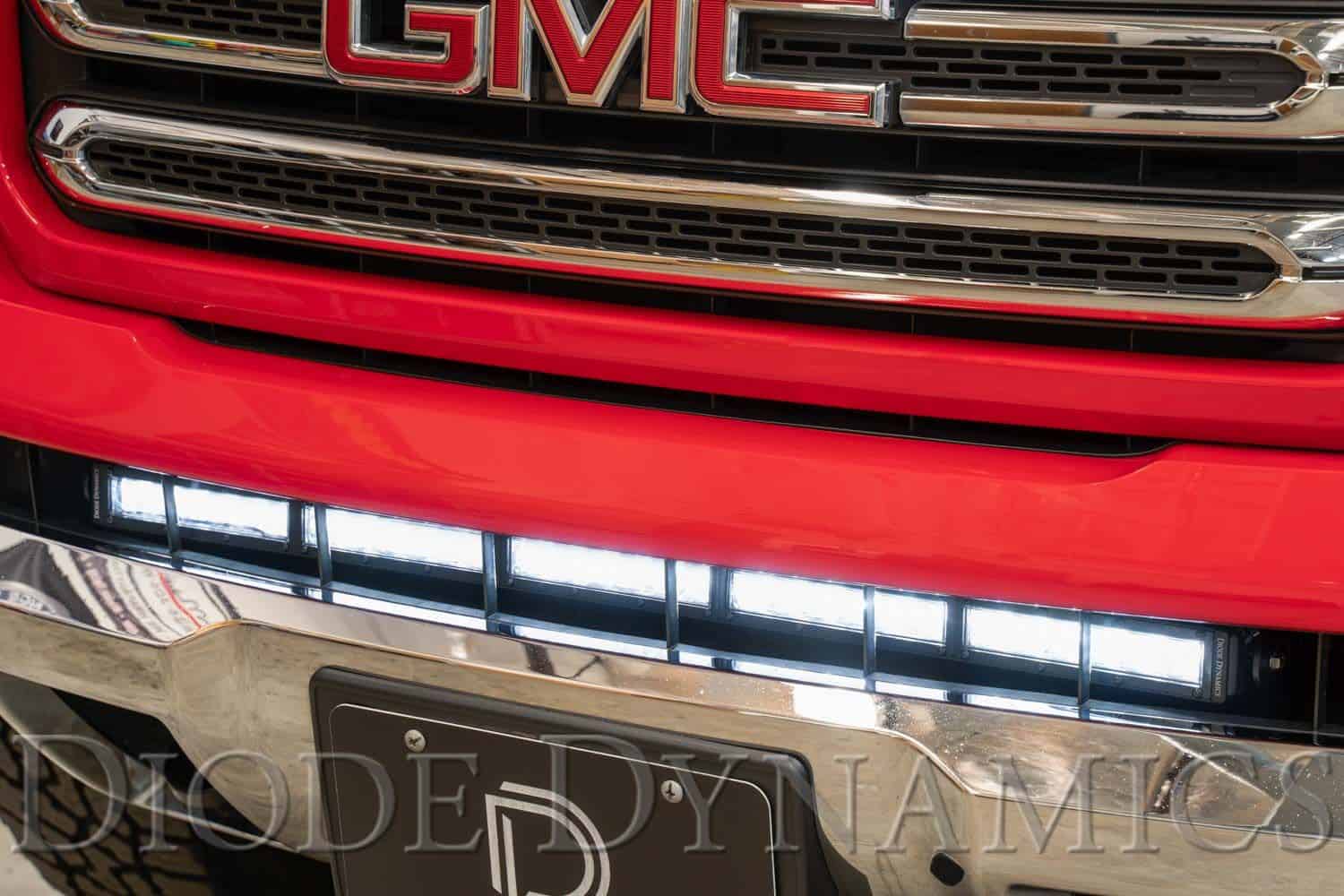

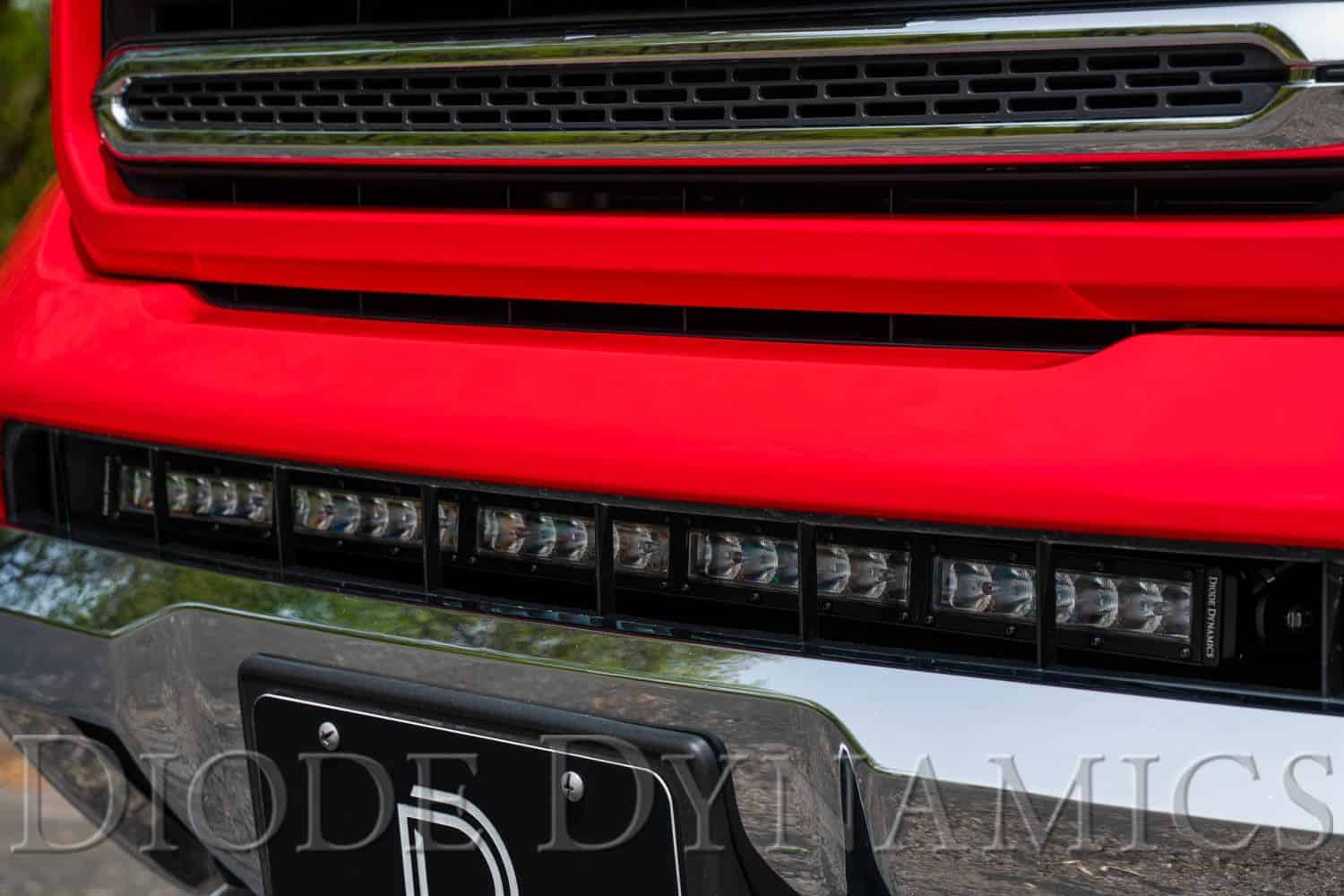

The bar mounts behind the lower grille using vehicle-specific brackets. When the light is off, the installation keeps a restrained factory-style appearance.
A complete installation kit
The DD6357 package brings the SS30, Colorado/Canyon brackets, single-output harness, auxiliary-switch adapter and mounting hardware together.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicles | 2015–2020 Chevrolet Colorado and GMC Canyon |
| Exact kit | DD6357; SS30 White Driving |
| Colorado ZR2 Bison | Compatible according to the current manufacturer application note. |
| Standard Colorado ZR2 | Minor plastic air-duct trimming is required. |
| Mounting and access | Behind the lower grille; bumper/grille and temporary crash-bar removal are part of the written installation procedure. |
| Vehicle market | Manufacturer application data is for U.S.-market vehicles. For Canadian or other-market vehicles, confirm the same mounting points, bodywork and wiring before ordering. |
MATCH THE SKU TO YOUR SELECTION
Choose your output and main-beam colour
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD6357 | SS30 | White | Driving |
This listing supplies the exact configuration shown above. Other patterns and colours are separate kits.
WHAT THE KIT SUPPLIES

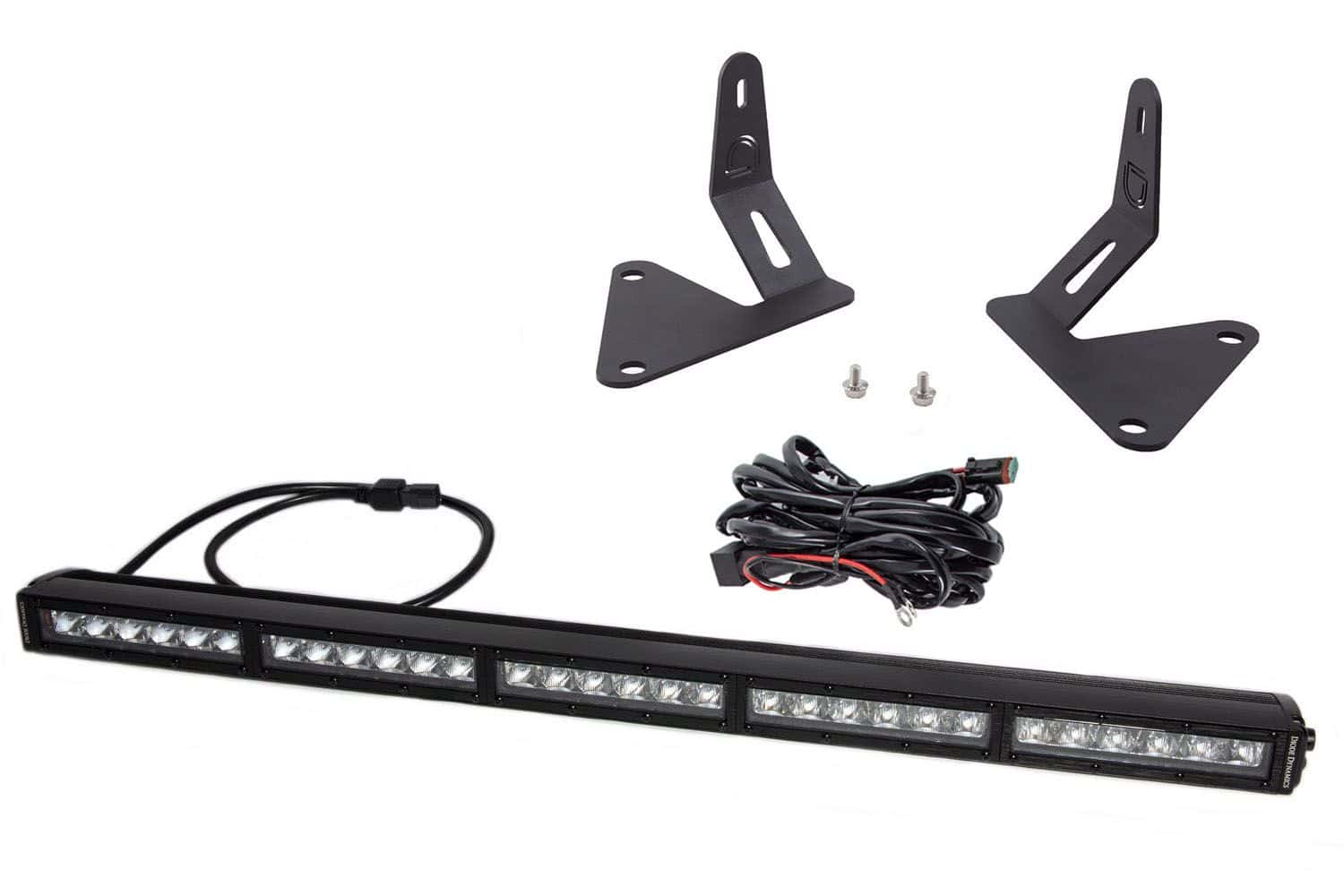

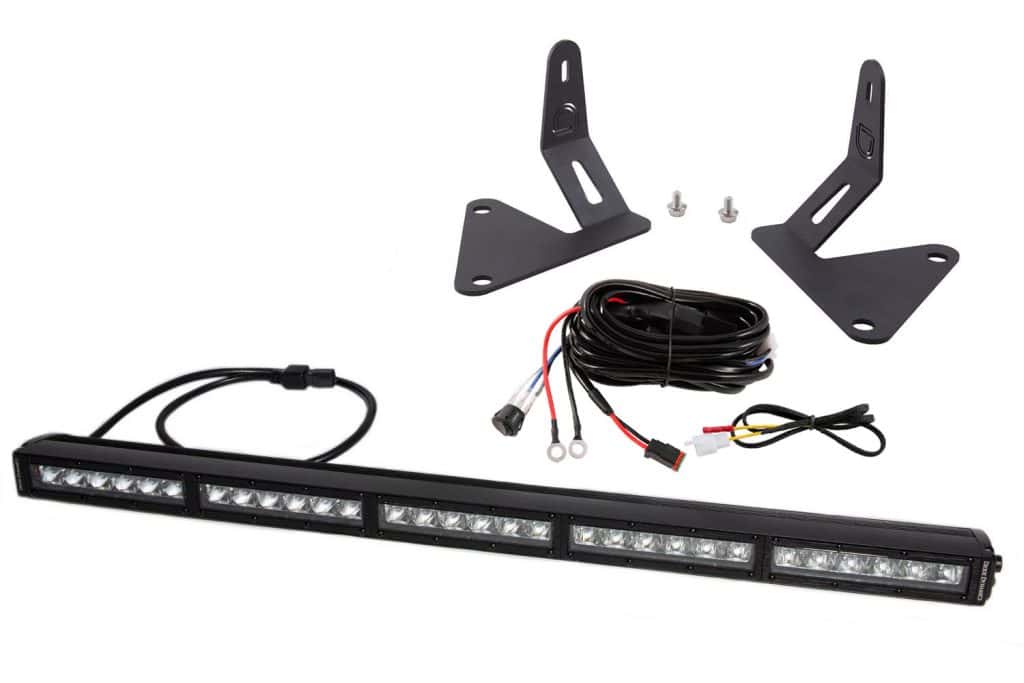

The parts belong together
- One SS30 White Driving light bar (DD5018)
- Colorado/Canyon stealth-mount brackets (DD6356)
- Single-output relay wiring harness (DD4031)
- Auxiliary-switch adapter wire
- Mounting hardware and installation guide
Installation photographs show both Colorado and Canyon. Other lamps and truck accessories in those photographs are separate.
MOUNT · WIRE · AIM
Plan the installation before the trail
Read the guide before starting: this is a bumper-access installation, not simply an external clamp-on bar. The written procedure removes the bumper/grille and temporarily removes and reinstalls the crash bar to position the brackets. Retain all factory parts, follow the specified fasteners and torque instructions, route the harness clear of hot or moving parts and aim the bar after reassembly. Standard Colorado ZR2 models need minor air-duct trimming.
Read the official installation guide
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Kit SKU | DD6357 |
| Bar | One SS30, nominal 30-inch |
| Main beam | 6000K White Driving |
| Beam angle | 20° × 8° |
| Operating voltage | 9–24 V DC |
| Power | 137.2 W |
| Current | 9.8 A at 14 V |
| Bar dimensions | 31 × 3 × 1.63 inches |
| Protection | IP69K |
| Operating temperature | −40°C to 85°C |
Output by option
| Configuration | Measured output | Raw output | Peak intensity |
|---|---|---|---|
| White Driving SS30 | 7,000 lm | 11,400 lm | 275,000 cd |
Manufacturer figures are for one bar. Measured output is 7,000 lumens; 11,400 lumens is the raw LED figure before optical losses. Aiming and the vehicle grille affect real-world illumination.
Diode Dynamics provides an 8-year limited warranty for this product, including the initial 3-year replacement period. After 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
MANUFACTURER OUTPUT PHOTOGRAPHY
See the beam’s purpose
Compare the manufacturer’s beam photographs and choose the light for your route.
Manufacturer figures are for one bar. Measured output is 7,000 lumens; 11,400 lumens is the raw LED figure before optical losses. Aiming and the vehicle grille affect real-world illumination.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How to Install 2015-2020 Chevy Colorado Stealth Light Bar Kit | Diode Dynamics
This video demonstrates Colorado installation. The written DD6357 guide also covers Canyon; check the exact bumper and the ZR2 trimming note.
TIR Optics | Stage Series by Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
CLEAR ANSWERS
Before you order
Will the factory grille stay in place?
Yes. The bar mounts behind the lower grille, and the original bumper and grille are reinstalled after mounting.
Does it fit Colorado ZR2 and ZR2 Bison?
The manufacturer lists ZR2 Bison as compatible. Standard ZR2 installation needs minor plastic air-duct trimming. Confirm aftermarket bumper and grille changes before ordering.
Are Flood and Combo also included?

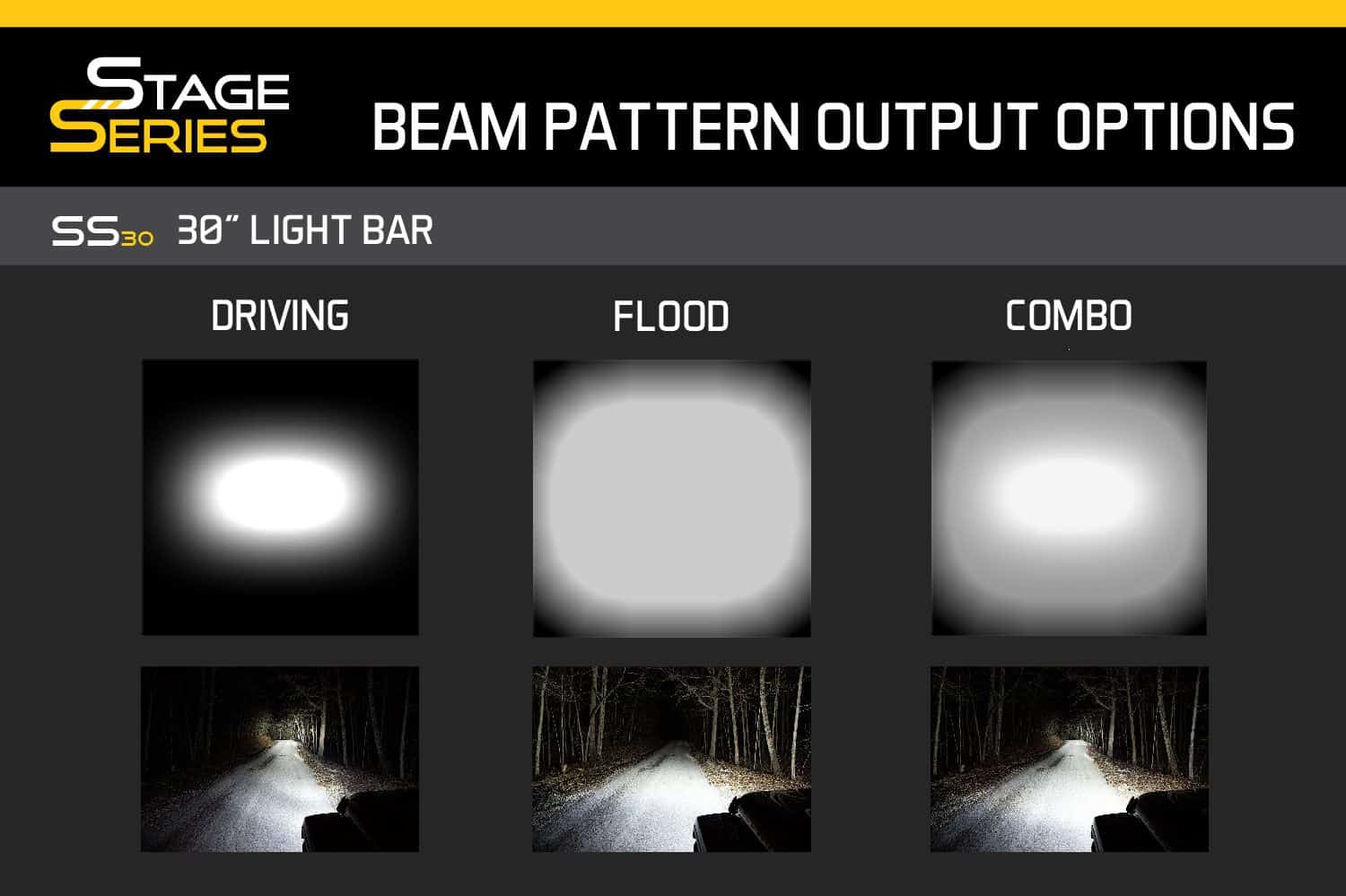

No. DD6357 supplies one White Driving SS30. The manufacturer comparison graphic shows other patterns for reference; they are different configurations.
What warranty applies?
The Stage Series light bar has an 8-year limited manufacturer warranty, including the initial 3-year replacement period. Later coverage requires return for inspection and repair or replacement at the manufacturer’s discretion. Wiring and other accessories follow their own terms.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
