DIODE DYNAMICS · Toyota Tundra · 2022–2026
SS3 ditch lighting, built around your Toyota Tundra.
Put a matched pair of SS3 pods at the hood corners with vehicle-specific brackets, a supplied relay harness and clear choices for output and main-beam colour. Choose your exact Sport/Pro and White/Yellow configuration above.
- 2 podsA complete matched pair
- Sport / ProChoose the output level
- White / YellowChoose the main beam
- SS3Amber accent backlight
PURPOSEFUL LIGHTING
A kit built around the job
A bracket for the vehicle
DD7388P mounts the pair at the hood hinges. Keep factory alignment and check all moving clearances.
Light for the trail
The SS3 Combo pattern combines forward reach with side coverage for off-road use. Choose output and colour to suit the route.

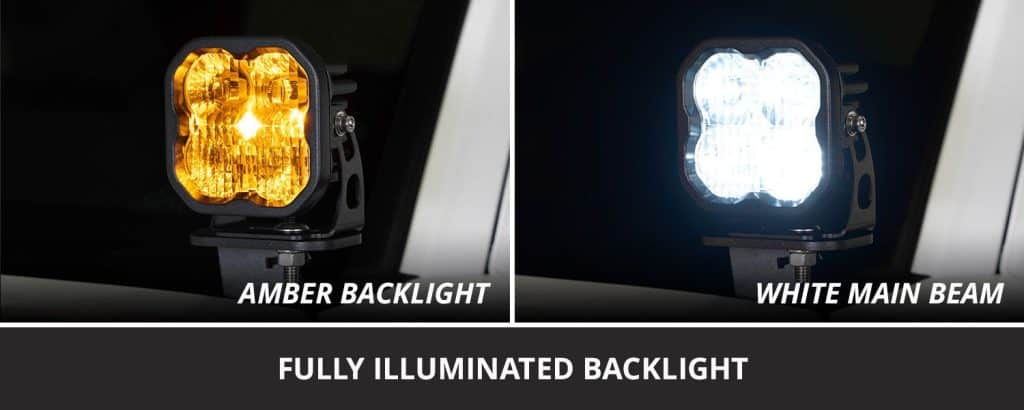

Accent light, separate control
Amber accent backlight provides an accent function independently of the main beam. Use the included harness and current instructions.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2022–2026 Toyota Tundra |
| Mounting | Vehicle-specific DD7388P brackets use the existing hood-hinge mounting points. |
| Included lamp family | Two SS3 pods; this page does not supply all three pod families. |
| Main-beam selection | Choose White or Yellow, then Sport or Pro. Each combination has its own SKU. |
| Clearance | Keep the hood correctly aligned and confirm full hood, wiper and wiring clearance. |
| Car washes | Do not use automatic car washes with this kit installed. |
MATCH THE SKU TO YOUR SELECTION
Choose Sport or Pro output
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7393 | Sport | White | Combo |
| DD7395 | Pro | White | Combo |
| DD7396 | Pro | Yellow | Combo |
| DD7394 | Sport | Yellow | Combo |
Choose Sport or Pro and White or Yellow above. The table identifies each real kit SKU; White/Yellow is the main-beam colour, not the separate accent-backlight setting.

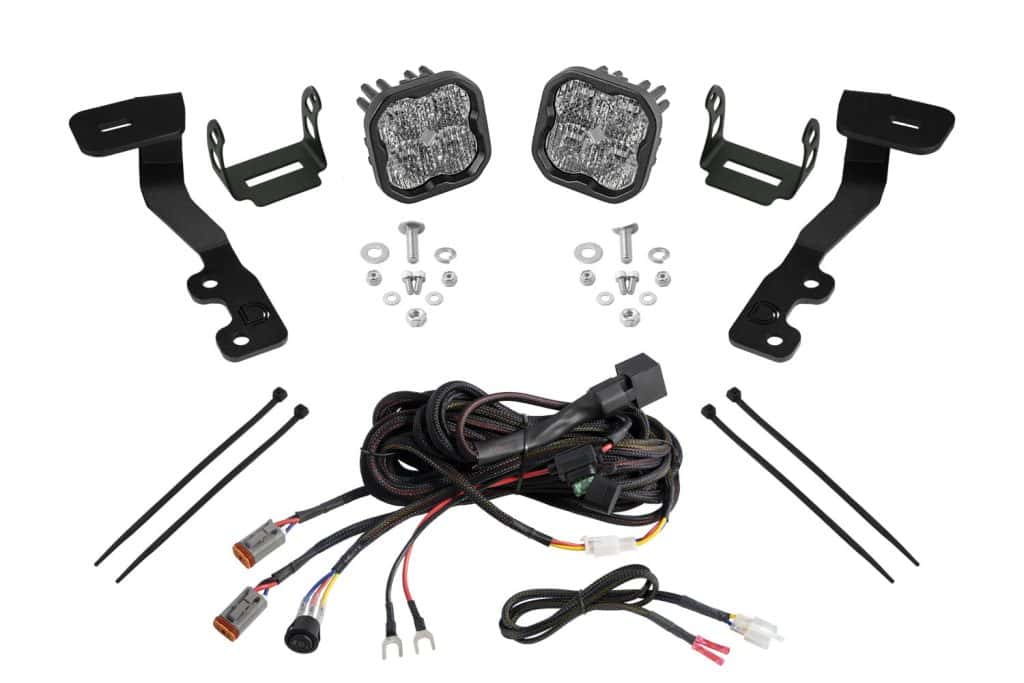

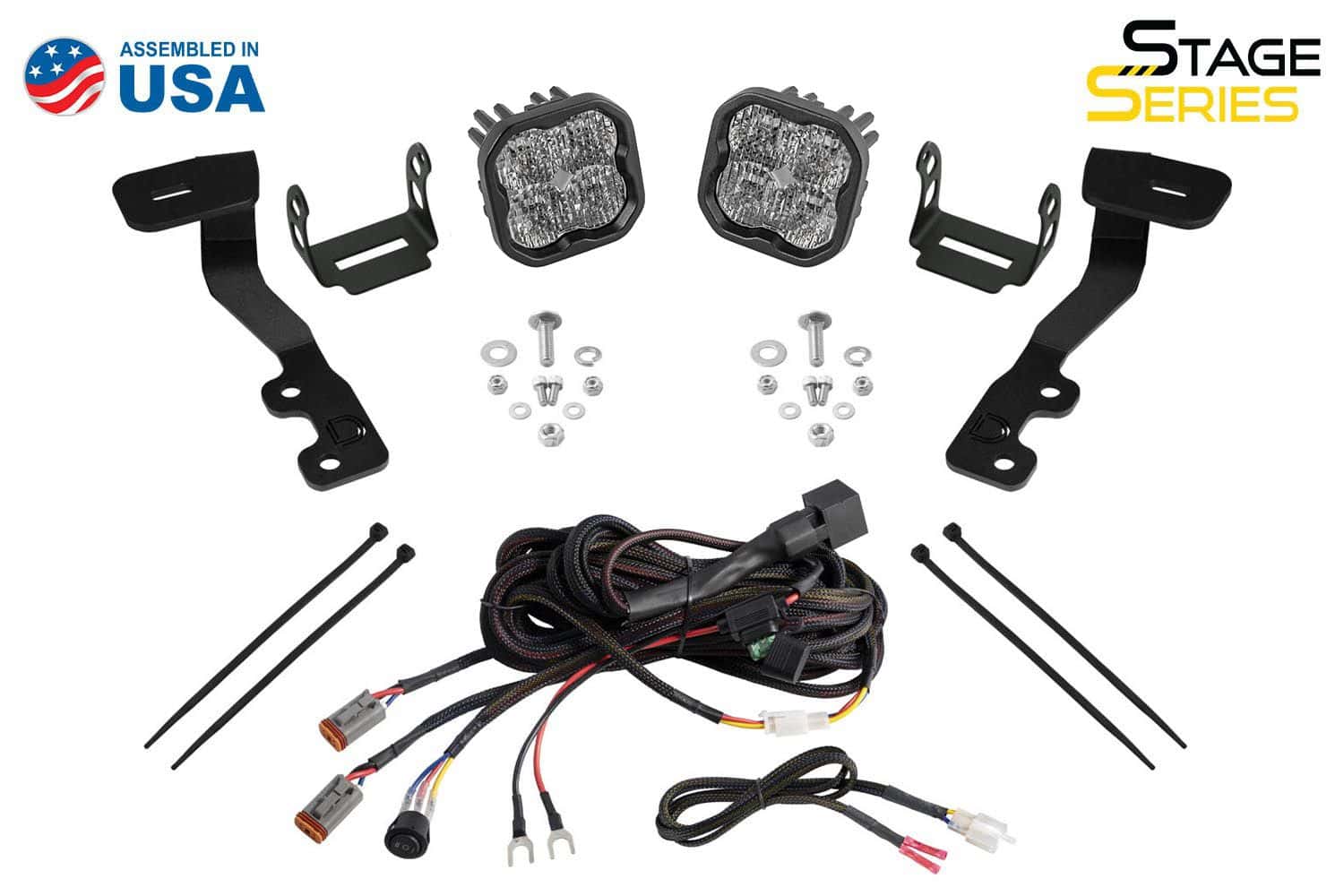

WHAT THE KIT SUPPLIES
The parts belong together
- Two SS3 LED pods in the selected output level and main-beam colour
- Two Toyota Tundra ditch brackets: DD7388P
- One DD4093 heavy-duty dual-output 4-pin wiring harness
- Pod mounting hardware and installation hardware
Other lights, racks and vehicle accessories shown in photographs are not included. The selected SKU determines the supplied lamp pair.
MOUNT · WIRE · AIM
Plan the installation before the trail
Mark the hood hinges before loosening hardware. Support the hood while removing the two factory hinge bolts on one side, position the bracket below the hinge, preserve a gap behind the hood and align the hinge before tightening. Repeat on the other side, then mount and aim the selected pods. Secure wiring through the bracket routing cutouts and away from the moving hinges. The bolt-on claim applies to bracket mounting. Plan the switch and backlight wiring separately using the DD4093 harness instructions; retain its relay, fuse and battery connections. Check clearance and function before driving.
Read the official installation guide
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Kit quantity | One pair: two SS3 pods, two vehicle brackets and one DD4093 harness. |
| Output levels | Sport or Pro; choose above. |
| Main-beam colours | 6000K White or 3000K Yellow. |
| Pattern | Combo/Driving, 80° × 30° manufacturer pattern |
| Accent function | Amber accent backlight. Separate from the main beam. |
| Wiring | Deutsch DT pod inputs; included heavy-duty dual-output 4-pin harness. |
| Operating range | 9–16 V DC; −40°C to 85°C manufacturer rating. |
| Lamp intrusion rating | IP69K manufacturer rating; install and seal all connections correctly. |
| Bracket construction | Vehicle-specific thick-gauge stainless steel. |
| Eligible-lamp warranty | Manufacturer limited lifetime terms; commercial, industrial and fleet use limited to 8 years. Wiring/accessory terms are separate. |
Output by option
| Option | Peak intensity per pod | Measured lumens per pod | Raw lumens per pod | Power per pod |
|---|---|---|---|---|
| Sport White | 31,500 cd | 1,520 lm | 2,262 lm raw | 14.5 W |
| Sport Yellow | 28,100 cd | 1,300 lm | 1,930 lm raw | 14.5 W |
| Pro White | 35,100 cd | 3,000 lm | 5,796 lm raw | 36 W |
| Pro Yellow | 33,406 cd | 2,700 lm | 5,220 lm raw | 36 W |
Current manufacturer vehicle-kit specifications, per individual SS3 pod. Measured lumens and raw emitter lumens are different quantities; these figures are not pair totals. Photographs illustrate the beam and colour, not a calibrated comparison of Sport and Pro.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
MANUFACTURER OUTPUT PHOTOGRAPHY
See the beam’s purpose
Compare the manufacturer’s beam photographs and choose the light for your route.
Current manufacturer vehicle-kit specifications, per individual SS3 pod. Measured lumens and raw emitter lumens are different quantities; these figures are not pair totals. Photographs illustrate the beam and colour, not a calibrated comparison of Sport and Pro.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
The Best Ditch Lights For Your 2022+ Toyota Tundra | Diode Dynamics
Official shared vehicle-kit installation video. It demonstrates multiple pod families; this page supplies only the family and SKU selected above. Follow the current written guide and exact kit instructions.
TIR Optics | Stage Series by Diode Dynamics
General Stage Series education; not this kit’s measured output or fitment proof.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; not this kit’s measured output or fitment proof.
CLEAR ANSWERS
Before you order
What exactly do I get?
One SS3 pair for both sides of the hood, the DD7388P vehicle bracket kit, one DD4093 heavy-duty dual-output 4-pin harness and installation hardware. This is not a brackets-only listing.
Does White or Yellow change the backlight?
White or Yellow selects the main beam. Both choices have a separate Amber accent backlight; this is not an RGB or colour-changing main beam.
Can I use these as road lights?
The above-hood Combo arrangement is intended for off-road use. The SAE J575 durability test is not a blanket road-use approval for this installation. Keep normal headlamps and required road lighting in service.
Do I need to drill the hood?
The mounting brackets use factory hood-hinge hardware. Electrical switch installation and wire routing are separate tasks; review the harness guide and your vehicle before starting.
Can I use an automatic car wash?
No. The manufacturer says not to use automatic car washes with this kit installed.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; the complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
THE DETAILS MATTER
A closer look at the selected hardware
