A pair of compact C2 2.0 Flood pods adds useful white light below the rear bumper, with a separate red accent for the running-light function. This kit brings the selected Sport or Pro lamps together with the mounting hardware and wiring for your 2021–2023 Ford F-150.
- 2 podsC2 2.0 Standard
- White + redFlood beam / accent
- Sport or ProChoose output above
- 2021–2023 Ford F-150Exact vehicle fitment
PURPOSEFUL LIGHTING
A kit built around the job
Light where you reverse
A wide Flood pattern helps illuminate the area behind the truck. TIR optics shape the output; choose the output tier rather than comparing unrelated lumen claims.
A separate red accent
The red backlights connect to the running/parking-light function. They do not change the white main-beam colour or add brake/strobe behaviour.
Mounting that fits the truck
The vehicle-specific steel brackets attach to existing underside bumper bolts, then carry the supplied pod brackets. Vehicle wiring needs T-tap connections on this generation.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2021–2023 Ford F-150 |
| Pod family | C2 2.0 Standard; two pods |
| Main / accent | 6000K White Flood / red backlight |
| Output selection | Sport or Pro |
| Mounting | The vehicle-specific steel brackets attach to existing underside bumper bolts, then carry the supplied pod brackets. |
| Vehicle connection | The current guide uses the included T-taps for the reverse and parking-light signals. Connector layout varies by trim: use the exact guide’s 6-, 8-, 4- or 12-pin instructions rather than guessing wire colours or pin numbers. |
| Fitment boundary | Fits 2021–2023 Ford F-150 only. Excludes Tremor and Raptor. The installation uses T-taps at the vehicle lighting wires; this is not a plug-in trailer-harness kit. |
MATCH THE SKU TO YOUR SELECTION
Choose Sport or Pro output
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7376 | Sport | White | Flood |
| DD7377 | Pro | White | Flood |
Choose Sport or Pro above. Both selections use White Flood main beams with red backlights; the SKU table identifies the exact supplied kit.
WHAT THE KIT SUPPLIES
The parts belong together

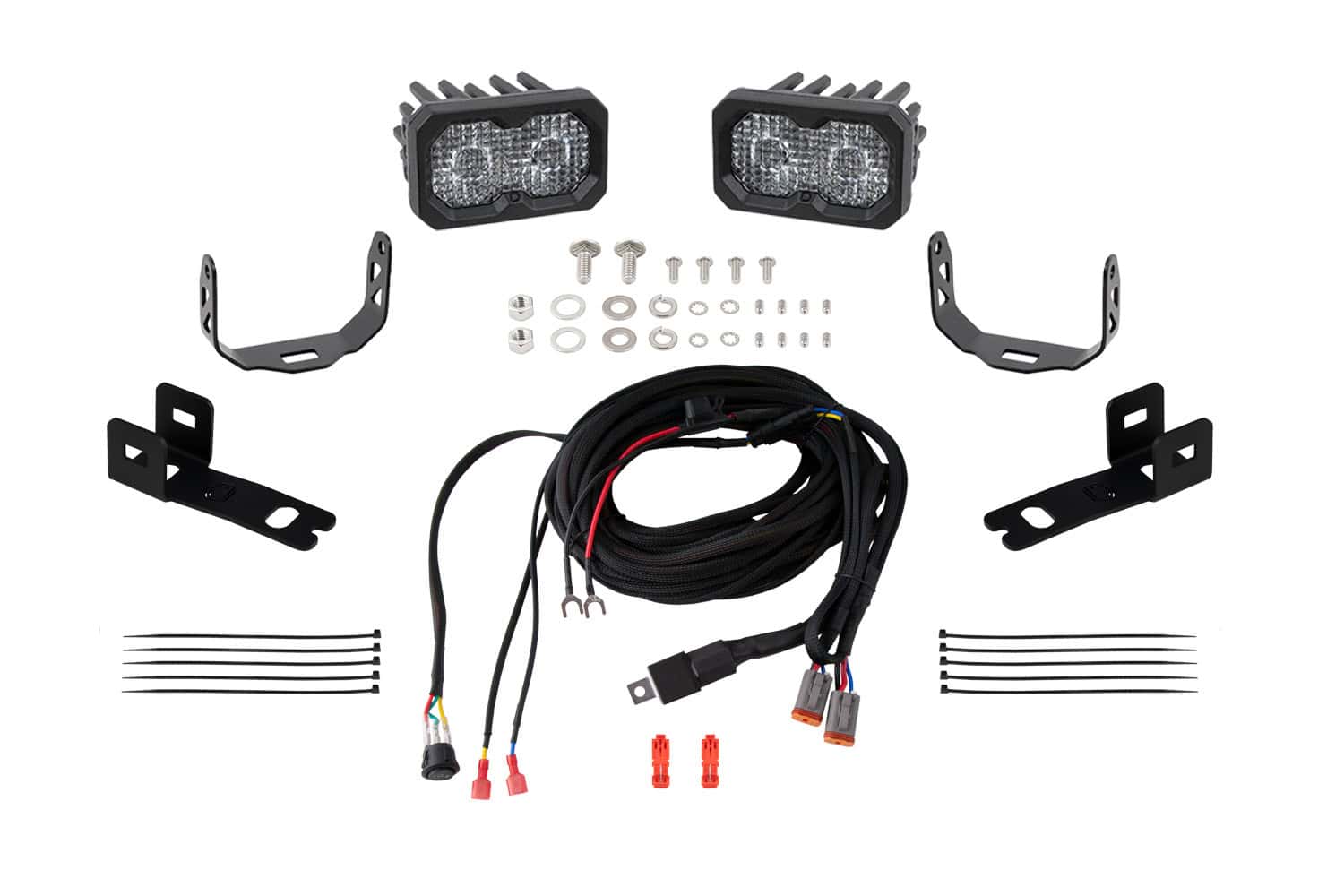

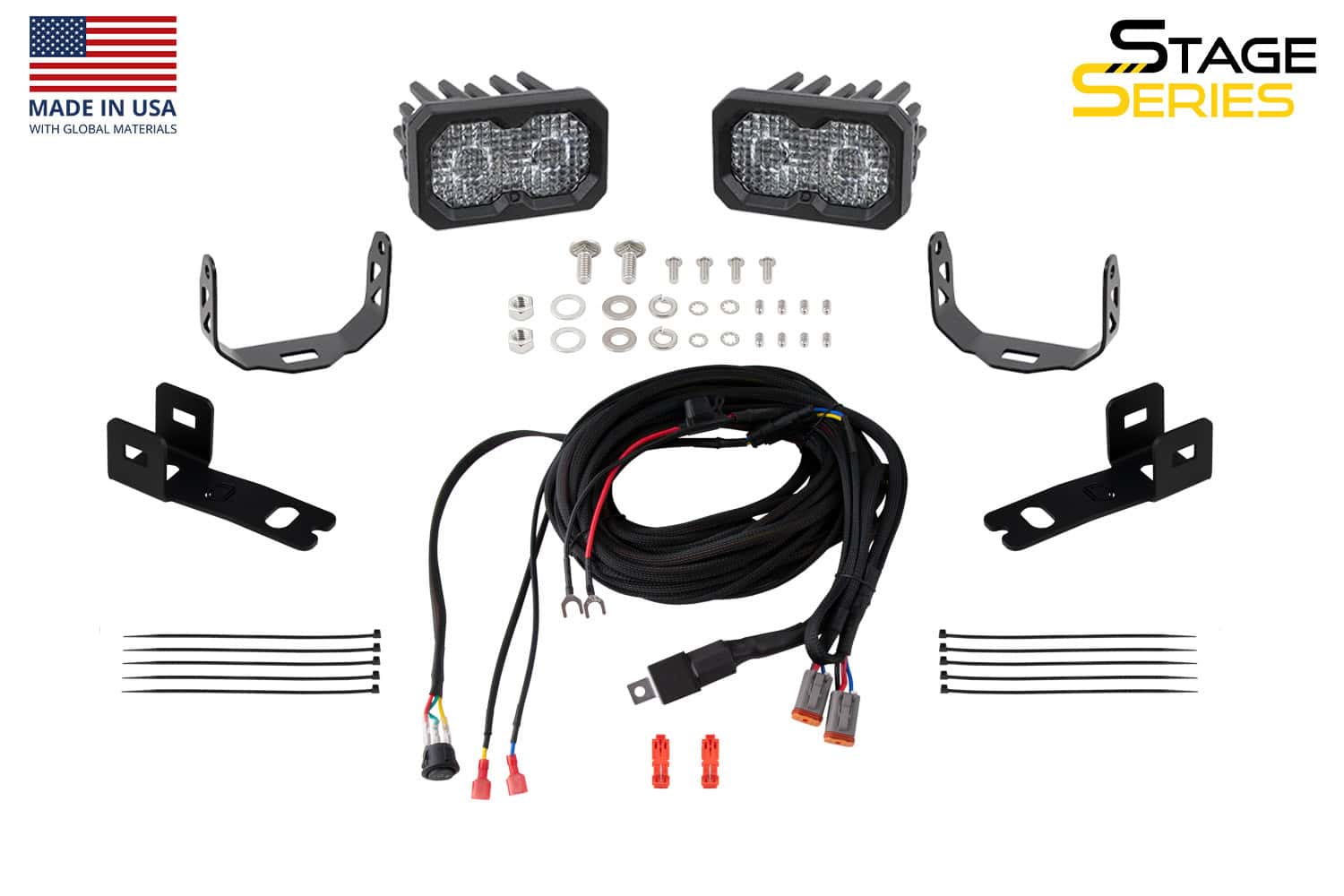

- Two C2 2.0 White Flood Standard LED pods with red backlights, in the selected Sport or Pro output
- DD4102 universal reverse-light relay harness with three-position switch
- Pod mounting brackets and installation hardware
- Vehicle-specific steel bumper mounting brackets: DD7373P
- Included T-tap connectors for the vehicle reverse/parking-light wiring
The kit is a two-pod setup. Truck taillights, other lighting and tools pictured are not included. Sport kit photographs illustrate the kit layout; select the exact Sport or Pro SKU above.
MOUNT · WIRE · AIM
Plan the installation before the trail
The vehicle-specific steel brackets attach to existing underside bumper bolts, then carry the supplied pod brackets. The current guide uses the included T-taps for the reverse and parking-light signals. Connector layout varies by trim: use the exact guide’s 6-, 8-, 4- or 12-pin instructions rather than guessing wire colours or pin numbers. The DD4102 universal relay harness requires battery power and ground. For an in-cabin override switch, route the switch wiring through the firewall and drill a 19 mm (3/4-inch) mounting hole. Protect, secure and fuse all wiring as the current instructions require.
Open the BTS illustrated installation guide
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Lamp quantity | Two |
| Pod family / beam | C2 2.0 Standard / Flood |
| Main output colour | 6000K White |
| Backlight | Red; separate running/parking-light circuit |
| Operating voltage | 9–16 V |
| Pod input | Deutsch DT |
| Pod construction | Aluminium housing, polycarbonate lens, passive heatsink |
| Pod protection | Manufacturer IP69K rating |
| Mounting | Existing bumper bolt locations; verify vehicle fitment above |
| Control | Three-position reverse / off / manual-override switch |
| Eligible-lamp warranty | Manufacturer limited lifetime; commercial/fleet and accessory terms below |
Output by option
| Output | Peak intensity per pod | Raw output per pod | Power per pod |
|---|---|---|---|
| Sport | 750 cd | 1,190 lm raw | 15 W |
| Pro | 1,550 cd | 3,140 lm raw | 23 W |
Manufacturer specifications are for one pod, not a complete-kit total. Raw lumens describe LED output before optical losses and are not measured delivered lumens. The current C2 2.0 table is used instead of older SSC2 values still present in some supplier data. Actual illumination depends on aiming and installation.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How to Install Stage Series Reverse Light Kit for 2021-2023 Ford F-150 | Diode Dynamics
Shared C1/C2 mounting and wiring procedure. Follow the current written guide for the vehicle and the selected pod assembly instructions.
TIR Optics | Stage Series by Diode Dynamics
General Stage Series education; use this page’s exact kit specifications.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; use this page’s exact kit specifications.
CLEAR ANSWERS
Before you order
Does the white light turn on automatically in reverse?
Yes, with the supplied harness connected as instructed and its switch in Position 1. Position 2 provides manual override; the centre position turns the lights off. The red backlight uses a separate parking/running-light connection.
Do I need to drill or run wiring through the firewall?
The light brackets use existing bumper mounting points. An in-cabin manual override switch requires firewall routing and a 19 mm mounting hole. Follow the current guide for switch placement.
Is this the C1R brake/strobe hitch light?
No. This is a two-pod C2 2.0 Standard White Flood reverse-light kit with red accent backlights. It does not include the C1R HitchMount brake/strobe features.
What changes between Sport and Pro?
The pod output level changes. Both selections remain a two-pod C2 2.0 kit for 2021–2023 Ford F-150, with White Flood main beams and red backlights. The table lists the manufacturer’s current per-pod ratings.
Does it fit Tremor or Raptor, or use a trailer-plug adapter?
No. Diode Dynamics excludes Tremor and Raptor from this 2021–2023 kit. The current installation guide uses T-taps at the reverse and parking-light wiring; it does not supply a plug-in 7-pin trailer adapter.
Do all installed photos show the current C2 2.0 housing?

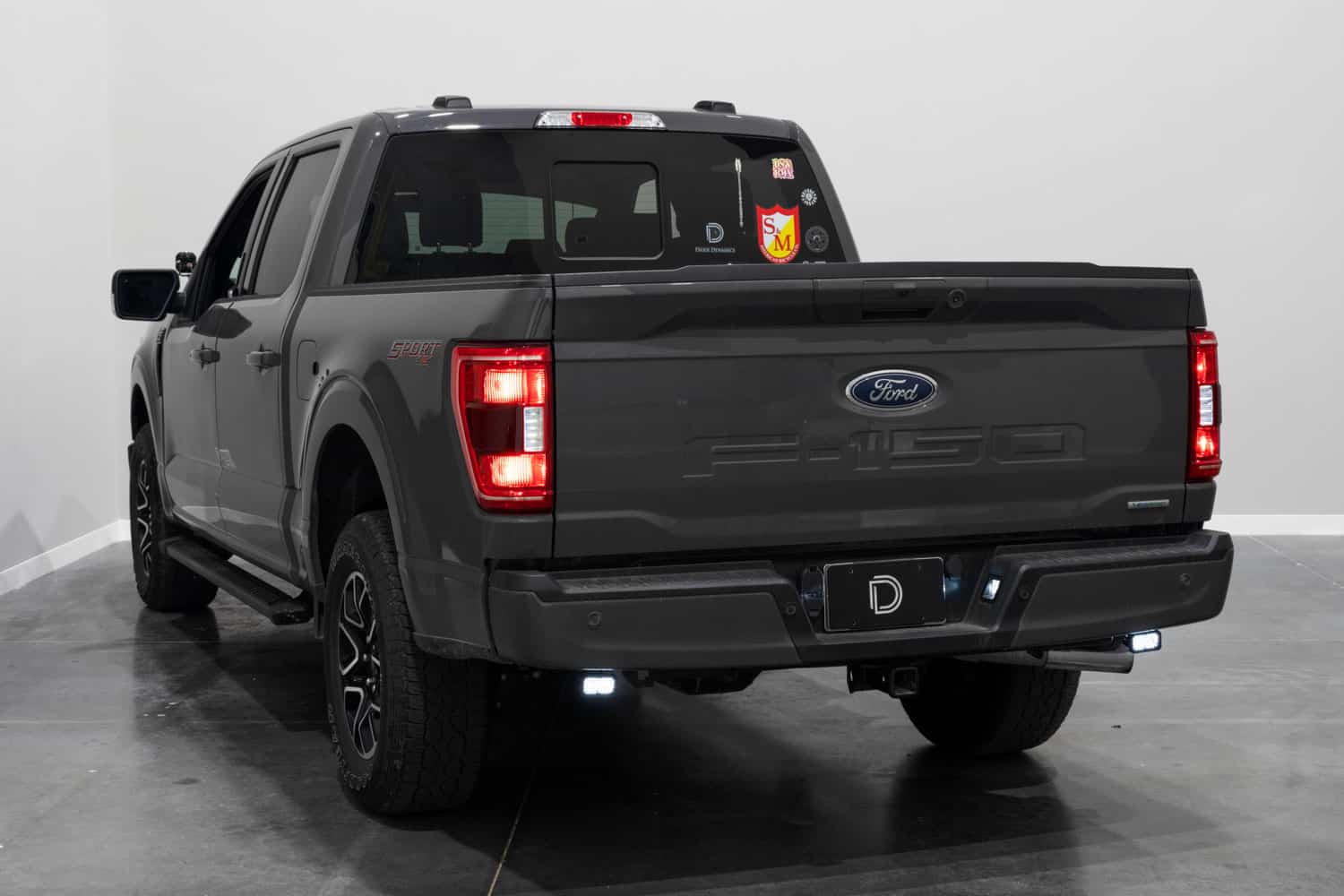

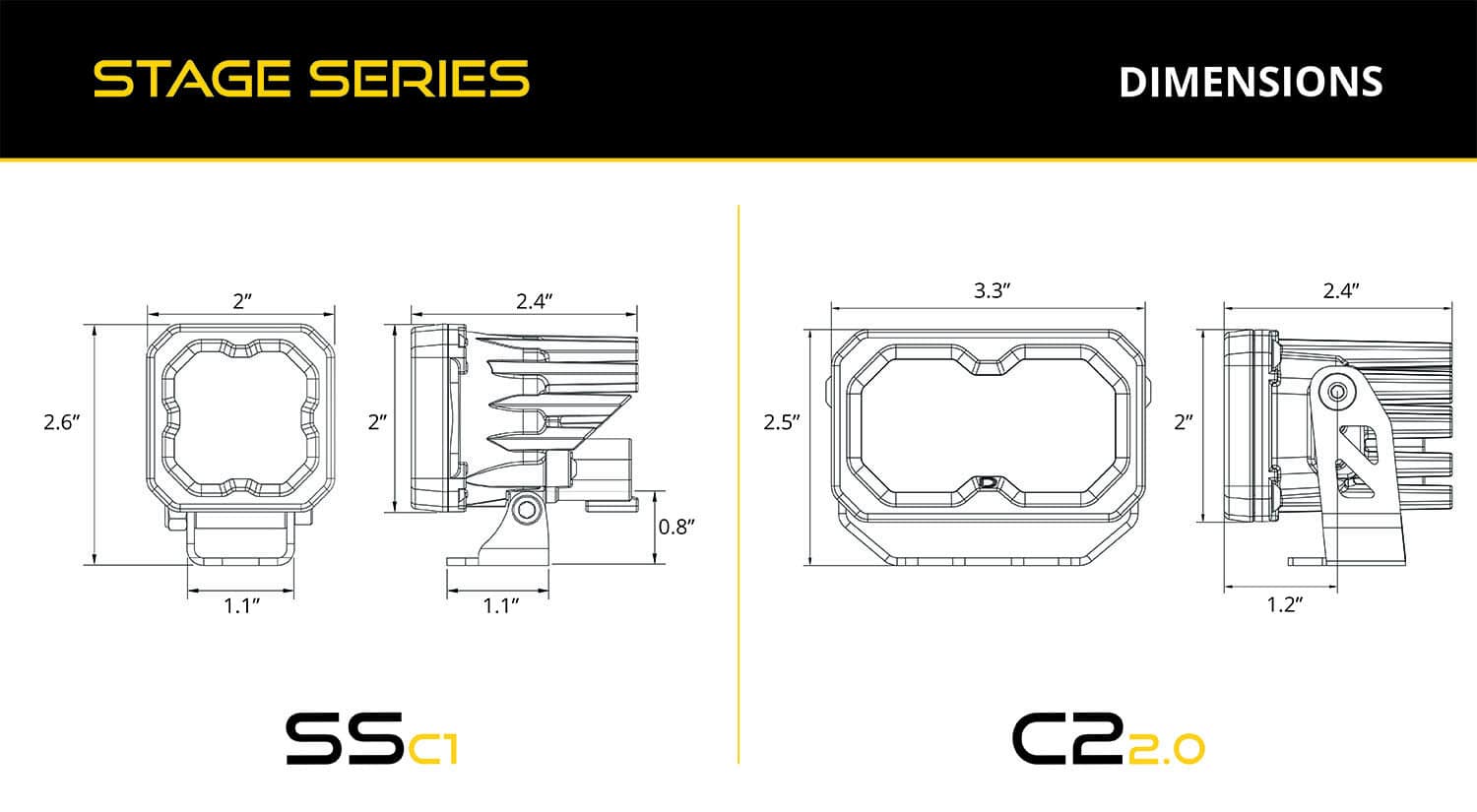

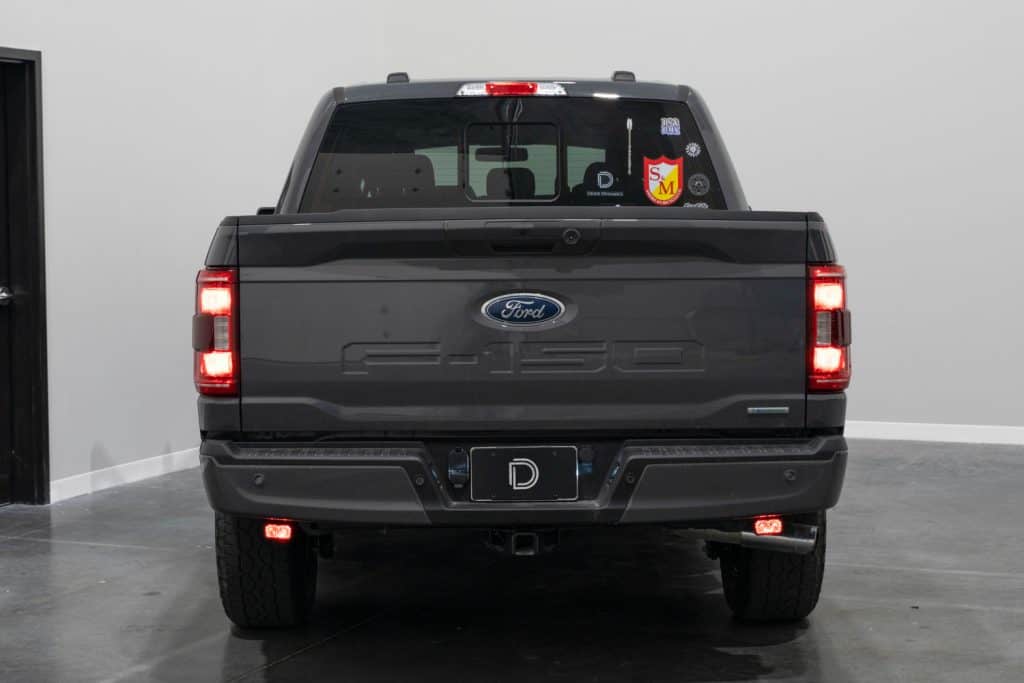

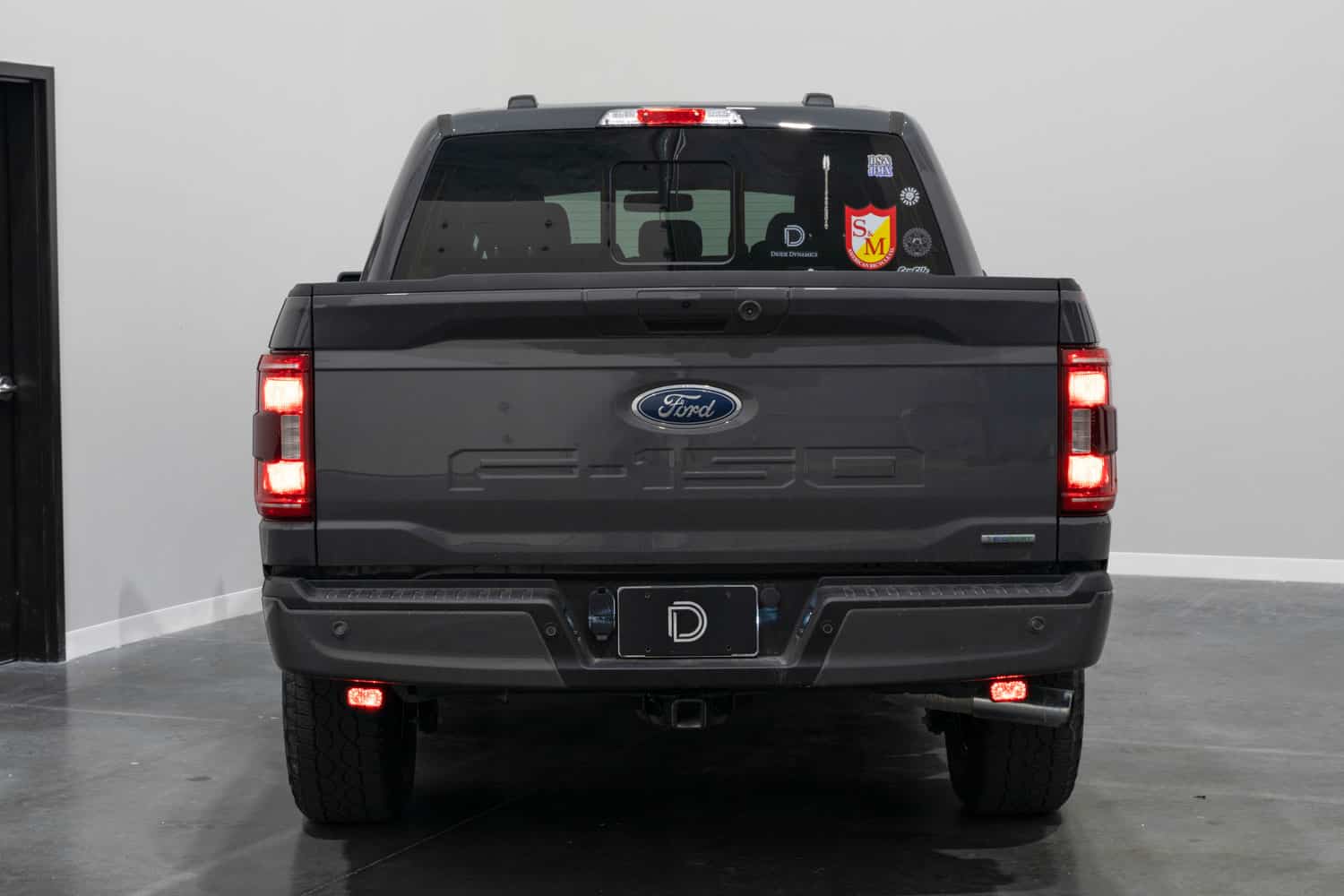

The captioned F-150 installation photographs show the earlier two-inch housing to explain the mounting position and red-accent function. The kit-content and dimension images show the current C2 2.0. They are not comparative output tests.
