DIODE DYNAMICS · 2022–2024 FORD MAVERICK
See what is behind your Maverick.
A pair of compact C1 flood pods adds white reverse illumination beneath the rear bumper, with red running-light backlights. The vehicle-specific tail-lamp harness avoids using the trailer connector for the normal kit connection.
- TWO C1 PODSSport or Pro

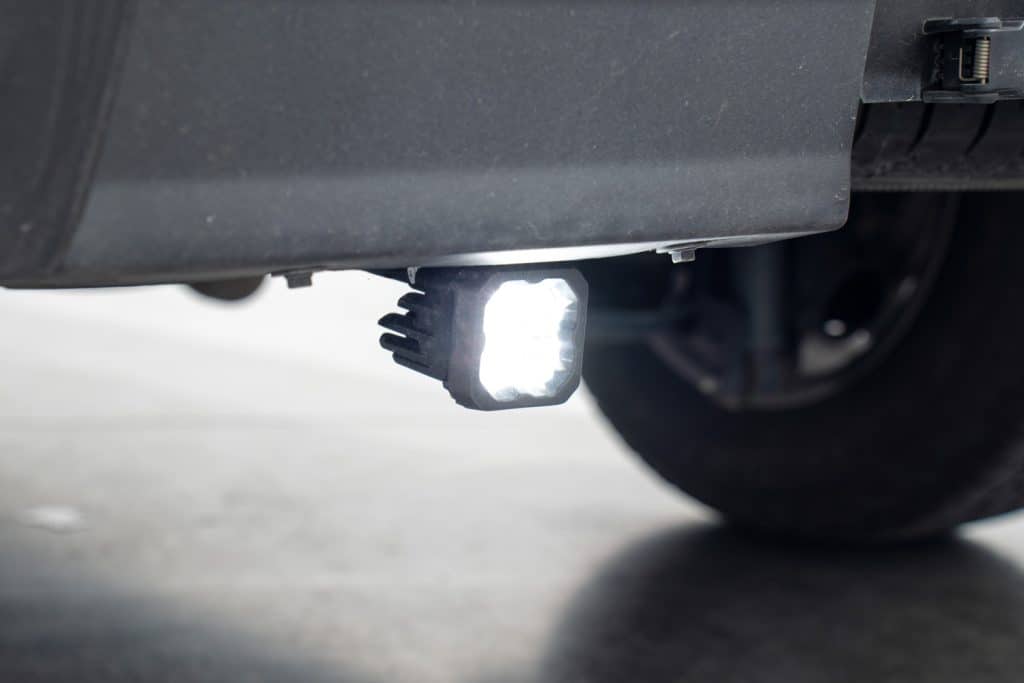

- WHITE FLOODReverse illumination

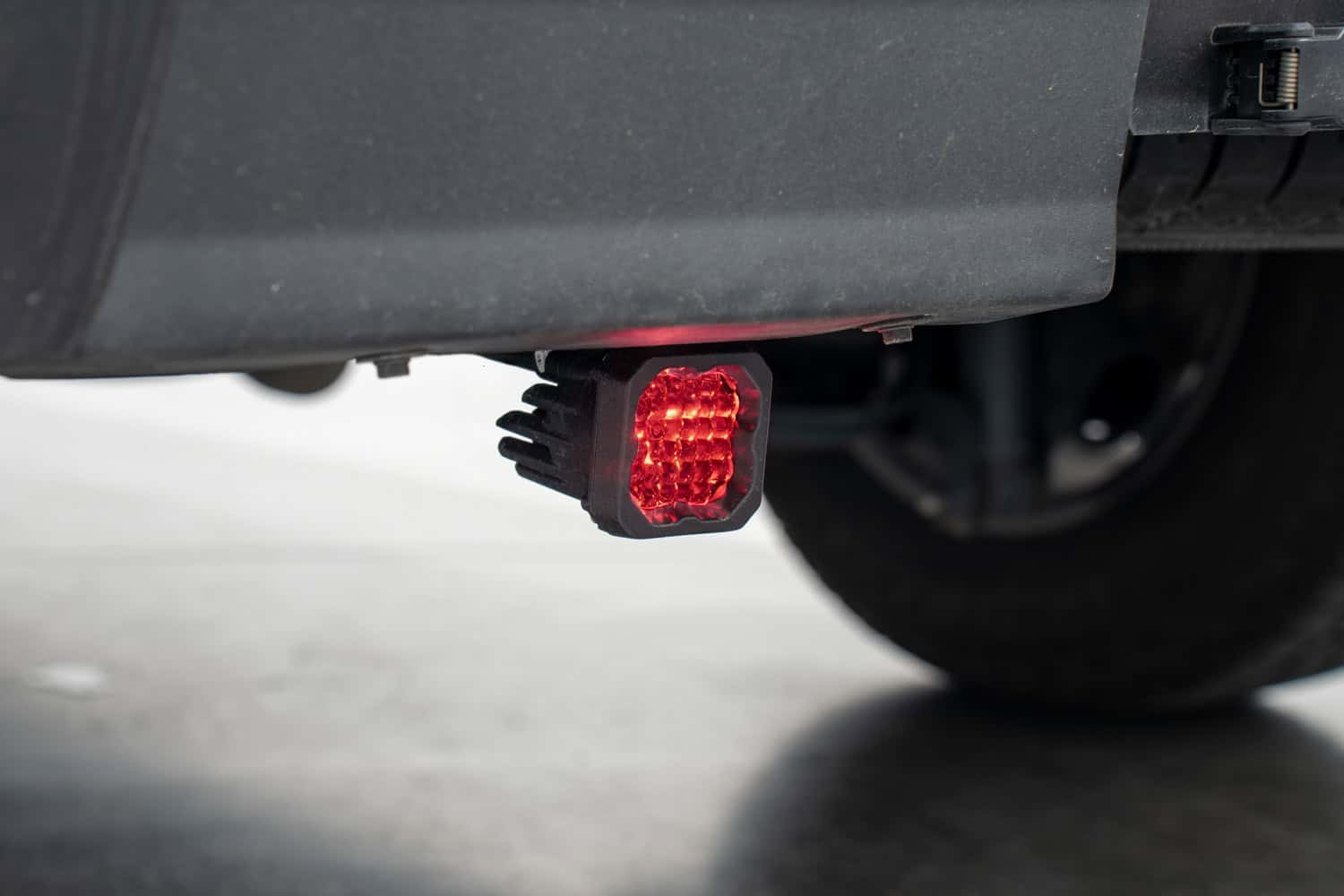

- RED BACKLIGHTRunning-light function
- TAIL-LAMP HARNESSDD4161 adapter
PURPOSEFUL LIGHTING
A kit built around the job

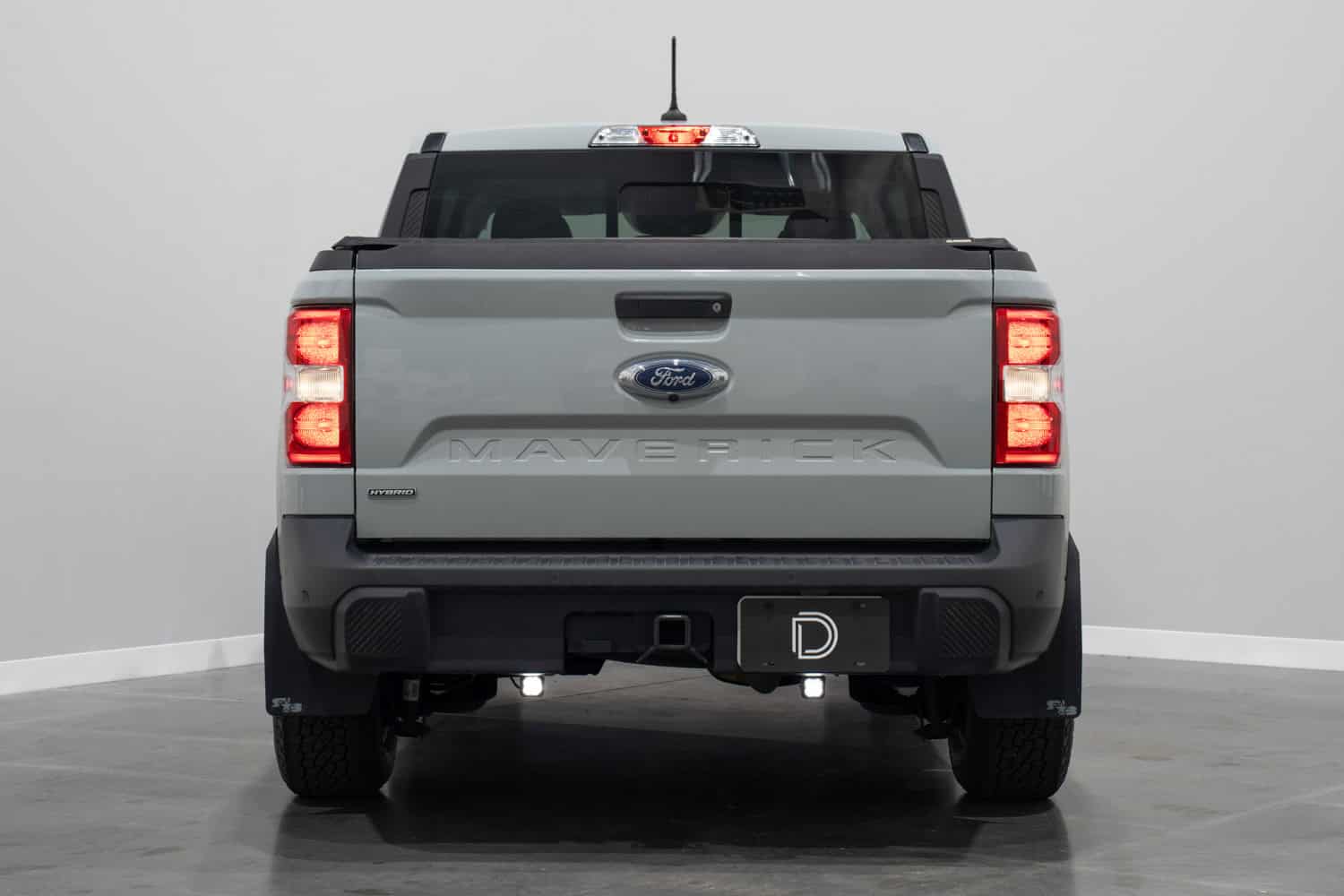

Useful rear-area illumination
The White Flood pattern lights a broad area behind the truck for reversing. Compare Sport and Pro using the exact per-pod specifications below.

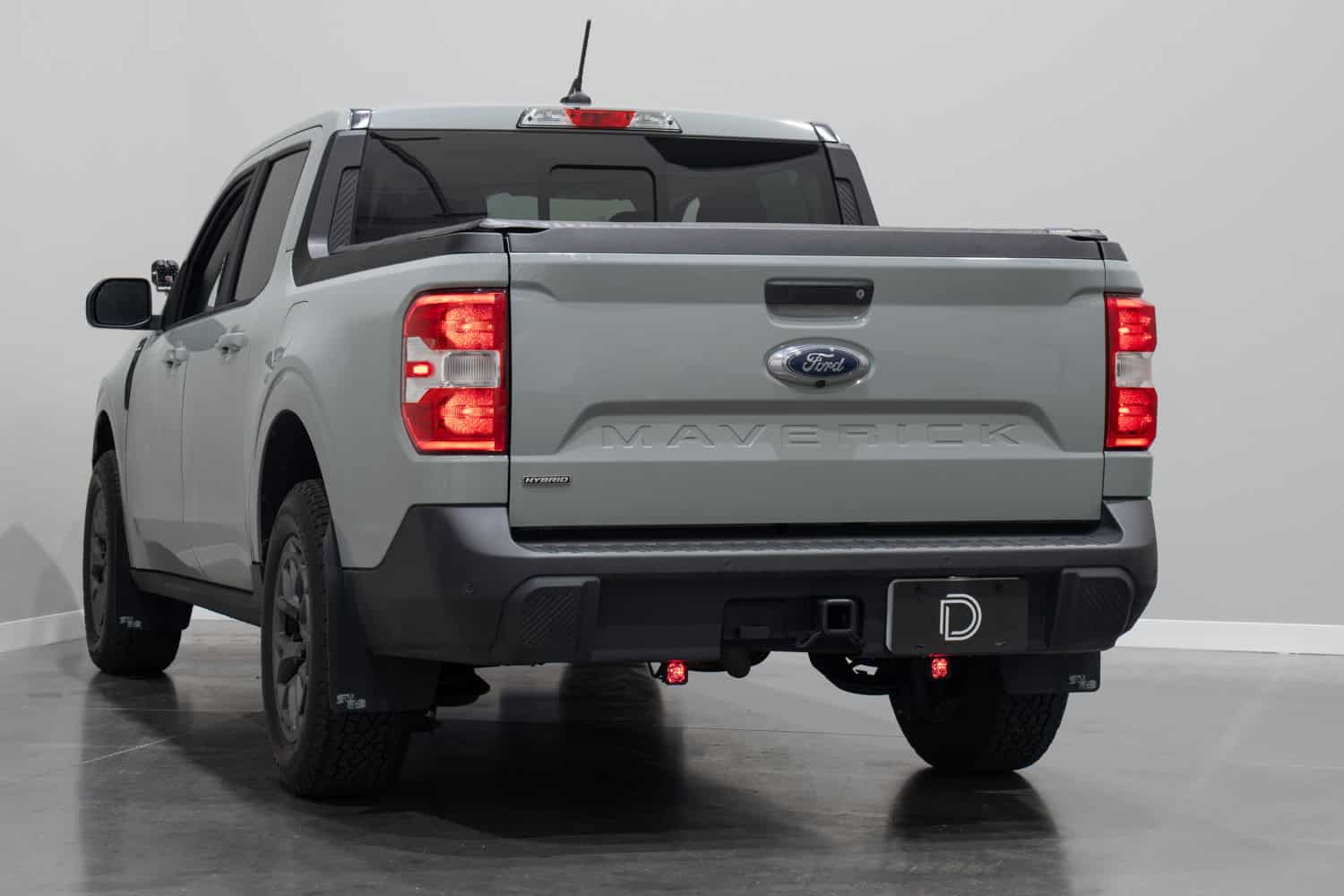

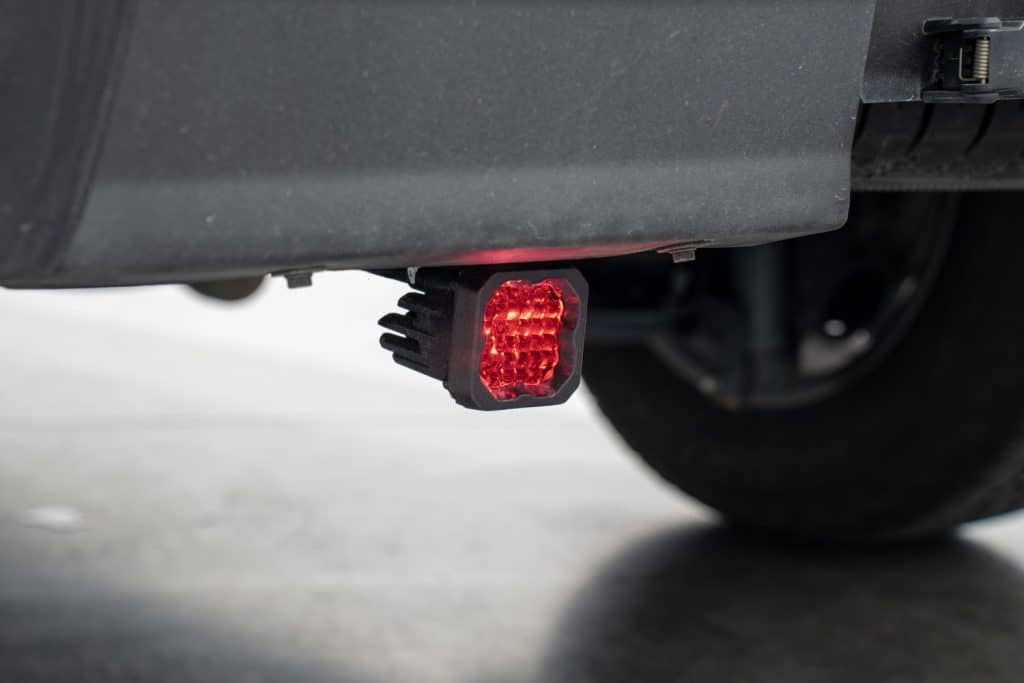

A separate red running-light accent
The red backlights operate separately from the White reverse beam. These standard C1 pods do not provide the C1R brake-light or SafetyStrobe functions.
Connections designed for the Maverick
The DD4161 tail-lamp adapter and DD7564P mounting kit fit the supported truck without cutting the bumper. Secure wiring away from hot exhaust and moving parts.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2022–2024 Ford Maverick; manufacturer confirms all trims in that range. |
| Model-year limit | 2025+ facelift not validated. The historical 2022+ SKU title does not expand fitment. |
| HitchMount compatibility | C1 Pro cannot be combined with the C1 HitchMount Kit; C1 Sport can. |
| Mounting | Below the rear bumper using DD7564P brackets; no bumper cutting for the supplied arrangement. |
| Connections | DD4161 tail-lamp harness. No required occupation of the 4-/7-pin trailer connector. |
| Lamp function | Standard C1 White Flood with red running backlight, not C1R brake/SafetyStrobe. |
MATCH THE SKU TO YOUR SELECTION
Choose Sport or Pro reverse output
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7754 | Sport | White | Flood |
| DD7755 | Pro | White | Flood |

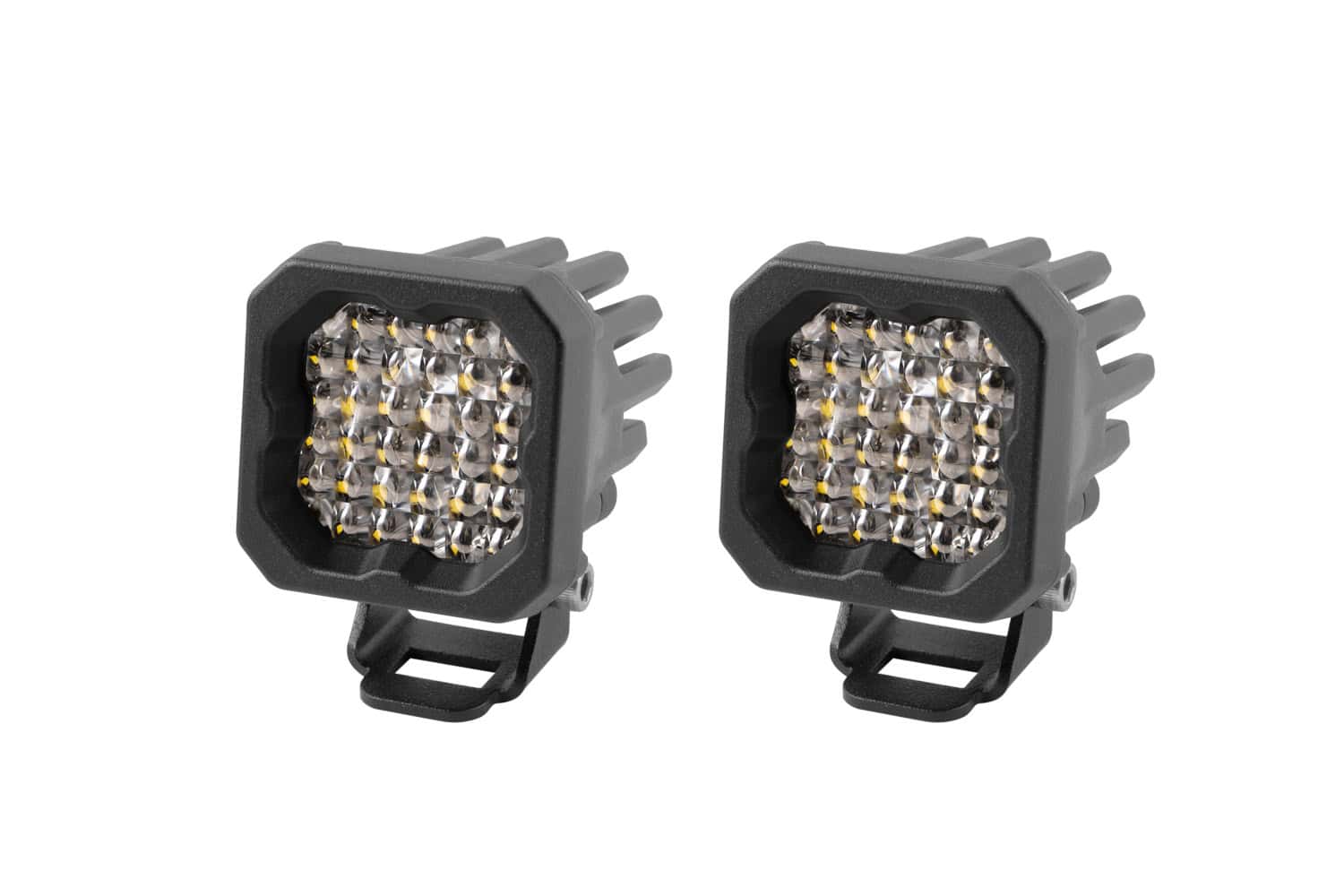

Both options have a fixed White Flood main beam and red backlights. Choose Sport if you will also use the C1 HitchMount Kit. The Pro component photograph shows the lamp pair only; the Maverick kit also includes its brackets and harness.

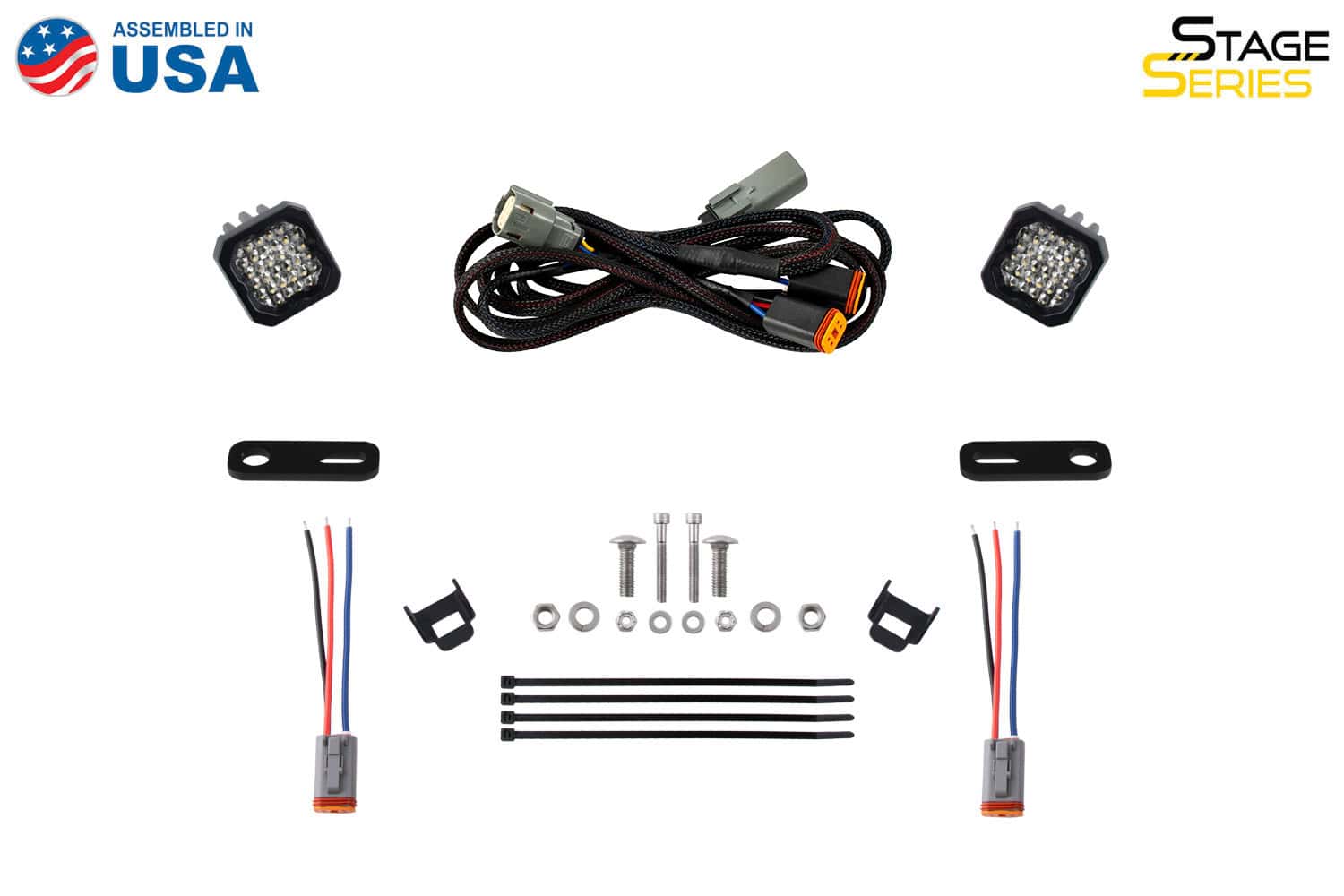

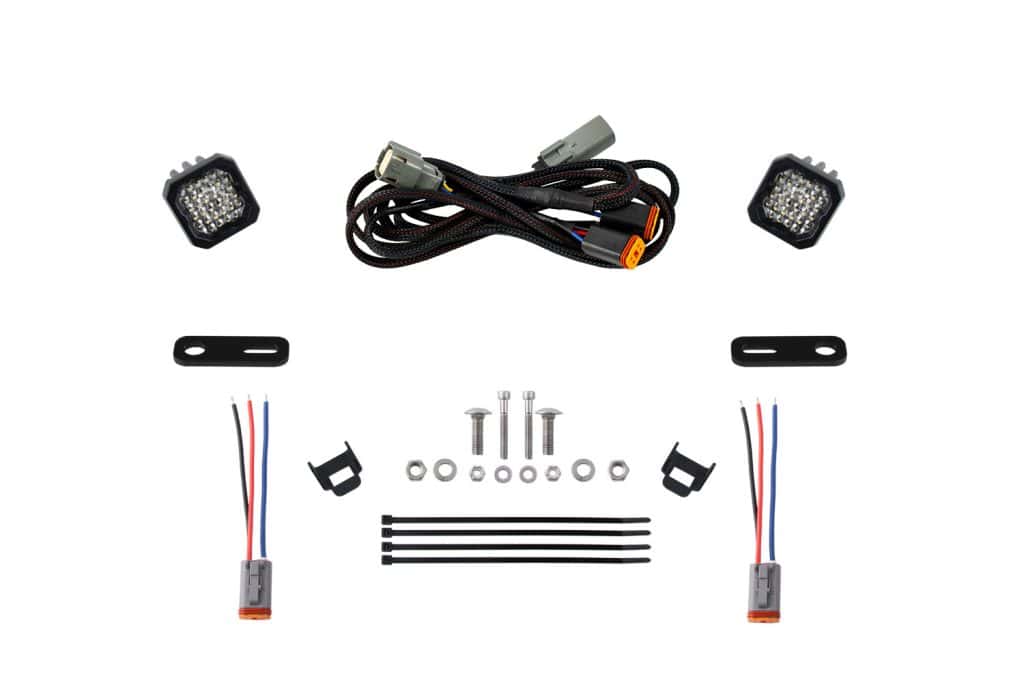

WHAT THE KIT SUPPLIES
The parts belong together
- Two C1 White Flood pods: Sport DD7754 kit or Pro DD7755 kit
- One DD7564P Stage Series reverse mounting kit
- One DD4161 Maverick tail-lamp wiring harness kit
- Mounting hardware
The normal included connection provides reverse and running-light operation. An optional universal backup harness for manual override is sold separately and changes the wiring arrangement; it is not included or automatically selected here.
MOUNT · WIRE · AIM
Plan the installation before you begin
Remove the appropriate tail lamp to connect the vehicle-specific adapter, then route the extension safely behind the bed. Mount and aim the pods beneath the bumper, connect the harness, and test reverse and running-light operation. Keep wiring clear of the exhaust, secure all connectors and follow the written sequence before reinstalling the lamp.
Read the official installation guide
The current product page and guide support 2022–2024. Do not rely on an older 2022+ kit title as confirmation for the facelifted 2025+ truck.
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Kit quantity | Two C1 pods with Maverick mounting kit and tail-lamp harness. |
| Main beam | 6000K White Flood, 50° × 50° manufacturer pattern. |
| Backlight | Red, 0.3 W per pod; running-light function. |
| Operating voltage | 9–16 V DC. |
| Power per pod | Sport 12.8 W; Pro 19 W, main beam. |
| Lamp intrusion rating | IP69K manufacturer rating; seal and secure all connections. |
| Eligible-lamp warranty | Manufacturer limited lifetime terms for eligible lamps; commercial, industrial and fleet use limited to 8 years. Wiring and accessory terms are separate. |
Output by option
| Option | Peak intensity per pod | Measured lumens per pod | Raw lumens per pod |
|---|---|---|---|
| C1 Sport | 400 cd | 1,030 lm | 1,449 lm |
| C1 Pro | 925 cd | 2,300 lm | 2,375 lm |
Manufacturer specifications are per individual C1 pod. The stock-versus-C1 photograph demonstrates Sport, not Pro; no numeric improvement is inferred from photography. Raw lumens and measured lumens are different quantities.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
MANUFACTURER OUTPUT PHOTOGRAPHY
See the beam’s purpose
Compare the manufacturer’s beam photographs and choose the light for your route.
Manufacturer specifications are per individual C1 pod. The stock-versus-C1 photograph demonstrates Sport, not Pro; no numeric improvement is inferred from photography. Raw lumens and measured lumens are different quantities.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
Maverick reverse-light installation
Follow the current written instructions and fitment restrictions. Demonstration footage may show another tier or earlier housing; it does not expand this kit’s contents or supported years.
TIR Optics | Stage Series by Diode Dynamics
General TIR optics education; use the exact kit specifications.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General light-output terminology; not an exact-kit output test.
CLEAR ANSWERS
Before you order
Does it fit a 2025 or newer Maverick?
The manufacturer has not validated the facelifted 2025+ truck. This page confirms 2022–2024 only.
Can I use it with my C1 HitchMount?
Choose C1 Sport for that combination. The manufacturer says the C1 Pro reverse kit cannot be installed alongside the C1 HitchMount Kit.
Does it add a brake-light function?
No. These are standard C1 reverse/running-light pods, not C1R brake/SafetyStrobe pods.
Is manual override included?
No. The included tail-lamp harness provides the normal reverse/running operation. The optional universal backup harness is sold separately and uses a different wiring arrangement.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
THE DETAILS MATTER
A closer look at the selected hardware
