Product Overview

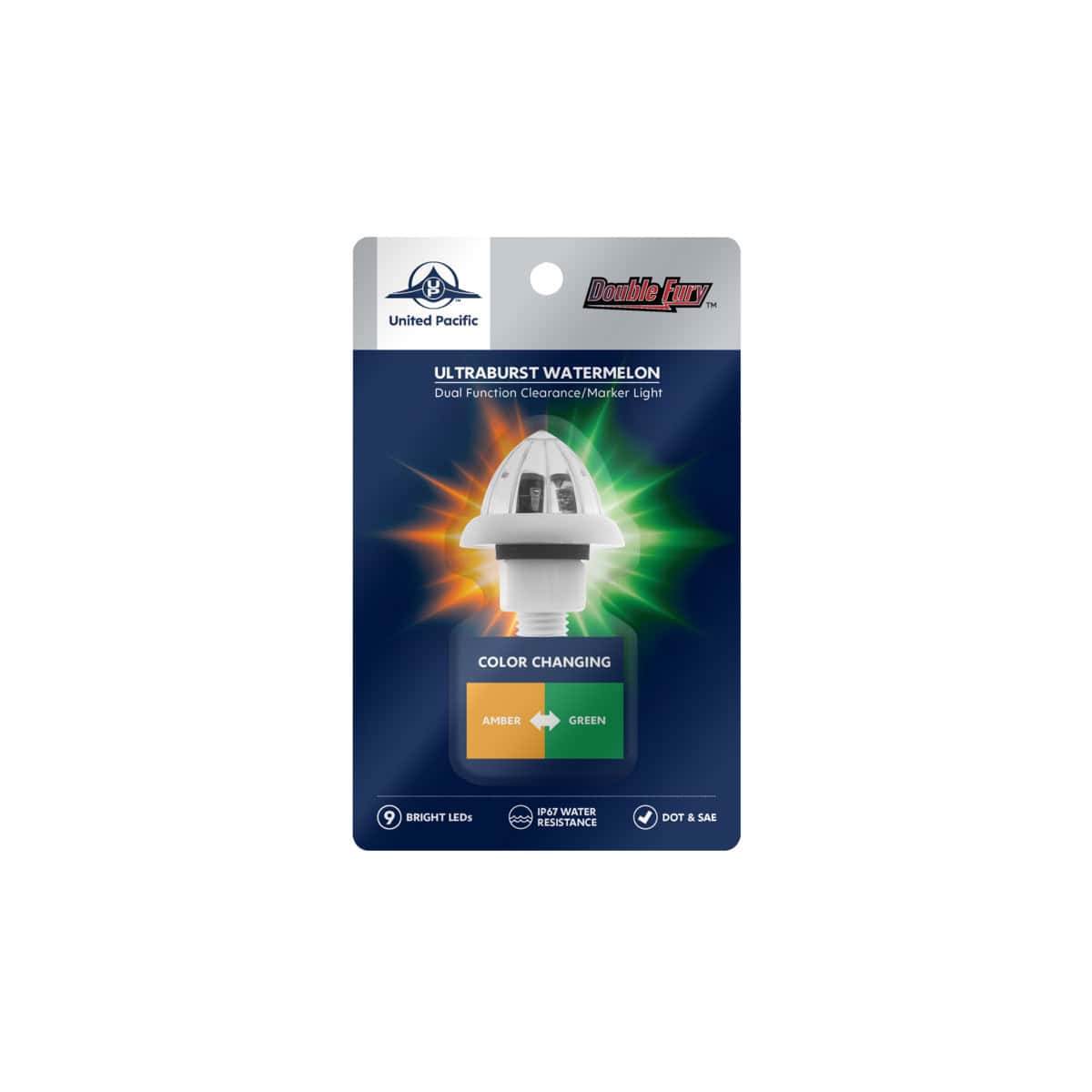

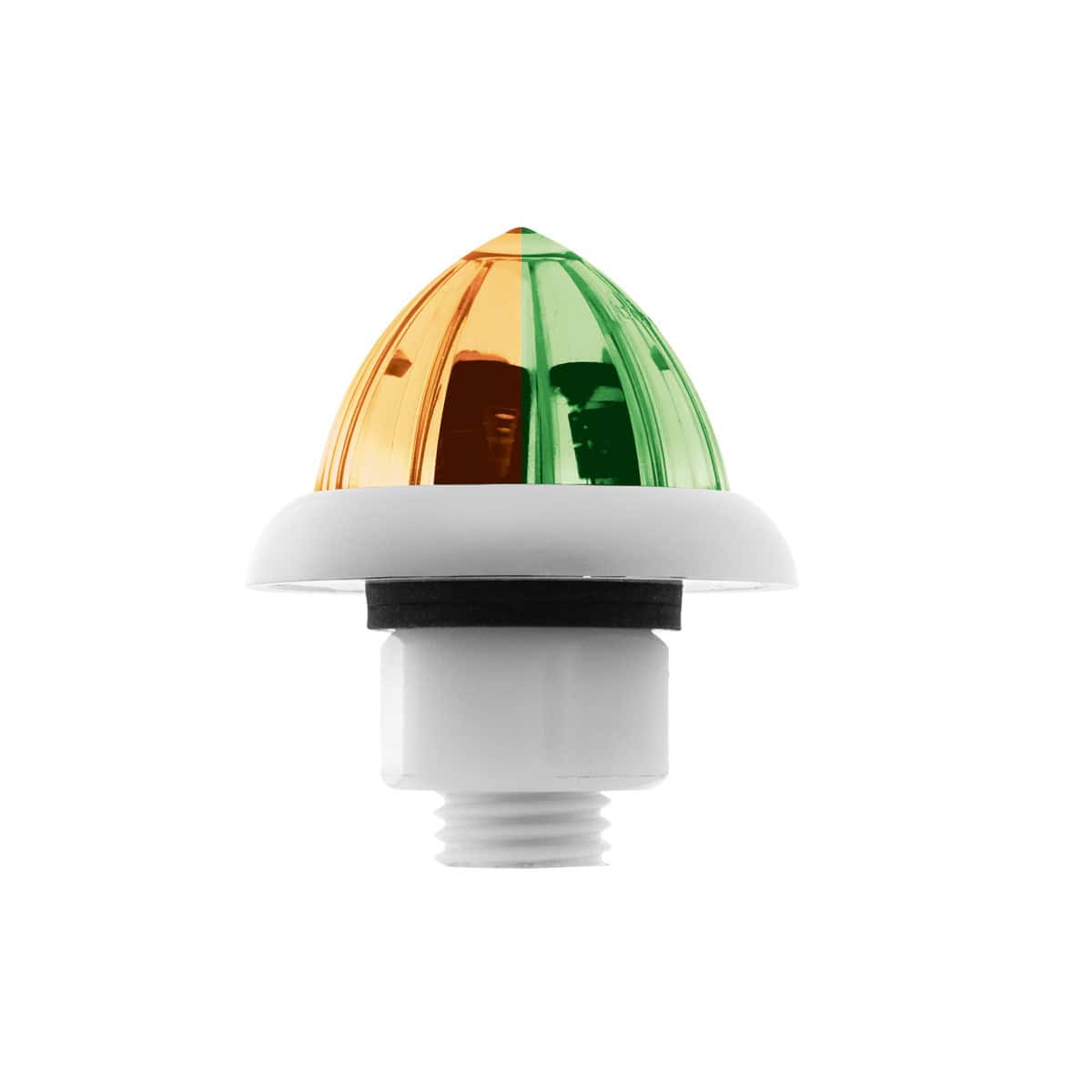

The Double Fury UltraBurst 9 LED Watermelon Clearance and Marker Light combines primary amber illumination with a secondary green auxiliary function in one compact 1-1/2-inch lamp. Its intense light-burst effect and chrome plastic bezel deliver high visual impact for custom trucks, trailers and other 12V vehicle applications.
The primary amber LEDs provide separate low- and high-intensity outputs. Activating the secondary green function overrides the amber illumination for auxiliary, off-road or show use.
Ideal for:
- Semi trucks
- Trailers
- Tow trucks
- Show trucks
- Work trucks
- Custom vehicle builds
Key Features & Benefits
Amber and Green Dual-Color Lighting
Nine dual-color LEDs produce primary amber illumination and secondary green auxiliary illumination from a single compact watermelon light.
Dual-Function Primary Amber Output
Separate low- and high-intensity inputs allow the primary amber LEDs to support two lighting functions when properly wired.
Secondary Green Override
When powered, the secondary green function overrides the primary amber illumination, allowing the lamp to switch to its auxiliary color without requiring a separate light.
UltraBurst Light-Burst Effect
The UltraBurst optical design creates an intense, distinctive light-burst appearance for enhanced visibility and custom styling.
Clear Polycarbonate Lens
The high-quality, injection-molded polycarbonate lens protects the internal LEDs while allowing both amber and green illumination to remain clearly visible.
Chrome Plastic Bezel
A chrome plastic bezel surrounds the lens, adding a polished accent that complements chrome accessories and custom truck builds.
Epoxy-Sealed Construction
The lamp is epoxy sealed to help prevent moisture intrusion and protect its internal components.
IP67 Water Resistance
IP67-rated construction provides protection against dust and temporary water immersion under the conditions specified by the rating.
Threaded-Stud Installation
The integrated threaded stud and included nylon mounting nut provide straightforward installation through a 3/4-inch-diameter mounting hole.
Performance / Compatibility / Use-Case
- Voltage: 12V
- Light size: 1-1/2 inches
- LED count: 9 dual-color LEDs
- Primary LED color: Amber
- Secondary LED color: Green
- Lens color: Clear
- Primary functions: Low and high intensity
- Secondary function: Green auxiliary override
- Wiring: Four-wire connection
- Connectors: Male bullet plugs
- Mounting style: Threaded stud with nylon mounting nut
- Required mounting hole: 3/4-inch diameter
- Bezel: Chrome plastic
- Sealing: Epoxy sealed
- Water-resistance rating: IP67
- Primary-function compliance: DOT/SAE and FMVSS 108
- Secondary green function: Auxiliary and off-road use only
Common uses include:
- Amber clearance lighting
- Amber marker lighting
- Turn-signal applications, where permitted and properly configured
- Auxiliary show-truck lighting
- Custom truck and trailer lighting
The DOT/SAE and FMVSS 108 designation applies only to the appropriate primary amber function. The secondary green function is intended for auxiliary and off-road use only. Colored vehicle lighting may be restricted on public roads, so check applicable provincial, state and local laws before use.
Installation / Fitment / Technical Details
This compact Double Fury UltraBurst light installs through a 3/4-inch-diameter mounting hole using its integrated threaded stud and included nylon mounting nut.
Wire Color Code
- White = Ground negative (-)
- Black = Primary amber low positive (+)
- Red = Primary amber high positive (+)
- Yellow = Secondary green positive (+)
The four-wire hookup is fitted with male bullet plugs. When the yellow secondary input is powered, the green illumination overrides the primary amber output.
Confirm the mounting location, available rear clearance, hole size and wiring configuration before drilling or connecting the light. Professional installation is recommended if you are unfamiliar with automotive electrical wiring.
Build Quality / Warranty
Constructed with:
- Injection-molded clear polycarbonate lens
- Chrome plastic bezel
- Nine dual-color LEDs
- Epoxy-sealed internal components
- Integrated threaded mounting stud
- Four-wire leads with male bullet plugs
The light carries an IP67 water-resistance rating and is epoxy sealed to help prevent moisture intrusion.
Warranty: 3-year manufacturer warranty.
What’s Included
- 1 × Double Fury UltraBurst 9 LED Watermelon Light
- 1 × Nylon Mounting Nut
- Integrated threaded mounting stud
- Pre-wired four-wire connection with male bullet plugs
Frequently Asked Questions
What colors does this watermelon light produce?
This Double Fury UltraBurst light produces primary amber illumination and secondary green auxiliary illumination through a clear polycarbonate lens.
What does dual-function primary lighting mean?
The primary amber LEDs provide separate low- and high-intensity outputs. The exact vehicle functions depend on how the light is wired and the application in which it is installed.
What happens when the green function is activated?
The secondary green illumination overrides the primary amber output whenever the yellow wire receives power.
Can the green LEDs be used on public roads?
The secondary green LEDs are designated for auxiliary and off-road use only. Colored vehicle lighting may be restricted on public roads, so confirm all applicable laws before use.
Is the primary amber function DOT/SAE compliant?
The manufacturer identifies the applicable primary amber function as DOT/SAE and FMVSS 108 compliant. This designation does not apply to the secondary green function.
What size mounting hole is required?
Installation requires a 3/4-inch-diameter mounting hole. Confirm the available rear clearance and installation location before drilling.
How is the watermelon light mounted?
The light installs through the mounting surface using its integrated threaded stud and included nylon mounting nut.
What are the wiring connections?
White is ground, black powers the primary amber low-intensity function, red powers the primary amber high-intensity function and yellow activates the secondary green illumination.
Is this watermelon light waterproof?
The light carries an IP67 water-resistance rating and features epoxy-sealed construction to help prevent moisture intrusion. Proper mounting and protected electrical connections remain important.
What voltage does this light require?
This Double Fury UltraBurst watermelon light is designed for 12V vehicle electrical systems.
