United Pacific · 35915 / 35916
LED beams and a sequential amber signal

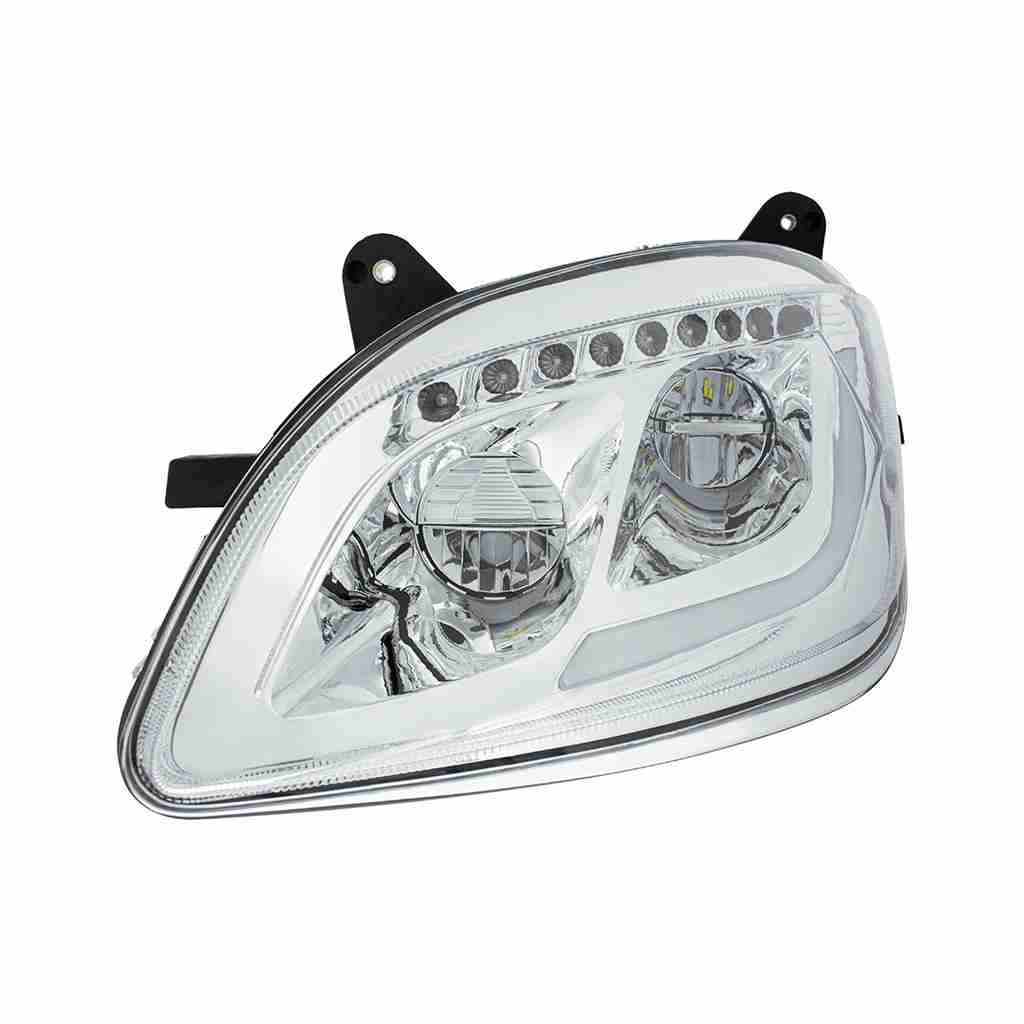

This chrome assembly pairs integrated LED low/high beams with a 26-LED white light bar and nine-LED sequential amber turn signal. Each side has its own part number.
Integrated main beams
The low and high beams are LED, rather than replaceable halogen bulb positions.
White light bar

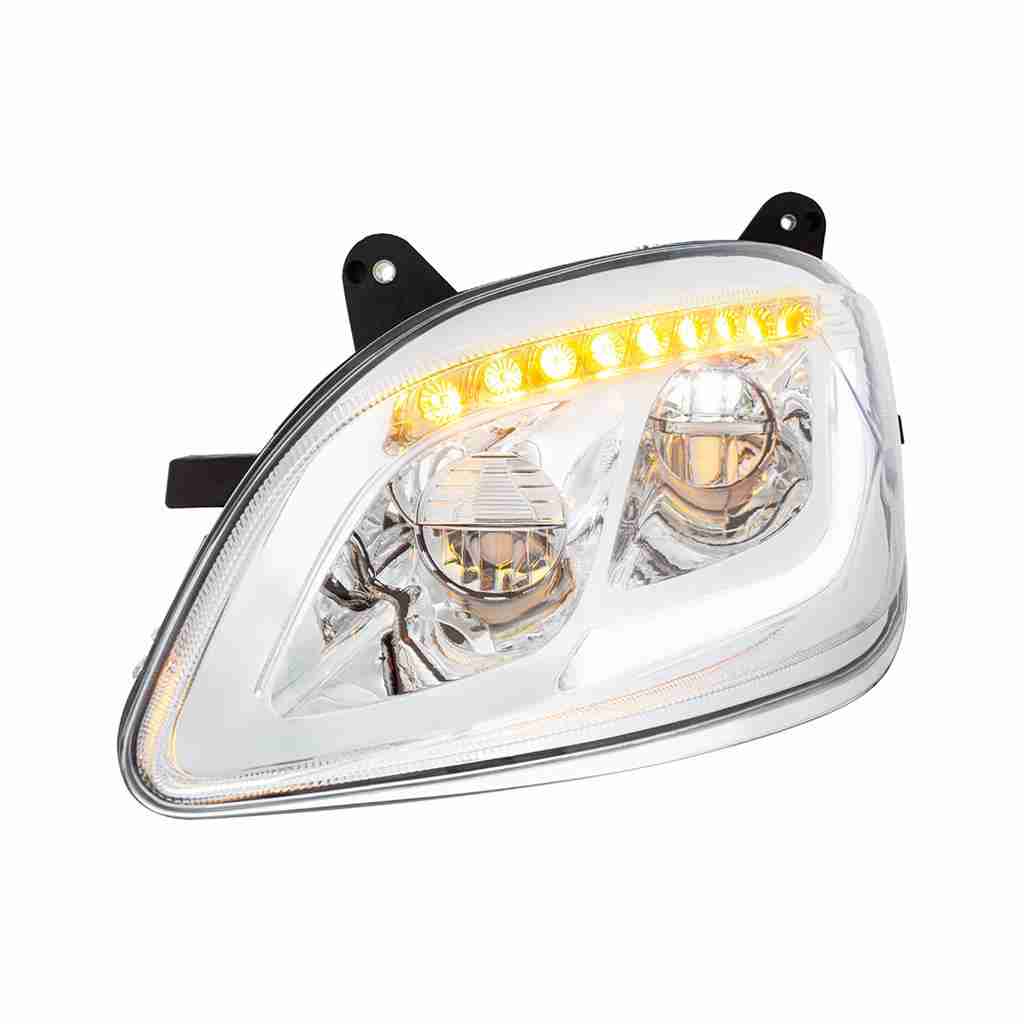

Twenty-six white LEDs create the position-light bar; the amber signal operates sequentially.
OE-style mounting tabs
Match the original mounting points and keep the factory harness for the installation.

Fitment & selection
Match the original headlight
- Peterbilt 579: 2012–2021
- Peterbilt 587: 2012–2016
For a 2010–2011 Peterbilt 587, confirm the original assembly and connections with BTS before ordering.
| Driver | 35915 · one complete assembly |
|---|---|
| Passenger | 35916 · one complete assembly |
Installation & aiming
Retain the factory headlight harness. Follow the exact main-plug and low/high-beam adjuster diagram, then check every lighting function and beam aim.
Lighting details
Specifications per assembly
| Low beam | 1,200 lumens · 1.7A at 12V |
|---|---|
| High beam | 1,200 lumens · 1.7A at 12V |
| Position / signal | 26 white LEDs / 9 sequential amber LEDs |
| Construction | Polycarbonate front lens and ABS rear housing |
| Finish | Chrome Inner Housing |
| Package | One headlight assembly for the selected side |
| Manufacturer standards listing | DOT/SAE · FMVSS 108; correct application and installed aim are required |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one complete headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the exact application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Is this an LED bulb kit?
No. This is a complete headlight assembly with integrated LED main beams, supplied for one selected side.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for product support.
