A complete front-end signature.
2021–2023 Ford F-150 · XBG23

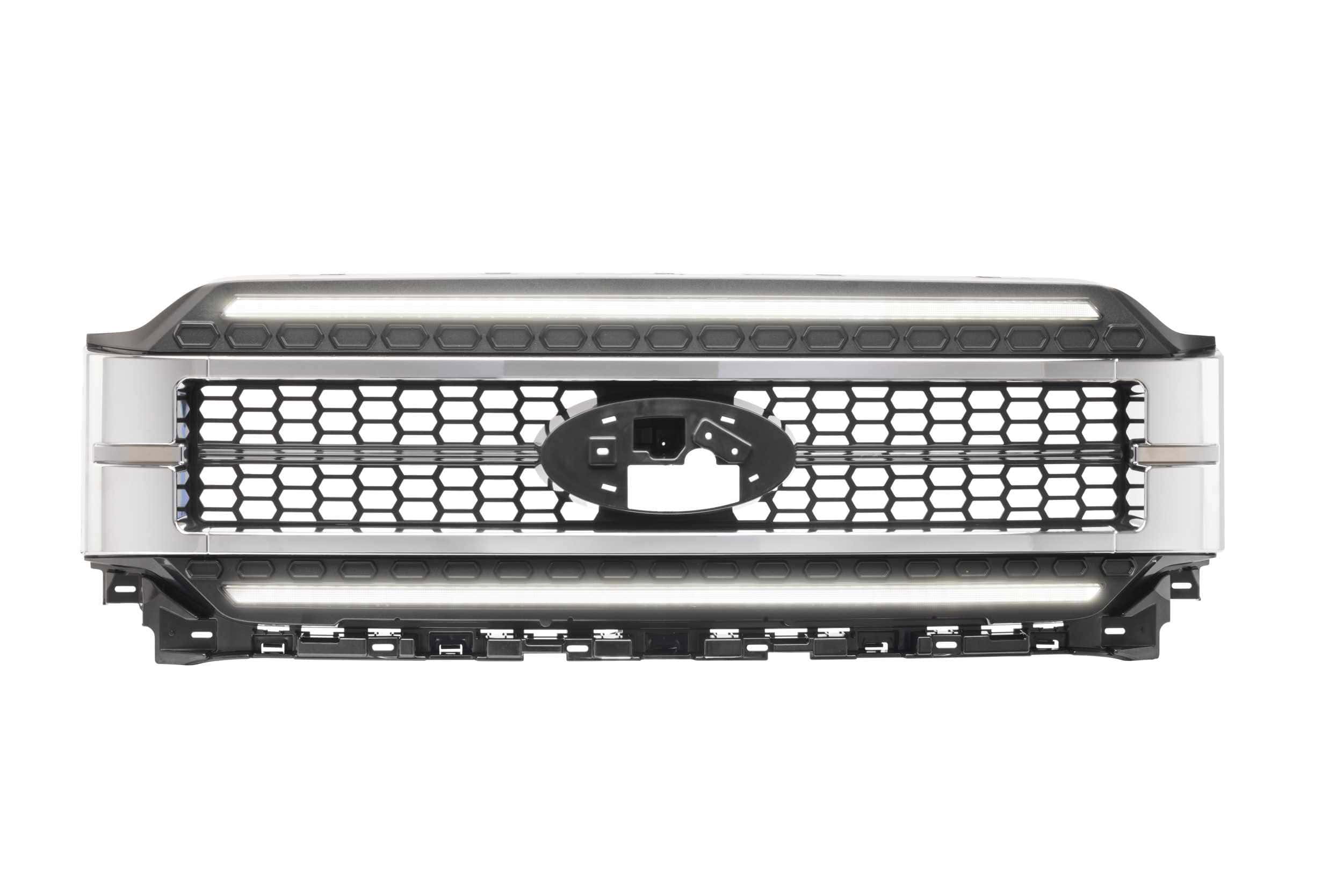

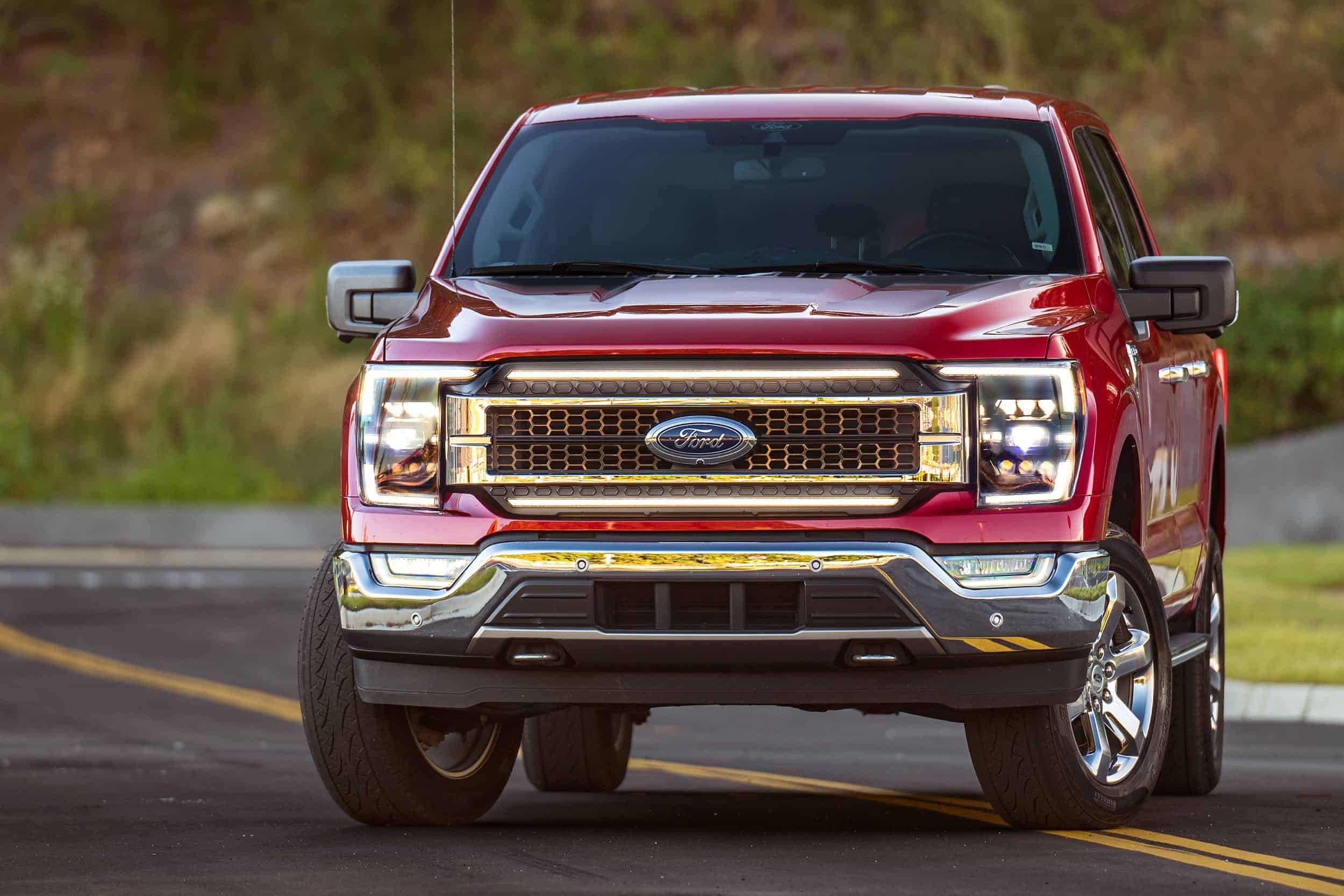

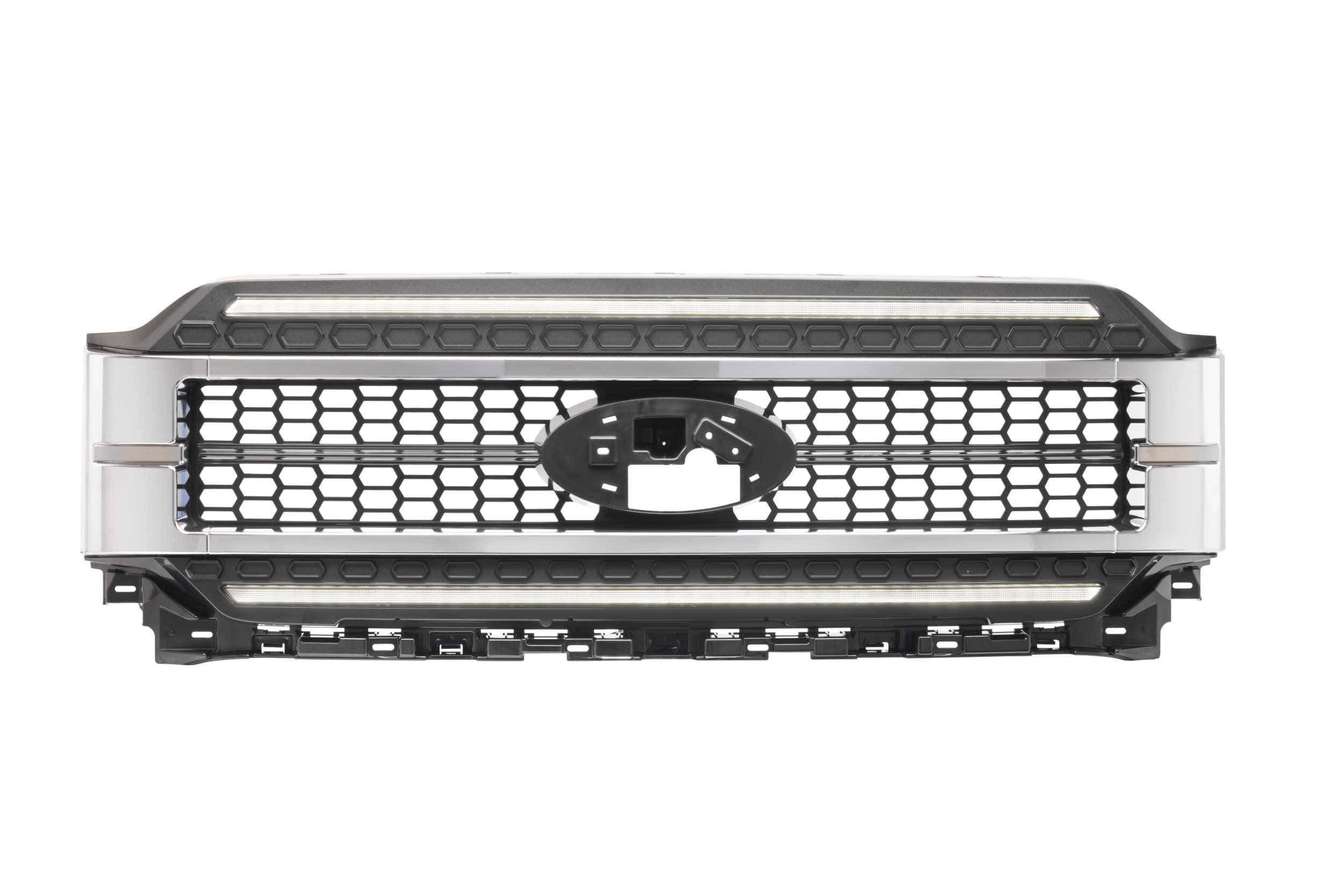

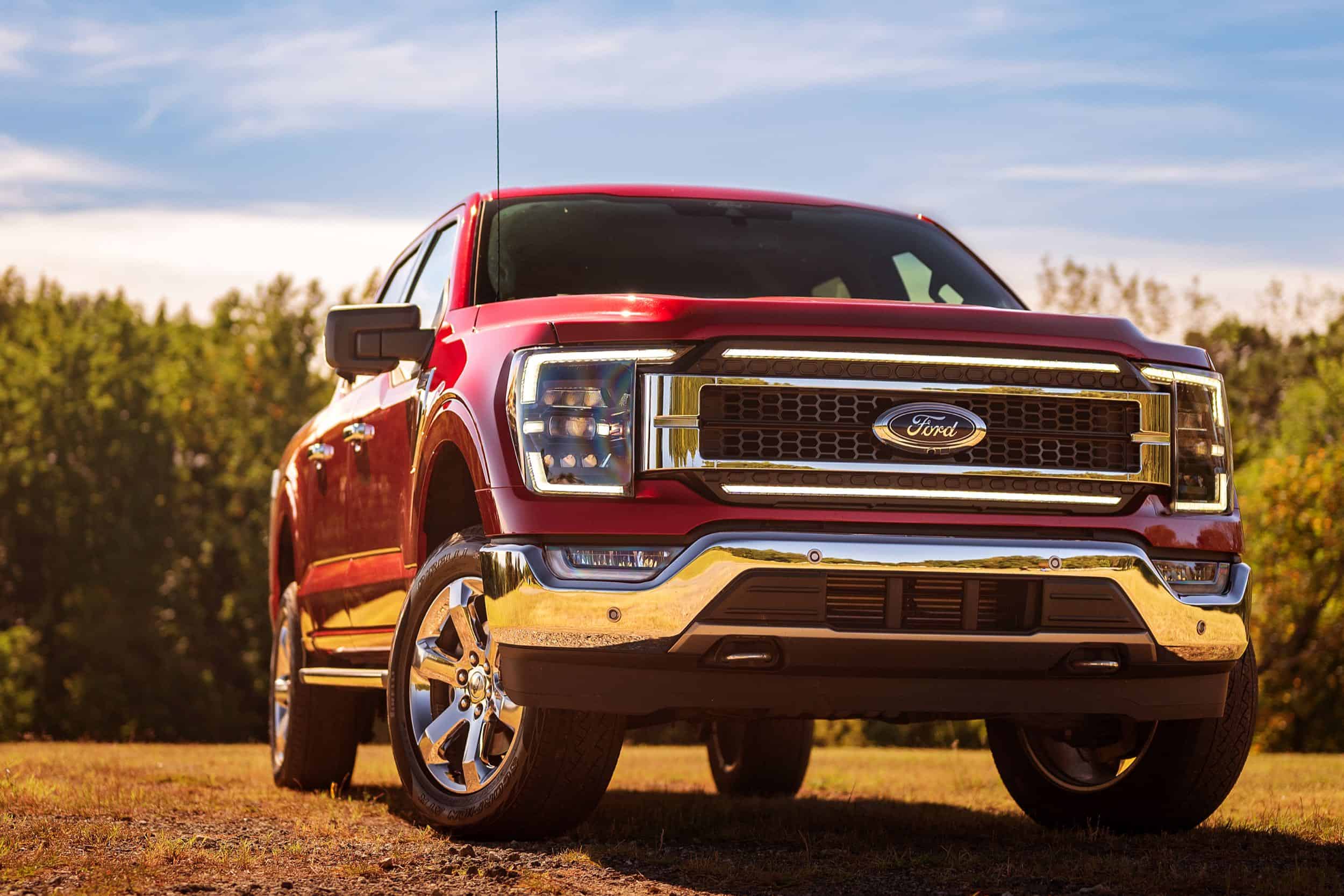

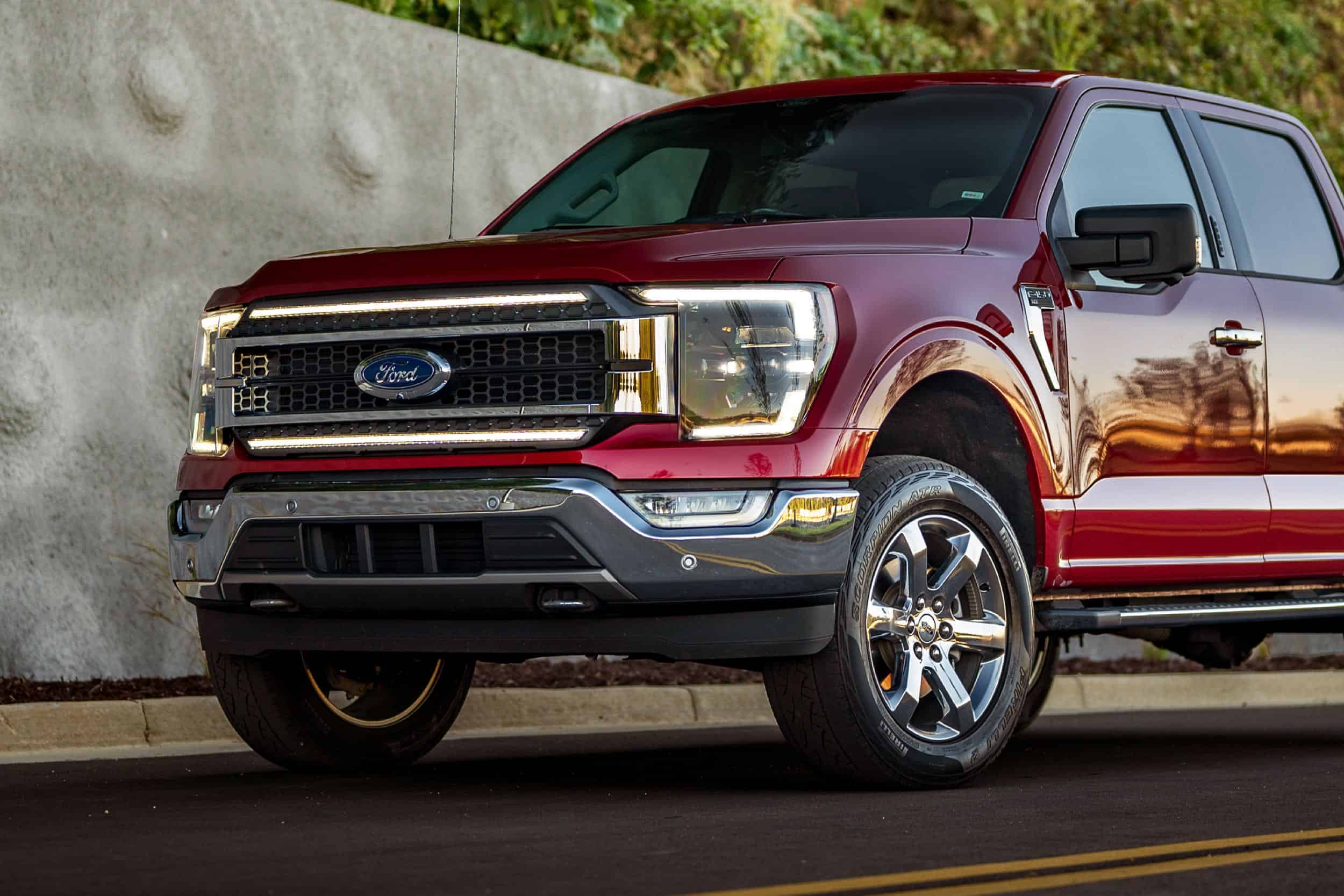

A chrome grille with two integrated white LED light bars. The XBG adds a clean daytime signature and dims automatically for night driving.
Chrome trim. White DRLs.
Daylight presence
Designed for after dark
The LED bars use dual intensity, dimming when the parking lights or headlights are on. The front trim can be removed for professional painting or wrapping.
The grille uses ABS construction and UV-resistant polycarbonate lenses. Morimoto supplies the two LED bars preinstalled. The factory Ford emblem and supported original grille equipment transfer to the new assembly.
Two checks before ordering.

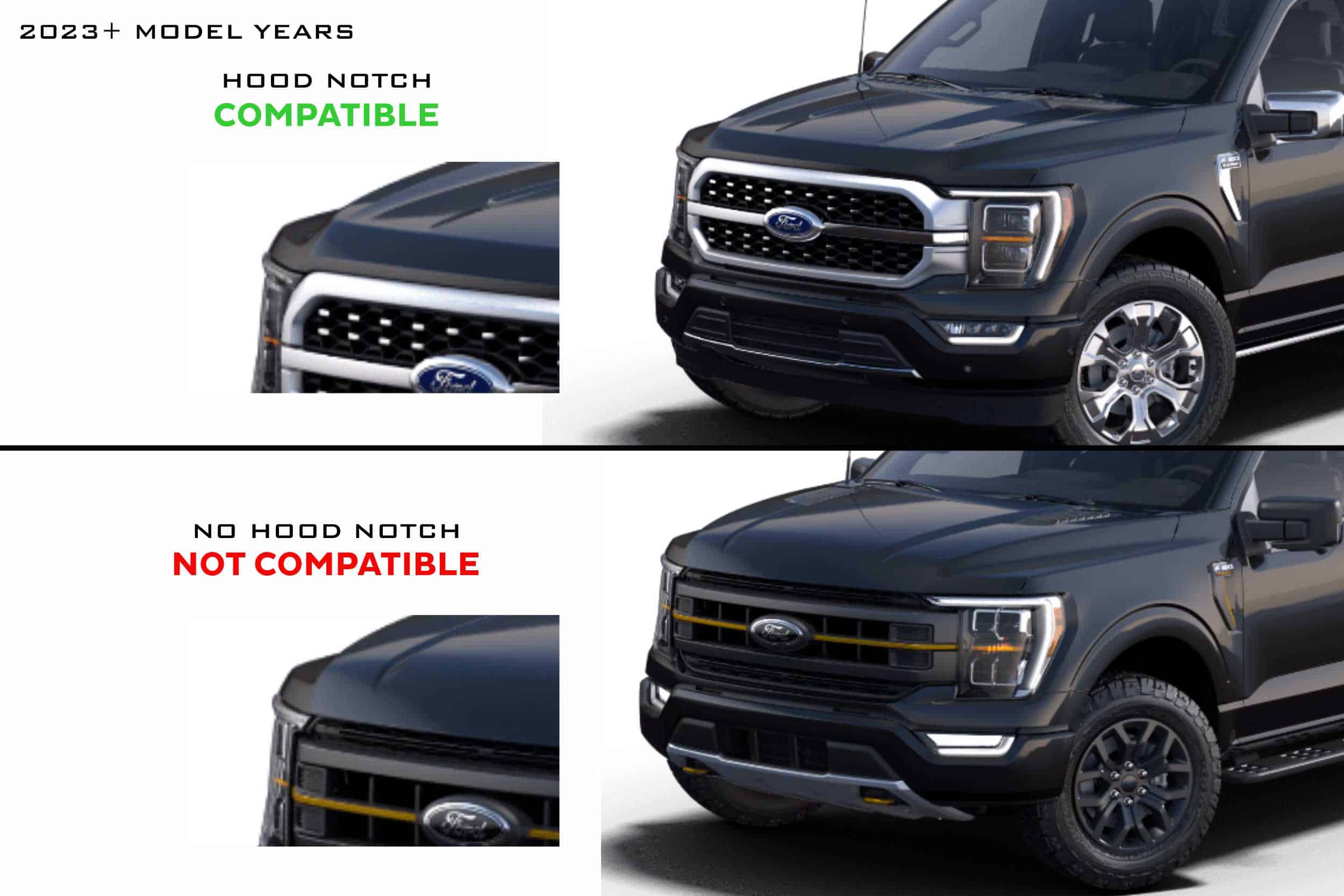

For 2021–2023 Ford F-150, excluding Raptor. For a 2023 truck, compare the hood profile below: the pictured notched hood is required.

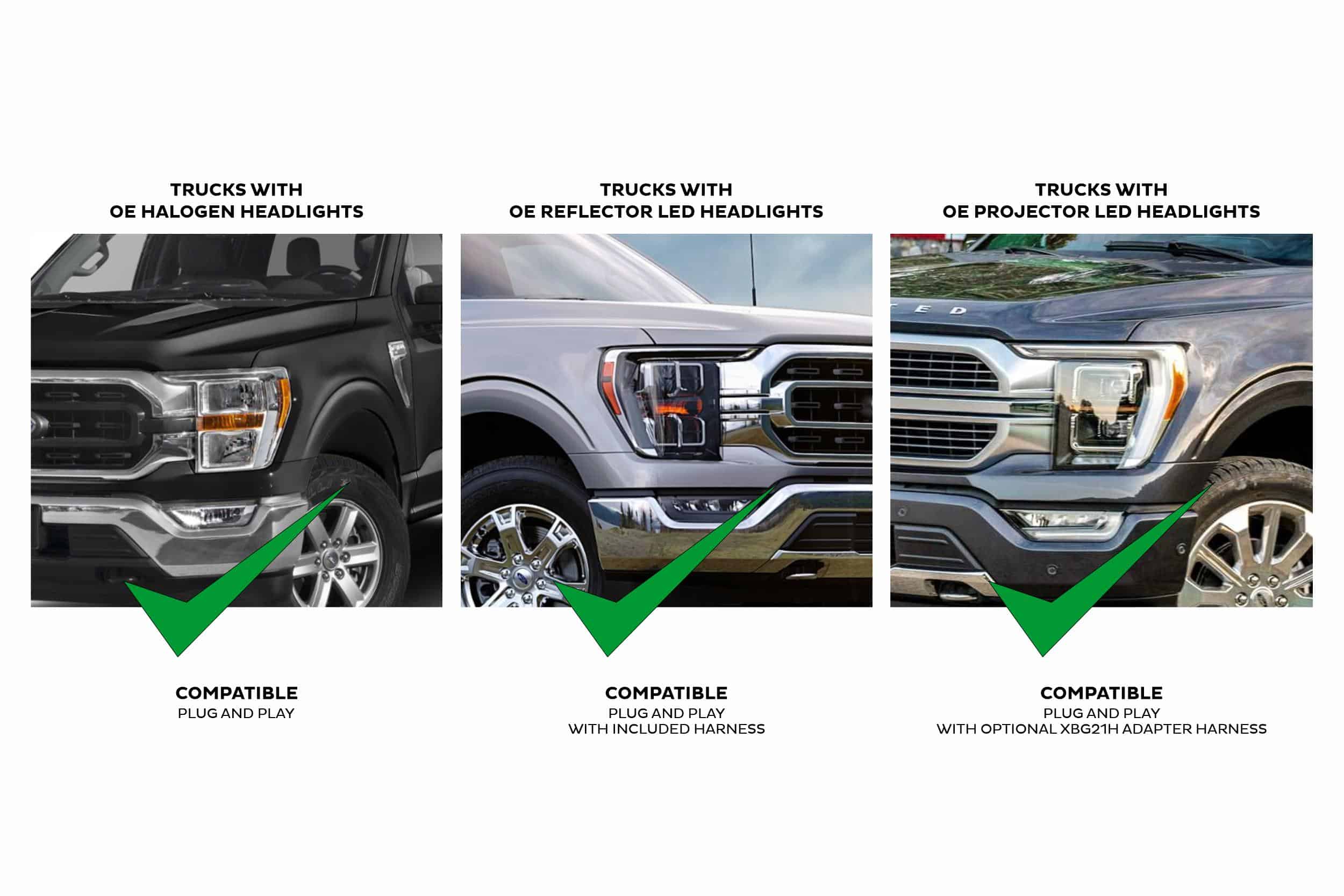

Factory halogen or LED reflector
The grille includes the connection harness for these original headlight types.
Factory LED projector
Add the XBG21H adapter harness. It is required for this original headlight type and is sold separately.
Morimoto’s published confirmation covers US-spec vehicles. For another market or an altered headlight setup, send BTS a photo of the original equipment before ordering.
Keep the factory details.
The installation transfers the Ford emblem and active grille assembly, plus the front camera and washer where fitted. The passenger headlight comes out for harness access; follow the illustrated guide for the correct connector route.
Illustrated BTS installation guide
Grille removal, original-equipment transfer, wiring diagrams and removable trim, with the manufacturer’s annotated photographs.
What arrives with XBG23
- One complete XBG grille with Chrome trim.
- Two preinstalled White DRL light bars.
- Connection harness for factory halogen / LED reflector applications.
The XBG21H factory-projector adapter is separate. Headlights, a Ford emblem, camera and active shutters are not extra included assemblies; applicable original parts transfer from your truck.
Manufacturer coverage: five-year limited warranty, subject to Morimoto’s terms.
Before you choose
Is this a Black or Amber grille?
This listing is XBG23: Chrome trim with White DRL bars. It does not offer the older Black or Amber configurations.
Will it work with my factory LED projector headlights?
The current application requires the separately sold XBG21H adapter. Choose it for the factory LED projector setup; the included harness covers halogen and LED reflector equipment.
Does every 2023 F-150 hood fit?
No. Compare your hood with the compatibility photograph above. The pictured notched profile is required; Raptor is excluded.
Can I retain the factory camera and grille equipment?
The manufacturer’s procedure transfers the original emblem and active grille assembly, reconnecting the front camera and washer where fitted. Follow the exact equipment and wiring checks in the guide.
Does the kit include headlights?
No. This is the illuminated grille assembly. Shop matching headlights separately and confirm the connector route if the truck has already been modified.
