SS10 SAE/DOT White LED Light Bar (One)
Take your visibility and performance to the next level with the SS10 SAE/DOT White LED Light Bar — engineered for serious output, real-world performance, and next-generation control. With advanced TIR optics, SmartSelect technology, and rugged construction, this light bar sets a new benchmark for lighting innovation.
Features
-
Patented TIR optics for unmatched light focus and efficiency
-
Upgraded beam patterns designed for real-world driving conditions
-
SmartSelect technology with selectable backlight colors and a modern startup sequence
-
Available in Sport, Pro, and Max power levels
-
Durable aluminum housing with ASTM-standard powdercoat finish
-
Extreme durability: IP69K waterproof rating for all-weather performance
-
Made in the USA with global materials
-
Limited Lifetime Warranty
Overview
See further. Go faster.
The all-new SS10 Stage Series LED Light Bar delivers industry-leading intensity, modern design, and superior efficiency. Whether you’re racing through the desert, navigating backroads, or lighting up a job site, the SS10 offers unrivaled performance backed by American engineering.
Each SS10 is built from the ground up with the latest optical, thermal, and electronic technology. Unlike traditional reflectors, TIR (Total Internal Reflection) optics capture nearly all the LED light and focus it exactly where you need it — reducing glare, preventing wasted light, and maximizing brightness.
With optimized heatsinks, copper-core circuit boards, and advanced cooling design, this light bar runs cooler, brighter, and longer.
Beam Pattern Options
Each beam pattern has been carefully engineered to excel in specific environments:
-
Combo/Driving: Balanced 60°x30° beam offering both reach and width — ideal for all-purpose use and high-speed driving.
-
SAE Driving: Designed to supplement high beams, offering long-range visibility with a controlled 20°x12° spread.
-
Flood: Wide 100°x80° illumination for work areas, campsites, or reversing applications.
-
Spot: Ultra-focused 8°x8° beam for maximum distance visibility in high-speed or off-road conditions.

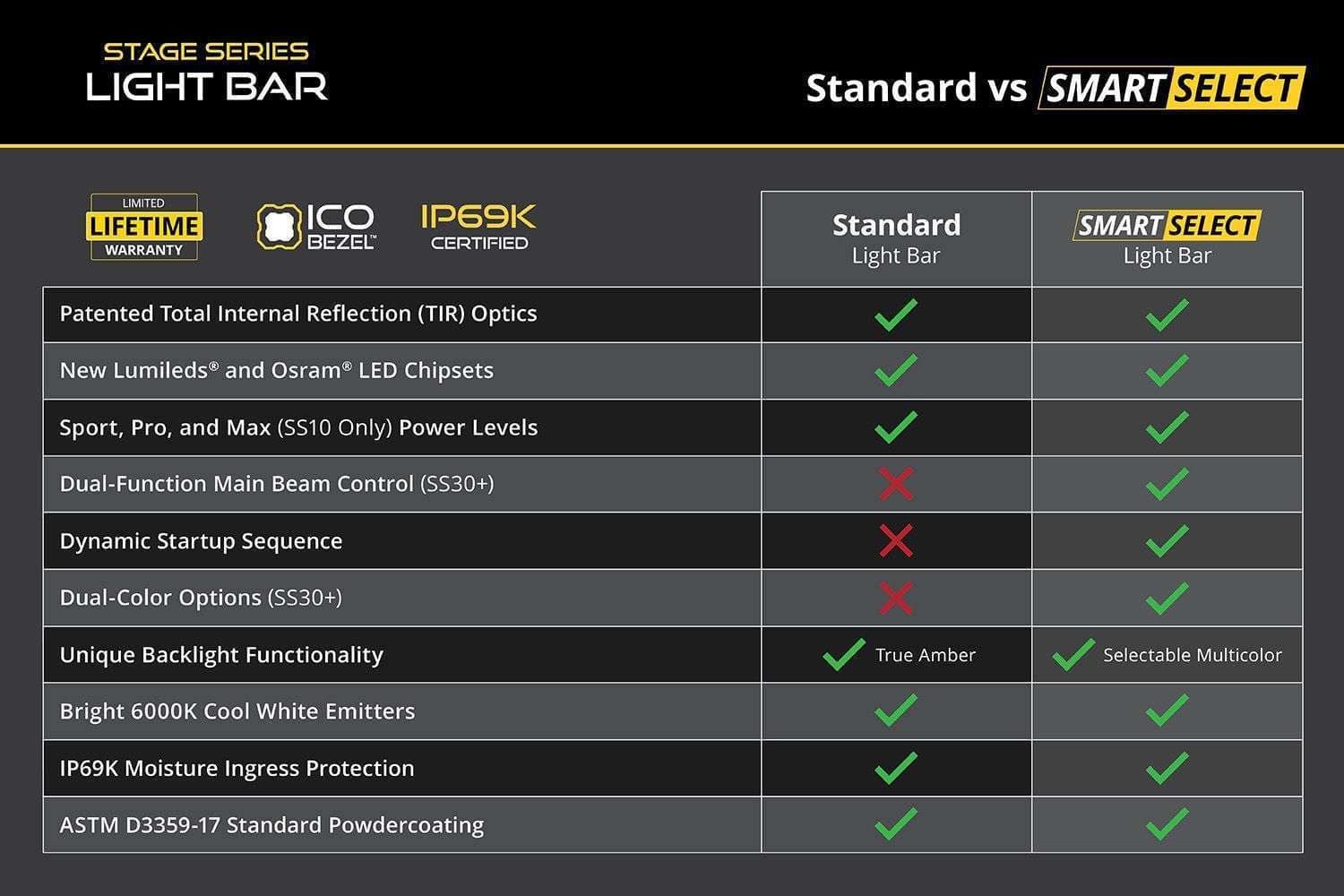

SmartSelect Backlight Functionality
The SmartSelect backlight system brings modern style to serious performance lighting.
-
Choose from eight selectable backlight colors (including a dedicated amber chip for true color accuracy).
-
Dynamic welcome sequence on startup for a premium visual effect.
-
Simple control: Change colors by toggling power — no extra controller needed.
-
Standard models include an amber-only backlight for clean, forward-facing applications.
Power Levels
-
Sport: Reliable performance and excellent value
-
Pro: Higher intensity for greater distance and clarity
-
Max: Ultimate performance using Osram HX Boost LEDs for extreme output
All versions feature automotive-grade LEDs and custom-engineered TIR optics for precise beam control.
Customization & Compatibility
-
Swappable optics and color lenses: Change beam patterns or switch between white and yellow easily.
-
Snap-on lens covers: Available in clear, smoked, amber, or black for extra protection or style.
-
CrossLink compatibility: Connect multiple bars together for custom curved or multi-bar setups.
Built to Last
Tested to SAE standards for vibration, corrosion, and moisture resistance, the SS10 is built to withstand the harshest conditions. Its IP69K rating ensures it stays sealed and reliable in extreme weather and high-pressure environments.
What’s Included
-
(1) SS10 LED Light Bar
-
(1) Wire pigtail
-
Universal mounting bracket set
Quantity: One (1)
Warranty: Limited Lifetime Warranty
Return Policy: 30-Day Return, No Restocking Fee, 100% Satisfaction Guarantee
