MORIMOTO XB LED · LF533-ASM
A clean Toyota signature. Built around LED reflectors.
A complete headlight pair for the 2007–2013 Toyota Tundra / 2008–2017 Sequoia. Morimoto’s LF533-ASM brings white daytime running lights and purpose-built LED reflector road lighting, with integrated amber LED signals.
- Left + rightOne complete headlight pair
- White DRLsA fixed daytime signature
- LED reflectorsLow- and high-beam functions

THE LIGHTING SYSTEM, EXPLAINED
Choose the design that fits your truck

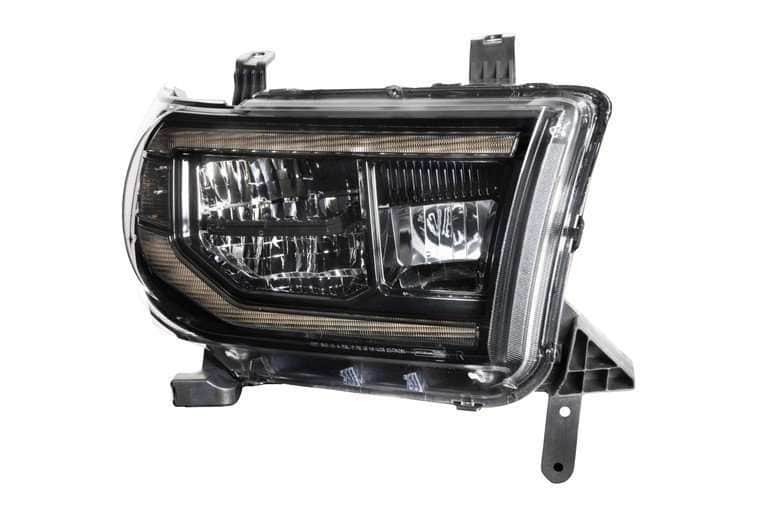

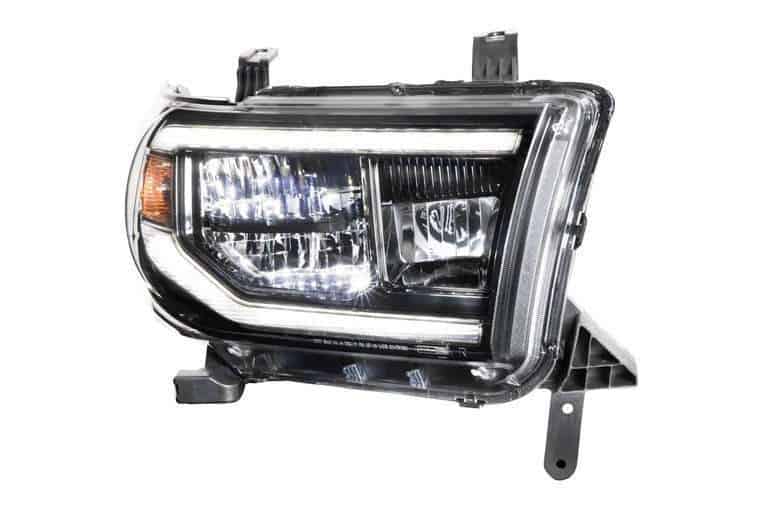

LED reflector optics
LED-specific reflectors shape the low- and high-beam light in these complete housings. These are reflector LEDs, not a projector conversion or a replacement-bulb kit.

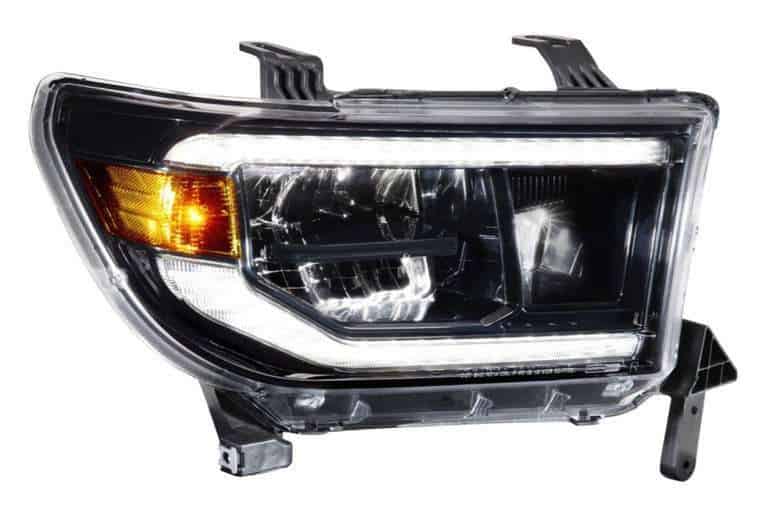

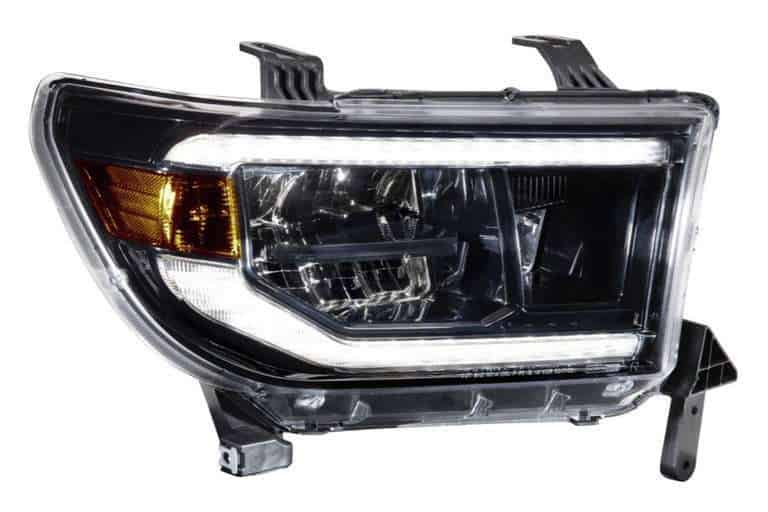

White daytime running lights
This exact part has a fixed white DRL signature. The separate amber turn-signal function does not make it a colour-changing DRL.

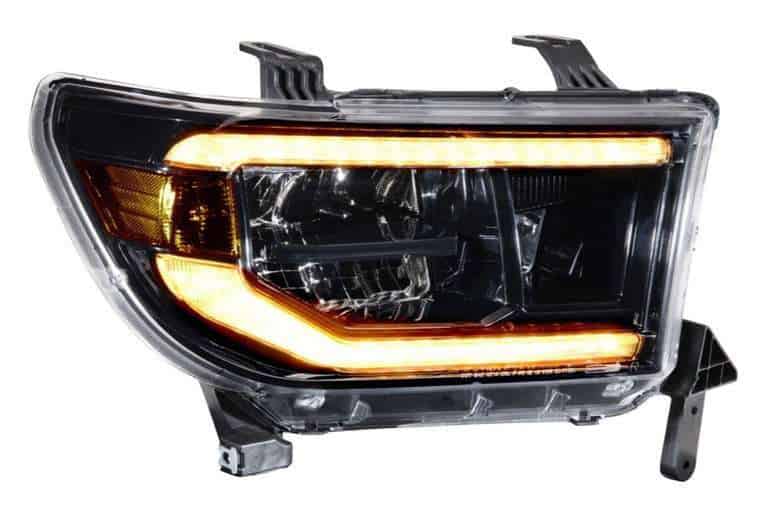

Selectable amber LED signals
The exact guide shows standard flashing or sequential signals. Configure both sides consistently and check the rest of the vehicle’s signal equipment.

MATCH THE YEAR AND ORIGINAL LAMPS
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2007–2013 Toyota Tundra / 2008–2017 Sequoia |
| Exact manufacturer part | LF533-ASM |
| Package | Complete left and right headlight assemblies |
| Daytime running lights | Fixed white |
| Road-lighting optics | LED reflector |
| Turn signals | Integrated amber LED; standard or sequential |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Factory equipment | Match original halogen connections, leveling motors and Sequoia washer mounts |
Morimoto designed and tested this application on US-spec vehicles. Before ordering for a Canadian or other-market vehicle, confirm the actual original headlights, connectors and DRL equipment with BTS.
SAME APPLICATION. TWO SIGNATURES.
White or amber DRL?
| Choice | This page | Alternative |
|---|---|---|
| Fixed DRL colour | White | Amber |
| Exact part | LF533-ASM | LF533-A-ASM |
| Turn signal | Amber LED | Amber LED |
See the amber-DRL XB LED pair for this vehicle. These are separate products, not a selectable DRL setting.
TWO HOUSINGS. THE STANDARD WIRING.
What comes with the headlight pair

- Left and right XB LED headlight assemblies.
- The listed plug-and-play wiring harness and DRL fuse tap.
Reconnect the original Toyota equipment as shown in the exact guide.
Fog lights, pod lights, custom grilles, racks, wheels and other accessories shown on the vehicles are separate products.
PLAN THE ACCESS. CHECK THE CONNECTIONS.
Installation details worth knowing

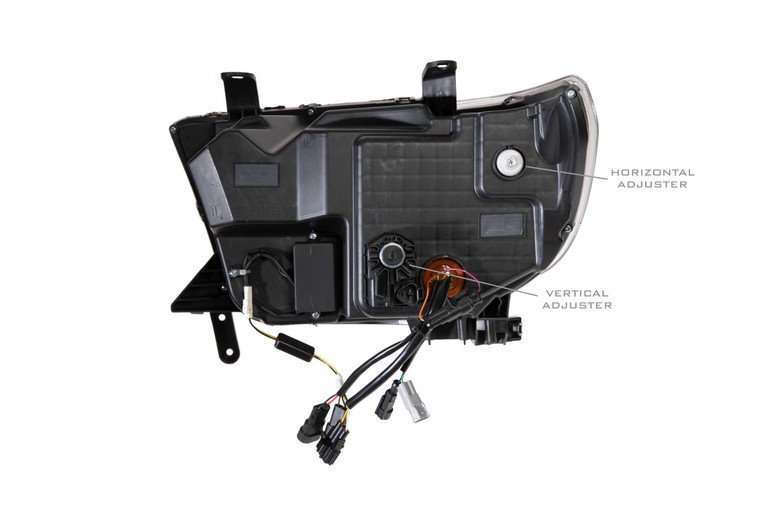

The Tundra guide covers lamp and lower-trim removal, original parking/turn/low/high connections and the leveling-motor plug. Route the included DRL harness using the guide’s illustrated 10A IGN fuse position. The guide also identifies possible battery-to-housing interference: check clearance and reposition the battery only as instructed if needed. Set the in-cab leveling control to 0 before final aiming. For a Sequoia, verify the corresponding original equipment and application-specific instructions.
Match any illustrated fuse position to your vehicle’s fuse chart. Other aftermarket signal lamps or LED bulb conversions can affect turn-signal operation; check the complete system before final reassembly.
Download the official LF533-ASM installation guide

EXACT PART · LF533-ASM
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Toyota Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Reflector LED |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
811500C051, 811100C051
Use these together with the model-year and equipment requirements above.
Morimoto identifies the supplied configuration as meeting its stated DOT/SAE requirements when installed and aimed correctly. That does not establish compatibility or compliance for unverified drivers or altered applications.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
Manufacturer-linked videos for this product family. Some videos may demonstrate the other DRL colour; this page supplies the fixed white version listed above.
07-13 Toyota Tundra XB LED Headlights | TRS

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB LED questions
Is this one headlight or a pair?
One order supplies the complete headlight pair: left and right housings, plus the listed standard wiring.
What vehicle does this exact part fit?
2007–2013 Toyota Tundra / 2008–2017 Sequoia. Confirm the original lamp equipment, connectors and market specification before ordering.
Are these LED bulbs for the original headlights?
No. These are complete replacement headlight housings with integrated LED road-lighting optics.
Are these projector headlights?
No. This exact LF533 family uses purpose-built LED reflector optics for the road lighting.
Can I switch the DRL colour?
No. This exact part has fixed white daytime running lights. Amber and white DRL versions, where available, are separate products.
Is separate DRL wiring needed?
Yes. Install the included DRL harness and fuse-tap feed following the exact supplied instructions. It is part of the listed standard package.
Do I need to adjust beam aim?
Yes. Check final aim after mounting and testing, especially on a lifted, lowered or heavily loaded vehicle.
Can I add Supercharged drivers or heated lenses?
Neither Supercharged-driver compatibility nor a heated-lens feature has been established for this exact XB LED part. Do not assume newer Evo accessories apply.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply. Keep proof of purchase and contact BTS if you suspect a warranty issue.
What does LHD mean?
The beam pattern is for left-hand-drive vehicles used on the right-hand side of the road. It does not mean only the driver-side headlight is supplied.
Does the Sequoia application include 2018?
No. Current exact Morimoto product pages list 2008–2017 Sequoia for this part. The 2007 start year applies to Tundra, not Sequoia.
Will the factory leveling equipment work?
Morimoto lists leveling-motor compatibility. Match the original connectors and follow the supplied guide; the Tundra guide sets the in-cab control to 0 before final aiming.
Can the turn signals flash normally?
Yes. The exact guide shows standard flashing and sequential settings. Configure both headlights consistently.
Why check battery clearance?
The Tundra guide identifies possible contact between the driver-side housing and the battery. Follow its clearance procedure if needed before forcing the lamp into position.

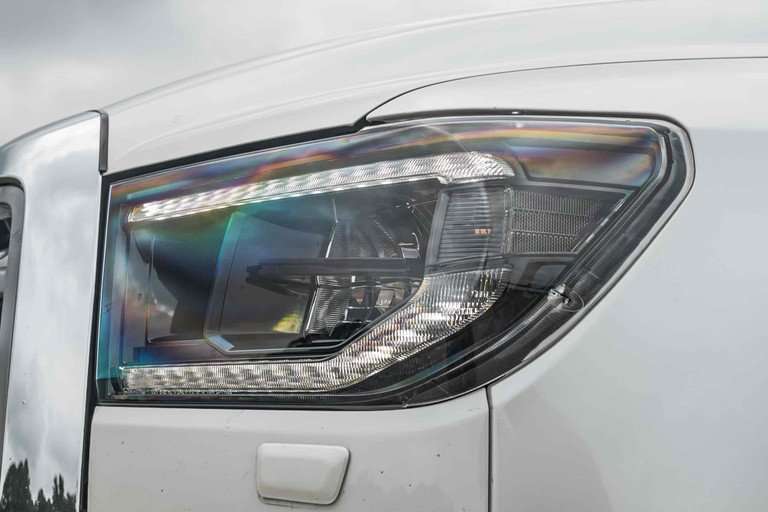

THE FINISHED LOOK
See the design on the vehicle
Exact manufacturer photography. Other lighting and vehicle accessories are separate products.
