Why Choose Morimoto XB Type T LED Fog Lights

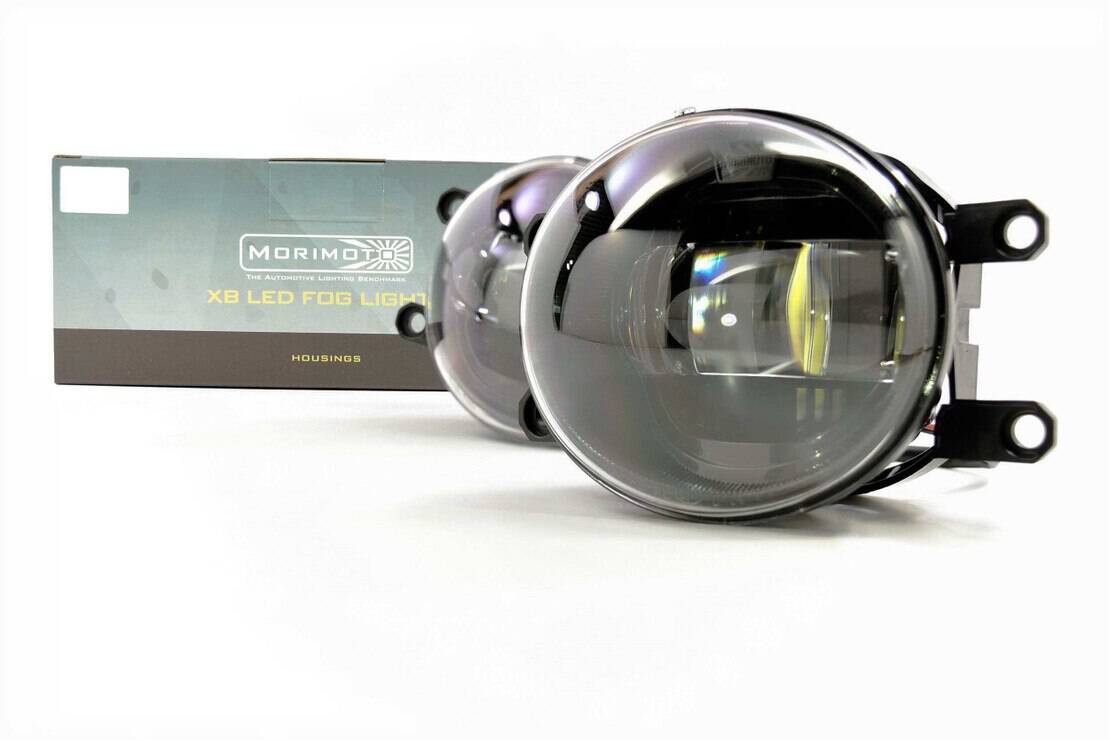

Morimoto XB Type T LED fog lights are complete replacement housings designed to upgrade supported factory halogen fog lights. They deliver a controlled projector beam, clean white output, and a proper LED fog light setup without relying on basic bulb swaps.
Features include:
- Complete LED projector fog light housings
- Three Philips Luxeon-T LEDs per side
- 5500K white output
- Approximately 1,200 raw lumens per side
- Approximately 2,400 raw lumens total
- Plug-and-play harness included
- Integrated height adjusters
- DOT, SAE, and ECE listed compliance
- 10-year limited warranty
Key Features & Benefits
5500K White LED Output
Each Type T fog light uses three Philips Luxeon-T LEDs to produce a crisp white beam.
Features include:
- 5500K color temperature
- Three Philips Luxeon-T LEDs per side
- Approximately 1,200 raw lumens per side
- Approximately 2,400 raw lumens total
- Clean modern LED appearance
This gives supported Toyota, Lexus, and Subaru models a sharper front-end look with improved fog light performance.
Projector-Based Fog Beam

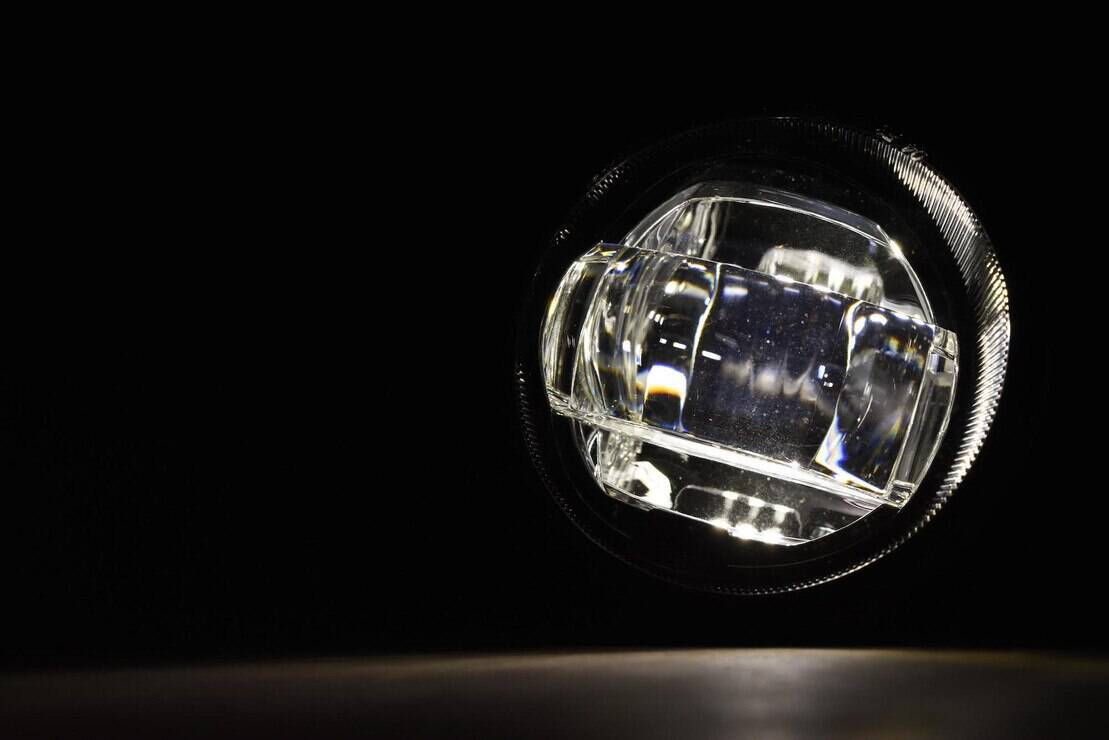

The XB Type T fog lights use projector optics to control and distribute light properly.
Features include:
- Projector-based optical design
- Super-wide fog light beam
- Smooth light distribution
- Better control than LED bulbs in halogen housings
- Designed specifically for fog light use
This is a complete fog light housing upgrade, not just a replacement bulb.
Plug-and-Play Installation
These fog lights are designed to install into factory fog light locations on compatible applications.
Features include:
- Plug-and-play harness included
- Uses factory connectors
- Fits stock mounting locations on supported vehicles
- Required seals, pigtails, and connectors included
- Integrated height adjusters for aiming
Some Toyota and Lexus applications may require minor trimming or adjustment depending on factory bracket spacing.
Performance, Compatibility & Use Case
Known Vehicle Compatibility
These Morimoto XB Type T LED fog lights fit select Lexus, Toyota, and Subaru applications, including Lexus CT 2011-2017, ES 2013-2015, GS 2013-2015, HS 2010-2012, IS 2011-2014, ISF 2008-2013, LX 2008-2015, GX 2010-2014, RX 2010-2015, Toyota 4Runner 2010-2021, Avalon 2007-2015, Camry 2007-2014, Corolla 2009-2016, Highlander 2008-2010, Matrix 2009-2013, Prius 2010-2016, Prius C 2012-2016, Prius V 2012-2016, RAV4 2006-2012 and 2016-2021, Sienna 2010-2016, Solara 2006-2008, Tacoma 2012-2021, Tundra 2014-2021, Venza 2009-2014, Yaris 2007-2016, and Subaru Legacy 2015-2017.
Fitment Notes
For most Toyota and Lexus installs, these are designed as a direct replacement for the stock fog lights. Some fitments, including 2014-2018 Toyota 4Runner applications, may require minor trimming or adjustment of the plastic bracket.
Toyota fog lights have two mounting-point standards with slightly different spacing. These fog lights are designed to work with both, but they may be a tight fit if your Toyota uses the wider spacing.
OEM Replacement Part Numbers
These fog lights are listed to replace Toyota part numbers 81220-06071 and 81210-08020.
Always confirm fitment by vehicle year, trim, factory fog light style, mounting point spacing, and OEM part number before ordering.
Application & Use Case
Designed for:
- Toyota fog light upgrades
- Lexus fog light upgrades
- Subaru Legacy fog light upgrades
- Factory halogen fog light replacement
- White LED fog light conversions
- Complete projector fog light housing upgrades
- Daily-driven vehicles
These are a strong choice for drivers who want better beam control, cleaner styling, and a proper LED fog light housing upgrade.
Installation & Technical Details
Installation Overview
Morimoto XB Type T LED fog lights are designed to replace the original halogen fog light housings on supported Toyota, Lexus, and Subaru applications using factory-style mounting and wiring.
Installation details:
- Product type: Complete LED fog light housing set
- Output color: White
- Color temperature: 5500K
- LED type: Philips Luxeon-T
- LED count: 3 LEDs per side
- Output: Approximately 1,200 raw lumens per side
- Total output: Approximately 2,400 raw lumens

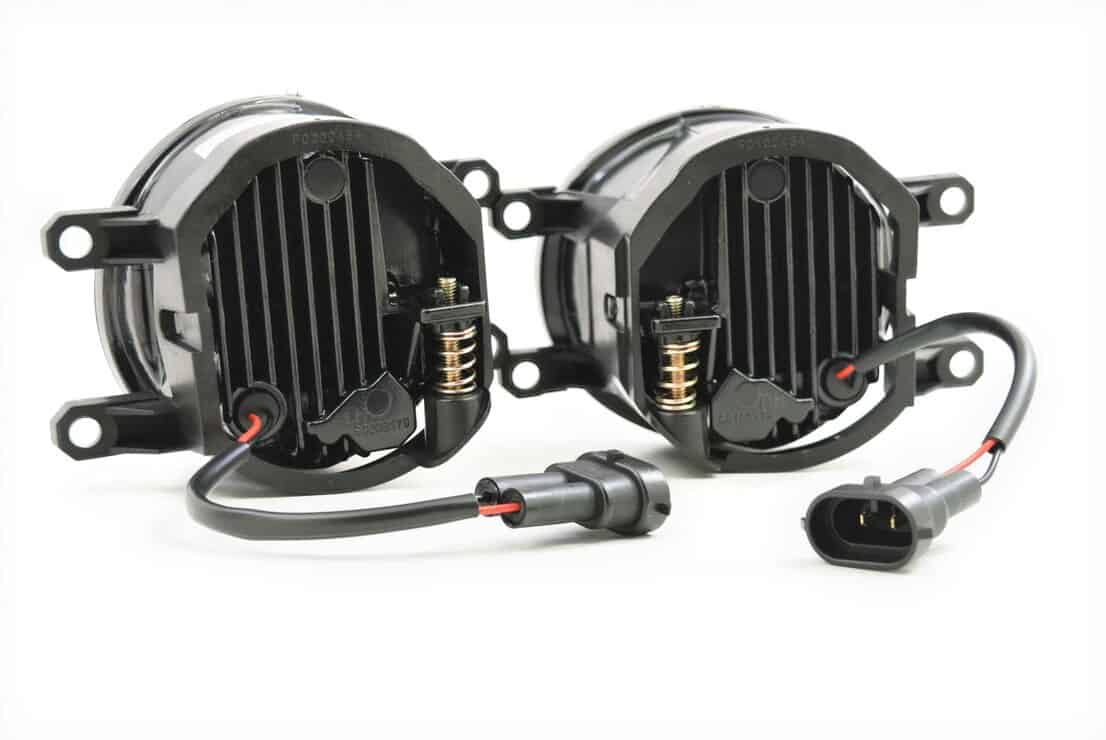

- Wiring: Plug-and-play harness included
- Aiming: Integrated height adjusters
- Optional accessory: Yellow Lamin-X Film Kit
Professional installation is recommended for vehicles that require trimming, bracket adjustment, or tight-spacing fitment.
Build Quality, Compliance & Warranty
Build Quality

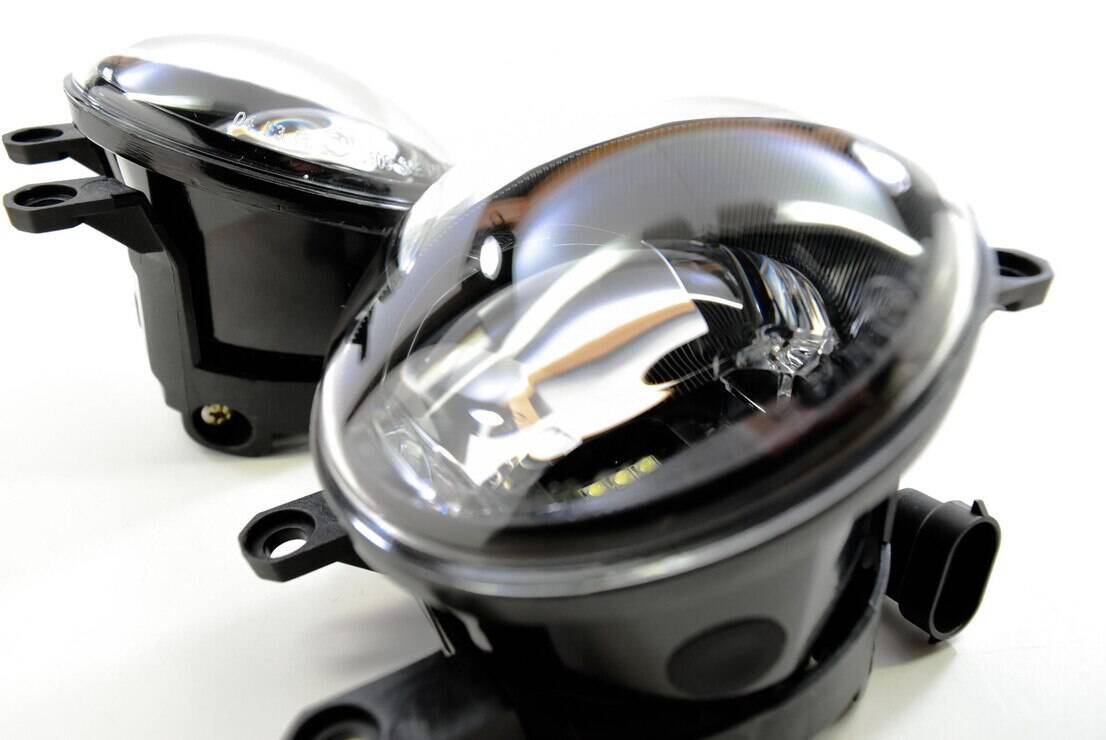

Morimoto XB Type T fog lights are built as complete replacement housings with durable exterior components.
Key details:
- Durable polycarbonate lens
- Powder-coated cast aluminum housing
- Housing doubles as LED heat sink
- Protected internal components
- Projector-based fog light optics
The aluminum housing helps protect the internals while supporting LED cooling.
Compliance
These fog lights are listed as meeting:
- DOT standards
- SAE standards
- ECE standards
Proper installation and aiming are important for safe road use and compliance.
Warranty Coverage
This Morimoto product includes a 10-year limited warranty.
What’s Included
Included in the kit:
- 2 × Morimoto XB LED Type T Fog Lights
- 1 × Plug-and-Play Harness
- Optional Yellow Lamin-X Film Kit, if selected
Frequently Asked Questions About Morimoto XB Type T LED Fog Lights
Are these fog lights sold as a pair?
Yes. This kit includes one pair of Morimoto XB LED Type T fog lights.
It includes both fog light housings for a complete left and right side upgrade.
What vehicles do these fit?
These fog lights fit select Toyota, Lexus, and Subaru models, including certain 4Runner, Tacoma, Tundra, RAV4, Camry, Corolla, Prius, Lexus CT, ES, GS, IS, GX, LX, RX, and Subaru Legacy applications.
Always confirm your year, trim, factory fog light style, mounting point spacing, and OEM part number before ordering.
Do these fit Toyota 4Runner models?
Yes. These are listed for Toyota 4Runner 2010-2021.
Some 2014-2018 4Runner installations may require minor trimming or adjustment of the plastic fog light bracket.
Are these complete fog lights or just bulbs?
These are complete LED projector fog light housings.
They replace the supported factory fog light assemblies instead of simply installing LED bulbs into the original halogen housings.
What color is the output?
These Morimoto XB Type T fog lights produce 5500K white output.
That gives them a crisp, modern LED appearance.
Are these plug-and-play?
Yes. These fog lights include a plug-and-play harness for supported applications.
Some Toyota and Lexus applications may require minor bracket adjustment due to mounting point spacing.
What Toyota part numbers do these replace?
These fog lights are listed to replace Toyota part numbers 81220-06071 and 81210-08020.
Confirm the part number matches your factory fog light before ordering.
Are these DOT, SAE, and ECE compliant?
Yes. These Morimoto XB Type T LED fog lights are listed as meeting DOT, SAE, and ECE standards.
Proper installation and aiming are still required.
What warranty is included?
This Morimoto product includes a 10-year limited warranty.
