Toyota Tundra 2022-2025 | SS5 Grille CrossLink Lightbar Kit
Features
-
Bolt-on fitment for 2022+ Toyota Tundra
-
Mount a four-pod CrossLink lightbar across the grille
-
Ultra-high intensity with custom-engineered TIR optics
-
Selectable backlight color with 8 color options
-
Heavy-duty, torture-tested construction
-
Uses factory mounting points—no cutting or drilling required
-
Assembled in the USA
Overview
Perfect Fitment

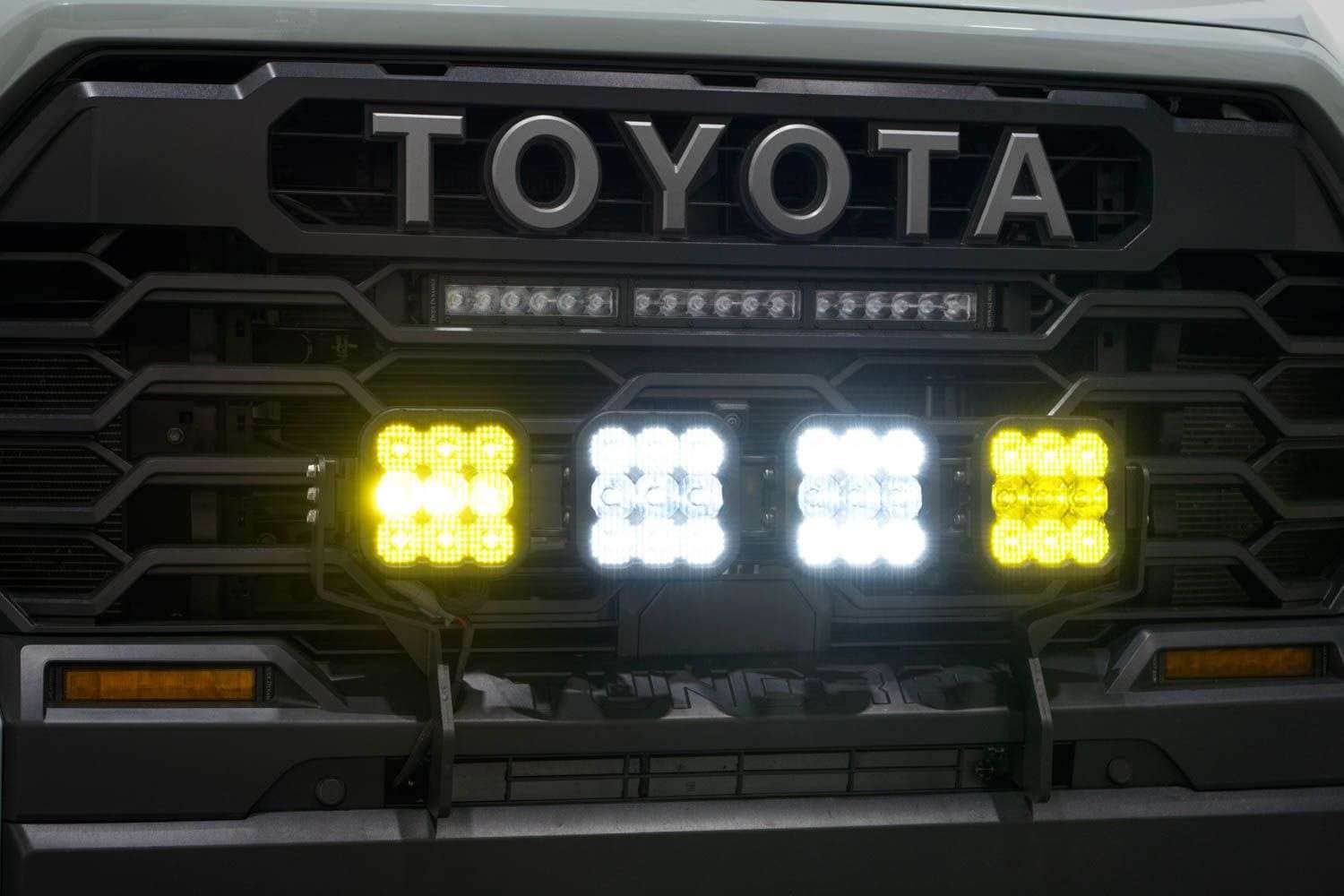

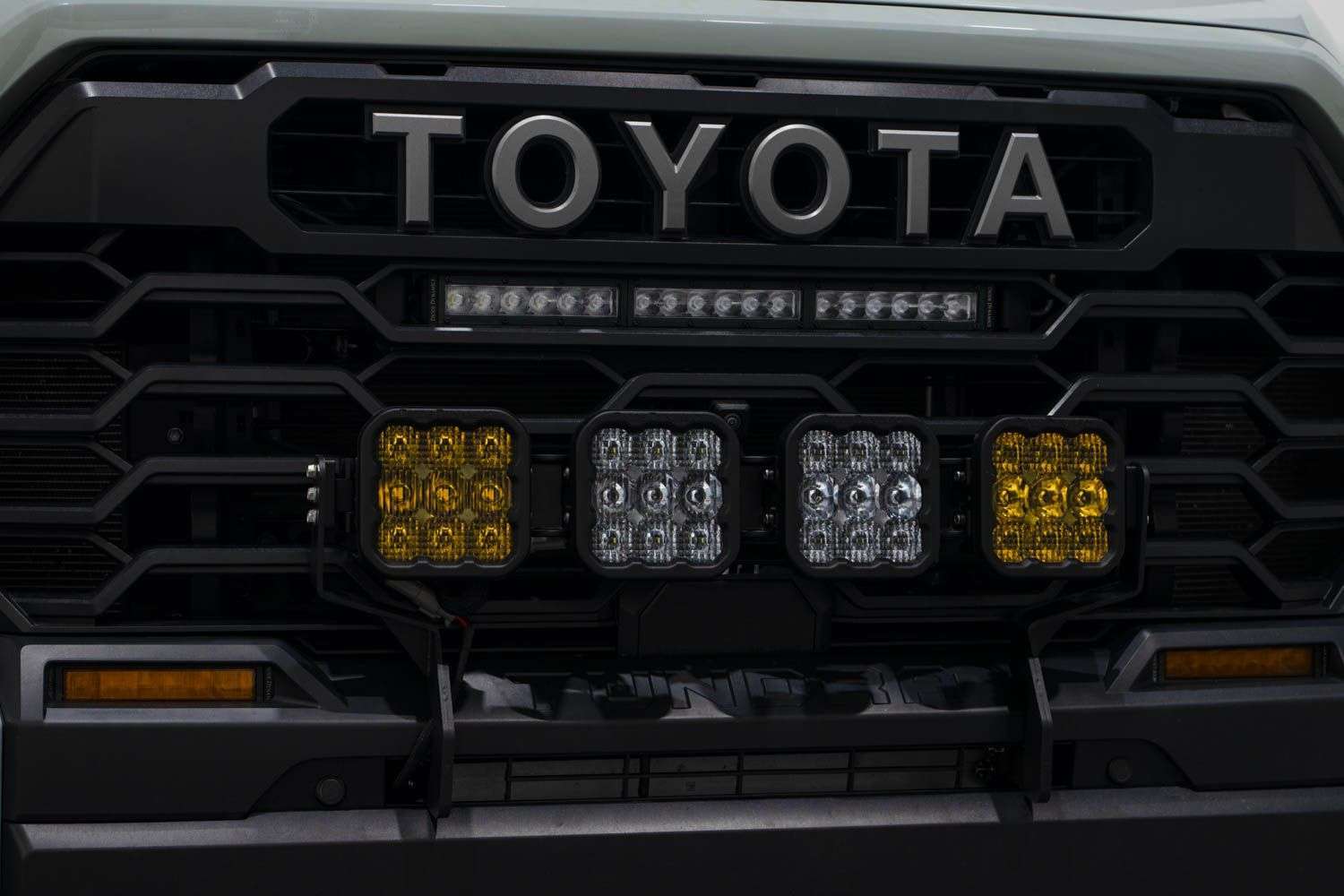

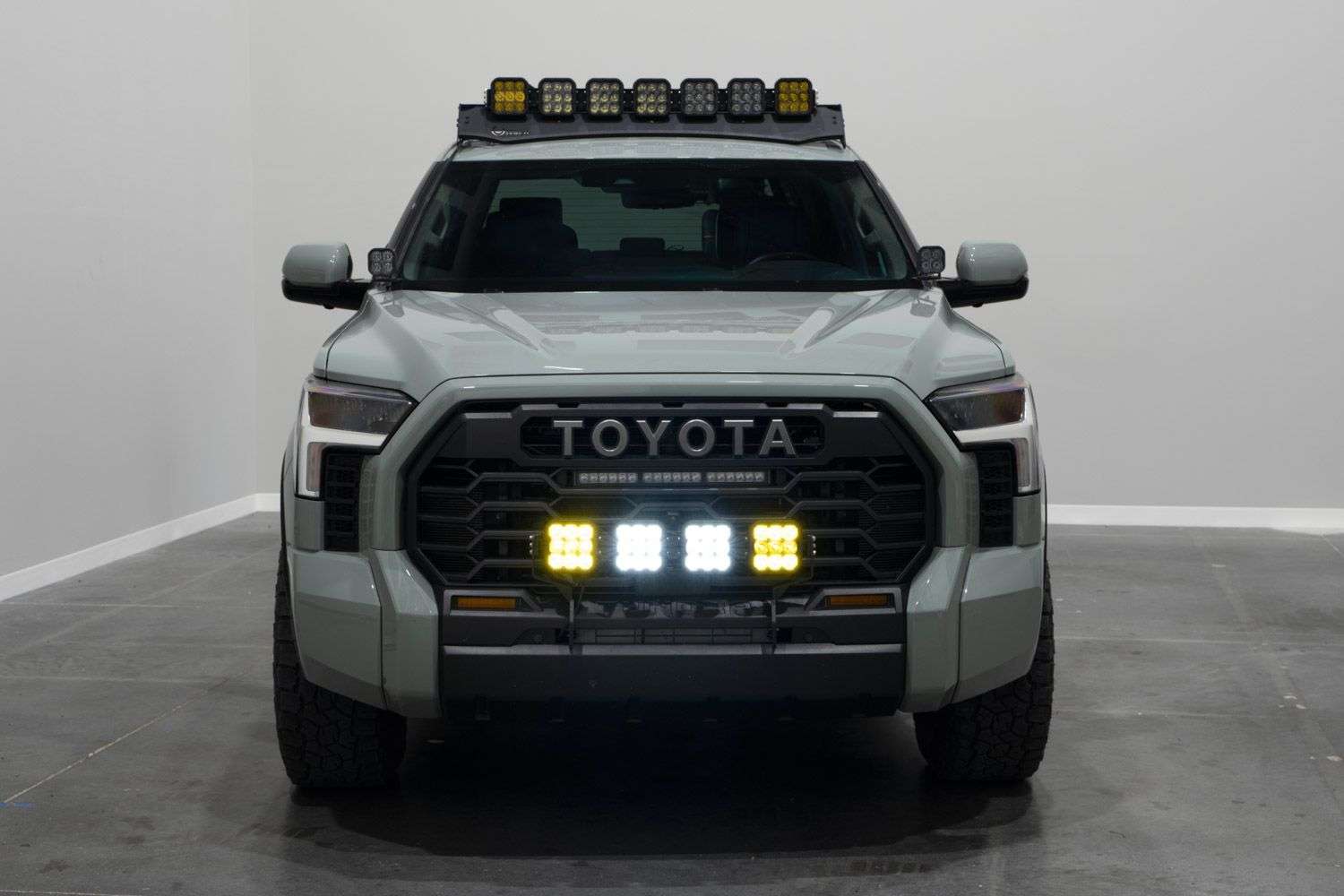

The SS5 Grille CrossLink Lightbar Kit for the 2022+ Toyota Tundra from Diode Dynamics lets you mount four linked SS5 LED pods across your grille. CAD-designed, application-specific brackets bolt directly into the factory bumper mounting points—installation is simple and requires no modifications.
Maximum Performance
These 5-inch Stage Series pods deliver the highest output intensity in their class. With custom-engineered TIR optics, the light is highly functional and focused for maximum coverage.
Selectable Backlight

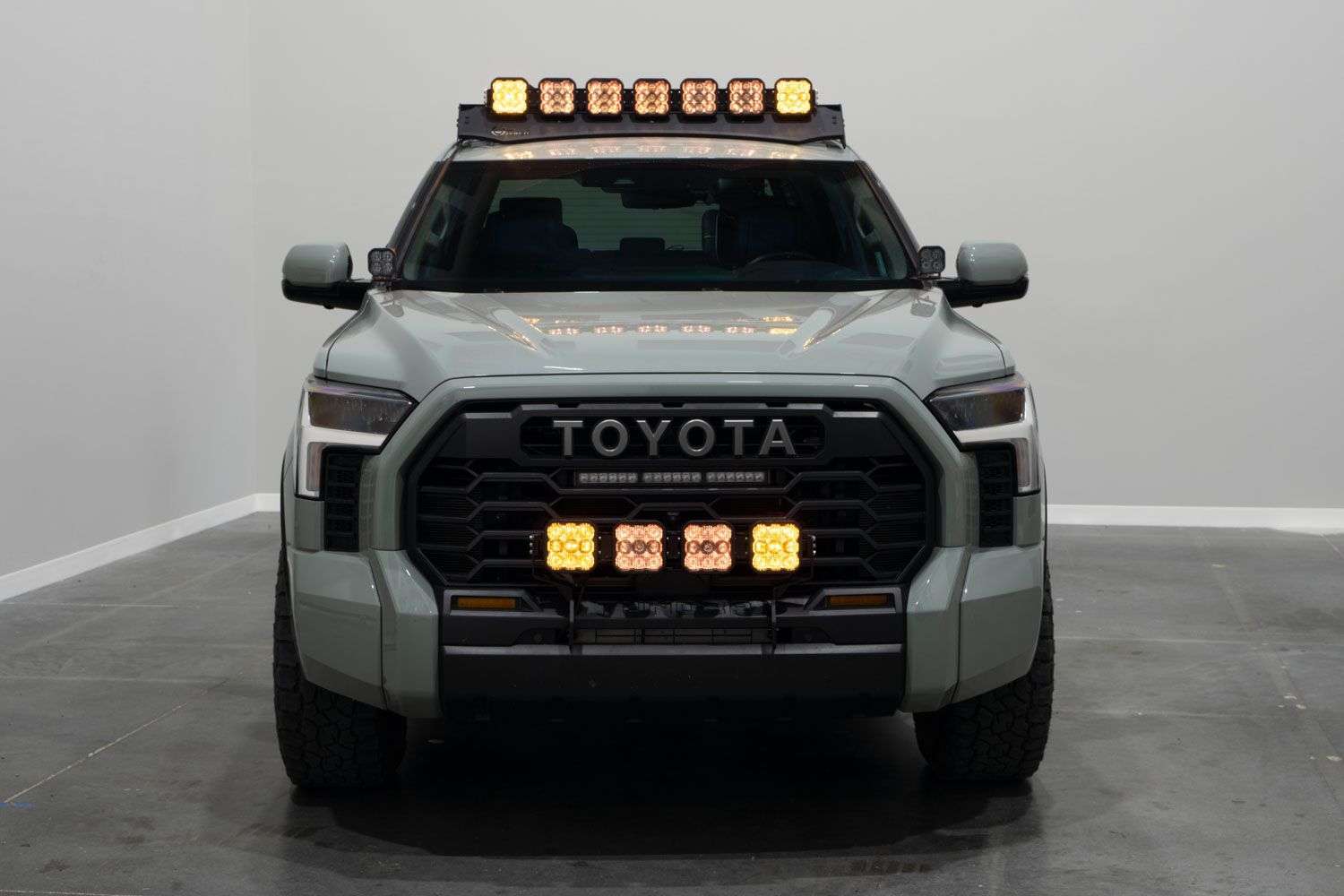

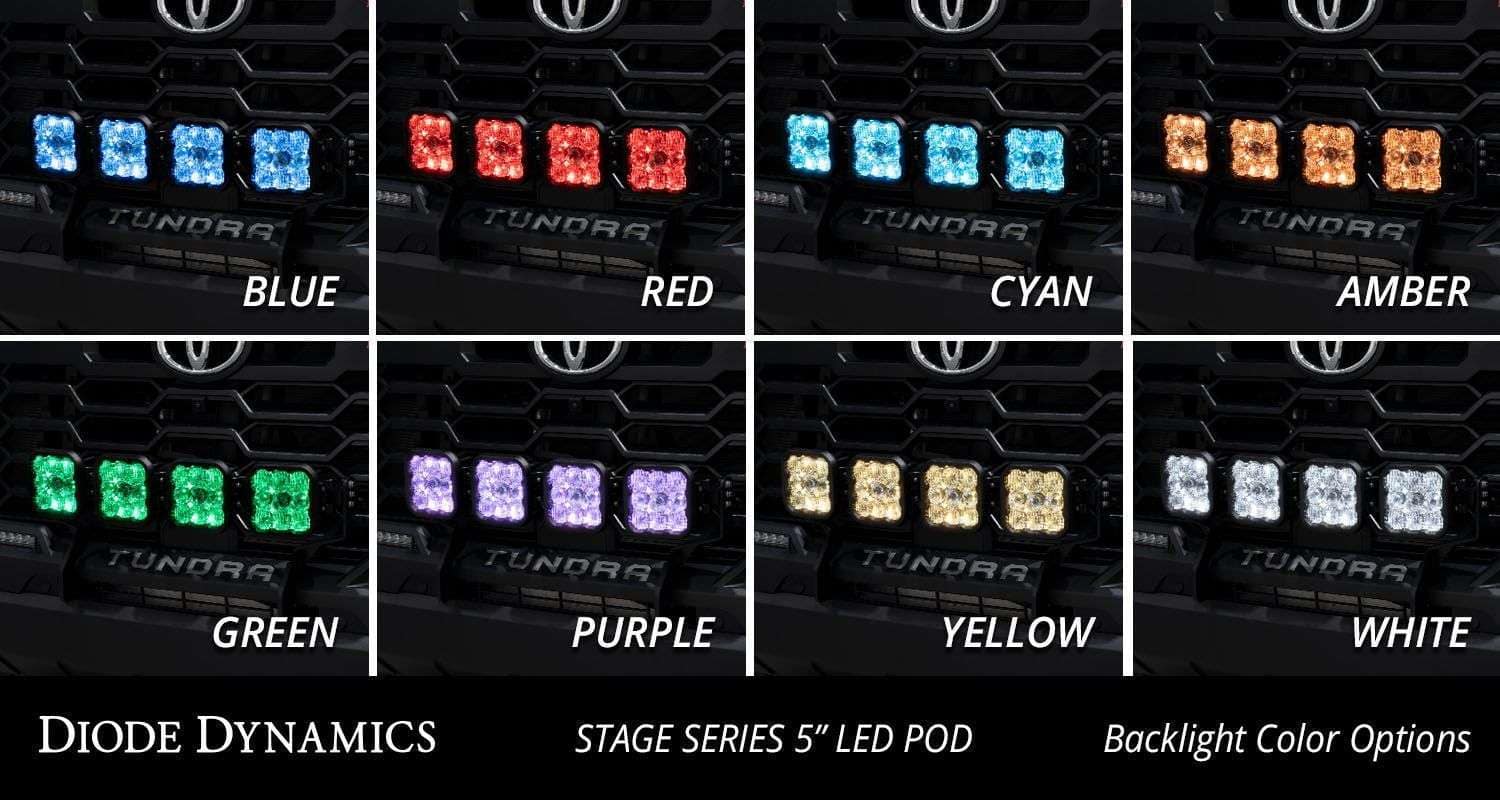

Each SS5 pod features a selectable backlight with 8 color options. Change colors easily by toggling the power on and off—no complicated programming needed. The backlight fully illuminates the TIR optic for a modern, distinctive look. (Note: Yellow kits only use an Amber backlight.)
CrossLink Technology
Diode Dynamics’ patent-pending CrossLink system allows up to eight SS5 pods to be linked together into a single, adjustable lightbar. The single-piece CNC aluminum link provides extreme rigidity, yet remains fully adjustable for straight or curved installations.
Functional Beam Patterns
-
Combo Pattern: Combines Driving and Flood optics for all-around use.
-
Focused 30°x20° Driving beam for distance, with a 70°x30° Flood beam for surrounding area coverage.
-
Designed using advanced optical simulation modeling for maximum efficiency and output.
Color & Power Options
-
White (6000K): True cool white output that matches factory LED lighting
-
Selective Yellow (3000K): High-contrast light for poor weather or unique styling
-
Sport: 40W, nine high-intensity LEDs
-
Pro: 90W, double the power for extreme output
Snap-On Covers
For areas requiring protective covers, optional snap-on covers keep SS5 pods clean and protected from debris.
Proven Reliability
Stage Series lighting is tested for operation from -40°F to 185°F, including vibration, moisture, and corrosion testing to SAE standards.
Trusted Experience
Diode Dynamics has over a decade of experience in high-quality LED solutions. All products are engineered and assembled in the USA for superior performance.
What’s Included
-

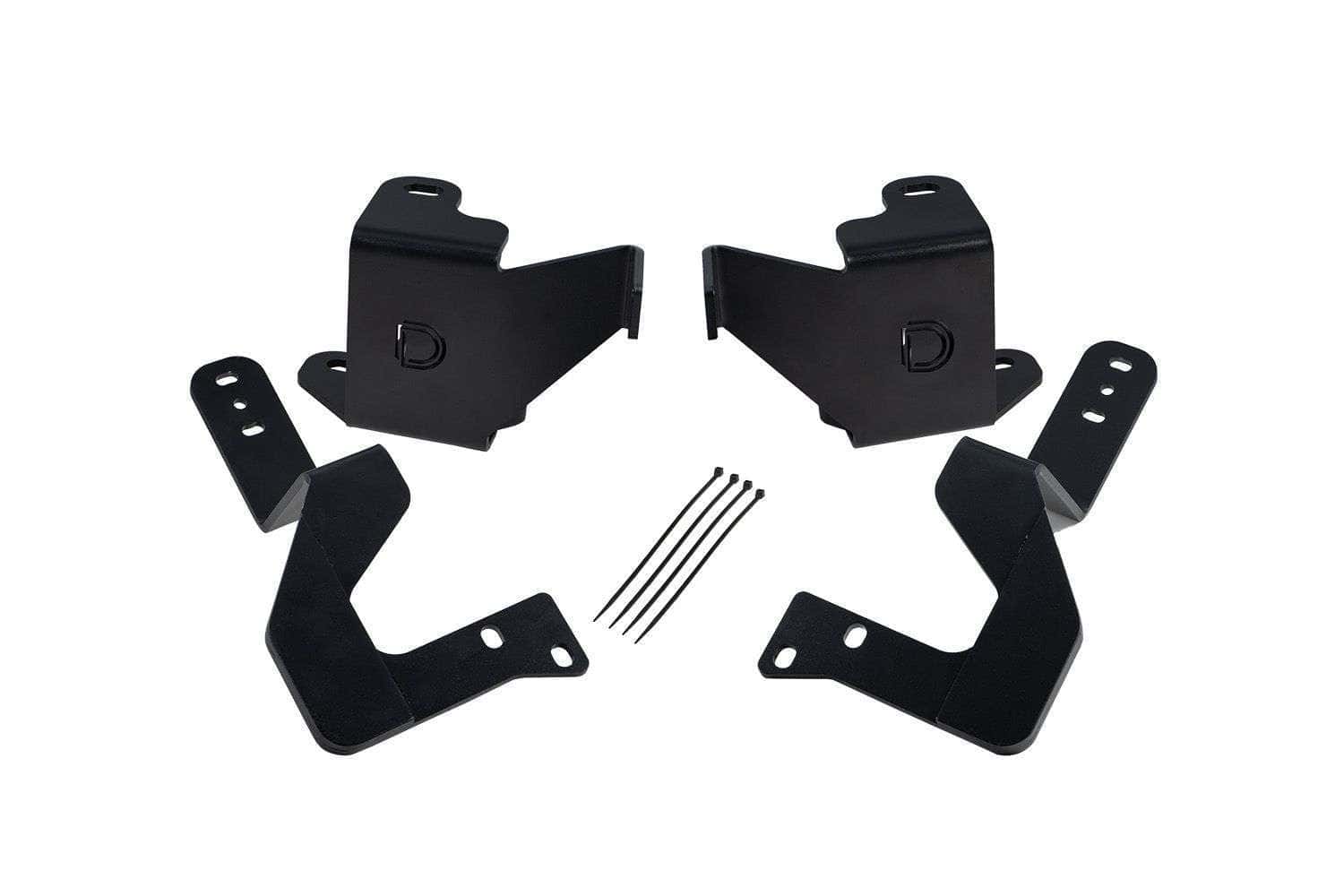

Four (4) heavy-duty steel brackets for 2022+ Tundra installation
-
Four (4) Stage Series 5″ LED Pods
-
Three (3) CrossLinks with hardware
-
One (1) CrossLink endmount kit
-
One (1) DT 4-Pod connecting harness
-
One (1) Heavy Duty single-output harness
-
Installation Guide
Specifications
-
Quantity: One Kit
-
Warranty: Lifetime
-
Return Policy: 30-day return, no restocking fee
-
Guarantee: 100% Satisfaction Guarantee
Fitment
-
Make: Toyota
-
Model: Tundra
-
Years: 2022, 2023, 2024, 2025
-
Notes: Cannot be installed alongside the Stealth Bumper Lightbar Kit for 2022+ Tundra
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD7406P | Stage Series Grille Bracket Kit for 2022+ Toyota Tundra |
| DD7407 | SS5 Grille CrossLink Lightbar Kit for 2022+ Toyota Tundra Sport White Combo |
| DD7408 | SS5 Grille CrossLink Lightbar Kit for 2022+ Toyota Tundra Sport Yellow Combo |
| DD7409 | SS5 Grille CrossLink Lightbar Kit for 2022+ Toyota Tundra Pro White Combo |
| DD7410 | SS5 Grille CrossLink Lightbar Kit for 2022+ Toyota Tundra Pro Yellow Combo |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD7406P, DD7407, DD7408, DD7409, DD7410; each row is a real product configuration.
Does every option include the same parts?
Included parts depend on the selected manufacturer SKU. The selected option description lists its package contents; use those details when comparing a complete kit with a replacement part.
How do complete kits and component-only options differ?
Choose the exact configuration before ordering. Bracket-only, harness-only and complete lighting options have different included parts; the manufacturer SKU and selected option identify the package you receive.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
