ULTRALIT 4×6 LED • 31150 • low beam • sold individually

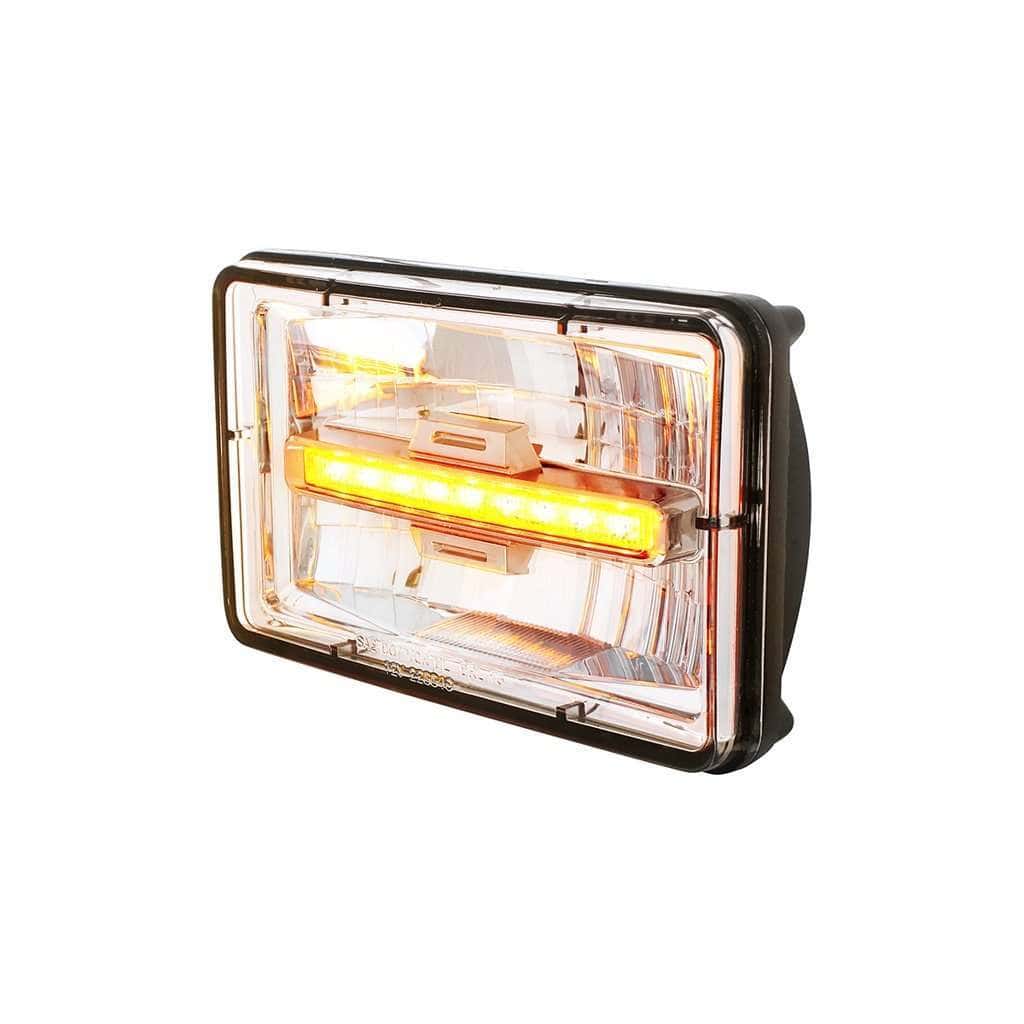

Low beam with an amber position-light bar
United Pacific 31150 is one beam-specific 4×6 LED headlight with a nine-LED amber centre position-light bar. The main headlight and position-light connections are separate installation tasks.
Low beam only
This lamp supplies low beam only. Keep a compatible high-beam lamp in a separate-beam headlight system.
1,260 manufacturer-listed lumens
United Pacific lists 1,260 lumens for the low-beam module.
12–24V construction
Polycarbonate lens, die-cast housing and IP67 protection for 12–24V systems.
Product details
Exact beam, construction and listed standards
Beam and position light
- SKU 31150
- Low beam only
- Nine-amber-LED centre position-light bar
Housing and electrical
- 12–24V
- Polycarbonate lens
- Die-cast housing
- IP67
Manufacturer-listed standards
United Pacific lists DOT/SAE and FMVSS 108 for this exact lamp. Correct installation, aiming and local requirements still apply.
Before ordering
Confirm the low-beam position and separate position-light circuit
Check the manufacturer’s application list for your vehicle, then confirm it still has the matching 4×6 low-beam position, retaining hardware, connector functions, rear clearance, system voltage and required quantity. The position-light bar requires an additional electrical connection.
Package contents
What is included
Included: one United Pacific 31150 4×6 LED low-beam headlight with integrated amber position-light bar.
The matching high-beam lamp and vehicle-specific wiring parts are not stated as included.
Questions before ordering
United Pacific 31150 FAQ
Does 31150 provide both low and high beam?
No. SKU 31150 is a low-beam-only module. Retain a compatible high-beam lamp.

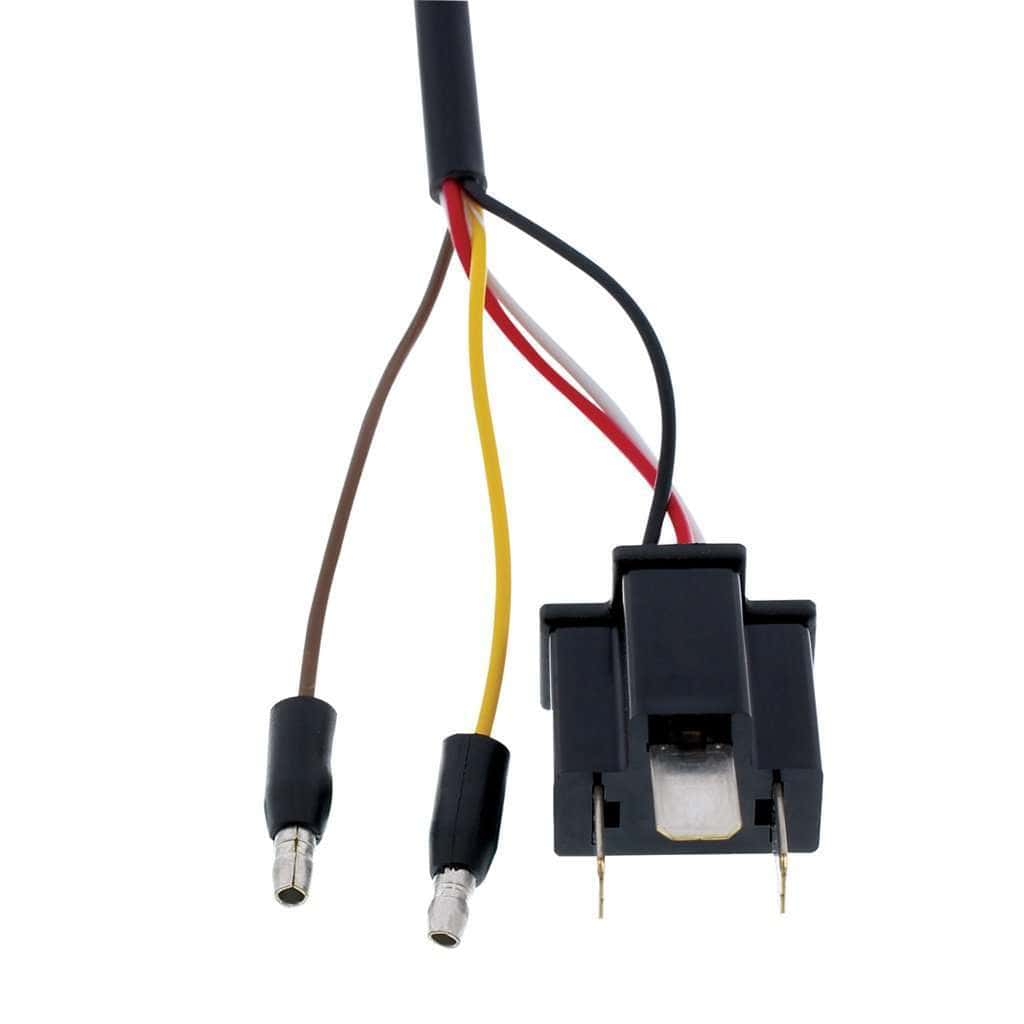

Does the amber position light need separate wiring?
Yes. The main headlight and amber position-light bar use separate electrical connections.
Is this listing for a pair?
No. The manufacturer package quantity is one low-beam headlight.
What voltage and output are listed for 31150?
United Pacific lists 12–24V operation and 1,260 lumens for this low-beam version.
Does a 4×6 opening guarantee fitment?
No. Confirm the beam position, retaining hardware, connector functions, rear clearance, voltage and required quantity.
Compare 4×6 options
Choose the correct beam and position-light colour
Warranty
Three-year limited warranty
This product is currently listed with a three-year limited warranty. Coverage remains subject to the current warranty terms and exclusions.
