Diode Dynamics · Nine replacement bulbs and two trim tools
One coordinated cool-white upgrade for the cabin and plate lights.
Choose Stage 1 for a modern appearance with a modest output increase, or Stage 2 for a brighter interior. Both complete Diode Dynamics kits use 6000K Cool White LEDs and include the same nine replacement-light positions, plus two plastic trim tools.
Confirm the fit first
2016–2023 Toyota Tacoma with the listed original incandescent bulb locations. Check the dome socket before ordering: the kit contains a 29 mm dome bulb, while some Tacomas use 31 mm. This package does not include an automatic 31 mm substitution.
Choose your configuration
Stage 1 · DD0505
Cool White appearance with a modest increase over the original interior output.
Stage 2 · DD0506
Cool White appearance with a greater overall output increase. Compare the manufacturer's installed examples below.
What is in the package
- Two 194 license-plate bulbs, in the selected stage
- Two 194 front map bulbs, in the selected stage
- One 29 mm dome bulb
- Four 28 mm vanity bulbs, in the selected stage
- Two plastic trim-removal tools
Specifications
- Colour
- 6000K Cool White in both stages
- Connection
- Replacement bulbs for the listed factory sockets
- Selection
- Two complete supplier kits; individual bulb alternatives are sold separately
- Dome-size check
- 29 mm supplied; check the original bulb rather than relying on model year alone
- Warranty
- 3-year limited manufacturer warranty; terms apply
- Fulfilment
- Supplier order. Availability and lead time must be confirmed; no dispatch date promised.
Exact choices and quantities
| SKU | Selection | Package |
|---|---|---|
| DD0505 | Stage 1 | one complete conversion kit |
| DD0506 | Stage 2 | one complete conversion kit |

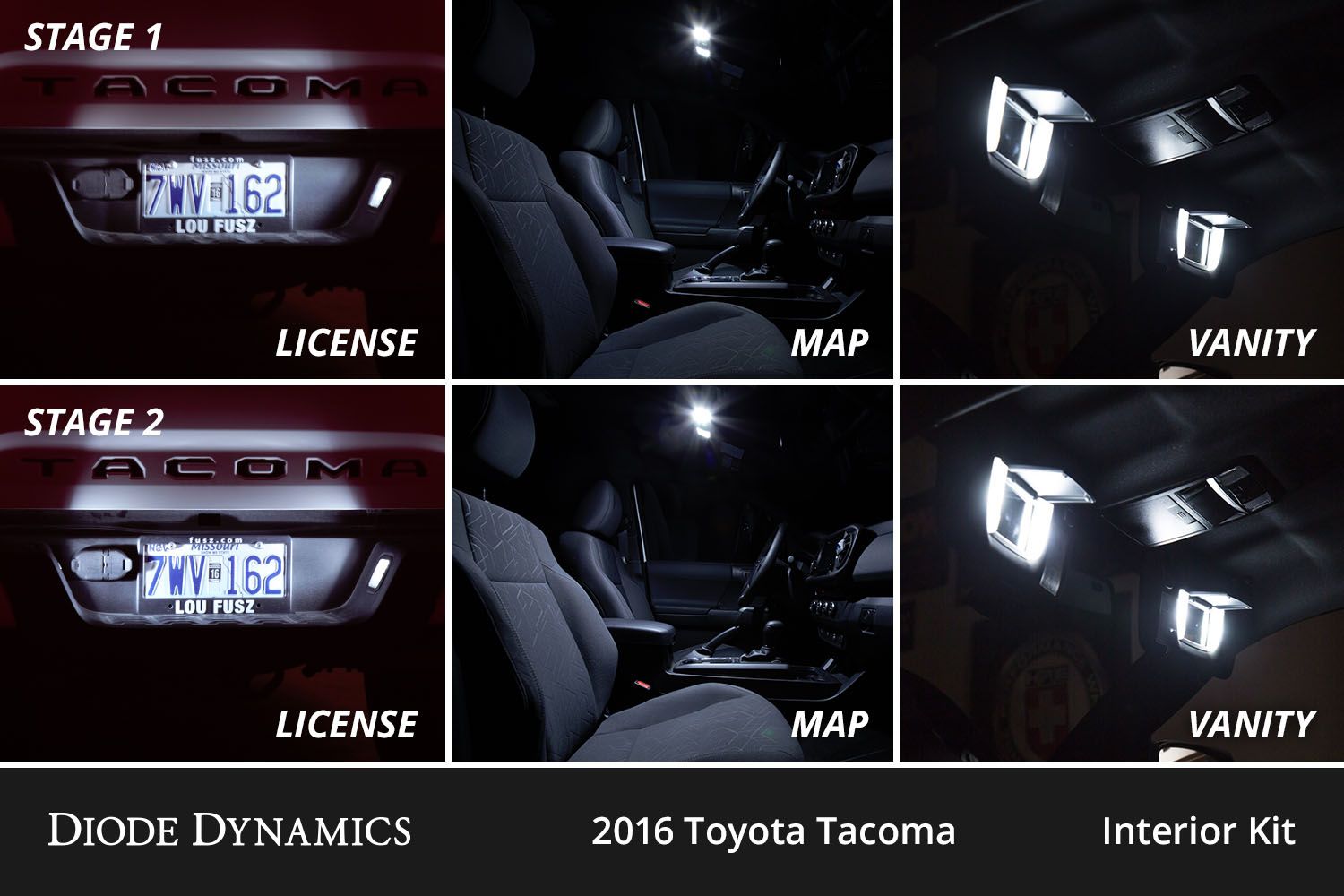

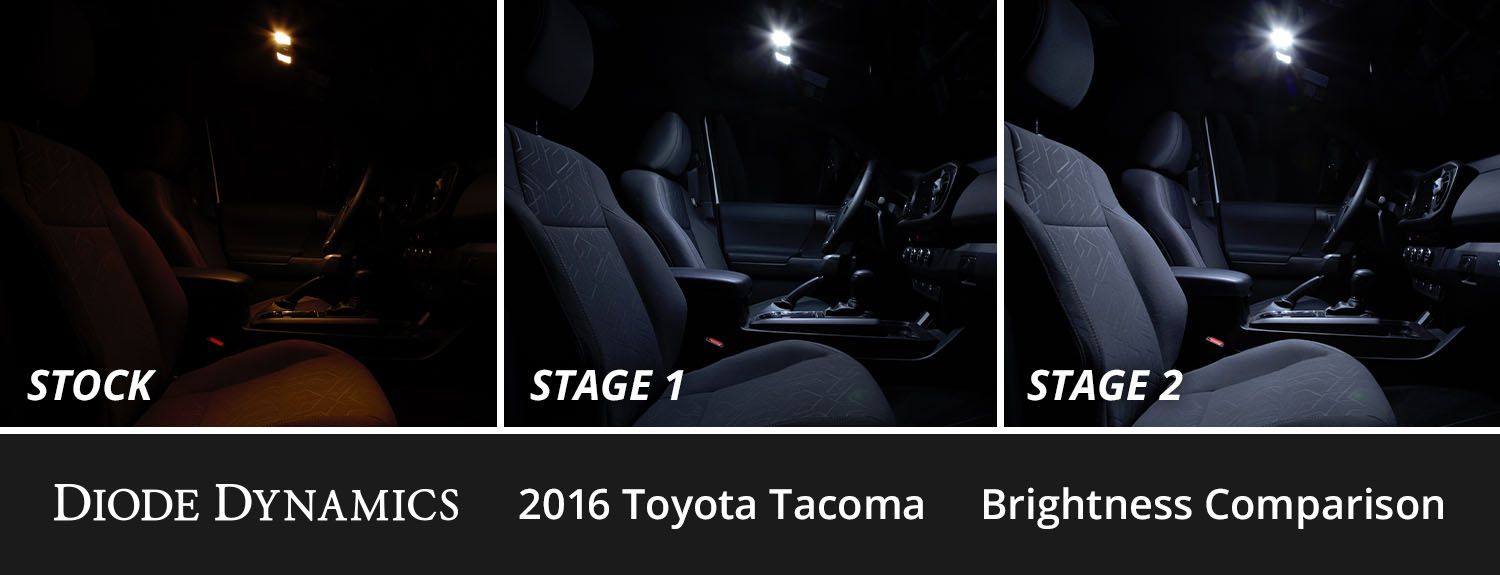

Product and application photographs
Installation planning
Work on one location at a time and keep the original bulbs until the new lamps pass their function checks. Use the illustrated guide for lens-release techniques and polarity troubleshooting. Stop if the dome bulb does not fit the original holder securely; forcing a 29 mm bulb into a different-size holder is not a fitment solution.
Prepare with the illustrated guide
Manufacturer demonstration
Manufacturer general techniques; reference lamp housings may differ from your Tacoma.
Questions before ordering
Does Stage 2 add more bulbs?
No. Both stages cover the same listed positions. Stage 2 changes the output level, not the number of installation locations.
Does this include the exterior plate bulbs?
Yes. The supplier's complete kit includes two license-plate bulbs along with the map, dome and vanity bulbs.
Will every 2016–2023 Tacoma use the supplied dome bulb?
Check first. Diode lists a 29 mm bulb in this kit but also lists a 31 mm dome application for some trucks. If yours uses 31 mm, select the appropriate individual bulbs or confirm a suitable package before ordering.
Are other colours offered in this kit?
These two complete kits are Cool White. Individual interior bulb families provide other colours and sizes.
