Diode Dynamics · One 31 mm festoon bulb
A measured 31 mm fit, with two distinct bulb designs.
Choose a compact SMF2 or a higher-output HP6 for a matching 31 mm interior festoon holder. Cool White, Warm White, Blue, Red and Amber offer both models; Green is SMF2 only. One bulb is supplied per selection.
Confirm the fit first

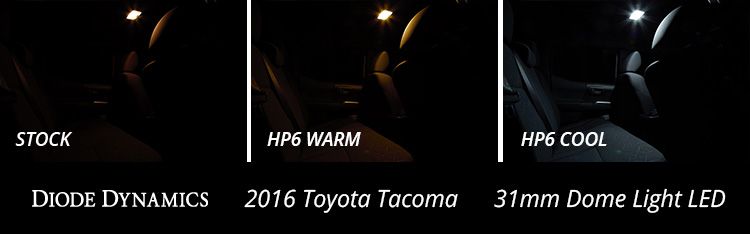

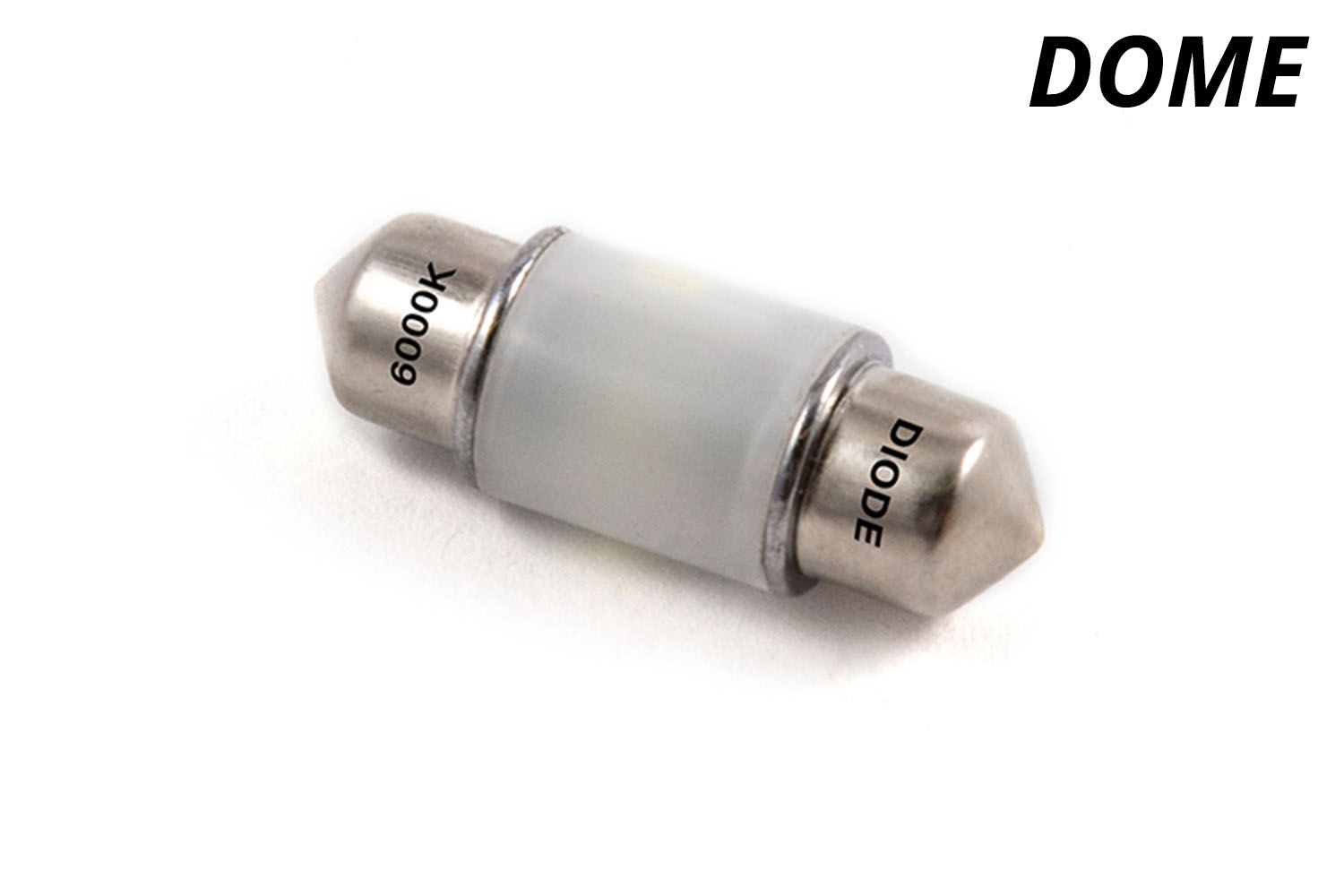

Measure the original bulb and confirm holder and lens clearance. Diode lists the 2016 Tacoma dome application with an explicit warning that some trucks use a different size, and links to a 29 mm alternative. Model year alone is not a reliable substitute for checking the original bulb.
Choose your configuration
SMF2 · 24 lumens per bulb
Two-emitter compact design. Available in all six listed colours.
HP6 · 130 lumens per bulb
Diffusing-lens design. Available in Cool White, Warm White, Blue, Red or Amber. Green remains an SMF2-only choice.
What is in the package
- One 31 mm bulb in the selected colour and model
Specifications
- Nominal length
- 31 mm festoon
- Models
- SMF2 or HP6
- White tones
- Cool White 6000K or Warm White 3000K
- Output figures
- Manufacturer model ratings, per bulb
- Warranty
- 3-year limited manufacturer warranty; terms apply
- Fulfilment
- Supplier order. Availability and lead time must be confirmed; no dispatch date promised.
Exact choices and quantities
| SKU | Selection | Package |
|---|---|---|
| DD0071S | Cool White (6000K) · SMF2 (24 lumens) | one bulb |

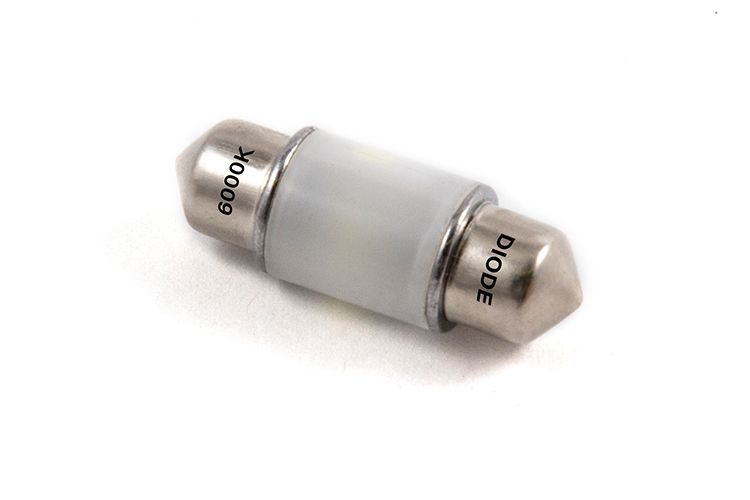

| DD0299S | Cool White (6000K) · HP6 (130 lumens) | one bulb |
| DD0069S | Warm White (3000K) · SMF2 (24 lumens) | one bulb |

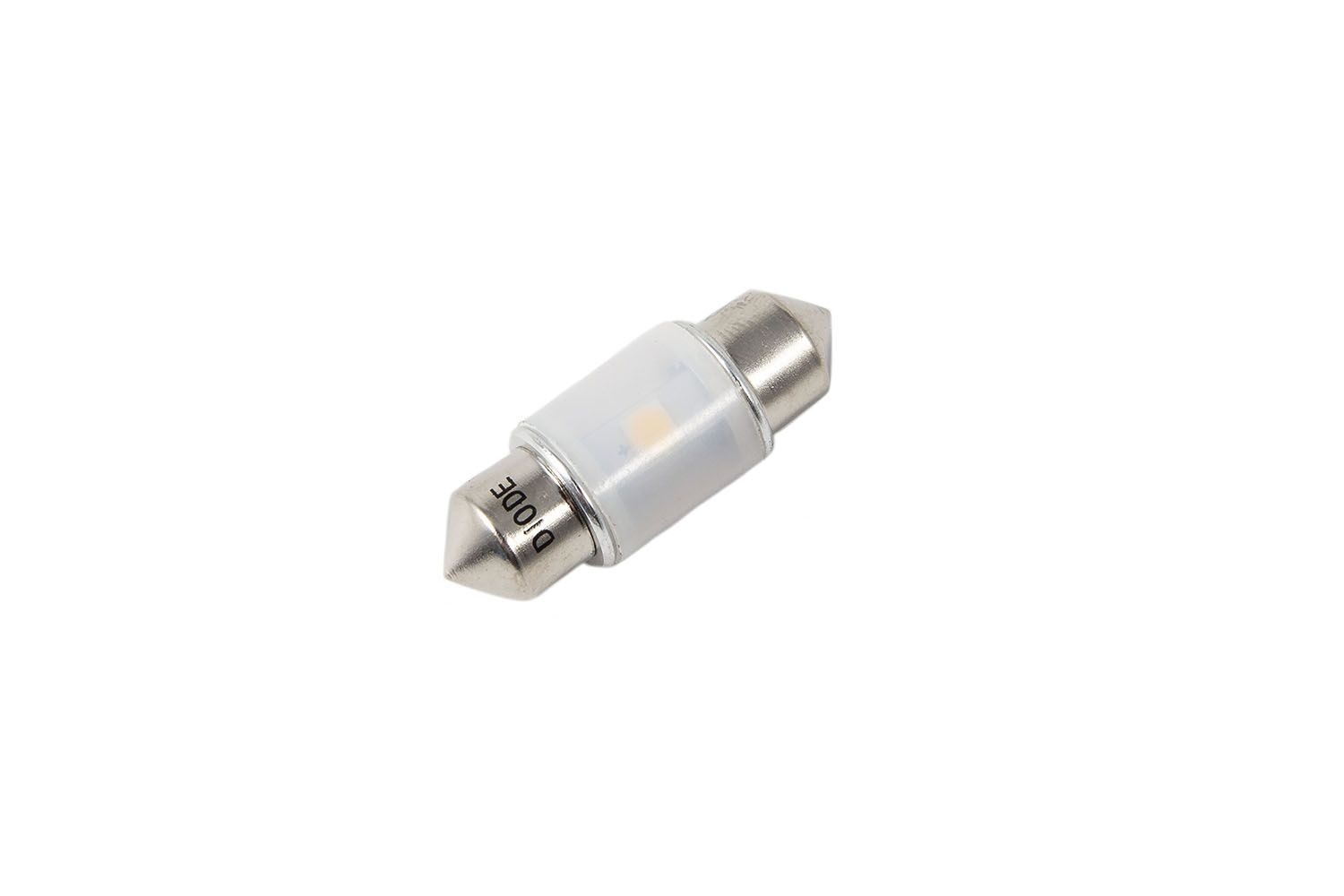

| DD0351S | Warm White (3000K) · HP6 (130 lumens) | one bulb |

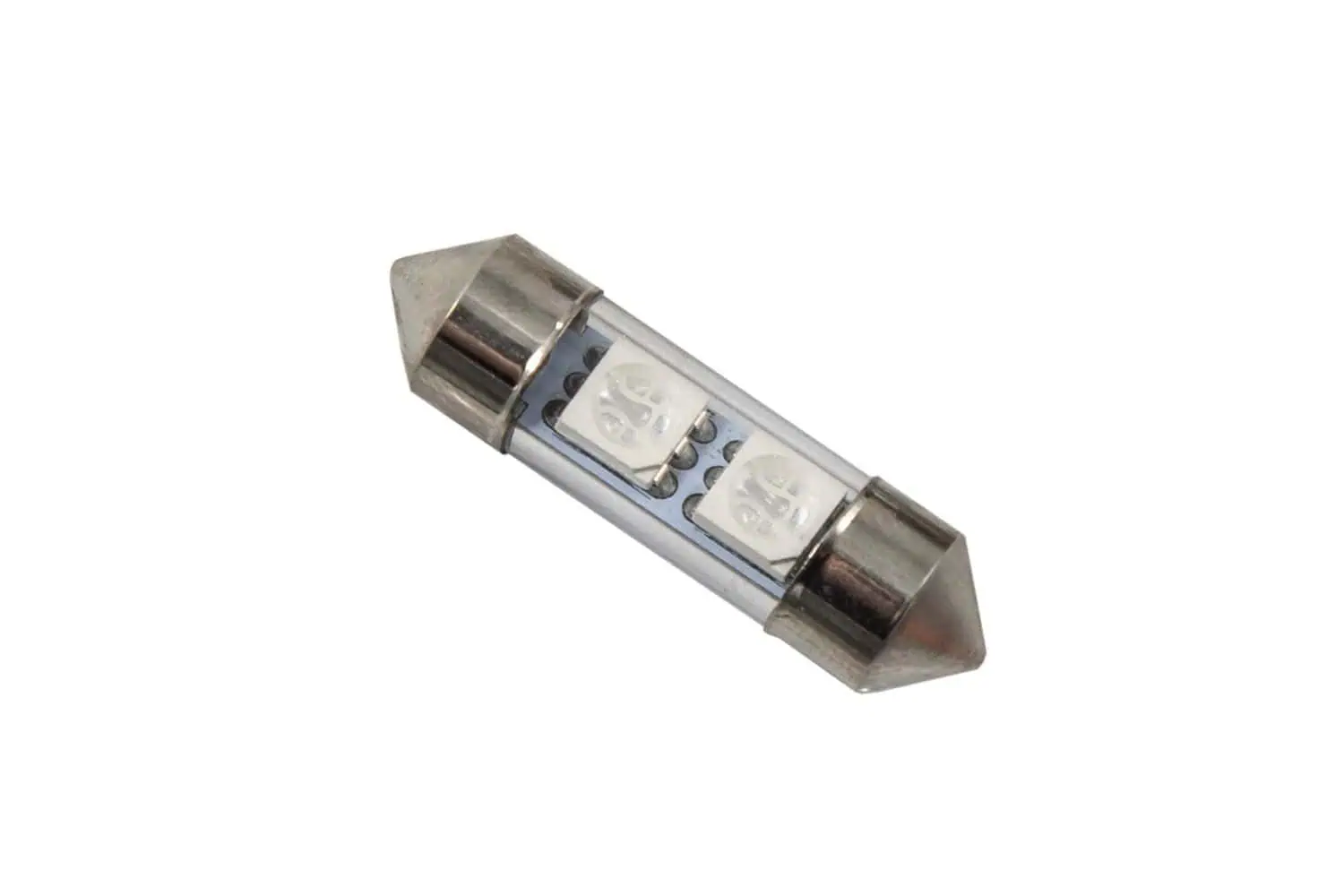

| DD0067S | Blue · SMF2 (24 lumens) | one bulb |

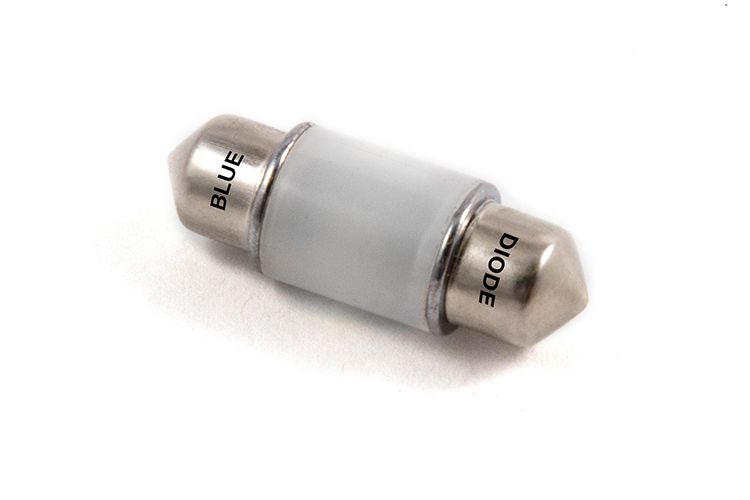

| DD0296S | Blue · HP6 (130 lumens) | one bulb |
| DD0070S | Red · SMF2 (24 lumens) | one bulb |

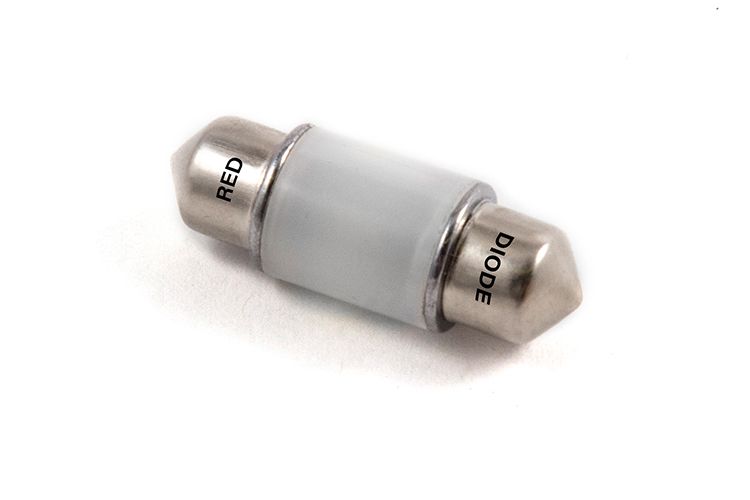

| DD0301S | Red · HP6 (130 lumens) | one bulb |
| DD0189S | Amber · SMF2 (24 lumens) | one bulb |

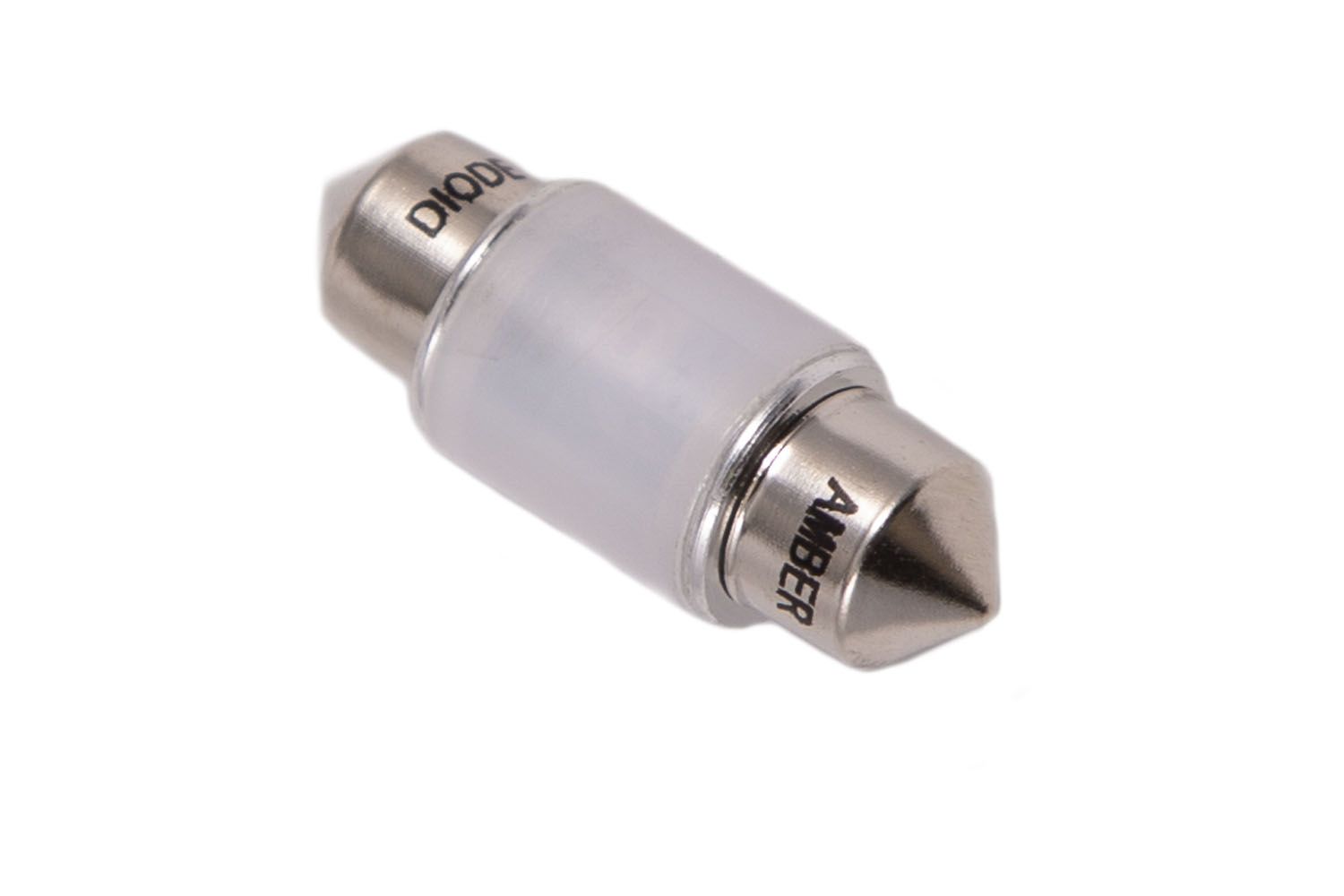

| DD0295S | Amber · HP6 (130 lumens) | one bulb |
| DD0068S | Green · SMF2 (24 lumens) | one bulb |
Product and application photographs
Installation planning
Compare the original bulb's end-to-end size before fitting. Remove the lens using its intended release point and test the new bulb before closing the lamp. If the bulb is loose or requires force to seat, stop and confirm the holder size; do not use repeated terminal bending to compensate for the wrong bulb length.
Prepare with the illustrated guide
Manufacturer demonstration
Linked by the manufacturer from its Tacoma map/dome listings; verify the original size and trim before applying the demonstrated steps.
Questions before ordering
Is this guaranteed to fit every 2016 Tacoma?
No. The manufacturer asks owners to check the original size and supplies a 29 mm alternative listing.
Are Amber and Green offered as HP6?
Amber is available as either SMF2 or HP6. Green remains available as SMF2 only.
Is the SMD12 board included with a festoon?
No. It is a separately sold panel-and-adapter product, linked below.
Is the package a pair?
No. Each selection supplies one bulb.
