DIODE DYNAMICS · 2005–2015 Toyota Tacoma
More room to see behind your Tacoma.
A pair of C2 2.0 Flood pods adds a wider rectangular lighting format beneath the rear bumper. The matched Tacoma adapter and universal harness connect automatic reverse activation, red backlighting and a manual-override switch.
- 2 C2 2.0 podsWide White Flood beam
- Red accentIntegrated running-light function
- Sport or ProAutomatic / override / off
PURPOSEFUL LIGHTING
A kit built around the job
A broad Flood pattern
The C2 2.0 uses a 70° × 45° Flood optic for the area behind the truck. Choose Sport or Pro for the desired output level within the same pod family.
A vehicle-specific connection
The DD7153 adapter connects at the original taillight harness. The universal relay harness supplies the pods and provides automatic reverse, manual override and Off modes.
Red when the running lights are on

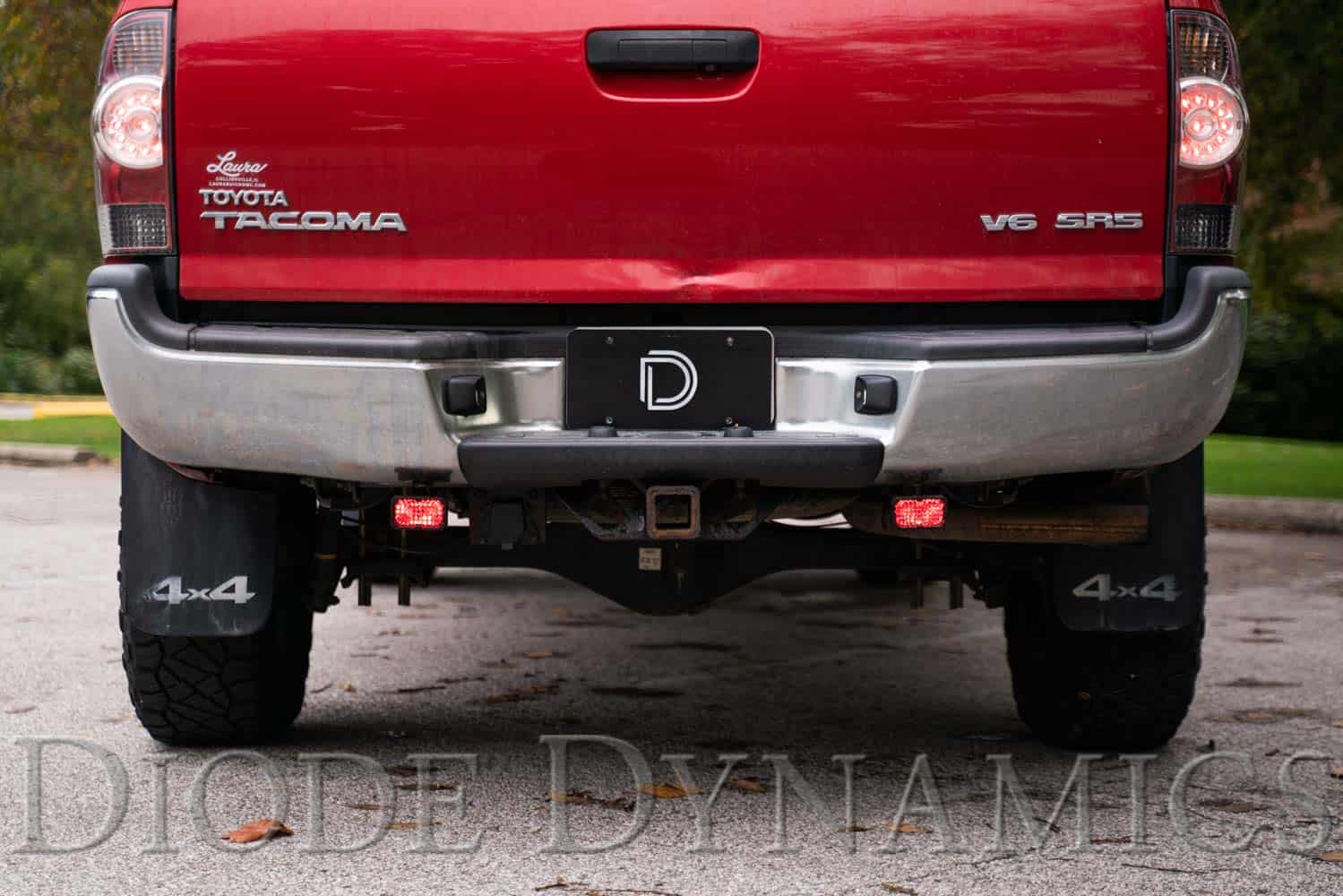

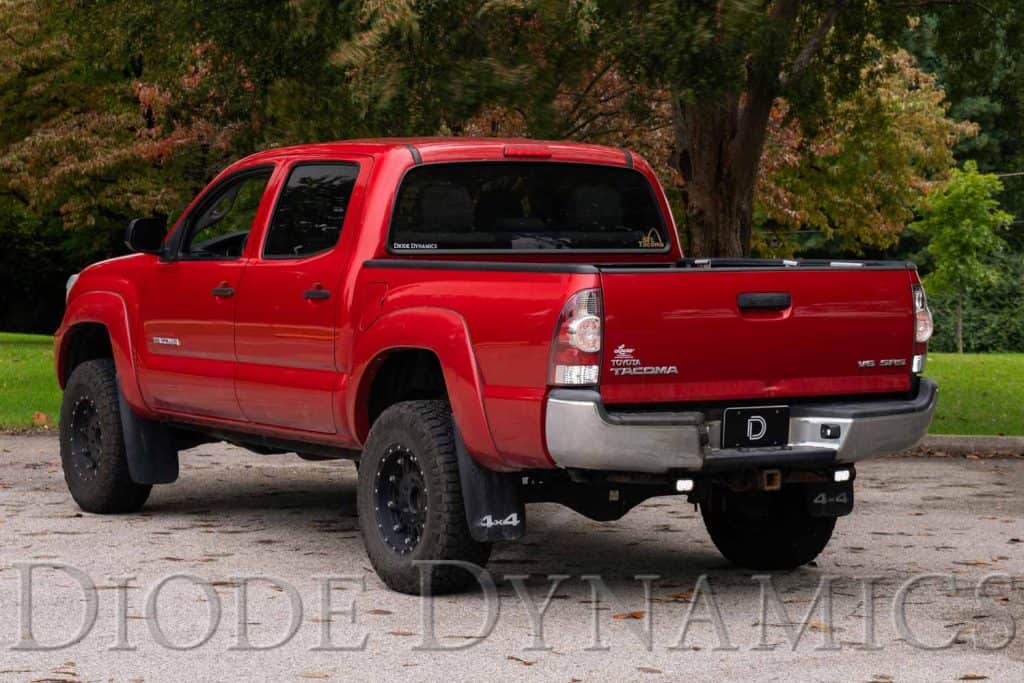

The red backlight is a separate accent function. Older installed photographs show the mounting location and red-light effect; the current C2 2.0 package is shown in the kit photographs.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | Toyota Tacoma, model years 2005–2015 |
| Mount | Factory underside rear-bumper bolt locations |
| Adapter | DD7153 for the factory taillight connector |
| Pods | Two C2 2.0 Standard White Flood pods |
| Not included application | 2016+ Tacoma or other vehicles |
| Aftermarket bumper / rear lights | Confirm bracket clearance and harness connectors before ordering |
MATCH THE SKU TO YOUR SELECTION
Choose your output and main-beam colour
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7156 | Sport | White | Flood |
| DD7157 | Pro | White | Flood |
Choose the output and colour combination above. The SKU table identifies the kit supplied with each selection.
WHAT THE KIT SUPPLIES
The parts belong together
- Two C2 2.0 Standard White Flood pods: Sport (DD7156) or Pro (DD7157)
- One DD4102 Universal Reverse Light Wiring Harness with switch
- One DD7153 Tacoma adapter harness
- Two mounting brackets and installation hardware
- Zip ties and supplied connection accessories

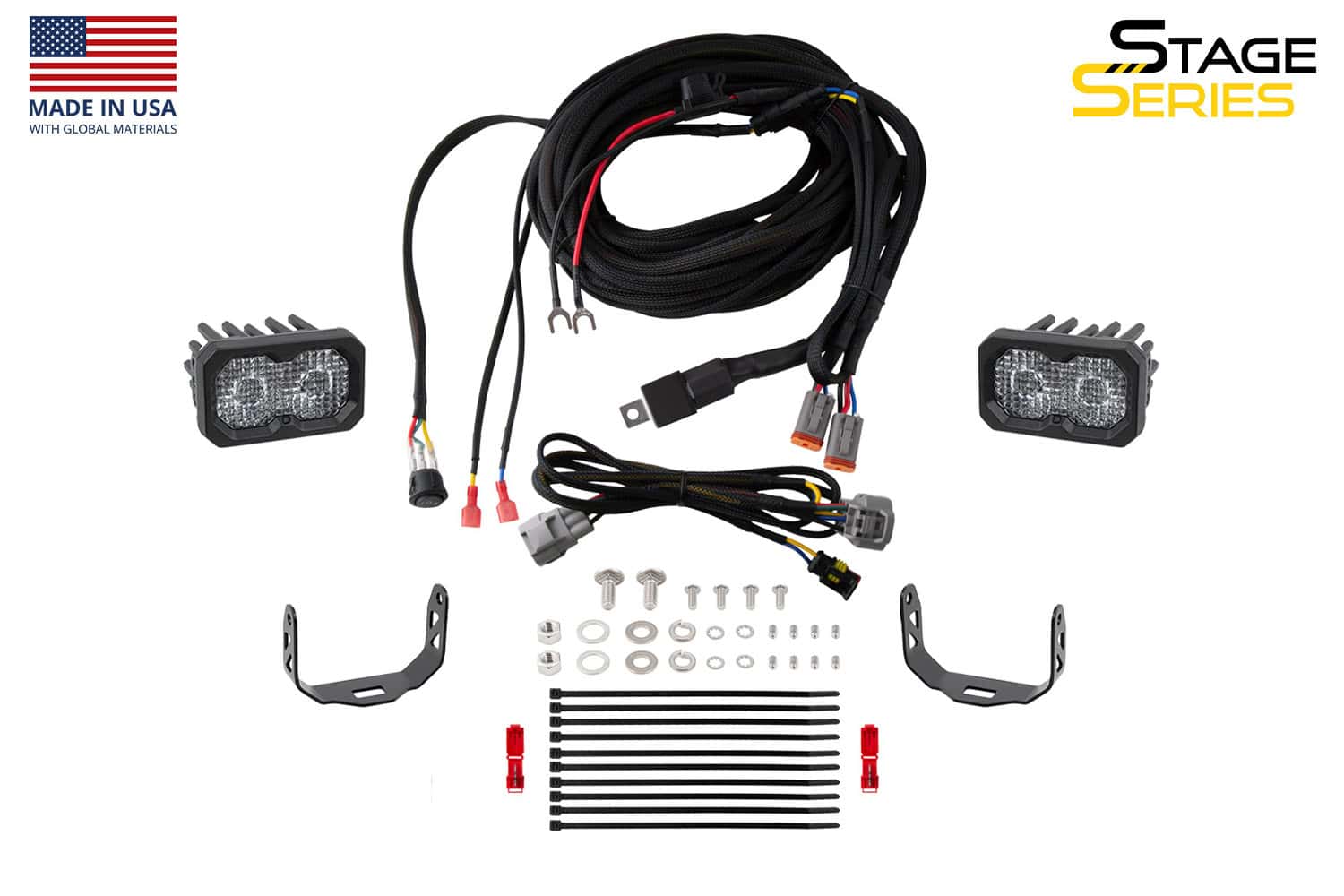

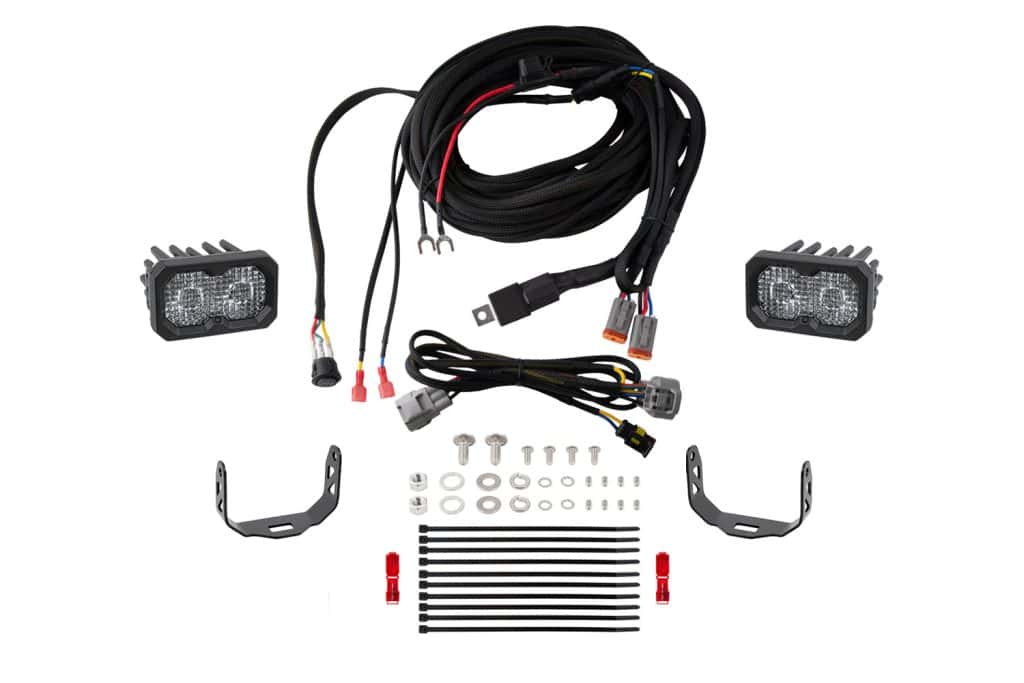

The package photograph with a label shows the C2 2.0 Pro kit; the other package photograph is Sport. The C1 dimensional comparison is included only to show the separate, smaller alternative. C1 pods are not part of this order.
MOUNT · WIRE · AIM
Plan the installation before the trail
Use the factory bumper bolts for the supplied pod brackets. Fit the Tacoma adapter at the factory taillight harness and route its connector down to the pod harness. The relay harness requires battery power and ground. Follow the exact vehicle guide for the adapter connection and unused universal section. Route and mount the cabin override switch only if you want manual control inside; automatic-only use can retain Position 1 in the engine bay. Test reverse, red backlight, override and Off before final aiming.
Read the official installation guide
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Pod family | C2 2.0 Standard |
| Main beam | White 6000K Flood |
| Spread | Manufacturer 70° × 45° |
| Backlight | Red |
| Power per pod | Sport 15 W / Pro 23 W |
| Controls | Automatic reverse, manual override, Off |
| Mounting | Two brackets using factory bumper bolt locations |
| Protection | Manufacturer IP69K intrusion rating |
| Warranty | Eligible lamps: manufacturer limited lifetime; separate accessory terms |
Output by option
| Variant | Peak intensity per pod | Raw output per pod |
|---|---|---|
| Sport · DD7156 | 750 cd | 1,190 lm |
| Pro · DD7157 | 1,550 cd | 3,140 lm |
Current manufacturer C2 2.0 Flood values for one pod. Raw lumen values describe emitter output rather than measured delivered light. Use the current C2 2.0 specifications for these kit variants.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How to Install Stage Series Reverse Light Kit for 05-15 Toyota Tacoma | Diode Dynamics
Shared C1/C2 installation procedure. The purchased pod family and output level remain the selected variation.
TIR Optics | Stage Series by Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
CLEAR ANSWERS
Before you order
Is this the older SSC2 kit?
The selected catalog variants here are DD7156 and DD7157 C2 2.0. Some supplier installation photos and shared instructions still use SSC2 naming; use the current kit package, SKU and pod instructions to identify your order.
Can I keep automatic reverse without running a new cab switch?
Yes. The guide allows the switch to stay in Position 1 in the engine bay if you do not need manual override. Follow its mounting and routing instructions.
Does the backlight act as a brake light?
The documented function is a red running-light accent. Brake-light and strobe features from other products, such as C1R hitch lights, are not claimed for this kit.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; the complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
