A modern halo. Real projector performance.
Keep the Jeep’s round-lamp character while adding a bi-LED projector, selectable halo lighting and switchback signals. Choose Elite for the core lighting package or Elite Max for additional trail and display functions.
- Elite or Elite MaxOne complete headlight pair
- Selectable haloWhite or amber daytime lighting
- 8-year warrantyLimited manufacturer coverage

A COMPLETE LIGHTING UPGRADE
Output, style and everyday function
Shared bi-LED main projector
Both versions use the same main projector for low and high beam. Elite Max adds auxiliary lighting without changing that core choice.
Halo and switchback signal
Choose white or amber daytime halo lighting from the vehicle’s existing controls. The halo switches to amber with the turn signal.
Elite Max trail functions
Max adds inner daytime bars, independently switched Trail Light and stationary Show Mode. Those auxiliary uses are separate from ordinary road lighting.

CHOOSE YOUR LIGHTING PACKAGE
Elite or Elite Max?
| Feature | Elite | Elite Max |
|---|---|---|
| Bi-LED main projector / selectable halo | Included | Included |
| Switchback signal / supported welcome | Included | Included |
| Inner DRL bars | Not included | Included |
| Trail Light / stationary Show Mode | Not included | Included; separate auxiliary wiring |
ORIGINAL MANUFACTURER MEDIA

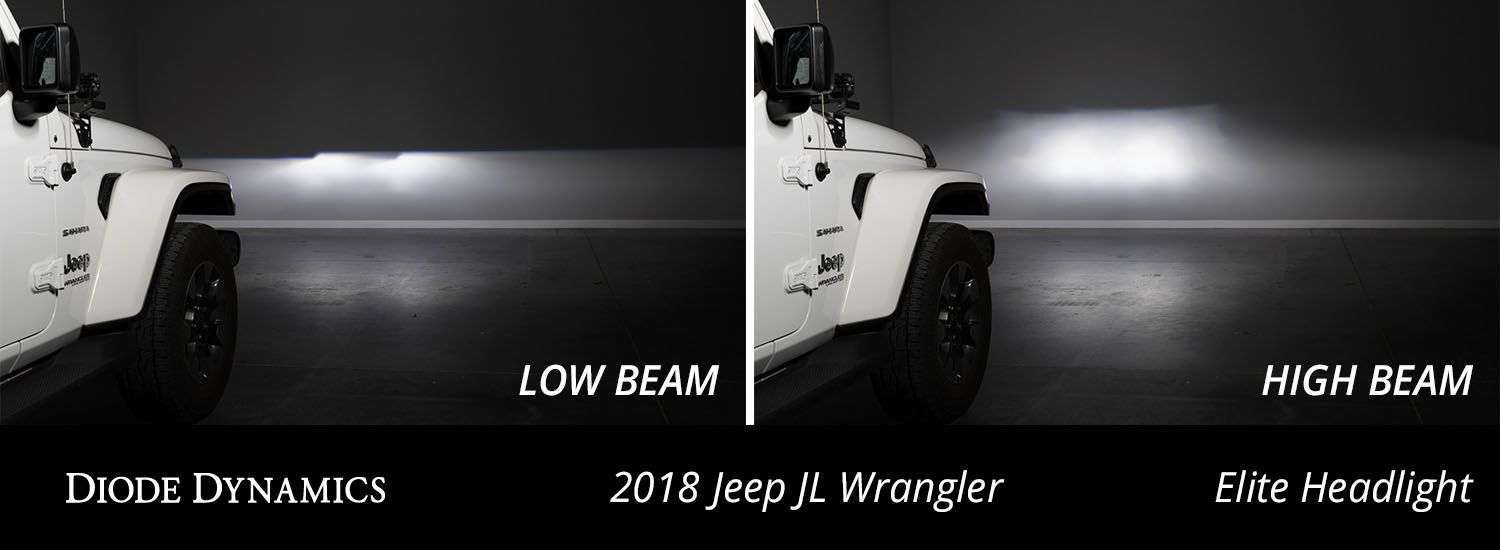

See the beam pattern
Unchanged manufacturer imagery shows the pictured lamps in its test setup. These are not independent BTS measurements or a promise of identical results on every vehicle.

Vehicle height, load and final aiming affect the beam on the road.
A CLOSER LOOK
Lighting details and functions


MATCH THE VEHICLE AND ORIGINAL LIGHTS
Exact fitment before you order
| Check | This application |
|---|---|
| Primary application | 2018–2026 Jeep Wrangler JL with original halogen or LED headlights |
| Related application | The same DD5165/DD5166 assemblies and official guide cover 2020–2026 Gladiator JT; match the vehicle and connectors |
| Market exclusion | Not compatible with Canadian-spec models; RHD not verified |
| Welcome animation | Automatic-lock vehicles only; enable approach lighting as directed |
| Exact choice | DD5166 Elite or DD5165 Elite Max |
| Part number | DD5166 / DD5165 |
| Package | Complete left and right headlight pair |
THE STANDARD PACKAGE
What comes with the pair

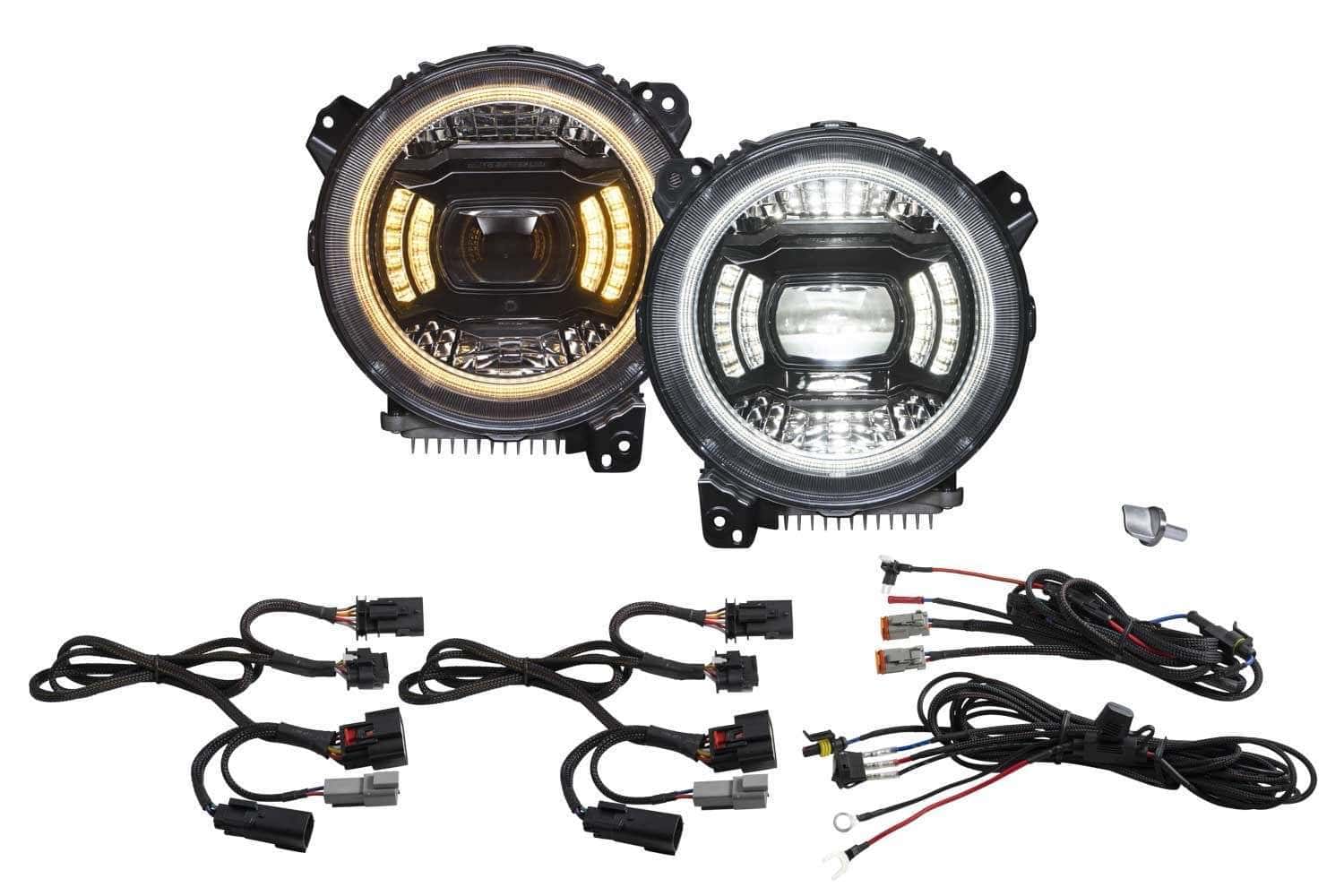

- One left and one right Elite or Elite Max assembly
- Two AC0243 adapter/anti-flicker harnesses
- WH0169 DRL auxiliary tap harness and aiming tool
- Elite Max: separate auxiliary/off-road harness and switching components
Compare the two exact packages below. Vehicle photographs may show optional fog, bumper or roof lighting that is not included.
MATCH THE SELECTED STYLE
Elite and Elite Max packages


PLAN ACCESS, WIRING AND AIM
Installation details worth knowing
Connect the supplied turn-signal harness inline and install the specified DRL auxiliary power tap, including the Sport-model requirement. Match the guide’s F52 position to the vehicle fuse chart. Follow the guide for access around the fuse box and secure the harnesses. A separate factory leveling-motor connector is unused and must remain capped and secured. Max’s Trail Light uses the separate toggle or auxiliary-switch connection. No JSCAN or Tazer is required for the qualified application. Test every function and aim the lamps after installation.
Read the official Wrangler JL installation guide
Read the official lighting-mode programming guide

EXACT PART · DD5166 / DD5165
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Main optics | One bi-LED projector per lamp, shared by Elite and Max |
| DRL / signal | Selectable white/amber halo and amber switchback signal |
| Color temperature | 6000 K |
| Operating voltage | 9–16 V DC |
| Ingress rating | IP67 |
| Max-only measured output | 917 lm low / 1,398 lm high; manufacturer measurement, not an Elite specification |
Trail Light is for off-road operation and Show Mode is for stationary display. The Canadian-spec exclusion remains in force regardless of which headlight style is selected.
Manufacturer warranty
Diode Dynamics provides an eight-year limited manufacturer warranty under its current terms. Keep proof of purchase and contact BTS for assistance.
WATCH WHEN YOU ARE READY
Official installation and setup videos
Use the exact written guide alongside the video. Match your vehicle, original equipment and selected headlight style.
Official Diode Dynamics Wrangler / Gladiator installation guide

Official Diode Dynamics Wrangler / Gladiator programming guide

Choose a video to load it. No autoplay; the embedded player loads only after your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your Wrangler JL questions
Will these work on a Canadian-spec Jeep?
No. The current manufacturer application excludes Canadian-spec vehicles for both DD5166 Elite and DD5165 Elite Max.
Does Elite Max use a different main projector?
No. Both share the same bi-LED main projector. Max adds inner bars, off-road Trail Light and stationary Show Mode.
Will the welcome animation work with manual locks?
No. Automatic locks are required. Set the approach-lighting duration as instructed on supported vehicles.
Is a JSCAN or Tazer needed?
No. The qualified installation uses the supplied harnesses and factory controls. Follow the separate DRL power and turn-signal wiring instructions.
Can I choose white or amber halos?
Yes. The official programming guide shows the sequence using the parking-light switch and high-beam stalk.
Are fog lights included?
No. The headlight package is a left/right pair with its listed harnesses and aiming tool. Other lamps on the photographed vehicles are separate.
THE FINISHED LOOK
See the design on the vehicle
Original manufacturer photography. Other equipment is separate; match the fitment notes above.
