MORIMOTO XB LED · LF701
A sharper signature for your Ram HD.
Three Bi-LED projectors per headlight, a crisp white daytime signature and selectable amber signals give the Ram HD a distinct front end. LF701 supplies both complete housings, with the standard wiring listed below.
- Left + rightOne complete headlight pair
- White DRLsA fixed daytime signature
- LED opticsLow- and high-beam functions

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set

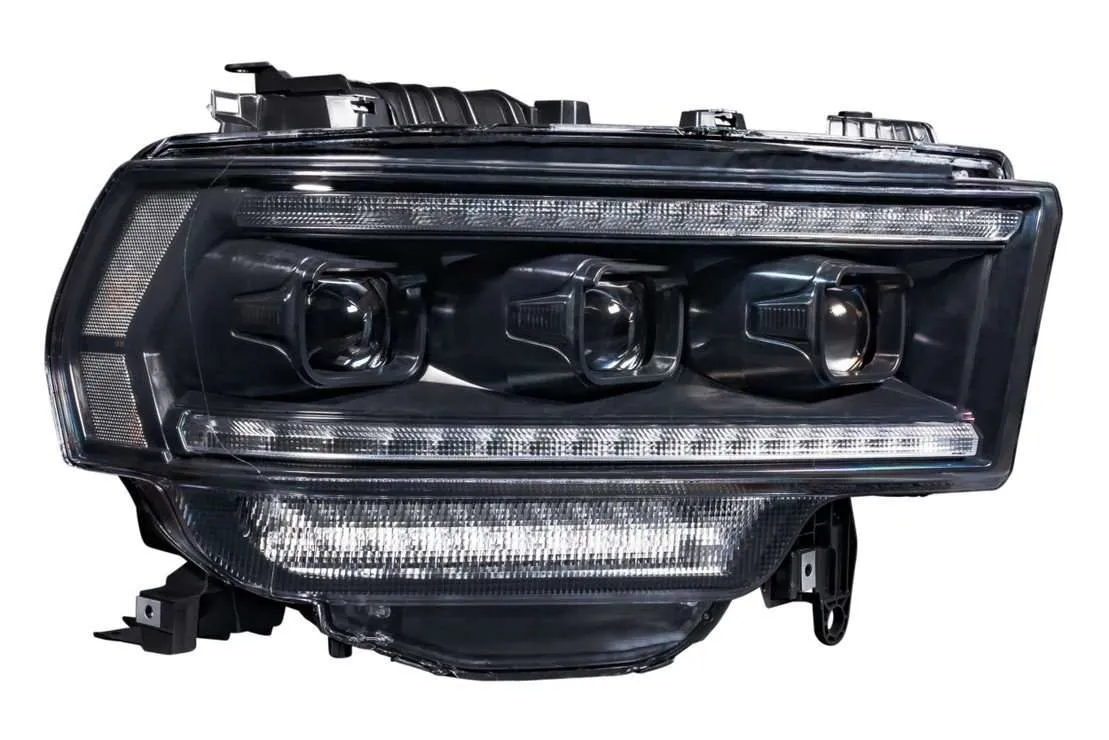

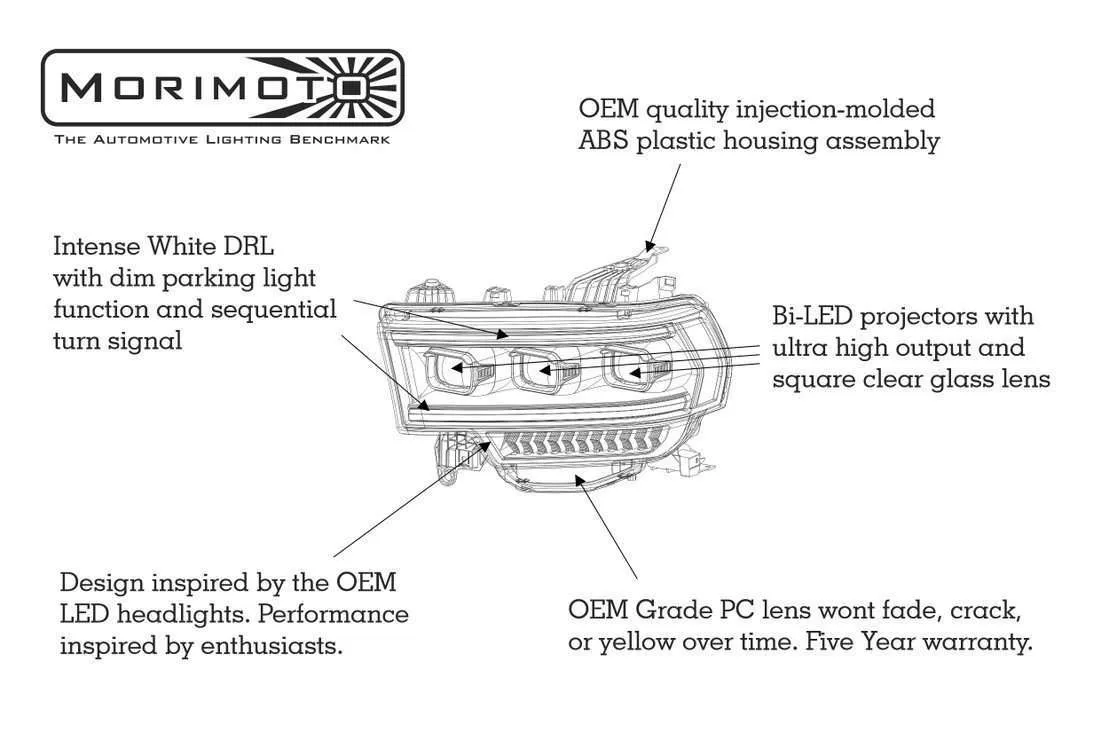

Integrated LED optics

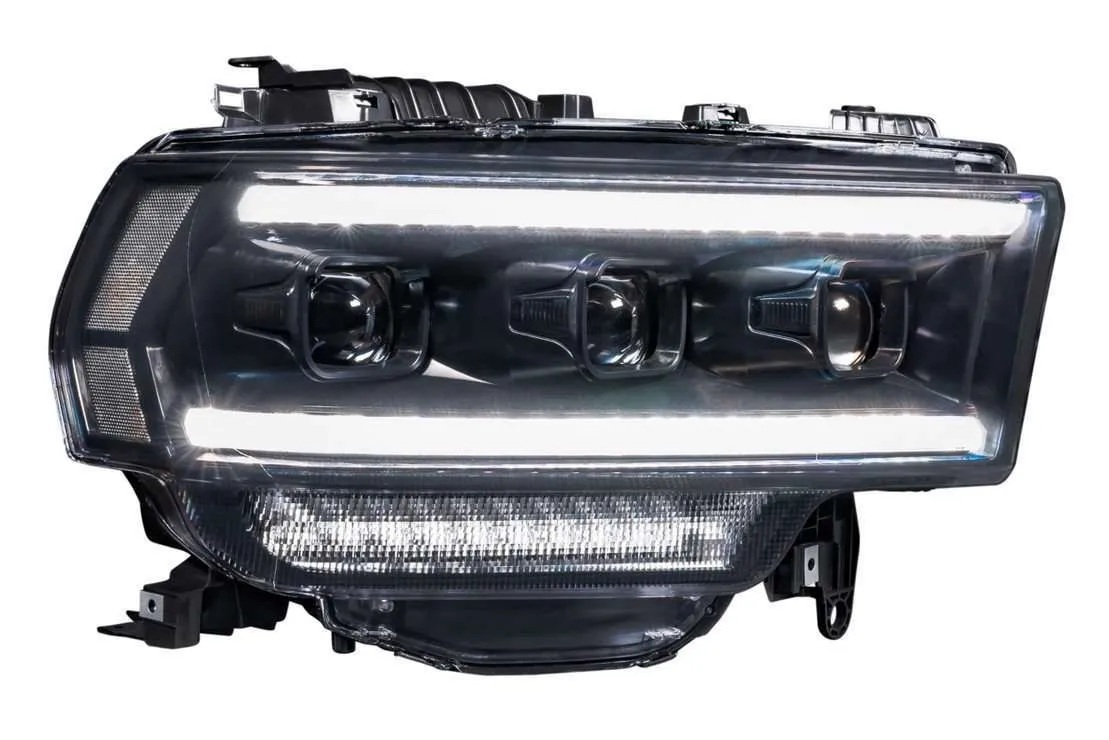

Three Bi-LED projectors in each housing provide the low- and high-beam light. The optics are part of the complete headlight, not a bulb conversion.

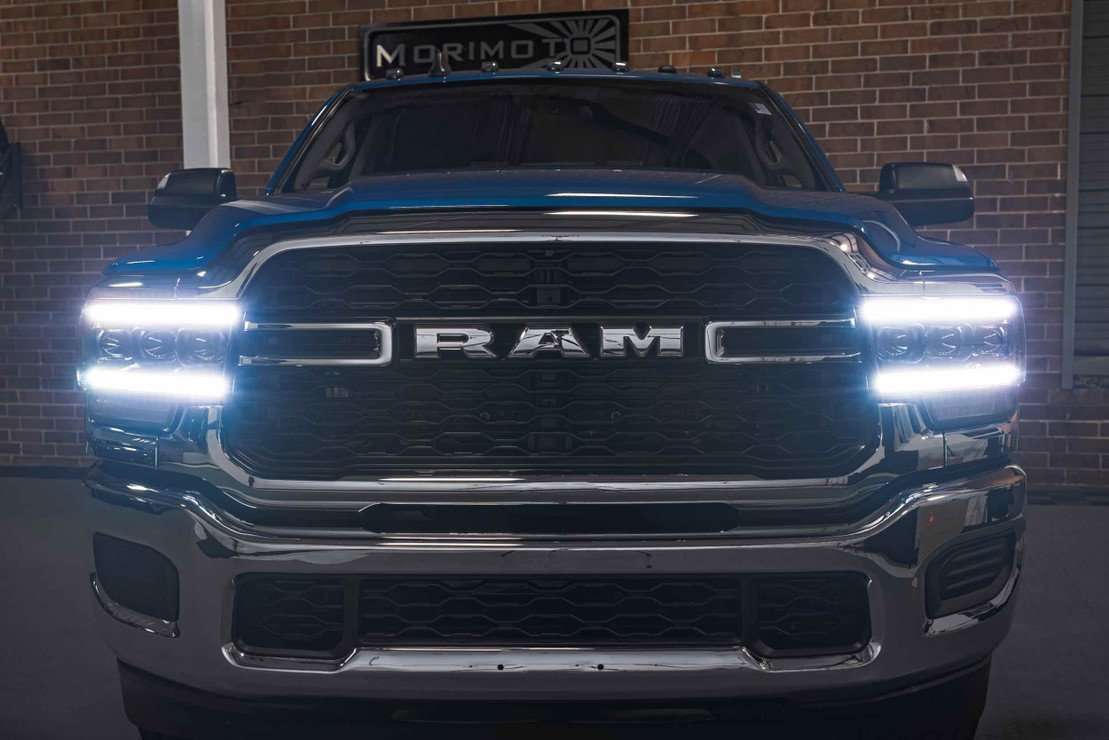

Fixed white daytime signature
This exact part has a fixed white daytime running light. An amber turn signal does not mean the DRL colour is selectable.

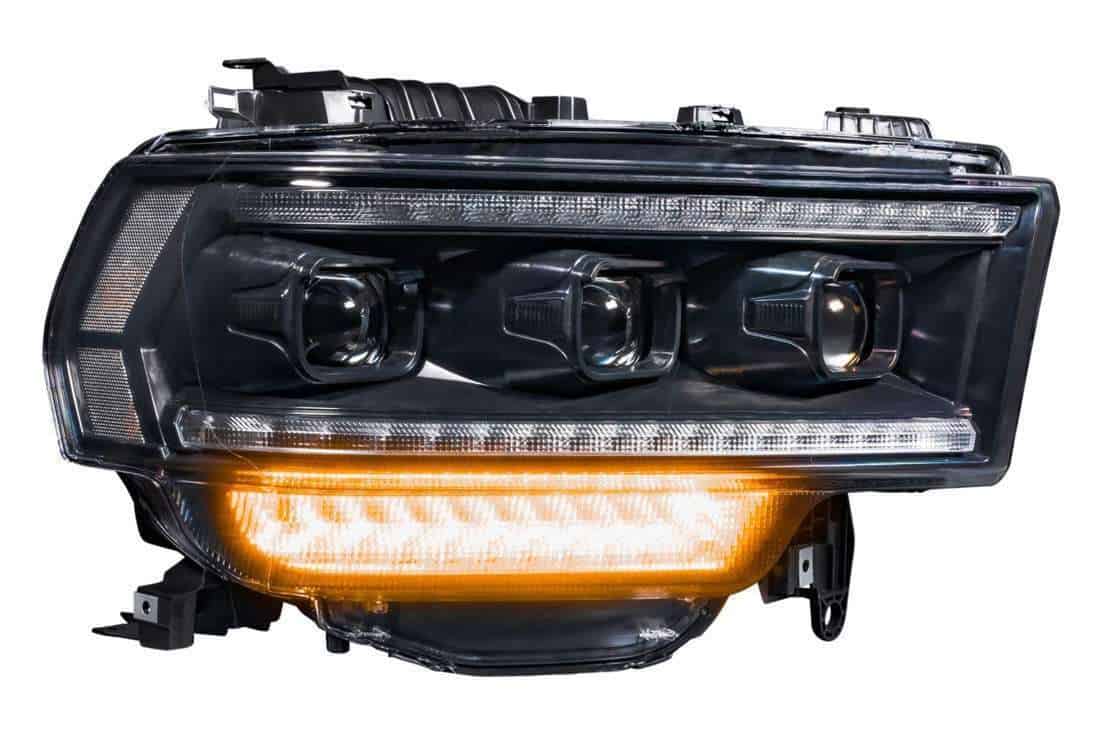

Amber LED signals
Select standard flashing or the sequential mode described by the exact installation guide. Set both sides consistently.

MATCH THE YEAR, TRIM AND ORIGINAL LAMPS
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2019–2024 Ram 2500 / 3500 HD |
| Exact manufacturer part | LF701 |
| Package | Complete left and right headlight assemblies |
| Original lighting | Match the original headlight connections and DRL equipment |
| Turn signals | Integrated amber LED |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Factory projector LED / high trim | Separate LF701HT harnesses required |
The manufacturer’s application was developed on US-spec vehicles. Confirm the actual connectors and DRL equipment on Canadian or other-market vehicles before ordering.
CHECK BEFORE YOU ORDER
Which original Ram HD headlight do you have?

The projector-LED / high-trim harness is a separate requirement. Send BTS a clear picture of the original lamp and connectors if you are unsure.
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 2x (One Pair) 19-24 Dodge Ram HD XB LED
- WIRING: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
Tail lights, fog lights, roof lights, bumpers, wheels and other vehicle accessories shown in photographs are separate selections.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
The exact Ram HD guide covers grille and lower-trim removal, transfer of the original lower mounting brackets and routing the supplied DRL harness to the illustrated F95 fuse location. Configure standard or sequential signals on both sides as shown, test all functions, and set the final beam aim. The separate LF701HT harness requirement still applies to factory projector-LED / high-trim trucks.
Download the official LF701 installation guide
Other aftermarket signal lights or LED bulb conversions can affect signal operation. Test the full lighting system before final reassembly. Follow the exact guide and the vehicle’s own fuse information.

EXACT PART · LF701
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Mopar Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | UV-resistant polycarbonate lens; housing resin not specified here |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Morimoto identifies the supplied standard configuration as meeting its stated DOT / SAE requirements when installed and aimed correctly. This does not establish compliance or fitment for unverified drivers or modified applications.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
Manufacturer-linked video for this headlight. The exact written model, DRL colour and current fitment above govern this product selection.
2019+ Ram HD XB LED Headlights By Morimoto Lighting | The Ultimate Upgrade for your Ram Truck! 💡

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB LED questions
Is this one headlight or a pair?
One order supplies complete left and right headlight housings and the listed standard wiring.
Which vehicle does this exact part fit?
2019–2024 Ram 2500 / 3500 HD. Match the original lamp equipment and the detailed fitment table before ordering.
Are these replacement bulbs?
No. These are complete replacement headlight assemblies with integrated LED optics.
Do I keep the original turn-signal bulbs?
No. This exact assembly has integrated amber LED turn signals.
Can I change the daytime running-light colour?
This exact part has a fixed white daytime running light. An amber turn signal does not mean the DRL colour is selectable.
Do I need to adjust the aim?
Yes. Finish the vertical alignment after mounting and testing. Lift, load and ride height can change where the beam lands.
Can I add Supercharged drivers?
Compatibility has not been established for this exact LF701 headlight. Do not assume that a driver sold for a newer Evo model fits this assembly.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply. Keep proof of purchase and contact BTS if an issue occurs.
What does LHD mean?
The beam pattern is for left-hand-drive vehicles used on the right-hand side of the road. It does not mean only the driver-side headlight is supplied.
Will it fit factory projector-LED Ram HD trucks?
The current manufacturer listing includes those high-trim applications with separate LF701HT harnesses. Identify the original lamp before ordering.
Is the DRL feed a separate wire?
Yes. The standard package includes a DRL harness and fuse tap. The exact guide illustrates the F95 location; match this to the vehicle’s fuse information.

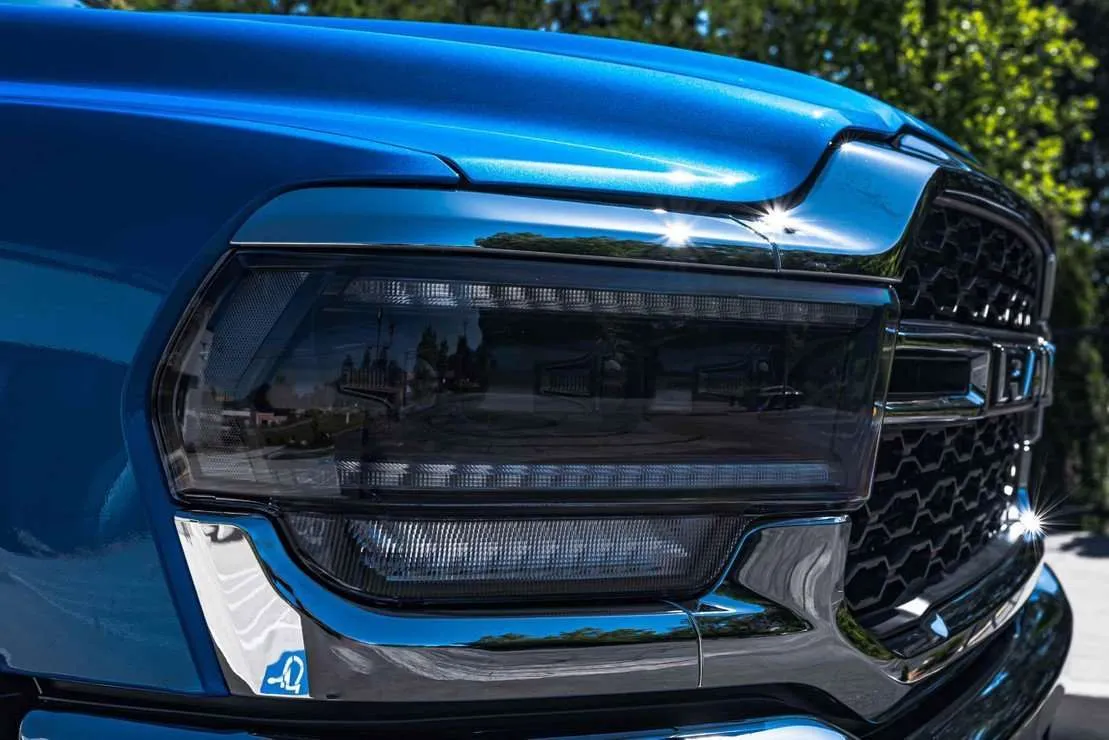

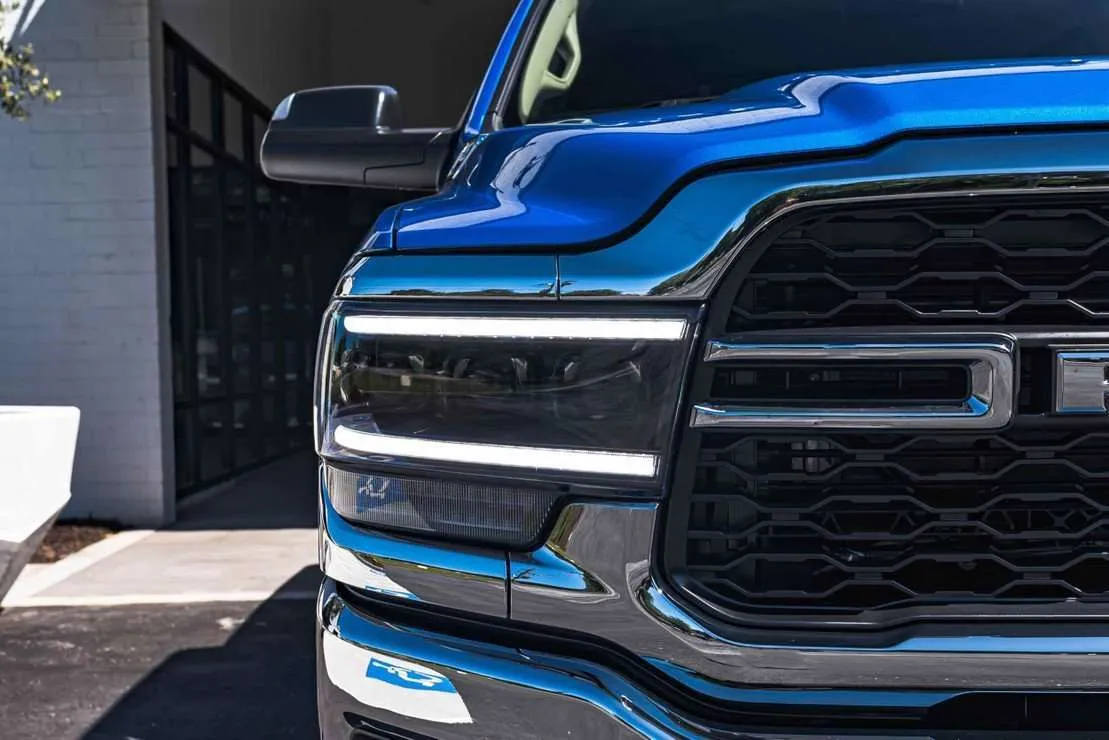

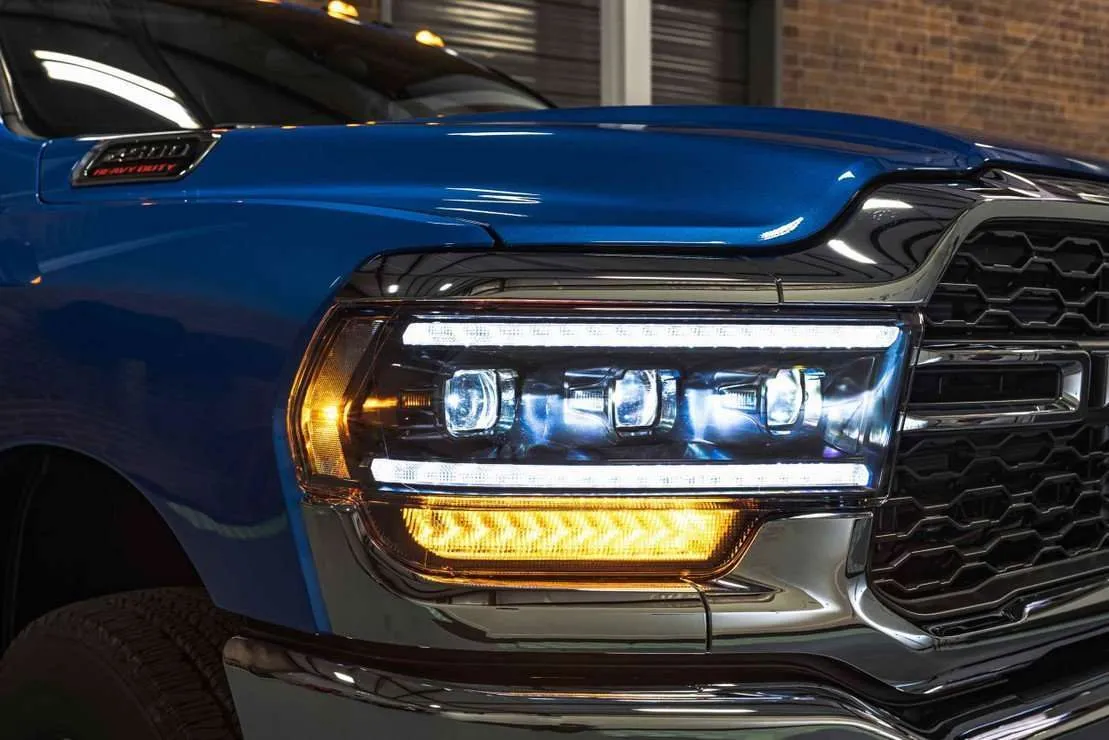

THE FINISHED LOOK
See the design on the vehicle
Original manufacturer photography. Other lighting and vehicle accessories are separate products.
