FORM LIGHTING · FL0010
Newer Tundra style. Original mounting points.
Bring a later-model look to your early Tundra with a full LED reflector system, white daytime lights and the lower trim panels needed to finish the installation.
- Left + rightComplete headlight pair
- White DRLIntegrated daytime signature
- 2-year warrantyLimited manufacturer coverage

A COMPLETE LIGHTING UPGRADE
Output, style and everyday function
Integrated LED optics
Application-specific LED reflectors provide both low and high beams. They replace the original halogen optics as complete assemblies.
Daytime signature
The integrated white daytime-light signature uses the included fuse-tap harness for power.
Amber turn signals
Amber LEDs chase across the middle of the lamp when you signal, then return to the white daytime-light signature.

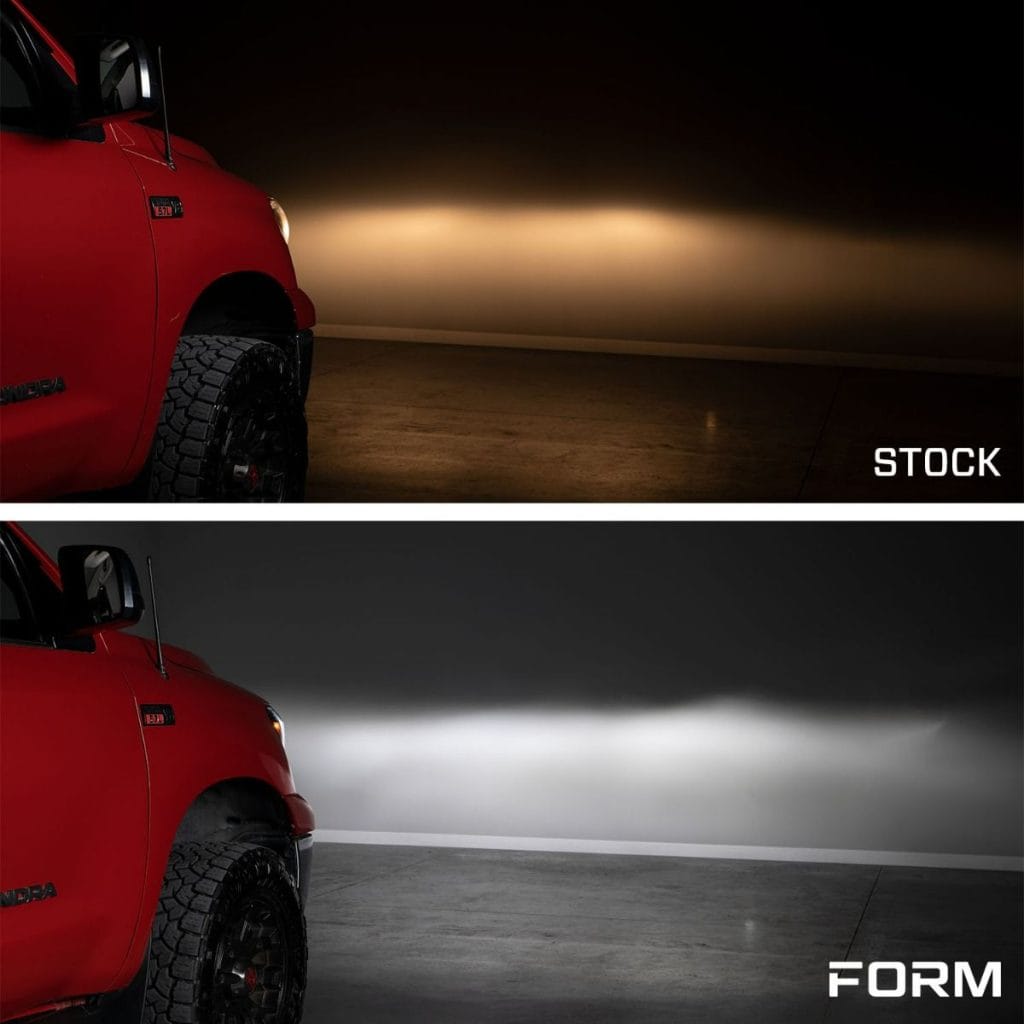

ORIGINAL MANUFACTURER PHOTOGRAPHY
See the beam comparison
Unchanged FORM photographs show the pictured lamps in the manufacturer’s test setup. These are not independent BTS measurements or a guarantee of identical results on every vehicle.

Final aiming, vehicle load and suspension height affect the beam on your truck.

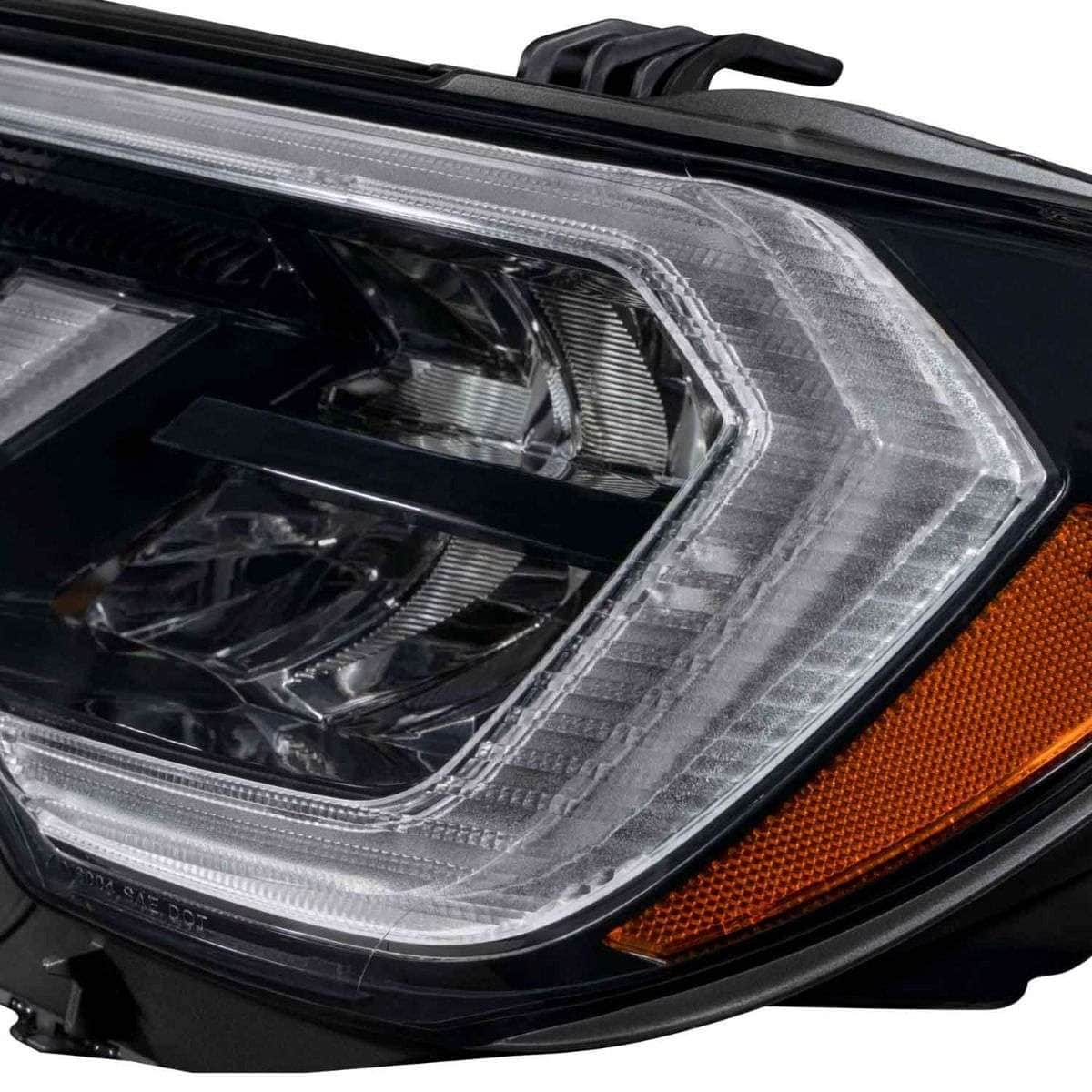

THE DAYTIME SIGNATURE
A closer look at the lighting functions
The integrated white daytime-light signature uses the included fuse-tap harness for power.

MATCH THE TRUCK AND ORIGINAL LIGHTS
Exact fitment before you order
| Check | This application |
|---|---|
| Vehicle | 2007–2013 Toyota Tundra |
| Original lighting | Replacement for the factory halogen headlight assemblies |
| Lower trim | Left and right replacement panels included; leave matte black or paint to match |
| Factory levelling | Not retained; use the lamp’s manual adjuster |
| Exact part | FL0010 |
| Package | Complete left and right headlight assemblies |
THE STANDARD PACKAGE
What comes with the pair

- Left and right reflector headlight assemblies
- DRL harness
- Two halogen-headlight adapters
- Left and right lower headlight trim panels
The supplied trim panels complete the updated headlight shape. Paintwork, if desired, is separate.
Other lighting, bodywork and accessories in vehicle photographs are separate products.
PLAN ACCESS, WIRING AND AIM
Installation details worth knowing
Remove the original trim panels and lamps, route the supplied DRL fuse-tap harness and connect the matching headlight plugs. FORM instructs installers to leave the original levelling connector unused because this set does not retain that function. Install the included lower trim panels, secure wiring away from heat and moving parts, test all lights and aim the low beams.
Read the official FL0010 installation guide
Use the instructions supplied with your exact set. Secure wiring away from heat and moving parts, reconnect all original sensors and test every lighting function before final reassembly.

EXACT PART · FL0010
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Optics | Integrated LED low- and high-beam reflectors |
| DRL | Fixed white |
| Turn signal | Sequential amber |
| Operating voltage | 9–16 V |
| Ingress rating | IP67 |
| Operating temperature | −40°C to 85°C |
| Levelling | Manual aim; factory levelling not retained |
| Warranty | Two-year limited manufacturer warranty |
FORM states that these headlights meet applicable SAE, DOT, FMVSS and CMVSS requirements for road use in the United States and Canada when correctly installed and aimed. Set the low-beam cutoff on the actual vehicle.
FORM Lighting provides a 2-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
See the exact design and the installation process in FORM’s own videos. Match the written adapter and fitment notes above to your original lights.
Official FORM product overview

Official FORM installation guide

Choose a video to load it. No autoplay. Watch the overview or installation guide when you are ready; the videos load only after you choose them.
CLEAR ANSWERS BEFORE CHECKOUT
Your early Tundra reflector questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this set fit?
2007–2013 Toyota Tundra. Match your original lighting to the fitment and adapter notes above.
How do I choose the daytime lighting?
The integrated white daytime-light signature uses the included fuse-tap harness for power.
Does this require replacing separate bulbs?
These are complete integrated LED assemblies, rather than replacement bulbs for the original housings.
Should the lights be aimed after installation?
Yes. Test all functions, then aim the low-beam cutoff on the actual vehicle. Load and suspension height can change the aim.
What warranty applies?
FORM Lighting provides a two-year limited manufacturer warranty. Coverage and exclusions follow its current terms. Retain proof of purchase and contact BTS for assistance.
Can the included trim panels be painted?
Yes. FORM supplies matte-black lower trim panels that can be left as supplied or painted to match the truck.

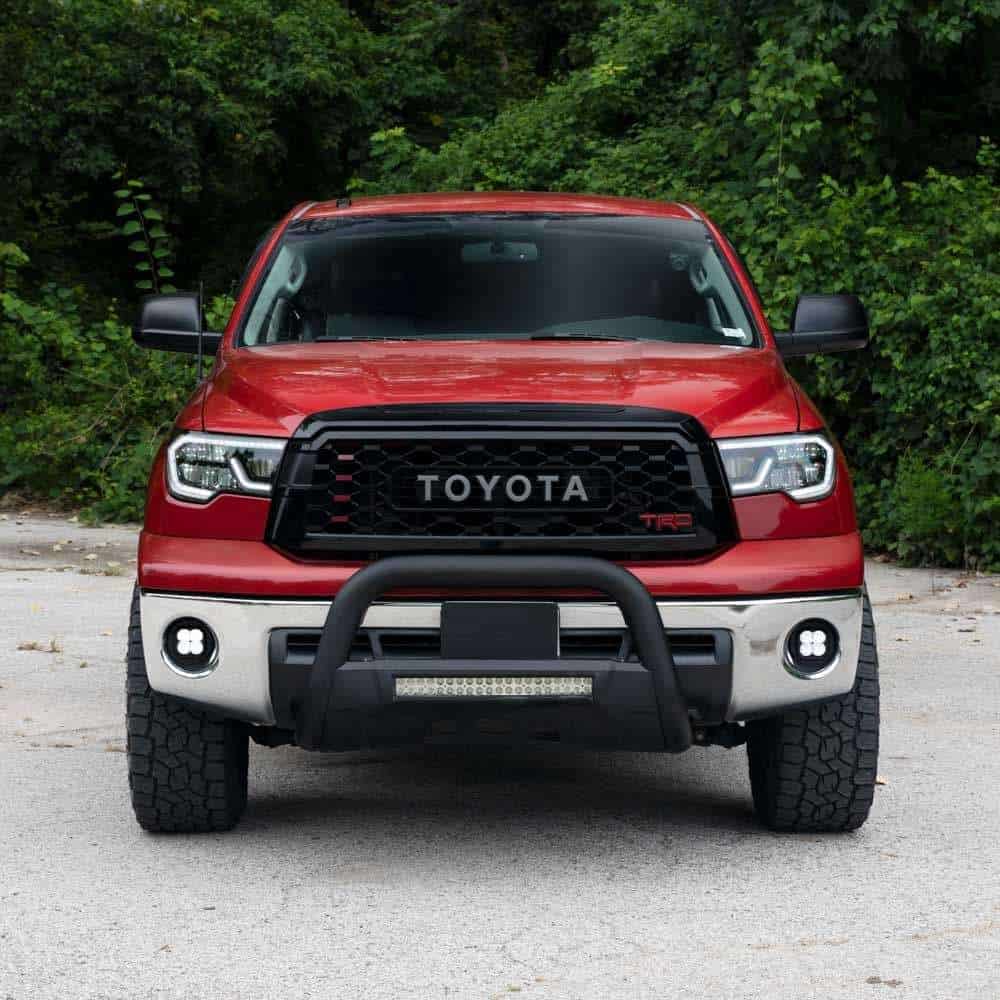

THE FINISHED LOOK
See the design on the truck
Original manufacturer photography; other vehicle equipment is separate.
