The Diode Dynamics SS12 kit for the 2014–2021 Toyota Tundra mounts two 12-inch light bars behind the factory grille. Match the selected beam pattern, grille and original headlight equipment before ordering.
Features
-
Application-specific fitment for 2014–2021 Toyota Tundra; review the grille and headlight notes below
-
Driving and wide-beam options serve different uses; match the selected beam, installation and aiming to applicable road-use requirements
-
Included H4 high-beam adapter supports compatible factory wiring; LED headlights are excluded from this adapter connection
-
Durable powder-coated steel brackets
-
Uses factory mounting points, no cutting or drilling required
-
Application-specific brackets position the light bars behind the grille; grille styles can obstruct part of the output
Overview

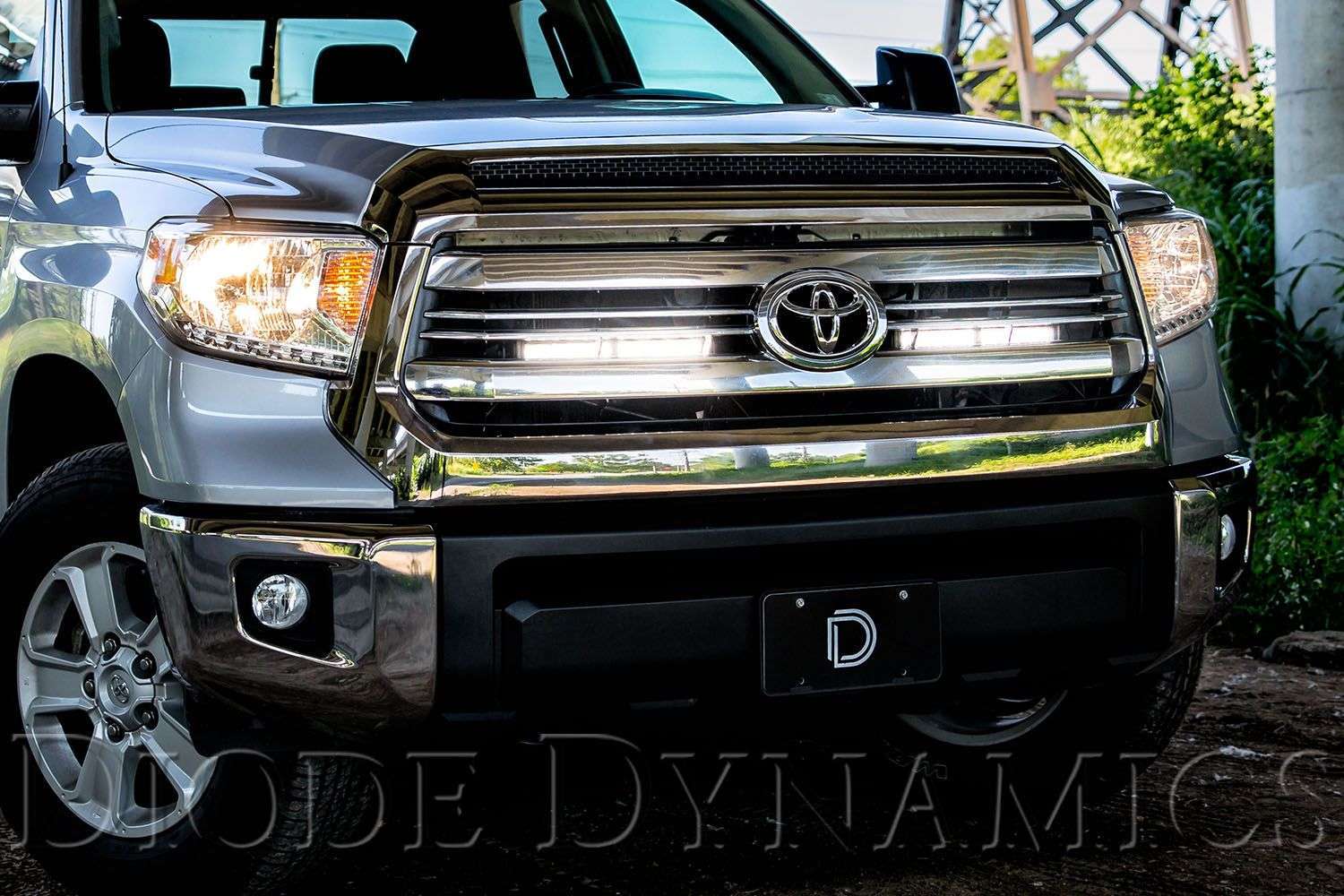

Behind-grille mounting

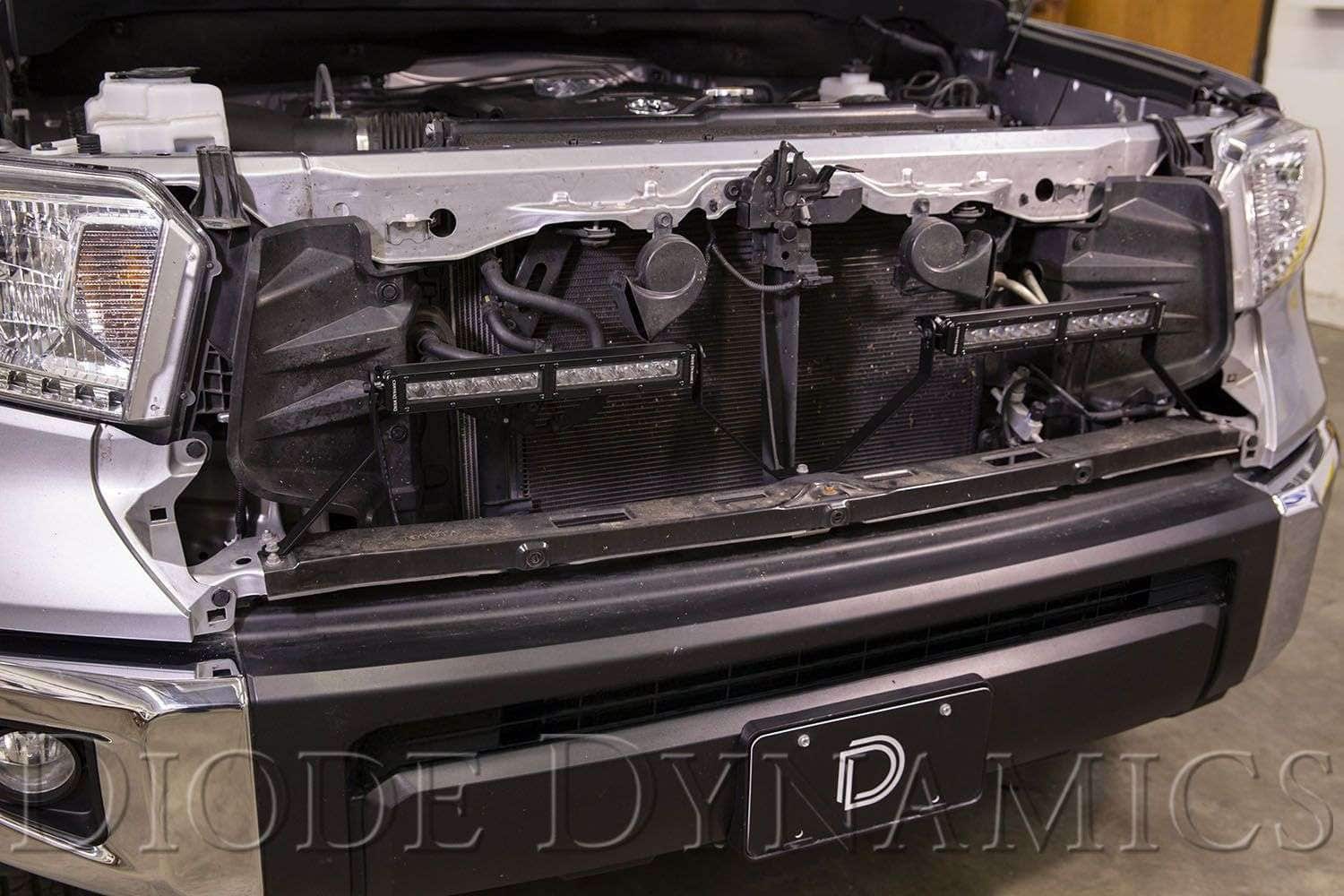

The Toyota Tundra 2014-2021 SAE/DOT LED Lightbar Kit by Diode Dynamics allows you to mount two SS12 Stage Series 12″ Light Bars seamlessly behind your Tundra’s factory grille. Application-specific, CAD-designed brackets use existing mounting points for a clean, no-drill installation.
High-beam integration and use
The kit includes an H4 high-beam adapter for compatible factory headlight wiring. This adapter is not compatible with LED headlights. Do not treat every colour or beam option as carrying the same road-use approval; check the selected lamp, local requirements and aiming before road use.
Engineered for Output
Diode Dynamics Stage Series Light Bars are developed using advanced optical simulation modeling to deliver precise and highly functional beam patterns. Compared to generic LEDs, these bars direct more light where you need it most, minimizing glare and wasted output.
Functional Beam Patterns
-
Driving Pattern: Rectangular 20° x 8° beam designed to supplement high beams with long-range visibility at speed.
-
Wide Pattern: 100° x 8° spread for maximum peripheral lighting—ideal for foggy or inclement weather driving.
Built to Last
With a powder-coated steel construction, heavy-duty hardware, and advanced optics, this kit is built for long-term durability. Backed by Diode Dynamics’ 8-year warranty, you can rely on these lights for years of performance.
Trusted Experience
Diode Dynamics has been a leader in LED innovation for over a decade, engineering and assembling products in the USA to ensure unmatched quality and performance.
What’s Included
-
Two (2) SS12 Stage Series 12″ Light Bars
-
Three (3) application-specific heavy-duty steel brackets
-
One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
-
One (1) Aux Switch Adapter Wire
-
One (1) H4 High-Beam Adapter
-
All necessary mounting hardware
-
Installation guide
Specifications
-
Warranty: 8-Year Warranty
Fitment
-
Make: Toyota
-
Model: Tundra
-
Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
-
Application: High Beam
-
Notes:
-
Best fit for SR and 2014–2017 SR5 grilles
-
Compatible with Sport and 2018–2021 SR5 models (some grille obstruction may occur)
-
Compatible with Platinum models
-
H4 high beam adapter not compatible with LED headlights
-
Product questions
Does this kit fit every Tundra from 2014 onward?
No. This listing covers the 2014–2021 Tundra. Match the grille and original headlight equipment; it does not establish fitment for the later Tundra generation.
Will the factory grille affect the light output?
The installation notes identify SR and 2014–2017 SR5 grilles as the best match. Sport and 2018–2021 SR5 grilles can obstruct part of the output; Platinum is also listed. Compare the grille on your truck before choosing the kit.
Can the included high-beam adapter connect to factory LED headlights?
No. The included H4 high-beam adapter is not compatible with LED headlights. Confirm the original headlight wiring and a suitable control plan before ordering.
Are Driving and Wide options the same beam?
No. Driving concentrates output farther ahead; Wide spreads light across a broader area. Select the pattern for the intended use, and check the selected lamp’s road-use requirements and aiming.
