Prinsu / Sherpa roof-rack lighting
A linked lightbar that belongs on your rack.
Choose the bar length, output and beam for your rack and off-road use. Fit depends on the roof rack and wind deflector.
Measure the rack first
This is a rack-specific kit. A 2016–2023 Tacoma needs a compatible Prinsu or Sherpa rack already fitted; the truck model alone does not establish compatibility.
| Rack / lightbar | Required fit |
|---|---|
| Prinsu rack | Wind deflector with a 40-inch lightbar cutout. |
| Sherpa rack | Half-height wind deflector. |
| Six pods | Rack width at least 41⅝ inches. |
| Seven pods | Rack width at least 47⅞ inches. |
Check the rack model, deflector and clearances before ordering. The supplied mounts keep the deflector in place after installation; it is temporarily removed and refitted during the mounting procedure.

Choose length, output and beam
| Choice | What changes |
|---|---|
| 6-Pod or 7-Pod | Six or seven lamps, with the matching connecting harness and support hardware. Measure the rack width first. |
| Sport or Pro | Sport: 40W per pod. Pro: 90W per pod. Use the matching supplied harness; these are per-pod ratings, not the whole bar. Current Pro kits use six pods. |
| White or Yellow | Fixed main-beam output: White 6000K or Selective Yellow 3000K. |
| Driving or Combo | Driving concentrates light in a 30° × 20° spread. Combo combines Driving and Flood optics for a wider 70° × 30° pattern. |

These are high-output auxiliary lights for off-road use. The Driving pattern is not an SAE auxiliary high beam.
A separate accent when the main beam is off

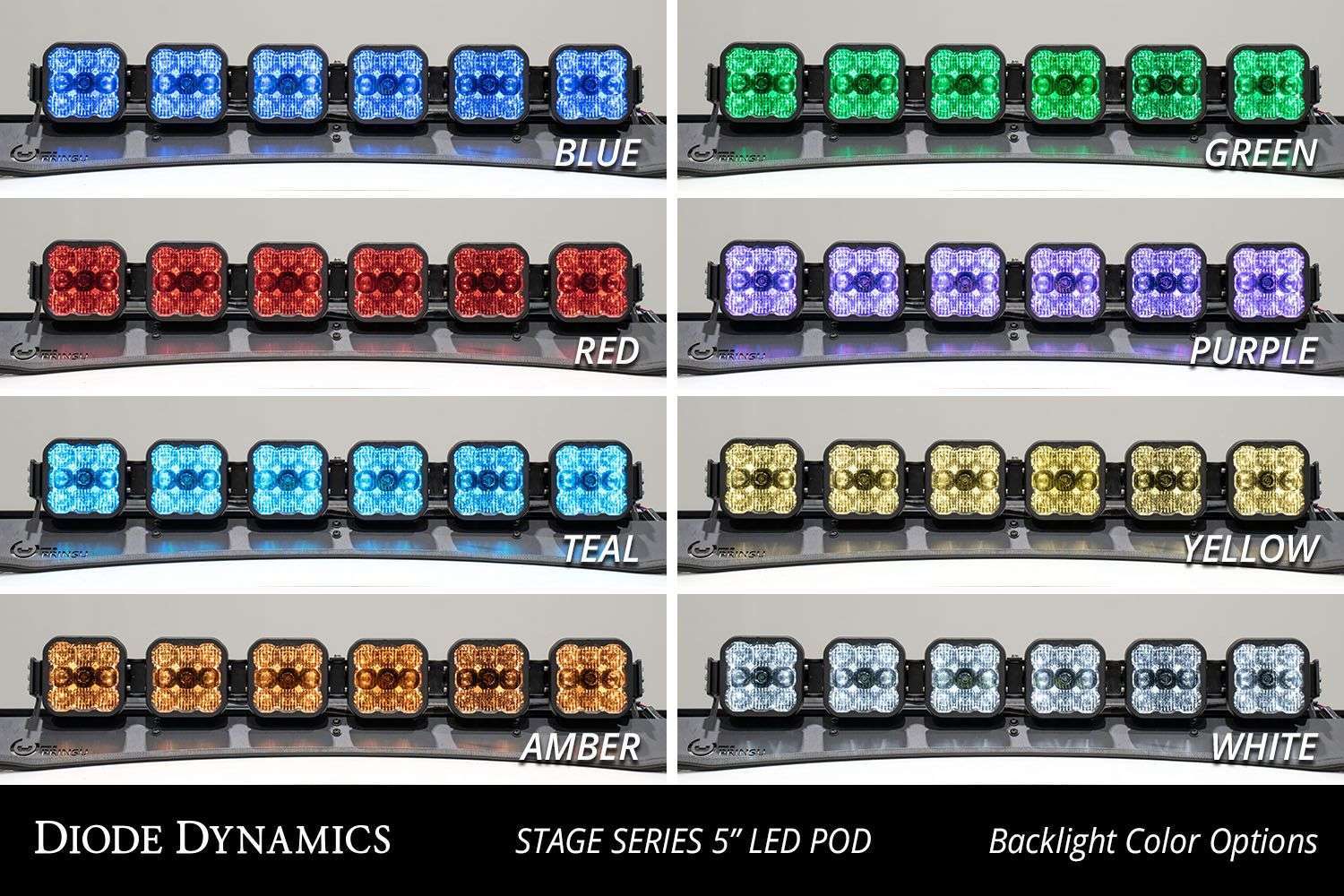

White-lens pods offer eight selectable backlight colours: White, Red, Blue, Green, Purple, Yellow, Amber and Teal. Yellow-lens pods have an Amber-only backlight. Changing the backlight does not change the main-beam colour.

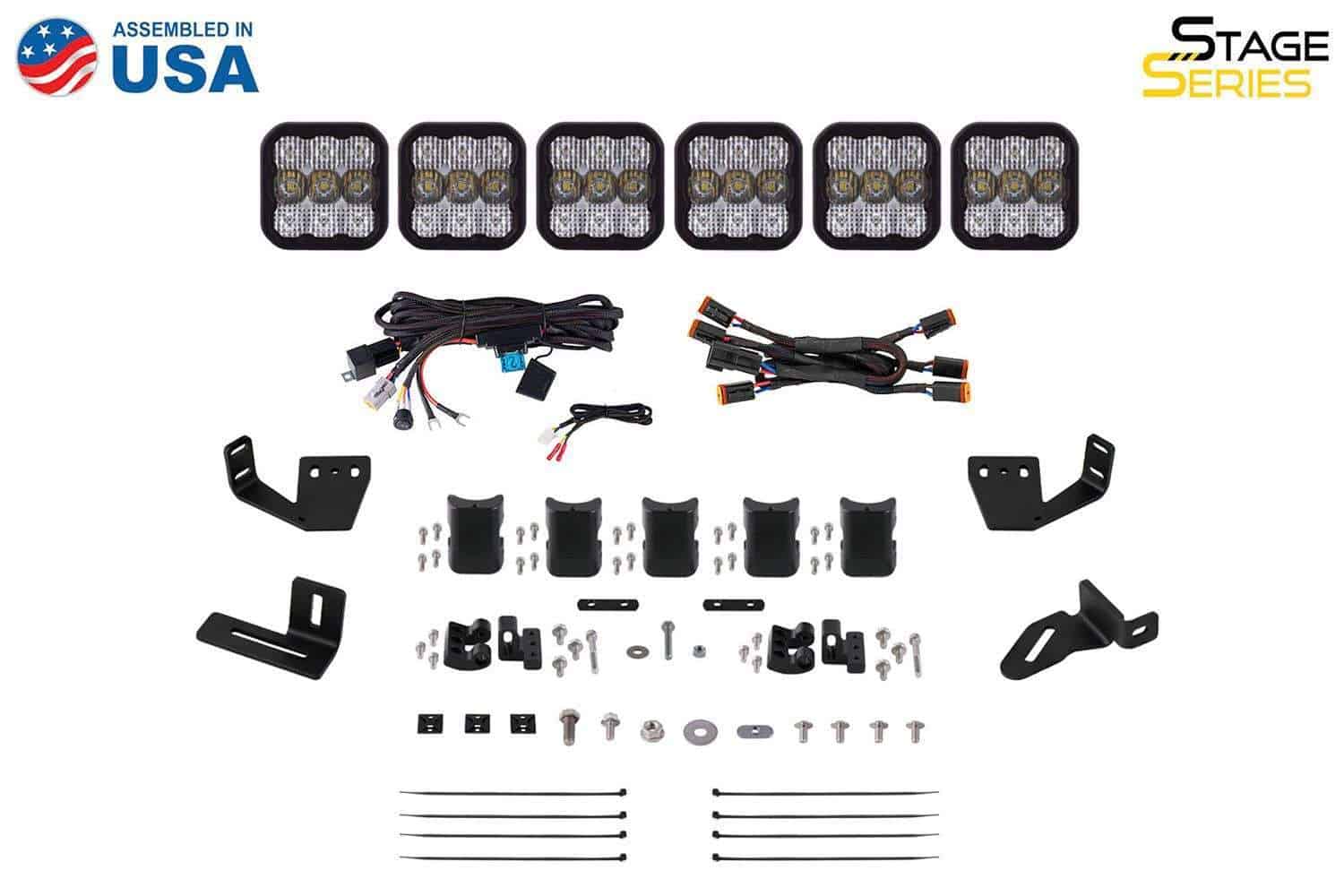

A complete rack-lighting package
- Six or seven SS5 pods, with the selected beam and lens colour.
- Prinsu/Sherpa rack mounts and one support kit for six pods or two for seven pods.
- Five or six CrossLinks with hardware, plus the CrossLink endmount kit.
- The matching six- or seven-pod connecting harness and single-output relay harness.
The roof rack is not included. Sport and Pro use different harness arrangements; keep the harness matched to the kit.

Follow the rack-specific mounting sequence

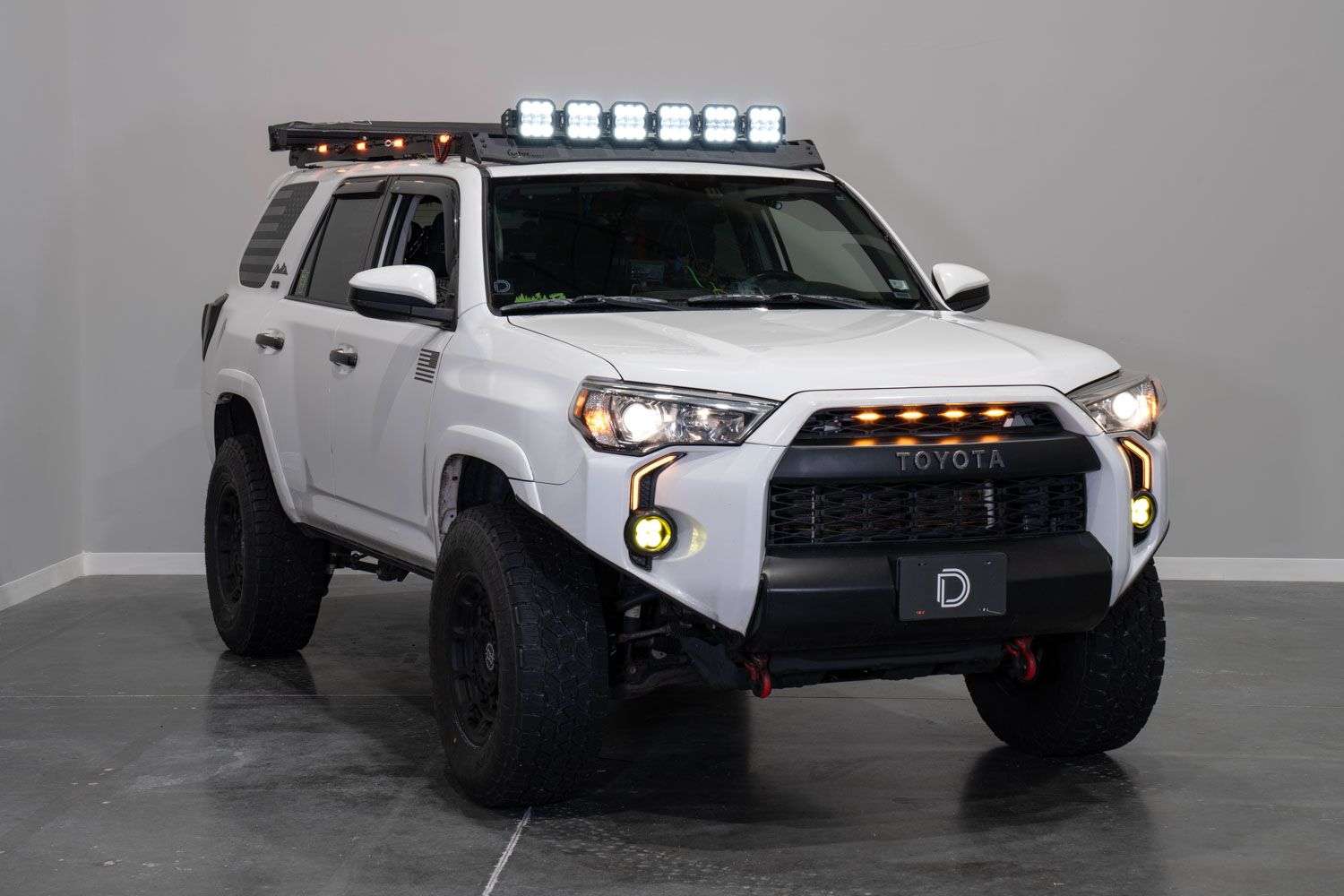

Manufacturer installation on a roof rack fitted to a 4Runner. Match the rack and wind deflector, not the demonstration vehicle.
Manufacturer warranty
Diode Dynamics provides a limited lifetime manufacturer warranty for the covered Stage Series lights and mounts. Commercial, industrial and fleet use is limited to eight years. Wiring and other bundled accessories have their own warranty terms. Read the warranty terms.
Questions before ordering
Does it fit every third-generation Tacoma?
No. Fit depends on the installed Prinsu or Sherpa rack, the required wind deflector and the available rack width.
Does the deflector have to come off?
Temporarily, yes. The guide removes four deflector bolts to install the mounts, then refits the deflector. It remains on the rack with the completed kit.
Can Yellow lights show all eight backlight colours?
No. Yellow lenses provide an Amber backlight only. The eight-colour setting is for White-lens pods.
Is the bracket-only package a complete lightbar?
No. DD7894P is mounting and support hardware. Select a complete kit if you also need the lamps and harnesses.
