Prinsu / Sherpa roof-rack lighting
Mount your CrossLink bar without giving up the wind deflector.
DD7894P combines the rack mounting brackets and CrossLink support hardware for a compatible Prinsu or Sherpa rack. Lights and wiring are separate.
Measure the rack first
This is a rack-specific kit. A 2016–2023 Tacoma needs a compatible Prinsu or Sherpa rack already fitted; the truck model alone does not establish compatibility.

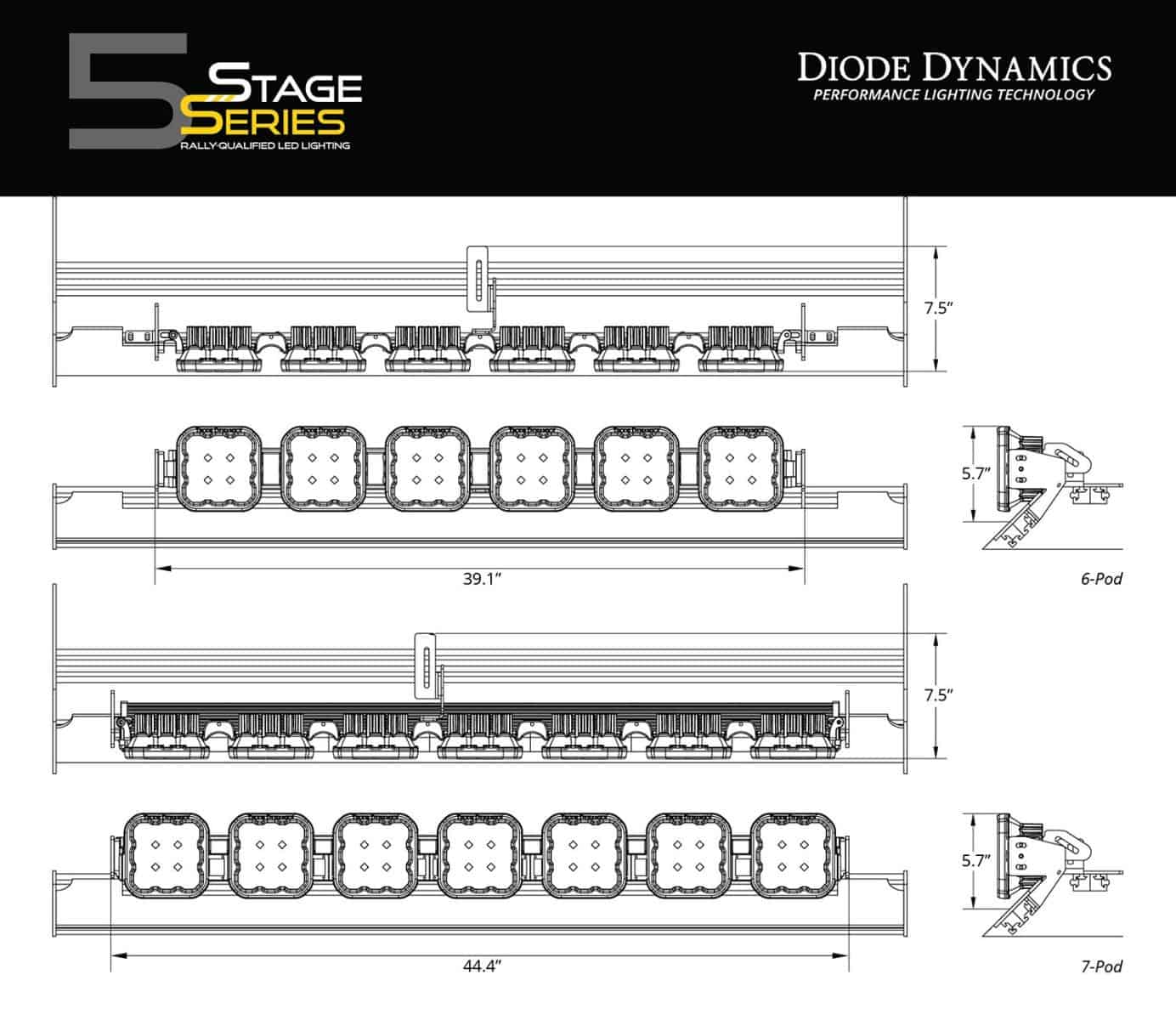

| Rack / lightbar | Required fit |
|---|---|
| Prinsu rack | Wind deflector with a 40-inch lightbar cutout. |
| Sherpa rack | Half-height wind deflector. |
| Six pods | Rack width at least 41⅝ inches. |
| Seven pods | Rack width at least 47⅞ inches. |
Check the rack model, deflector and clearances before ordering. The supplied mounts keep the deflector in place after installation; it is temporarily removed and refitted during the mounting procedure.
For a bar you already own
Choose this mounting-and-support package when you already have the appropriate SS5 CrossLink bar and its wiring. Match a six- or seven-pod installation to the rack dimensions above and confirm the required support hardware for your bar.
Brackets and hardware only
DD7894P contains the Prinsu/Sherpa SS5 CrossLink mounting kit and support-bracket kit. It does not include the SS5 pods, CrossLink bar, relay harness, lamp-connecting harness or roof rack.
Follow the rack-specific mounting sequence
Manufacturer installation on a roof rack fitted to a 4Runner. Match the rack and wind deflector, not the demonstration vehicle.
Manufacturer warranty
Diode Dynamics provides a limited lifetime manufacturer warranty for the covered Stage Series lights and mounts. Commercial, industrial and fleet use is limited to eight years. Wiring and other bundled accessories have their own warranty terms. Read the warranty terms.
Questions before ordering
Does it fit every third-generation Tacoma?
No. Fit depends on the installed Prinsu or Sherpa rack, the required wind deflector and the available rack width.
Does the deflector have to come off?
Temporarily, yes. The guide removes four deflector bolts to install the mounts, then refits the deflector. It remains on the rack with the completed kit.
Can Yellow lights show all eight backlight colours?
No. Yellow lenses provide an Amber backlight only. The eight-colour setting is for White-lens pods.
Is the bracket-only package a complete lightbar?
No. DD7894P is mounting and support hardware. Select a complete kit if you also need the lamps and harnesses.
