DIODE DYNAMICS · 2016–2023 Toyota Tacoma
A compact light. A much clearer trail edge.
The C2 2.0 kit packages two low-profile pods with Tacoma-specific hood brackets and a heavy-duty harness. It keeps the installation compact while adding a wide Combo beam and independent amber accent lighting.
- 2 C2 2.0 podsCompact Standard housings
- Sport or ProWhite or yellow main beam
- Tacoma brackets2016–2023 factory mounting points
PURPOSEFUL LIGHTING
A kit built around the job
Compact above the hood
The rectangular C2 2.0 pod gives the installation a lower visual profile than an SS3. Vehicle-specific stainless brackets use the Tacoma’s original hood-hinge mounting points.
Match your main beam
Choose Sport or Pro and a fixed White or Yellow main beam. Combo optics balance forward illumination with useful spread; aim for the terrain you need to see.
A separate amber accent
Amber backlighting illuminates the optic at lower intensity. It is a separate function from the White or Yellow main beam and needs the appropriate harness/control connection.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | Toyota Tacoma, model years 2016–2023 |
| Mounting | Vehicle-specific DD6371 hood-hinge brackets with C2 pod mounts |
| Included family | C2 2.0 Standard; two pods |
| Excluded application | 2024+ Tacoma and other vehicle generations |
| Selector detail | White is labelled Combo/Driving; Yellow is labelled Combo. Both are the intended kit variants. |
MATCH THE SKU TO YOUR SELECTION
Choose your output and main-beam colour
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD6376 | Sport | White | Combo/Driving |
| DD6377 | Sport | Yellow | Combo |
| DD6378 | Pro | White | Combo/Driving |
| DD6379 | Pro | Yellow | Combo |
Choose the output and colour combination above. The SKU table identifies the kit supplied with each selection.

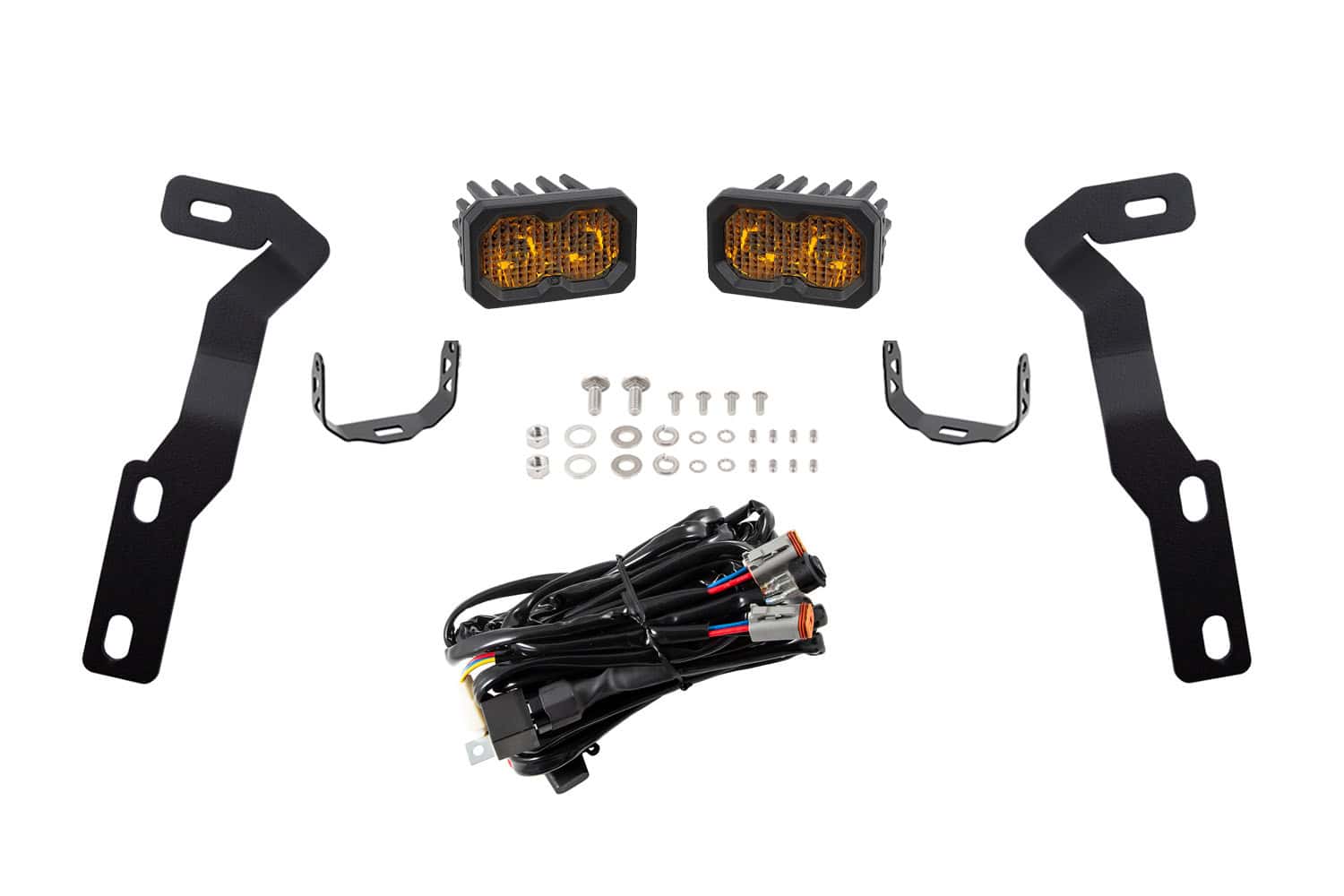

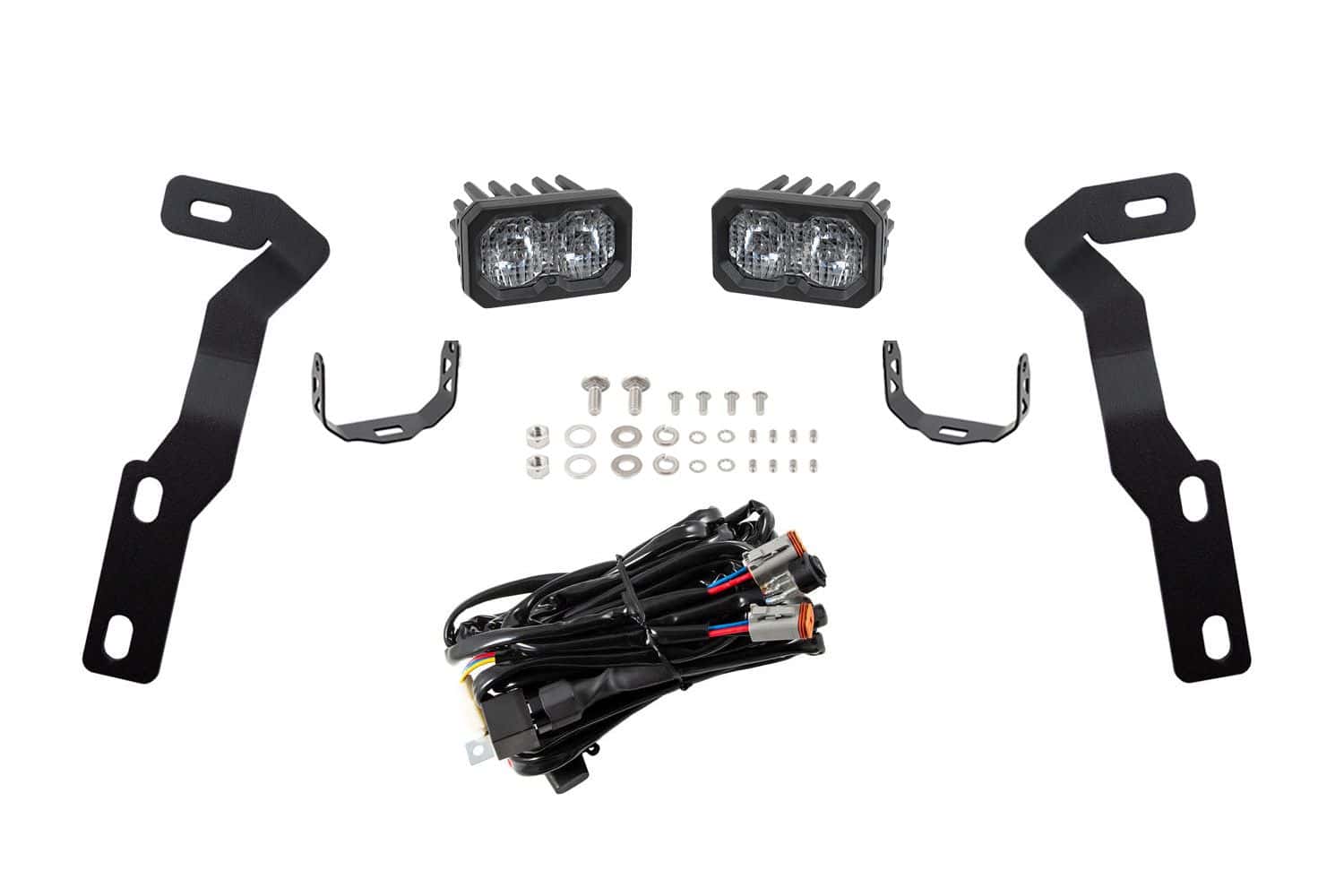

WHAT THE KIT SUPPLIES
The parts belong together
- Two C2 2.0 Standard LED pods in the selected variant
- Two DD6371 Tacoma ditch-light brackets
- Two C2 pod mounting brackets and hardware
- One DD4093 Heavy Duty Dual Output 4-pin Wiring Harness
- Mounting guide
The comparison graphics also show the larger SS3 kit, sold separately. This listing supplies only the C2 2.0 option you select. Sport White and Sport Yellow package photos are identified as such; do not use their appearance to identify the selected output level.
MOUNT · WIRE · AIM
Plan the installation before the trail
Mark and support the hood, then fit the Tacoma brackets at the factory hinge mounting points. Assemble the C2 pod mounts using the instructions supplied with the C2 2.0 pods; the linked vehicle video demonstrates the shared bracket installation using SS3 pods. Align the hood, check clearance and aim the lights. Connect power and controls through the supplied harness instructions and secure the loom away from heat and moving parts.
Open the illustrated BTS ditch-light installation guide Read the official installation guide
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Pod family | C2 2.0 Standard |
| Pattern | Combo / Combo-Driving, as labelled in the option selector |
| Main-beam colour | White 6000K or Yellow 3000K |
| Accent | Amber backlight |
| Power per pod | Sport 15 W / Pro 23 W, manufacturer specification |
| Optic | TIR |
| Housing / lens | Aluminum housing / polycarbonate optic |
| Protection | Manufacturer IP69K intrusion rating |
| Warranty | Eligible lamps: manufacturer limited lifetime; separate accessory terms |
Output by option
| Variant | Peak intensity per pod | Raw output per pod |
|---|---|---|
| Sport White | 11,500 cd | 1,190 lm |
| Sport Yellow | 8,100 cd | 1,190 lm |
| Pro White | 20,000 cd | 3,140 lm |
| Pro Yellow | 15,000 cd | 3,140 lm |
Current manufacturer C2 2.0 figures, per individual pod. Raw lumens describe emitter output and are not the same measurement as delivered/measured lumens. No SS3 beam photograph is being presented as C2 2.0 output.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How to Install Ditch Light Bracket Kit for 2016-2023 Toyota Tacoma | Diode Dynamics
Mounting-guide demonstration uses SS3. Follow the C2 pod assembly instructions for this C2 2.0 kit.
TIR Optics | Stage Series by Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
CLEAR ANSWERS
Before you order
How is this different from the SS3 kit?
The C2 2.0 uses a smaller rectangular pod. The SS3 kit is a separate product with a larger pod and its own output specifications. Both versions use brackets for this Tacoma generation.
Why are there two beam labels in the selector?
White variants are labelled Combo/Driving and Yellow variants Combo. Select the complete output, beam and colour combination above; the SKU table identifies each kit.
Will the brackets interfere with the hood?
The supplier designed the brackets around the factory hood and hinge points. Correct bracket positioning and final clearance checks are still necessary, especially with other aftermarket parts.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; the complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
