DIODE DYNAMICS · 2016–2023 Toyota Tacoma
Light the edges of your Tacoma’s next trail.

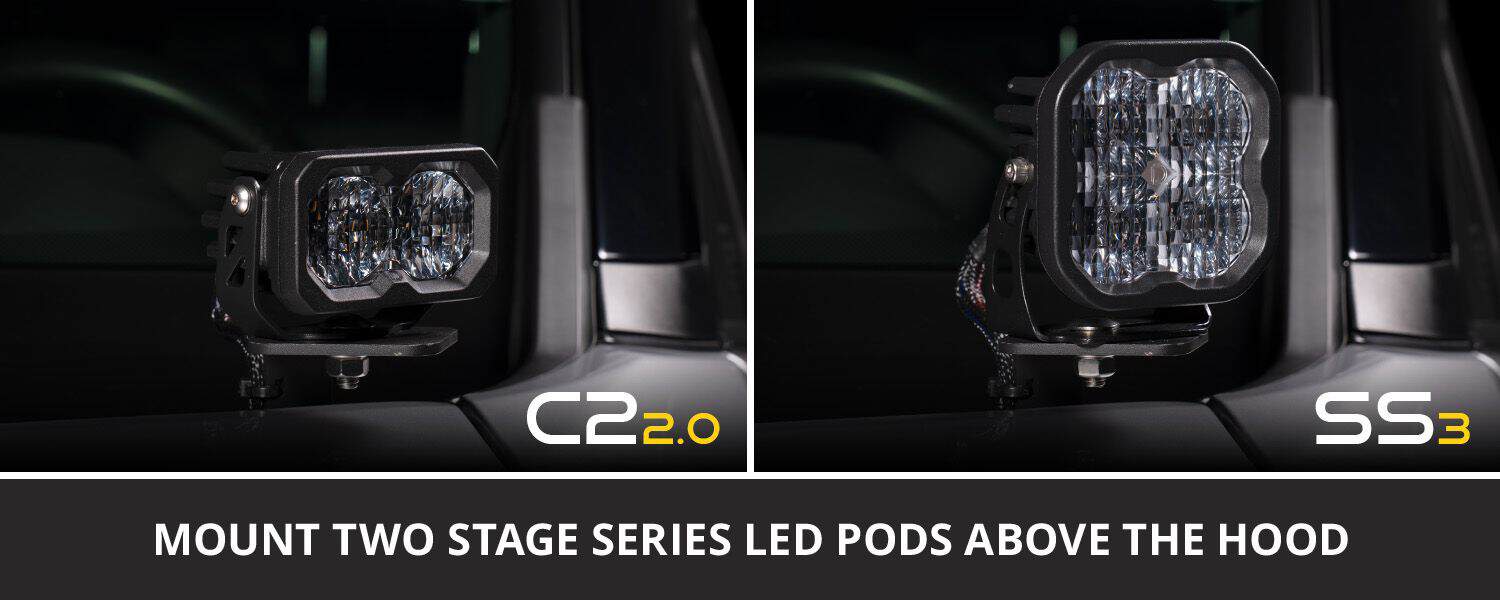

A matched pair of SS3 pods, low-profile hood brackets and a heavy-duty harness put useful auxiliary light where your factory headlights stop. Choose Sport or Pro output and a white or yellow Combo main beam, with a separate amber accent backlight.
- 2 SS3 podsMatched left/right kit
- Sport or ProWhite or yellow main beam
- Bolt-on bracketsFactory hood-hinge mounting
PURPOSEFUL LIGHTING
A kit built around the job
A useful Combo beam
The SS3 Combo/Driving optic combines forward reach with a broad spread for trail edges and terrain. Aim the pods for the intended off-road use rather than toward other drivers.
Choose output and colour
Sport and Pro use the same compact SS3 format with different output levels. White is 6000K; selective yellow is 3000K. The selected main-beam colour is fixed, not switchable.

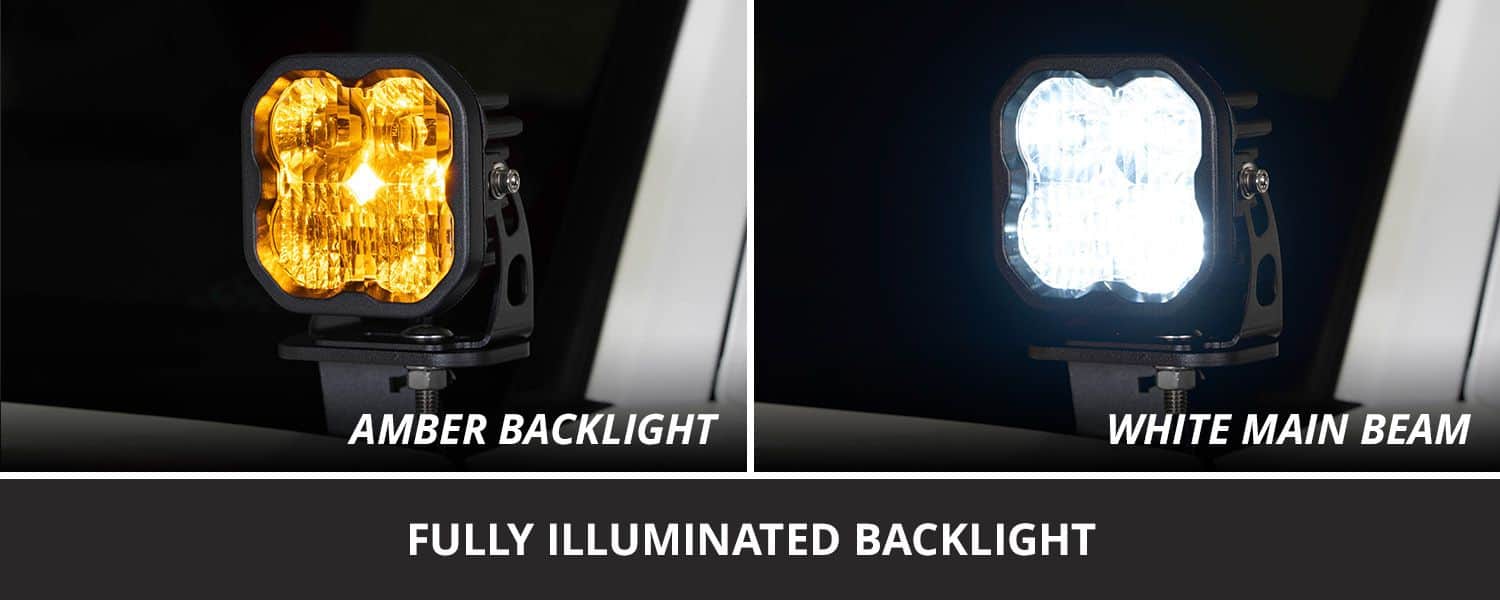

Amber when you want an accent
The amber backlight is separate from the main beam. Use the included harness and an appropriate trigger/control connection; the main beam takes priority while illuminated.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | Toyota Tacoma, model years 2016–2023 |
| Mounting position | Factory hood-hinge points; two vehicle-specific ditch-light brackets |
| Pods supplied | Two SS3 Standard pods in the selected output and main-beam colour |
| Not this application | 2024+ Tacoma and other vehicles need their own verified brackets |
| Other modifications | Check clearance around aftermarket hood, cowl or other accessories before ordering |
MATCH THE SKU TO YOUR SELECTION
Choose your output and main-beam colour
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD6372 | Sport | White | Combo |
| DD6373 | Sport | Yellow | Combo |
| DD6374 | Pro | White | Combo |
| DD6375 | Pro | Yellow | Combo |
Choose the output and colour combination above. The SKU table identifies the kit supplied with each selection.
WHAT THE KIT SUPPLIES
The parts belong together

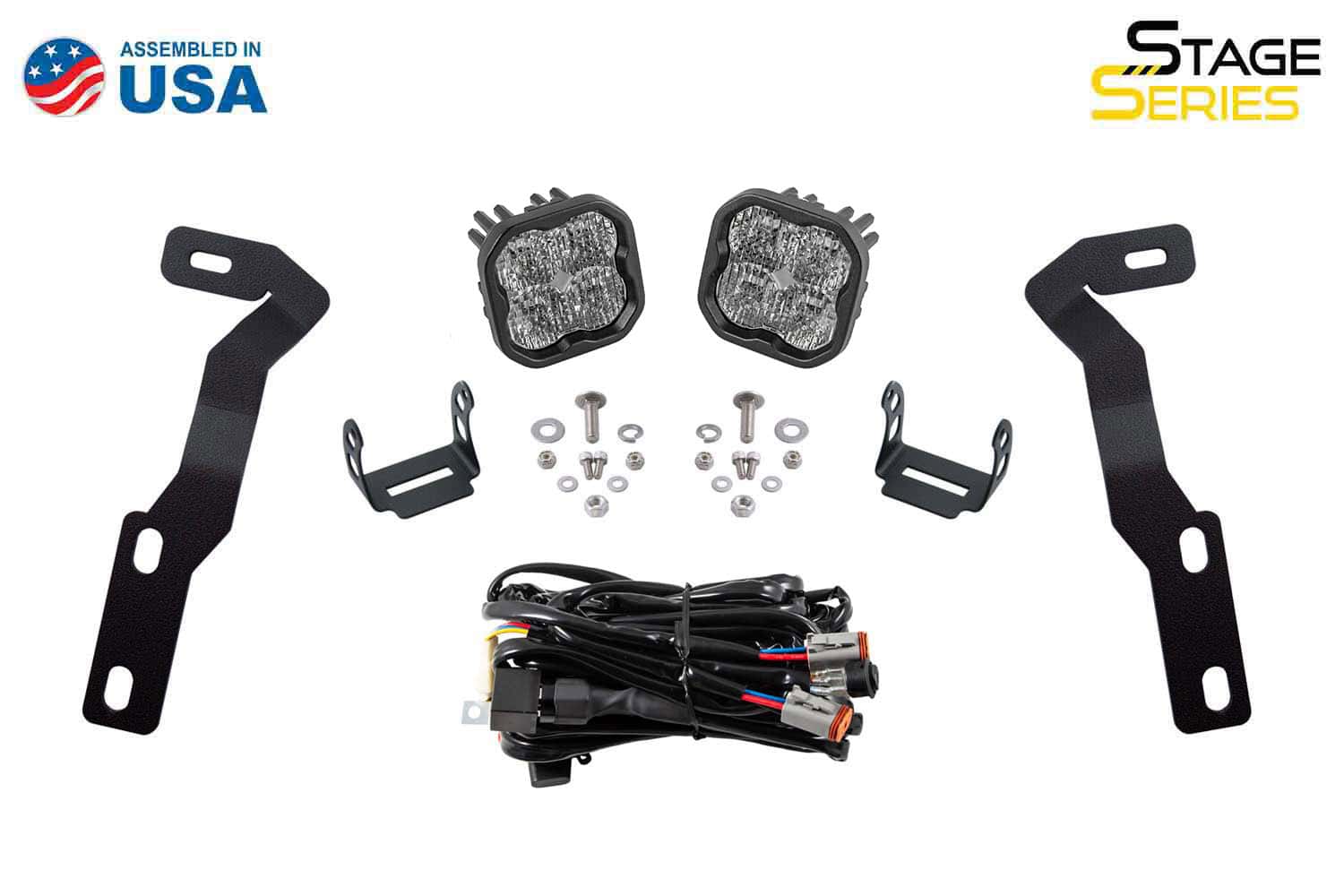

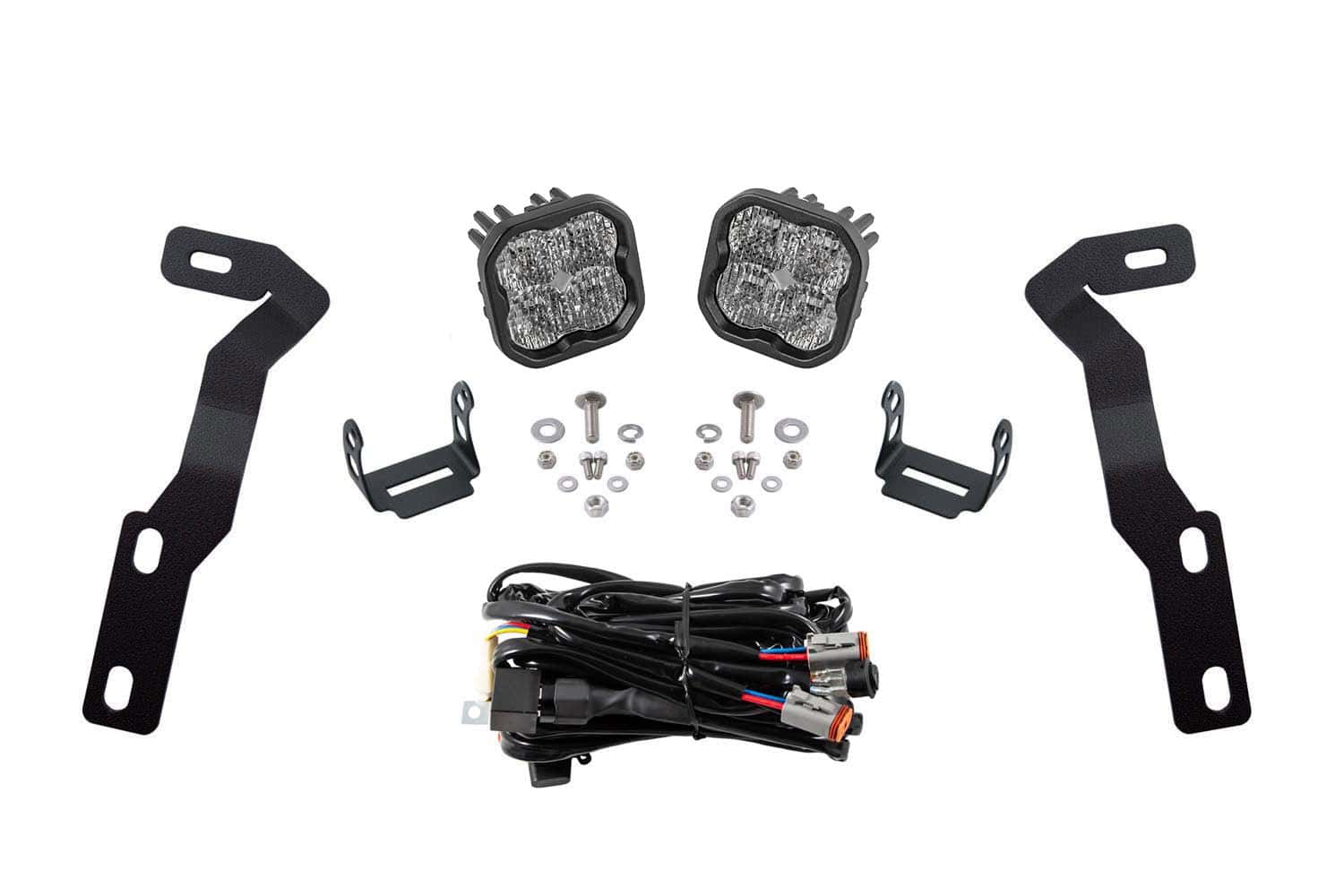

- Two SS3 Standard LED pods in the selected variant
- Two DD6371 Tacoma ditch-light brackets
- Two pod mounting brackets and installation hardware
- One DD4093 Heavy Duty Dual Output 4-pin Wiring Harness
- Mounting guide

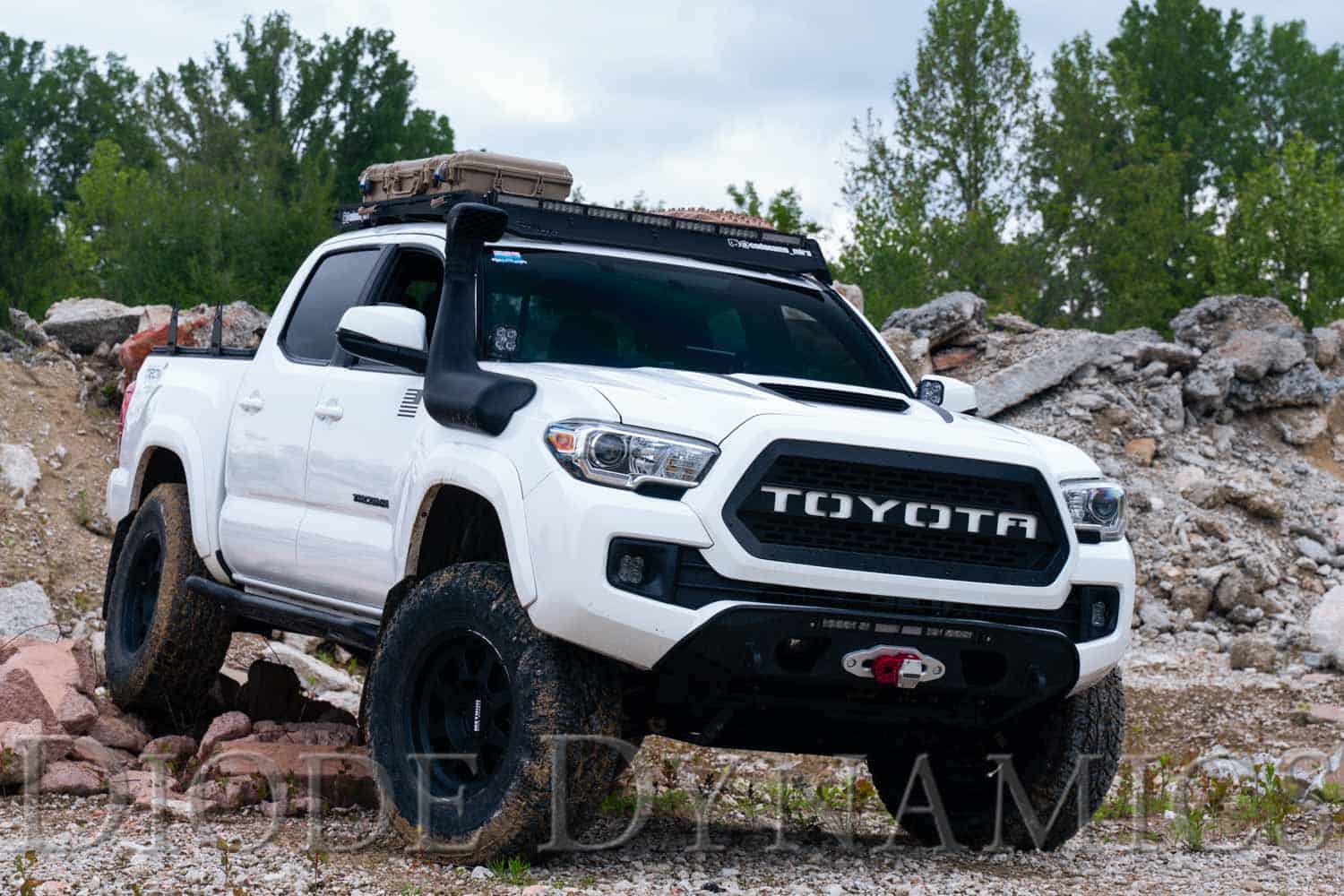

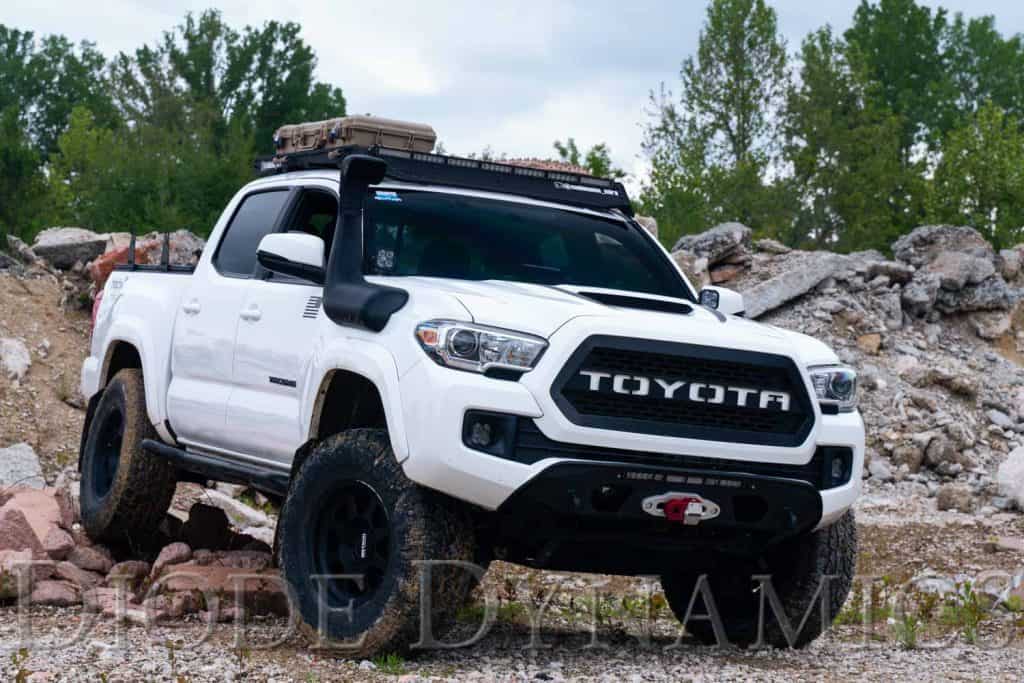

The Standard SS3 pods supplied in these kits are not the separately sold flush-mount version. Covers, extra pods and other truck accessories in installation photos are not included.
MOUNT · WIRE · AIM
Plan the installation before the trail

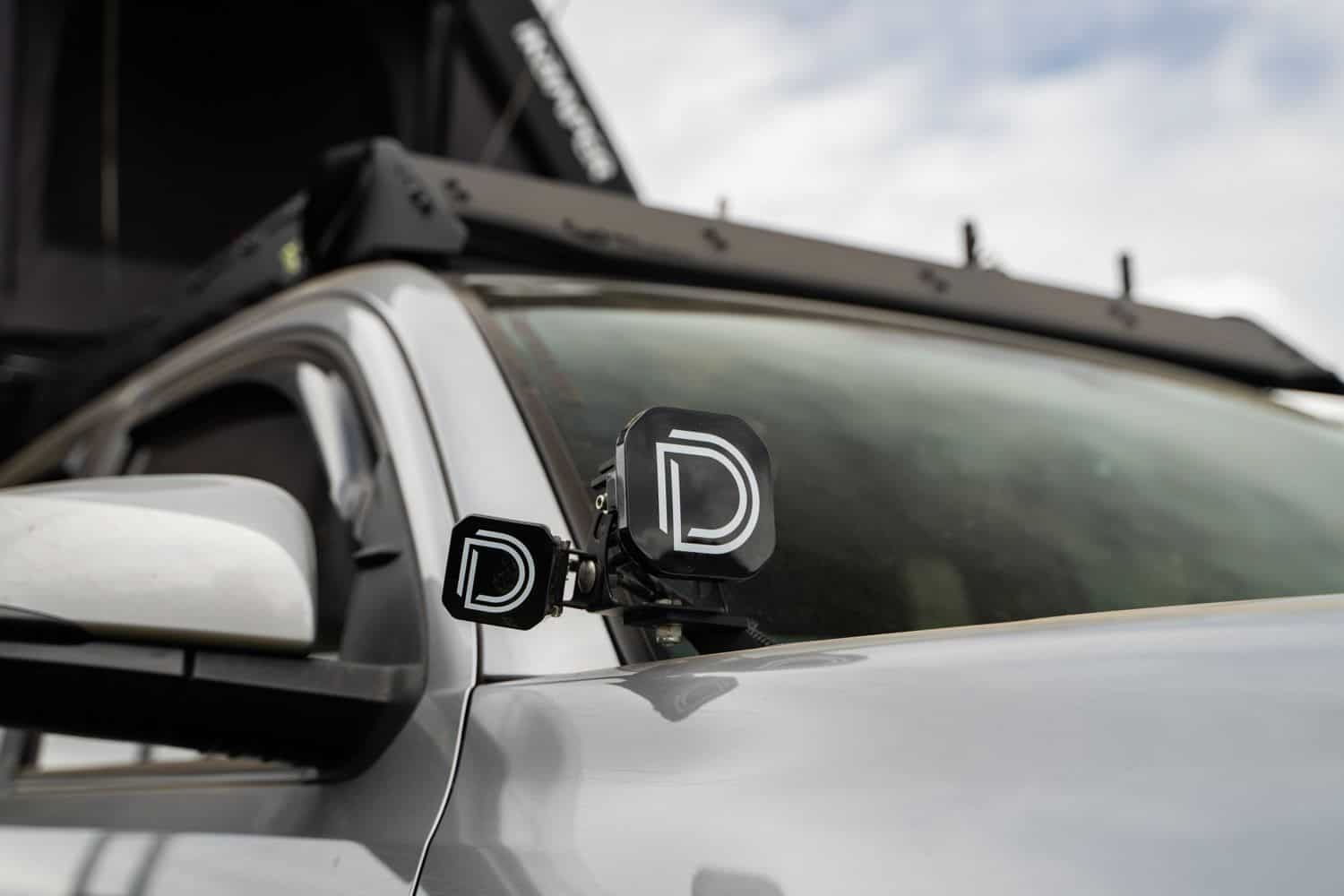

Mark the original hood-hinge position and support the hood while removing the mounting bolts. The brackets reuse the factory hinge points. Set clearance, restore hinge alignment and aim the pods before final tightening. The bracket installation itself needs no cutting or drilling. Finish the electrical installation using the supplied relay harness instructions; mounting the lights is only one part of the job.
Open the illustrated BTS ditch-light installation guide Read the official installation guide
UNDERSTAND THE EXACT HARDWARE

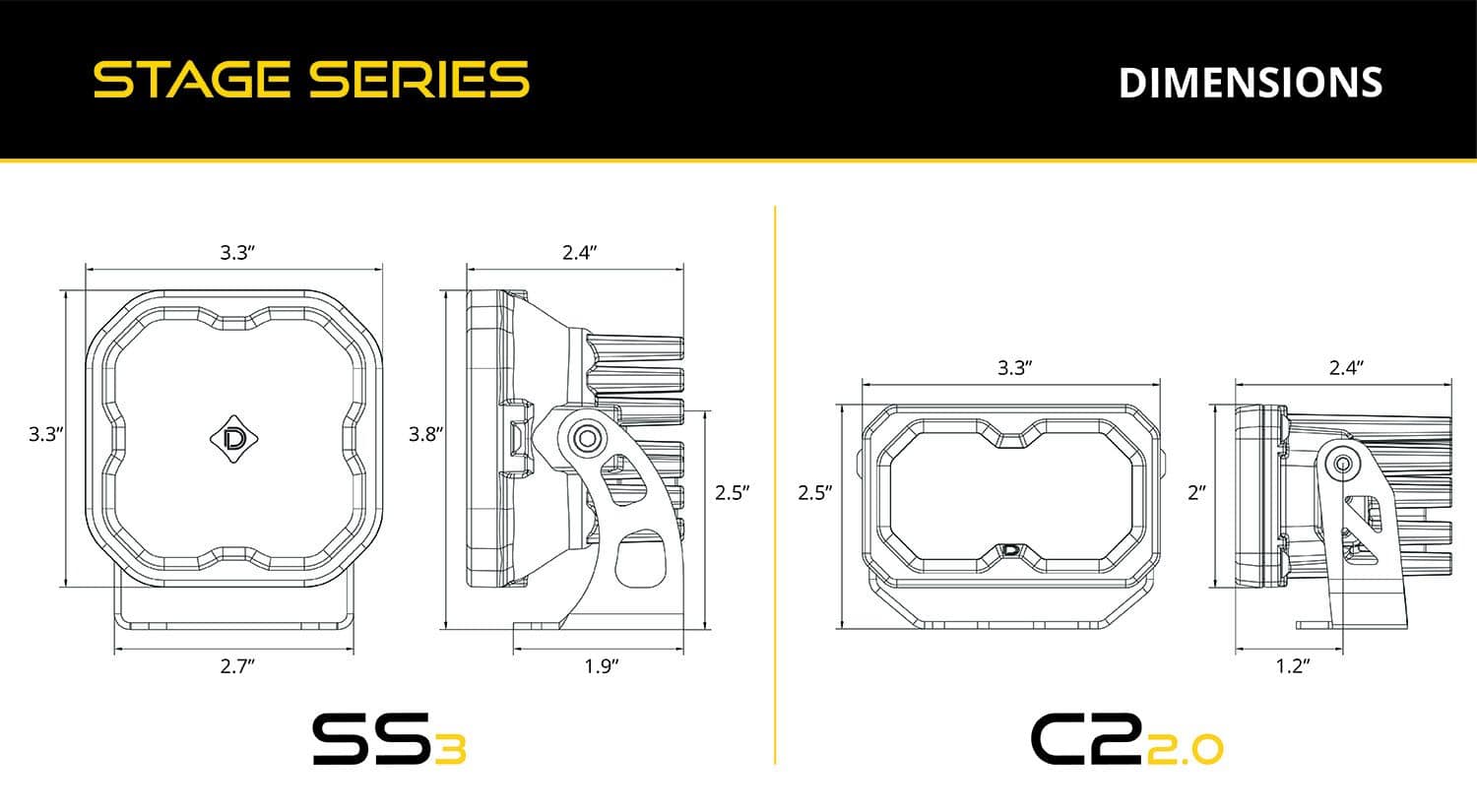

Technical specifications
| Detail | This kit |
|---|---|
| Pod family | SS3 Standard |
| Main-beam pattern | Combo/Driving, manufacturer 80° × 30° spread |
| Main-beam colour | White 6000K or Yellow 3000K |
| Accent | Amber backlight |
| Optic | Total internal reflection (TIR) |
| Housing / lens | Powder-coated aluminum / polycarbonate |
| Connector | Integrated Deutsch-style input |
| Protection | Manufacturer IP69K intrusion rating |
| Warranty | Eligible lamps: manufacturer limited lifetime; separate accessory terms |
Output by option
| Variant | Peak intensity per pod | Measured output per pod |
|---|---|---|
| Sport White | 31,500 cd | 1,520 lm |
| Sport Yellow | 28,100 cd | 1,300 lm |
| Pro White | 35,100 cd | 3,000 lm |
| Pro Yellow | 33,406 cd | 2,700 lm |
Current manufacturer values for the SS3 Combo/Driving optic. Figures are for one pod, not the pair; the photographs are manufacturer examples, not BTS test measurements.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.

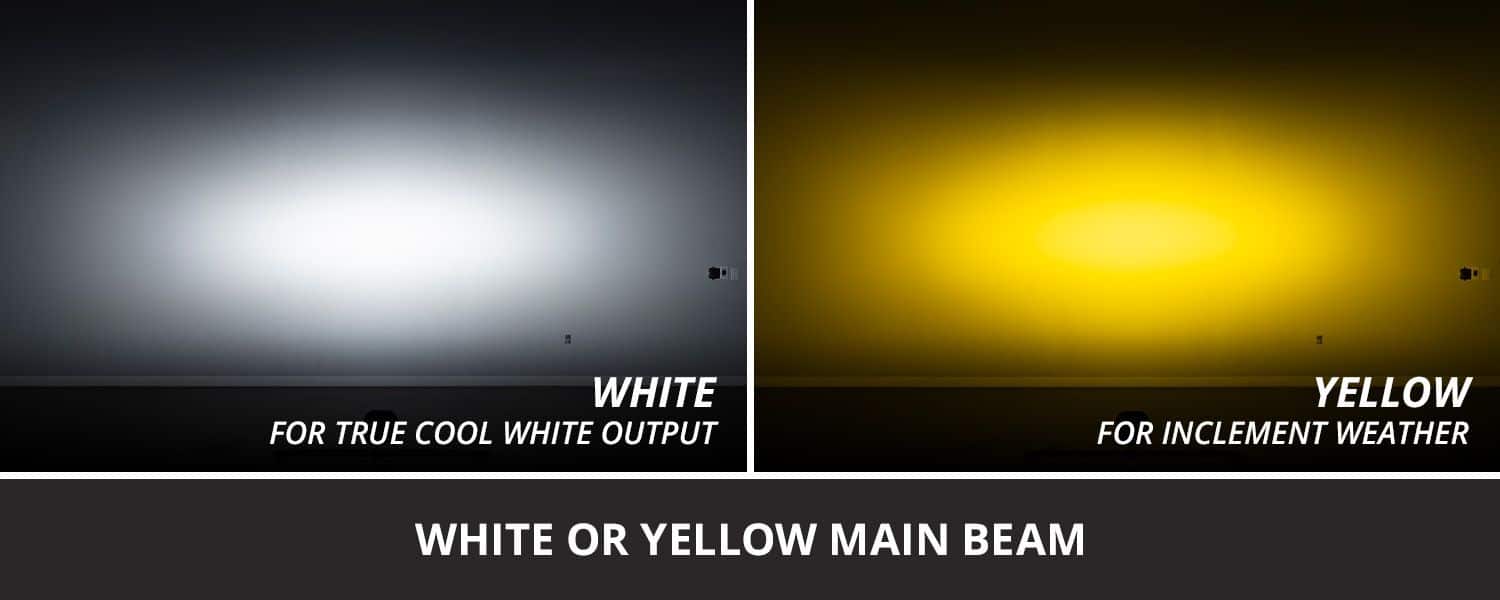

MANUFACTURER OUTPUT PHOTOGRAPHY
See the beam’s purpose
Compare the manufacturer’s beam photographs and choose the light for your route.
Current manufacturer values for the SS3 Combo/Driving optic. Figures are for one pod, not the pair; the photographs are manufacturer examples, not BTS test measurements.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
How to Install Ditch Light Bracket Kit for 2016-2023 Toyota Tacoma | Diode Dynamics
Follow the written kit instructions alongside the video.
TIR Optics | Stage Series by Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General Stage Series education; use the specifications and instructions for your exact kit.
CLEAR ANSWERS
Before you order
Does the kit fit a 2024 Tacoma?
No. This kit is for the 2016–2023 generation. Use a separately verified 2024+ application.
Can I use an automatic car wash?
Diode Dynamics specifically advises against automatic car washes with this Tacoma ditch-light kit installed.
Are White and Yellow switchable on the same pod?
No. Choose the fixed main-beam colour when ordering. Both choices have a separate amber backlight.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; the complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?

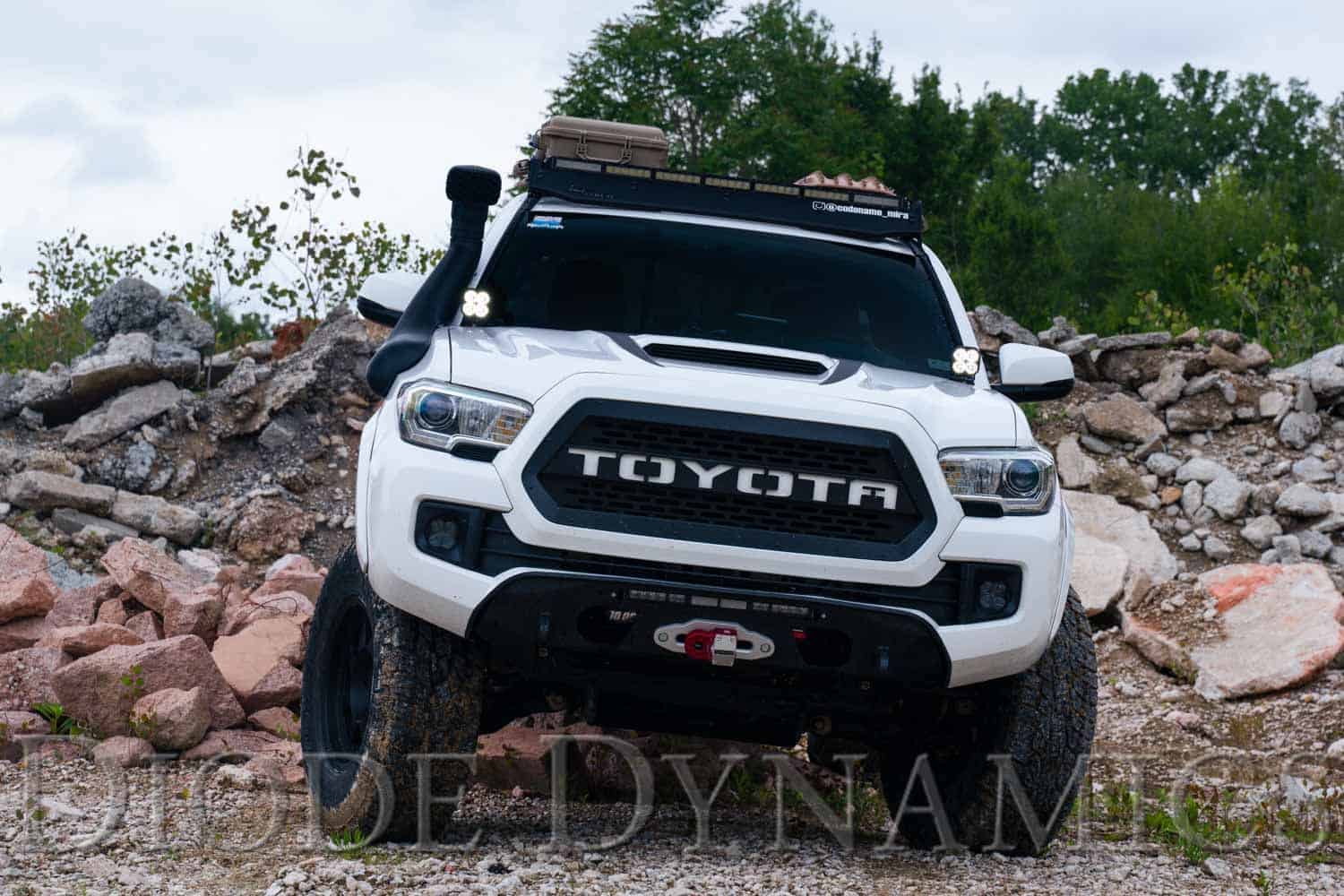

The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
