Jeep JK · 2007–2018

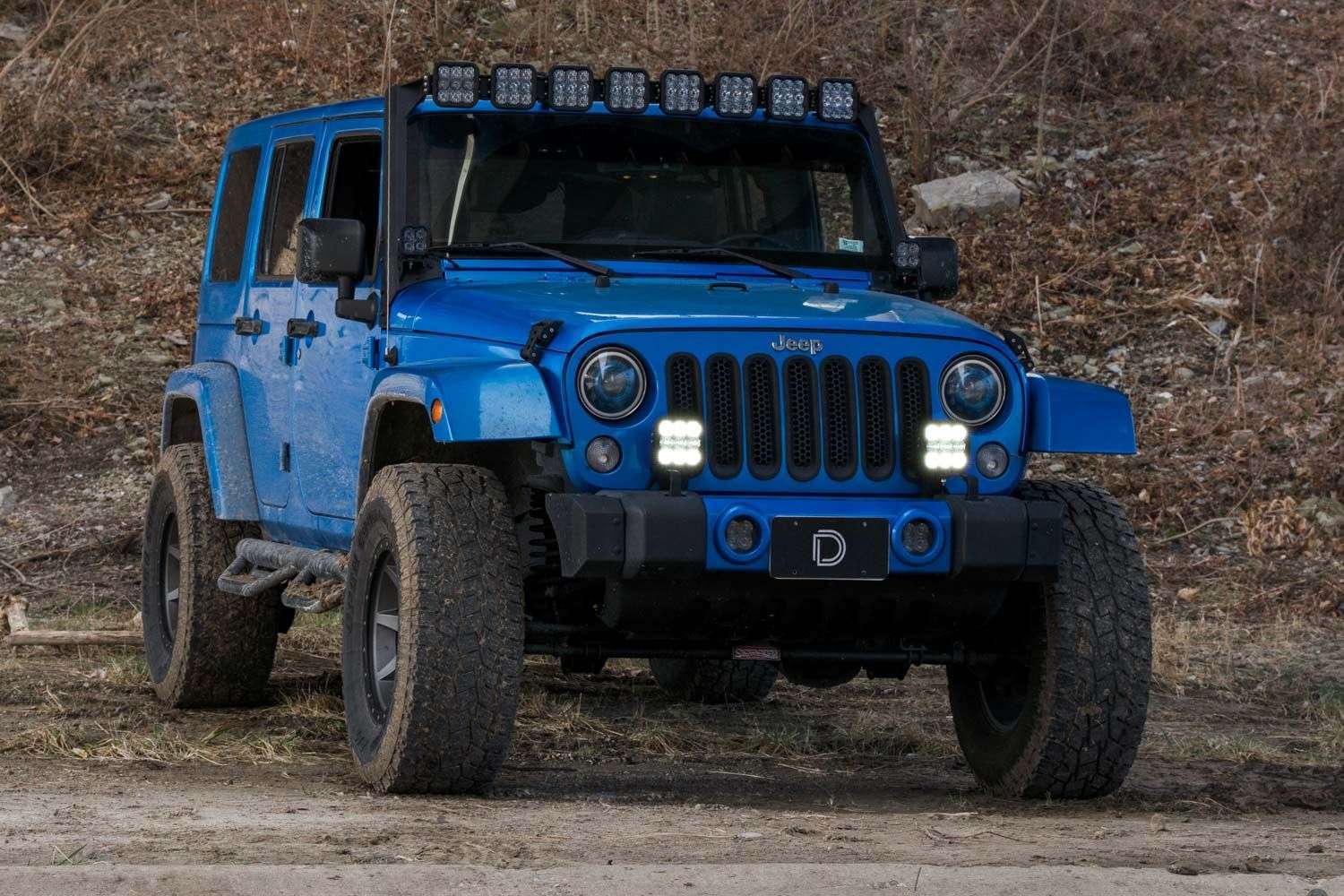

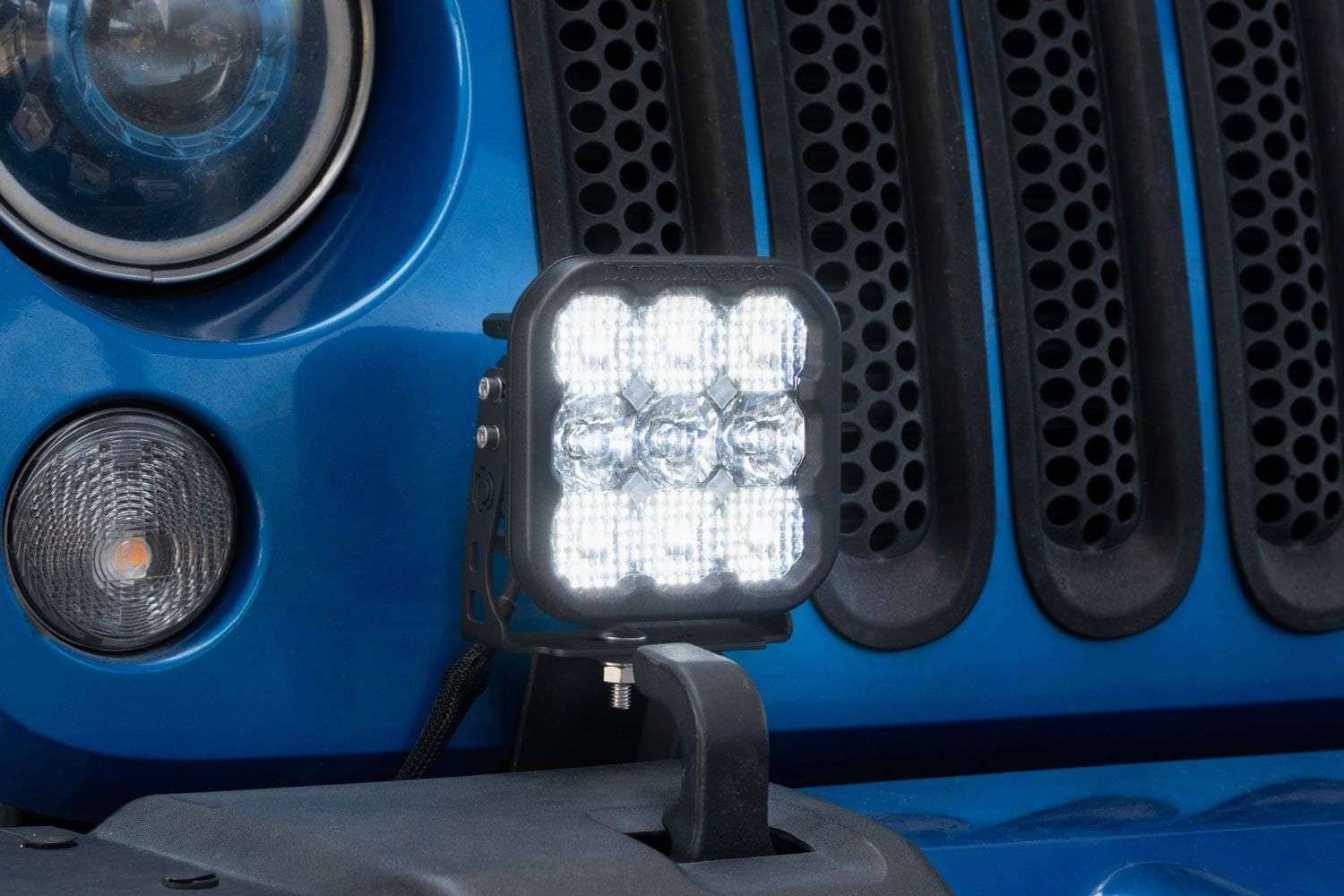

Two independent SS5 pods on the JK bumper
Choose two SS5 pods in Driving or Combo, with fixed White or Yellow output. Sport and Pro complete kits are separate from the bracket-only package.
Plan the mount before the lights
For 2007–2018 Jeep Wrangler JK. A 2018 Wrangler may be JK or JL; identify the generation before ordering. Aftermarket bumpers, body hardware and other accessories need a separate clearance and mounting check.
Installation includes drilling: the current illustrated guide enlarges existing frame-rail holes to 10 mm (25/64 inch) and sets rivnuts. Review those steps before ordering.

Complete kits and brackets are different packages
Sport uses 40 W per pod; Pro uses 90 W per pod. Driving concentrates the beam; Combo combines Driving reach with wider Flood coverage. These are auxiliary off-road lights, not replacement fog lamps.
| SKU | Power / package | Colour / beam | Contents |
|---|---|---|---|
| DD7274 | Sport | White Combo | Two pods; selected beam |
| DD7284 | Sport | Yellow Combo | Two pods; selected beam |
| DD7276 | Sport | White Driving | Two pods; selected beam |
| DD7286 | Sport | Yellow Driving | Two pods; selected beam |
| DD7275 | Pro | White Combo | Two pods; selected beam |
| DD7285 | Pro | Yellow Combo | Two pods; selected beam |
| DD7277 | Pro | White Driving | Two pods; selected beam |
| DD7287 | Pro | Yellow Driving | Two pods; selected beam |

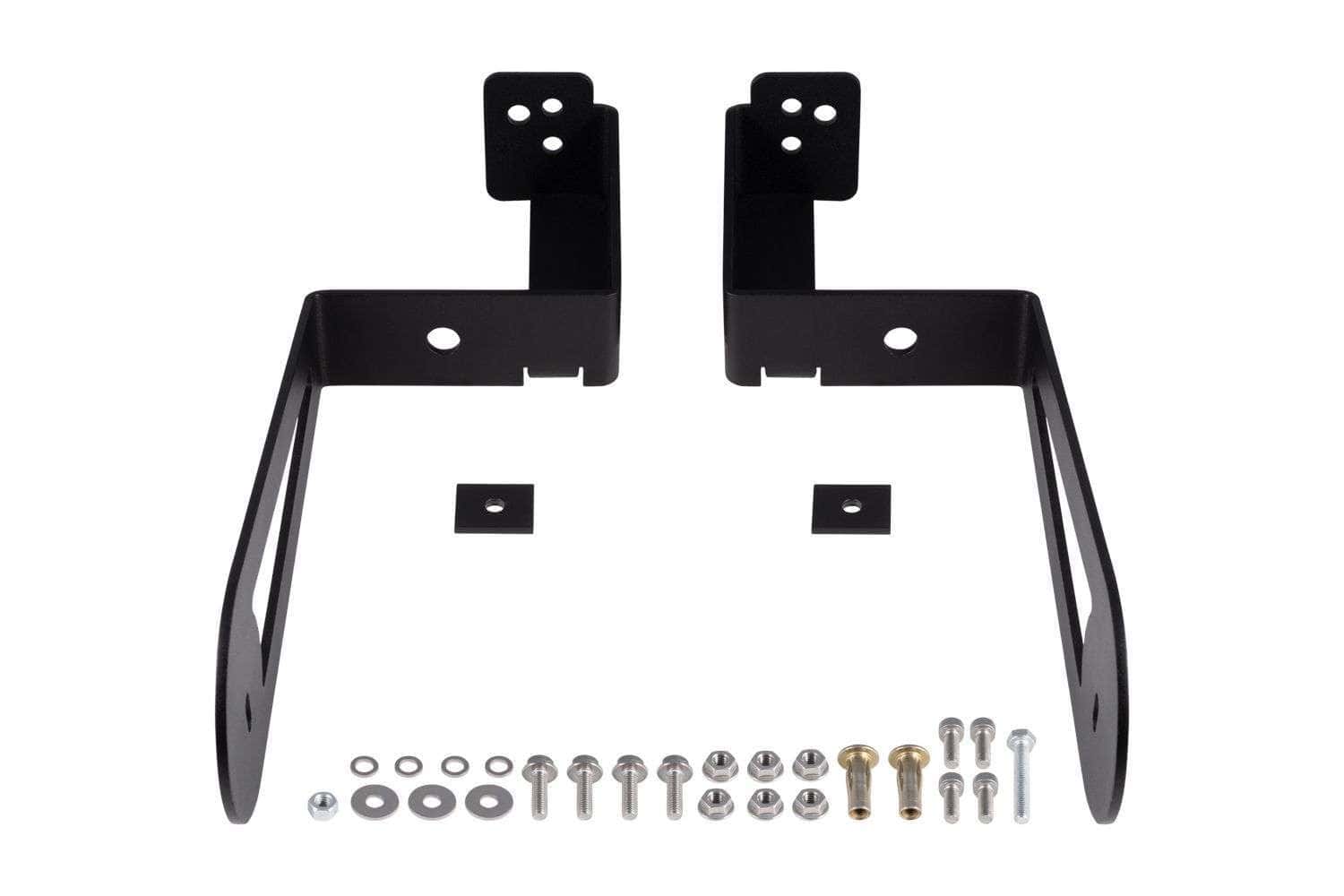

| DD7282P | Bracket Only | N/A | Brackets only; no lamps or harness |
Bracket Only means no lamps and no wiring harness. Select the N/A colour with that package. The product selector controls the actual matching configuration and price.
Main beam and backlight
White kits produce a 6000K main beam and allow eight selectable backlight colours. Yellow kits produce a 3000K main beam and Amber backlight only. Backlight colour programming does not change the main beam. Use these auxiliary lights only where permitted.

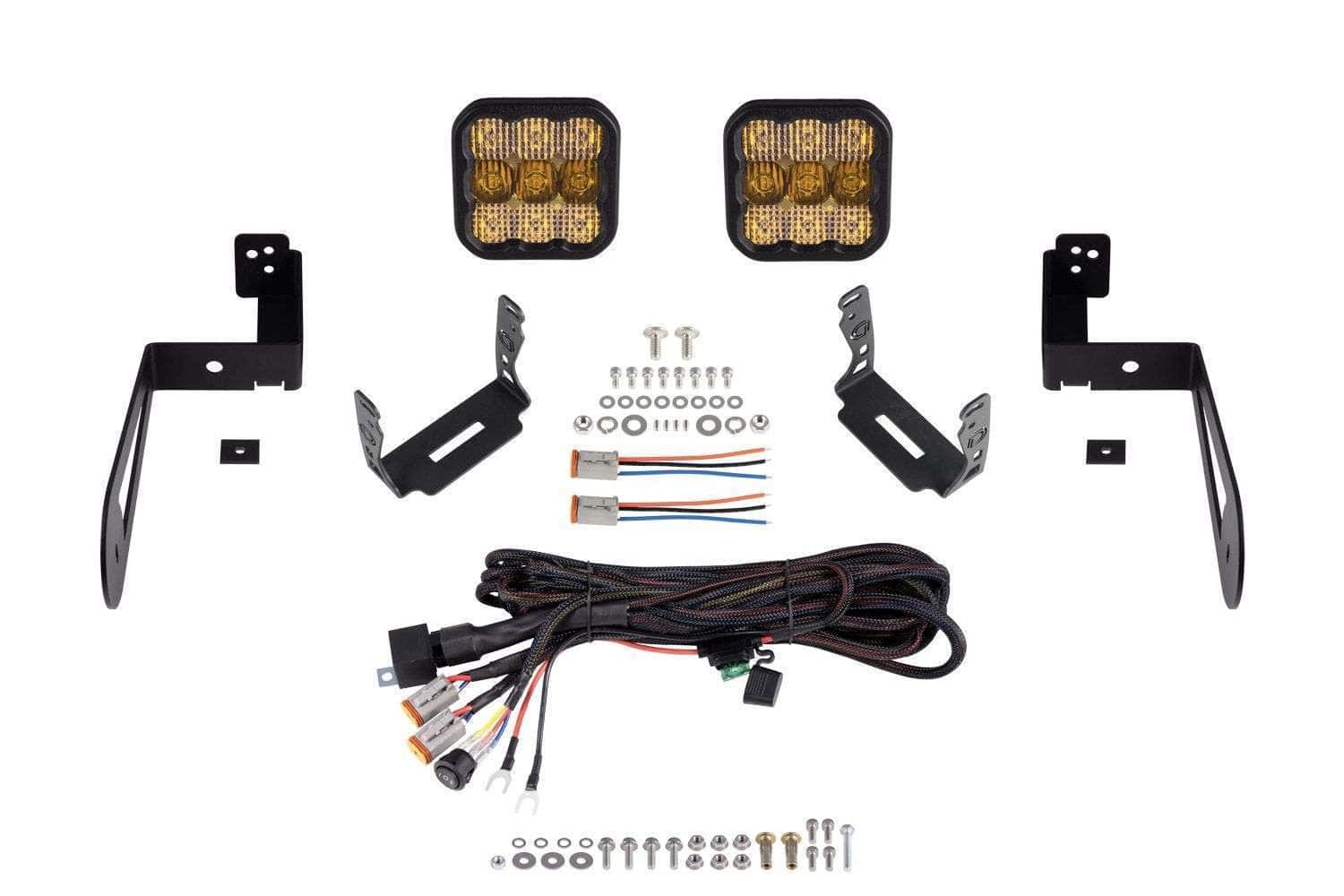

What comes with a complete kit
Complete kits contain two SS5 pods, individual pod mounts, vehicle brackets, hardware and a fused dual-output harness. There is no linked lightbar across the two pods.

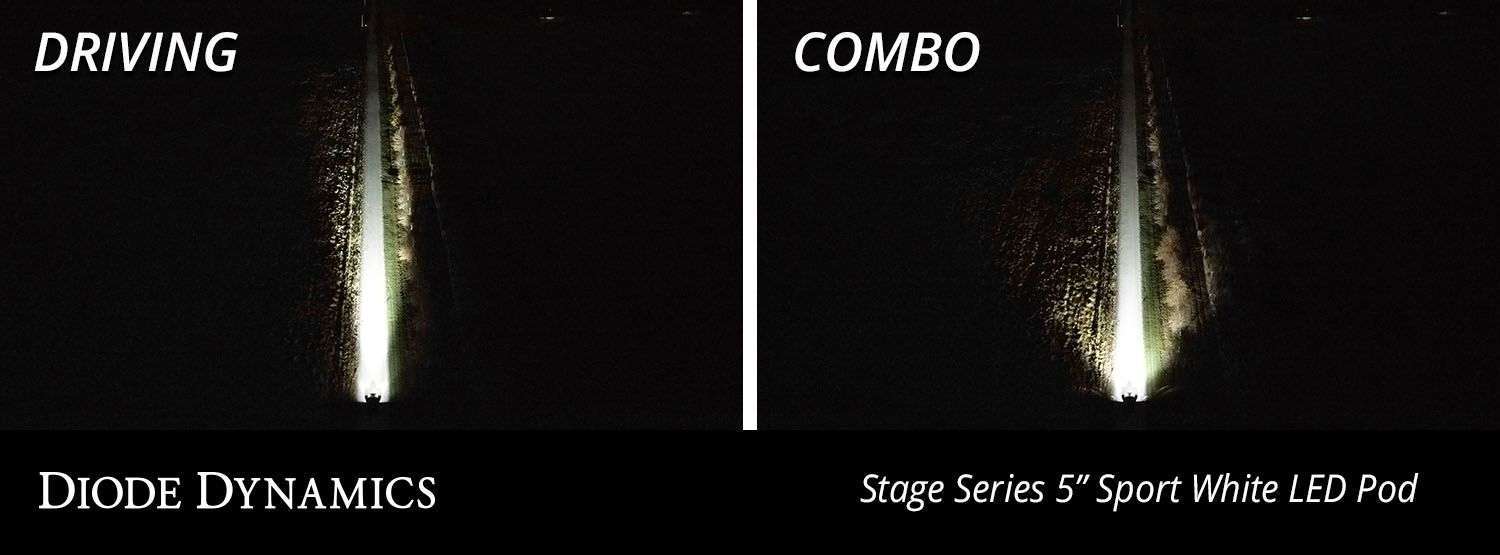

Compare the beam shapes


Illustrated mounting and wiring
Open the JK bumper and grille installation guide
For linked-bar assembly and the shared programming sequence, use the SS5 CrossLink assembly, wiring and backlight guide. Keep all supplies fused, route the harness away from heat and moving parts, and test before finishing.
Manufacturer demonstration; follow the current illustrated guide for mounting details.
Manufacturer coverage
Diode Dynamics lists a limited lifetime warranty for these Stage Series pods and eligible off-road mounting brackets. Wiring, covers and other accessories have their own terms. Commercial, industrial and fleet use is limited to eight years. Coverage is subject to the manufacturer’s conditions and original-purchaser requirements. Read the manufacturer warranty
