MORIMOTO SEALED3 · LF802.2
One compact lamp. Two beam functions.
Build around a standalone 90mm high/low-beam module when your installation needs a complete lamp without a surrounding vehicle-specific headlight shell. Check the actual mounting space, aiming hardware and wiring before choosing it.
- One lampSold individually
- 90mm formatCustom mounting verification required
- Low + highExact LF802.2 function

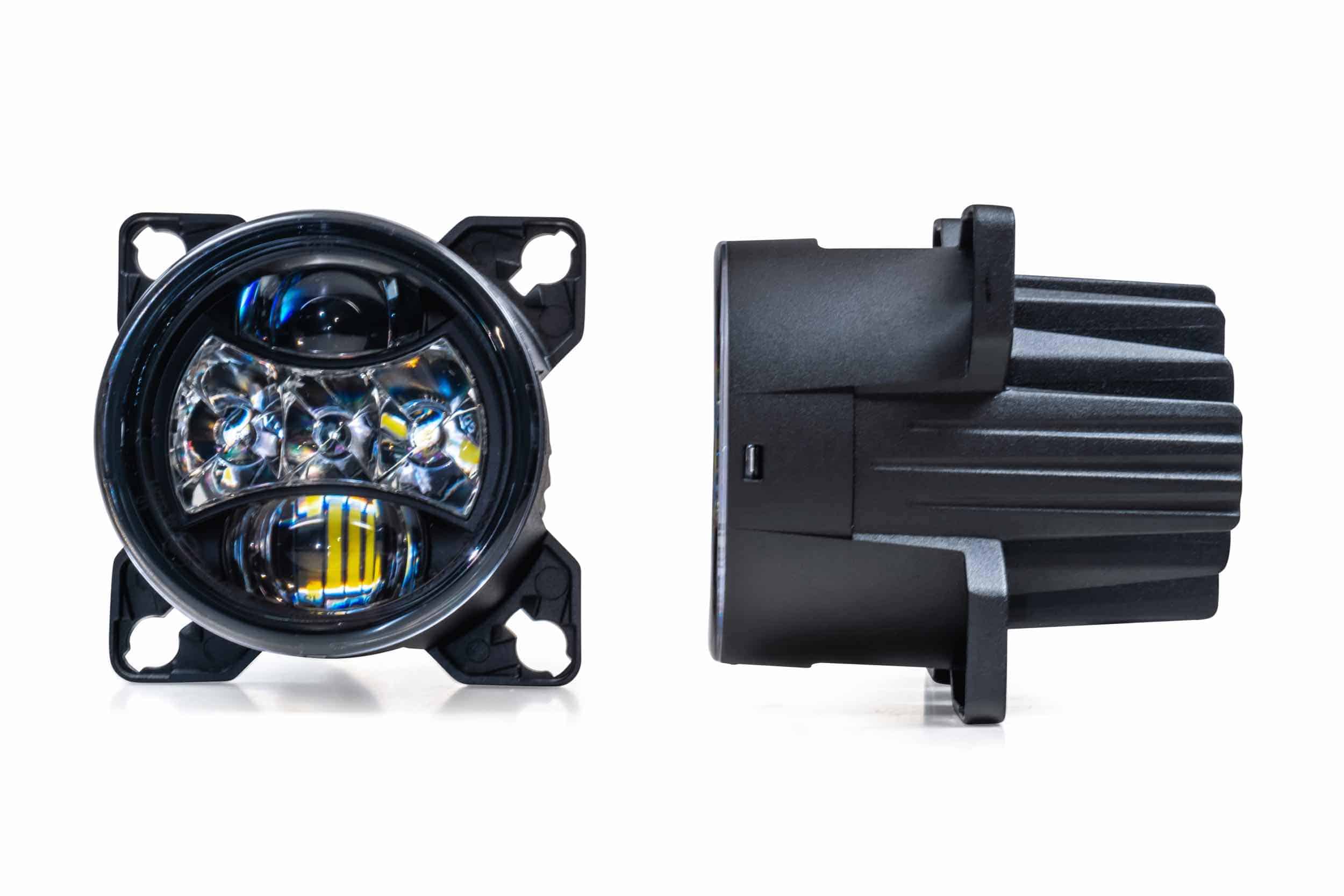

A COMPLETE STANDALONE MODULE
For a mounting system you have verified
Compact projector optics
The 90mm form factor suits a planned custom or compatible mounting installation. A vehicle category alone does not prove direct fit.
A sealed housing
Die-cast aluminum and a polycarbonate lens provide the lamp structure. The manufacturer lists IP67 moisture resistance.
Aiming is part of the build
The listed vertical/lateral adjusters support an adjustable installation. You must provide a compatible mounting arrangement on the vehicle.

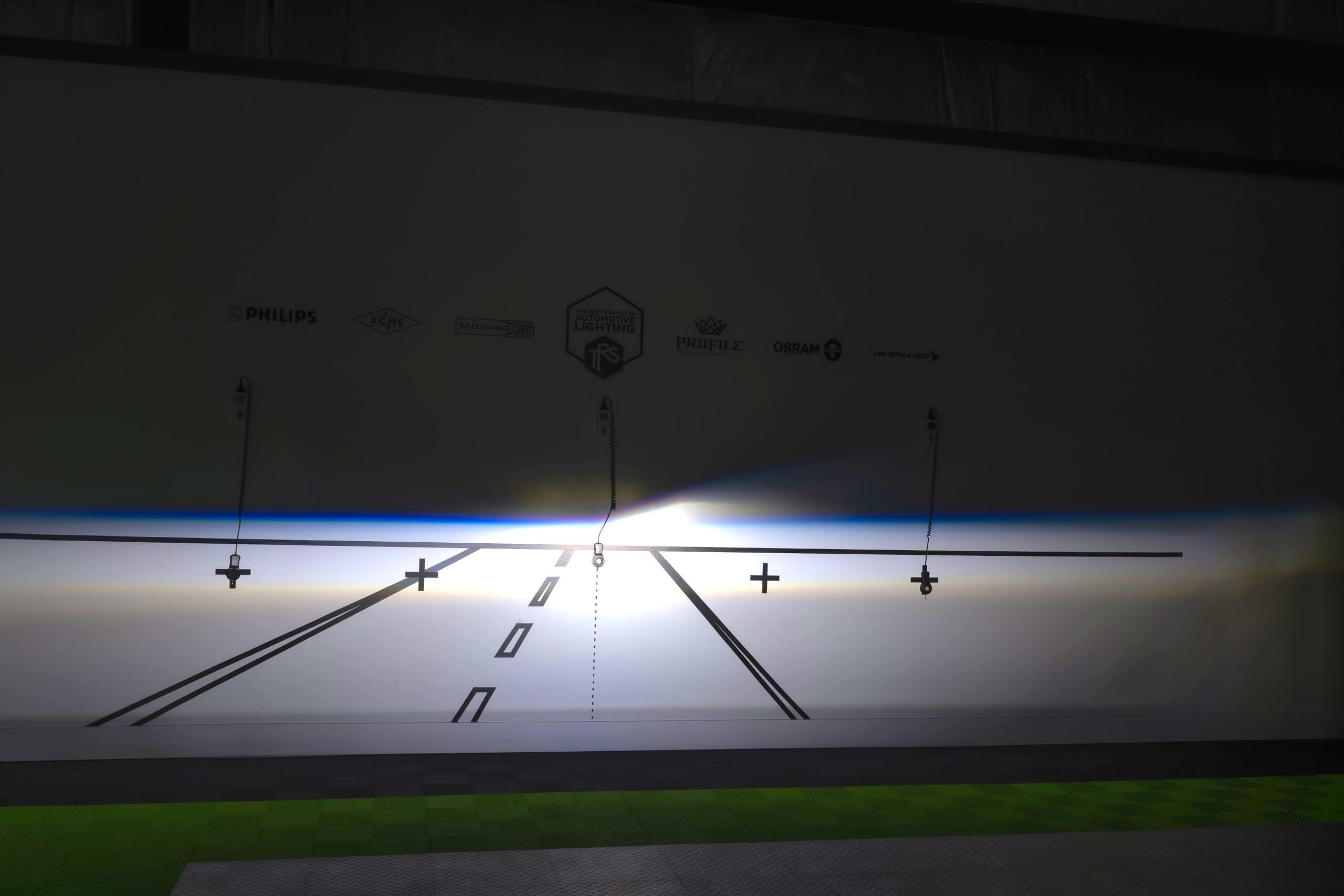

DIFFERENT OPTICS, DIFFERENT JOBS
Choose the beam function first
| Exact product | Function | Quantity |
|---|---|---|
| LF800 | Dedicated low beam | One lamp |
| LF802.2 | Combined low and high beam | One lamp |
MEASURE BEFORE ORDERING
Mounting, connectors and adjustment

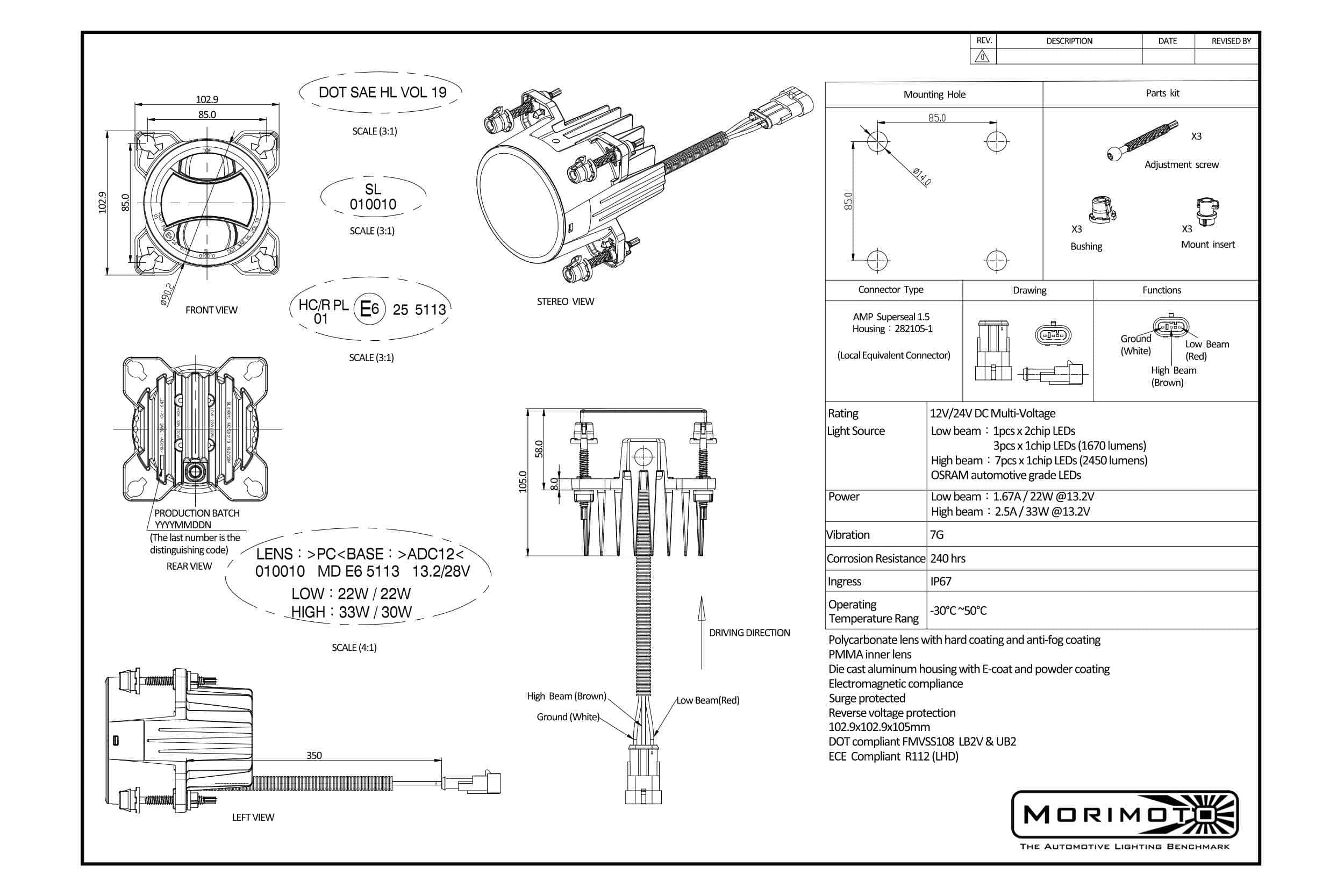

Use the correct drawing
Compare the LF802.2 outline, mounting points, rear clearance and connector arrangement with the intended installation. The 90mm format is not a promise of a universal bolt-in fit.
- Verify a secure mounting structure with adequate adjustment travel.
- Check the rear housing and wiring clearance.
- Match the supply, connector and beam-control wiring to the exact module.
- Check lamp operation and set the beam aim after installation.
The combined version uses a three-wire AMP input for its low/high functions; verify the actual connector and wiring assignment before connection.
ONE ORDER, ONE LAMP
Package contents
- Headlight: 1x Sealed3 90mm LED Headlight
- Adjusters: 2x Vertical/Lateral Adjusters
The exact package list specifies two vertical/lateral adjusters. A mounting shell, vehicle bracket kit and a second lamp are not listed. Order the number of lamps your verified installation requires.
THIS MODULE, NOT THE WHOLE FAMILY
Technical details
| Detail | LF802.2 |
|---|---|
| Beam function | Low + high |
| Quantity | One lamp |
| Input range | 12–24 V DC |
| Housing / lens | Aluminum / polycarbonate |
| Ingress rating | IP67 |
| Traffic pattern | LHD |
| Adjustment | Listed vertical/lateral adjusters |
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
The Retrofit Source overview of the Sealed3 family for custom installations. Other beam versions in the video are separate products; this page supplies one high/low-beam LF802.2 lamp.
The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
BEFORE YOU BUILD
Sealed3 questions
Does one order contain two headlights?
No. This SKU supplies one 90mm lamp with the listed adjusters. Family comparison photos show different products, not the contents of a single order.
Will it fit my vehicle just because it uses a 90mm lamp?
Not necessarily. Compare mounting points, rear clearance, connectors, beam function and aiming provisions with the exact drawing.
Does LF802.2 include high beam?
Yes. LF802.2 combines low and high beam in one module.
Are vehicle brackets or a surrounding headlight shell included?
They are not listed. This standalone module requires a compatible mounting system.

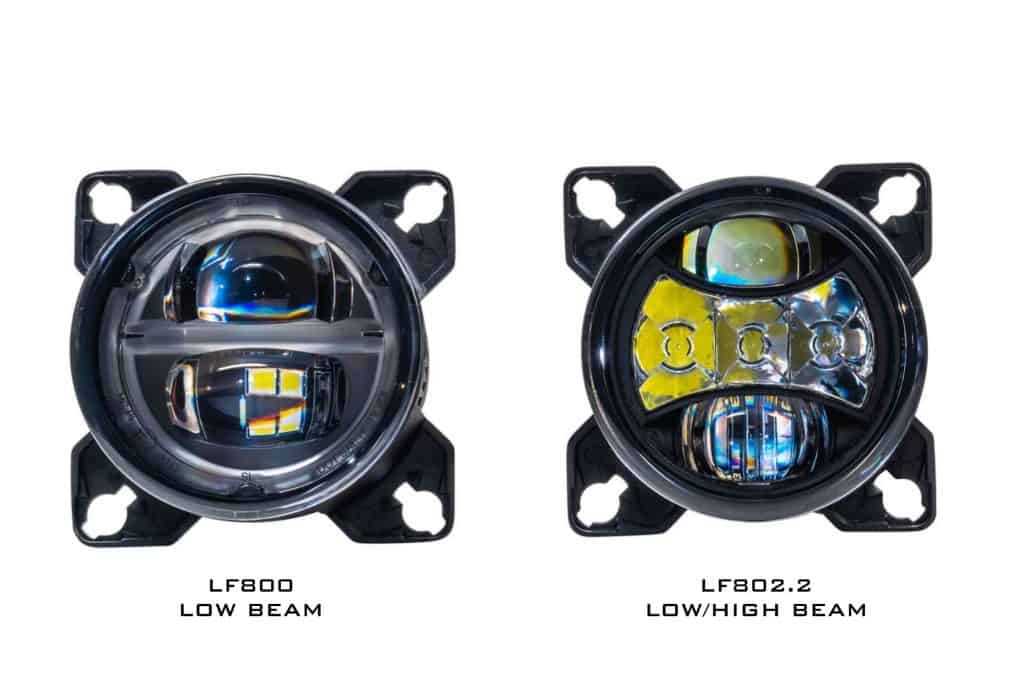

Why are other Sealed3 lamps shown?
The labelled family comparison helps distinguish low-only and combined high/low versions. Each is a separate single-lamp product.
Can I install it without aiming?
No. Secure mounting and correct beam aim are essential parts of the installation.
