DIODE DYNAMICS · 2022–2025 TOYOTA RAV4
A focused Elite upgrade for the factory fog position.
A matched left/right pair of Elite lamps and RAV4 bezels, with the adapters needed to replace existing factory fog lights. Choose fixed White, fixed Yellow or a Dual Color version with selectable White and Yellow.
- TWO ELITE LAMPSMatched left/right pair
- THREE CHOICESWhite · Yellow · Dual Color
- REPLACEMENTFactory fogs required
- AMBER ACCENTSeparate backlight function
PURPOSEFUL LIGHTING
A kit built around the job
A defined fog beam
Elite optics put a wide fog beam low on the road with a controlled upper edge. Aim the lamps after installation and follow applicable road-use requirements.
Choose fixed or selectable colour
Single-colour White and Yellow versions stay the chosen colour. The separate Dual Color SKU lets you choose White or Yellow through its power-cycle controls; it is not two simultaneously operating main beams.
The correct wiring package
This replacement kit includes DD4211 factory-fog adapters/backlight wires. The complete add-on harness belongs to the separate no-factory-fog kit.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2022–2025 Toyota RAV4 with existing factory fog lights. |
| Excluded trims | TRD Off-Road and Adventure. |
| Lamp mounting | Type B left/right Elite lamps with RAV4 bezels. |
| Vehicle equipment | Existing factory fog wiring is required for the supplied main-beam adapters. |
| Wiring package | Two DD4211 DJ70-to-DT 4-pin adapter/backlight wires; no DD4110 add-on harness. |
MATCH THE SKU TO YOUR SELECTION
Choose White, Yellow or Dual Color
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD8825 | Elite | Cool White (6000K) | SAE Fog |
| DD8826 | Elite | Yellow (3000K) | SAE Fog |
| DD9007 | Elite | Dual Color (6000K White / 3000K Yellow) | SAE Fog |
White is 6000K and Yellow is 3000K. Dual Color selects either main-beam colour using the kit’s fog-light control. With the fog-light circuit powered as directed, turn the fog lights on and off three times, keeping each on or off state between half a second and five seconds. The lamps cycle through the available colours twice. Leave them on for at least five seconds when your preferred colour is displayed to save it. If you make no selection after two cycles, they return to White. Amber backlighting is separate and switches off while the main fog beam is active. The Dual Color option uses a representative White-kit photograph; the selected SKU identifies the lamps supplied.

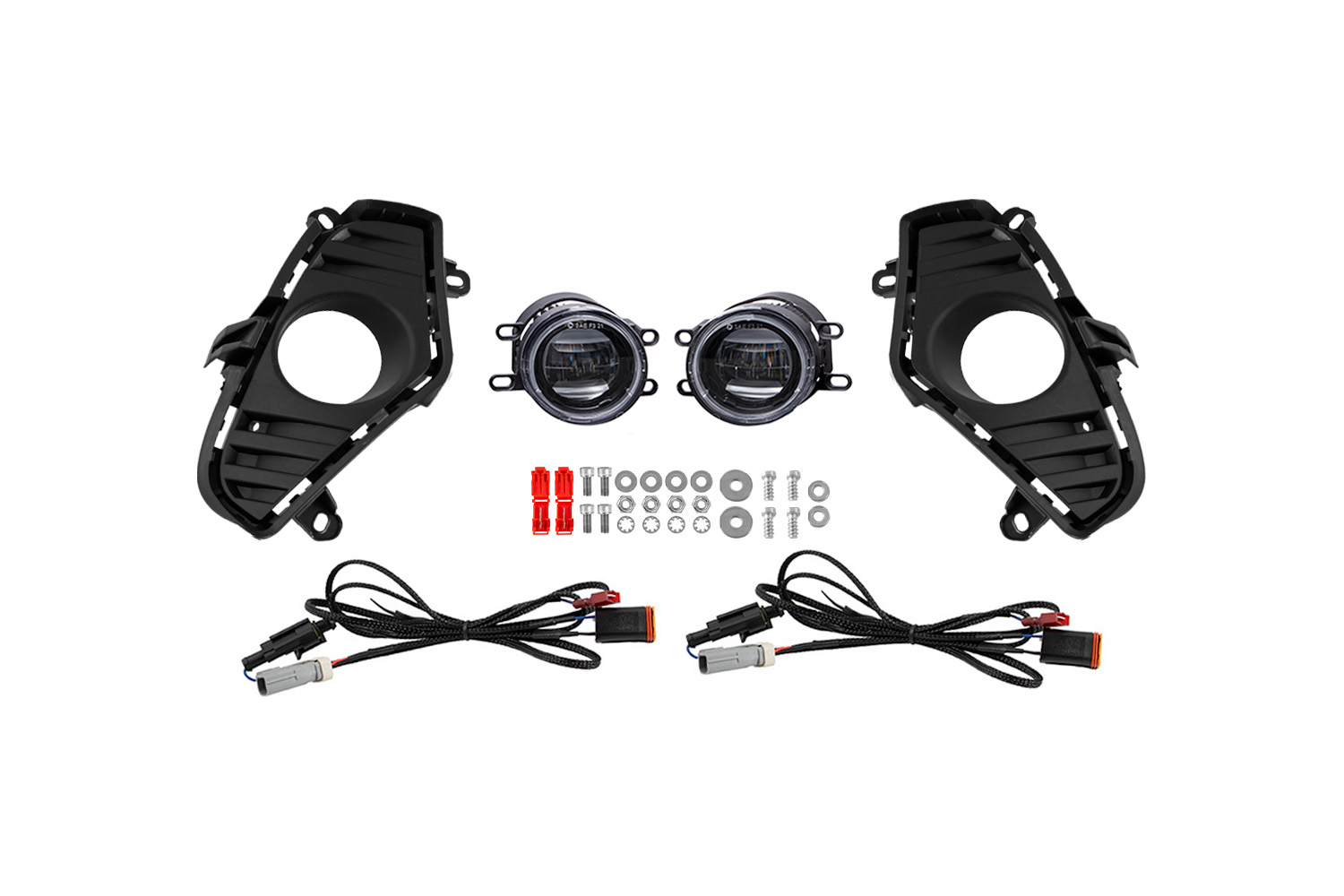

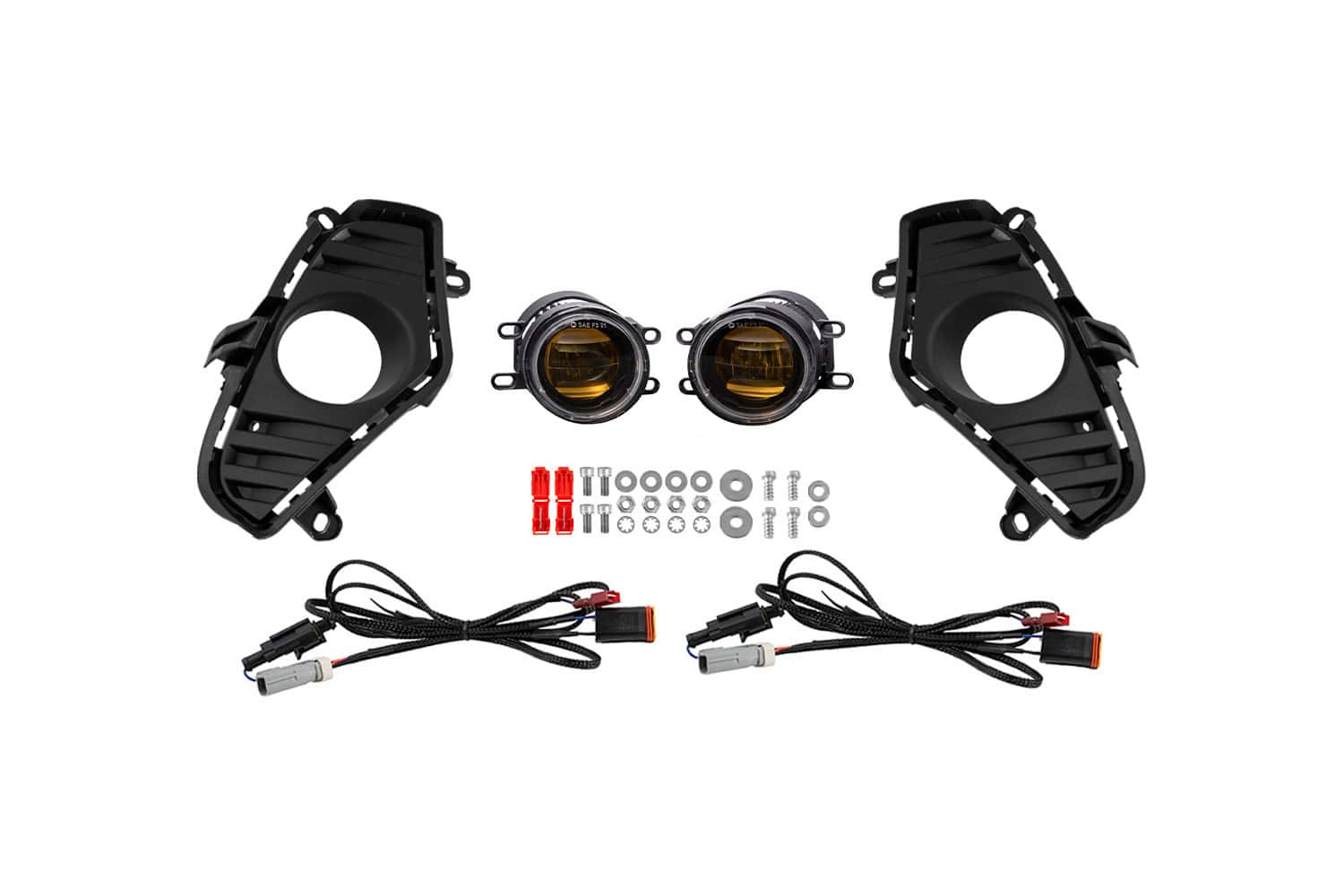

WHAT THE KIT SUPPLIES
The parts belong together
- Two Type B Elite fog lamps, one left and one right, in the selected colour configuration
- Two DD8816 RAV4 bezels
- Two DD4211 DJ70-to-DT 4-pin adapter/backlight wires
- Two T-tap connectors
- Mounting hardware and installation guide
This is one complete pair, not all three colour choices together. Match the vehicle’s original equipment before ordering: add-on and replacement kits have different wiring. Other vehicle accessories shown are separate.
MOUNT · WIRE · AIM
Plan the installation before you begin
Remove the required bumper-cover and fender fasteners to access the original lamps and bezels. Install the Elite pair and new bezels, connect the factory-fog adapters and optional Amber-backlight taps, then reassemble the trim and aim the lamps.
Follow the illustrated replacement-fog guide
The shared manufacturer RAV4 overview covers both add-on and replacement kits. Use the factory-fog replacement procedure and this listing’s 2022–2025 fitment boundary. For Dual Color control sequences, follow the current included instructions rather than assuming an older video covers the new control mode.
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Kit quantity | Two Elite lamps with the mounting and wiring parts listed above. |
| Main beam | White 6000K; Yellow 3000K; Dual Color selects either. |
| Backlight | Amber; 0.3 W / 14 lm per lamp. Off while main fog beam is active. |
| Operating voltage | 9–16 V DC. |
| Nominal beam | 80° × 6° fog pattern. |
| Lamp intrusion rating | IP68; preserve sealed connections. |
| Connector | Deutsch DT-style. |
| Road-use qualification | Manufacturer SAE J583 / F3 fog specification; proper installation, aiming and local rules apply. |
| Warranty | 8-year limited manufacturer coverage for the Elite lamps. Wiring and accessories have separate terms. |
Output by option
| Main-beam configuration | Power per lamp | Measured / raw lumens per lamp | Peak intensity per lamp |
|---|---|---|---|
| Fixed White | 17 W | 680 / 1,850 lm | 10,200 cd |
| Fixed Yellow | 15 W | 560 / 1,650 lm | 8,700 cd |
| Dual Color — White mode | 13.2 W | 590 / 1,500 lm | 12,900 cd |
| Dual Color — Yellow mode | 13.5 W | 400 / 1,250 lm | 9,200 cd |
Warranty by exact kit SKU
| SKU | Option | Manufacturer warranty |
|---|---|---|
| DD8825 | Cool White (6000K) | 8-year limited manufacturer warranty; coverage and exclusions follow the manufacturer policy. |
| DD8826 | Yellow (3000K) | 8-year limited manufacturer warranty; coverage and exclusions follow the manufacturer policy. |
| DD9007 | Dual Color (6000K White / 3000K Yellow) | 8-year limited manufacturer warranty; coverage and exclusions follow the manufacturer policy. |
See the manufacturer warranty policy for eligibility, exclusions and claim instructions.

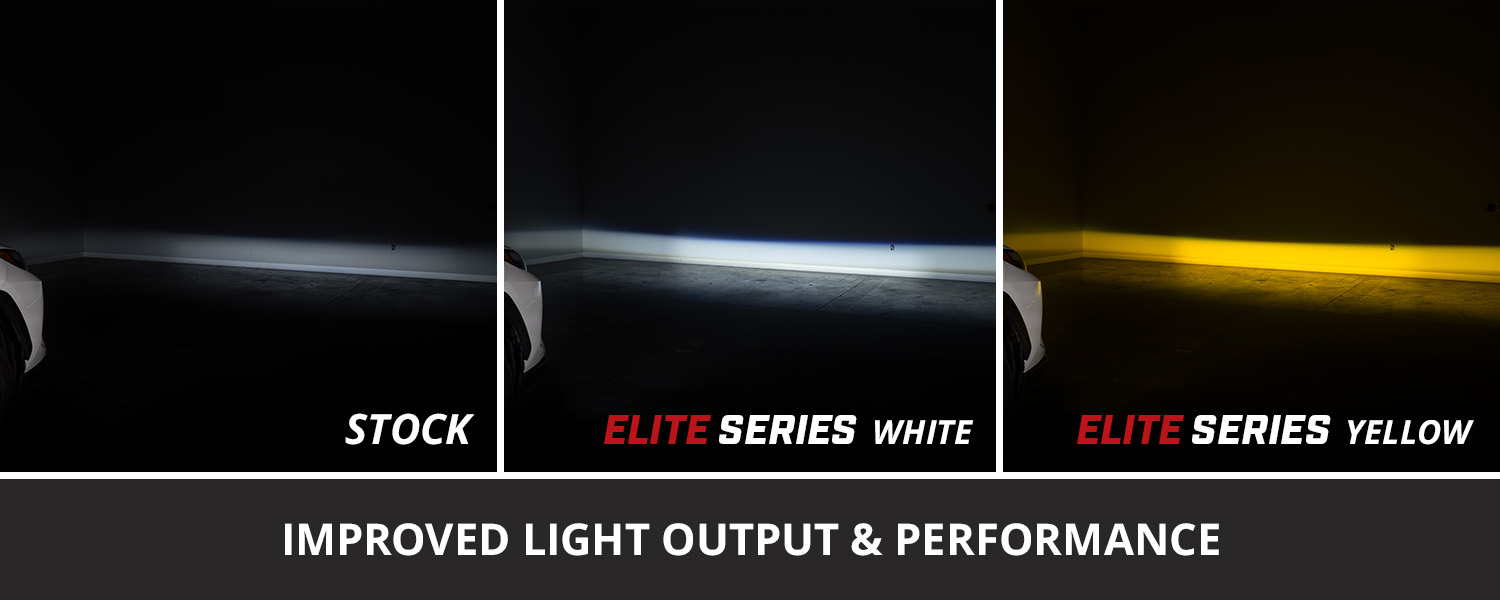

MANUFACTURER OUTPUT PHOTOGRAPHY
See the beam’s purpose
Compare the manufacturer’s beam photographs and choose the light for your route.
Manufacturer figures are per lamp, not per pair. Raw LED lumens and measured lamp lumens are different quantities. Candela measures peak intensity; lux values shown are at 10 metres. Beam photographs are illustrative rather than a controlled comparison of your vehicle or every available tier.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
No Fogs? No Problem. NEW 2019+ Toyota RAV4 Fog Kits | Diode Dynamics
RAV4 family overview covers add-on and replacement kits. This page supplies only the stated kit; follow its factory-fog requirement and the written installation instructions.
Diode Dynamics fog-light aiming
General fog-light aiming demonstration; follow the kit instructions and local aiming requirements.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General output terminology; not an exact-kit performance test.
CLEAR ANSWERS
Before you order
Which package should I choose?
Choose this replacement kit only if the vehicle already has factory fog lights. A no-fog vehicle needs the separate add-on kit and its complete harness.
Can the fixed White or Yellow version change colour?
No. Select the Dual Color SKU if you want selectable White and Yellow main-beam modes. The Amber accent is a separate function on the lamps.
Does the Amber backlight stay on with the fog beam?
No. The Elite backlight switches off while the main fog beam is on.
Is the complete add-on harness included?
No. This kit has factory-fog adapters and backlight tap wires. The DD4110 complete add-on harness comes with the separate no-factory-fog package.
What warranty applies?
All three Elite choices have an 8-year limited manufacturer warranty. Wiring and accessories have separate terms. Proof of purchase, eligibility, exclusions and the manufacturer’s claim requirements apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.

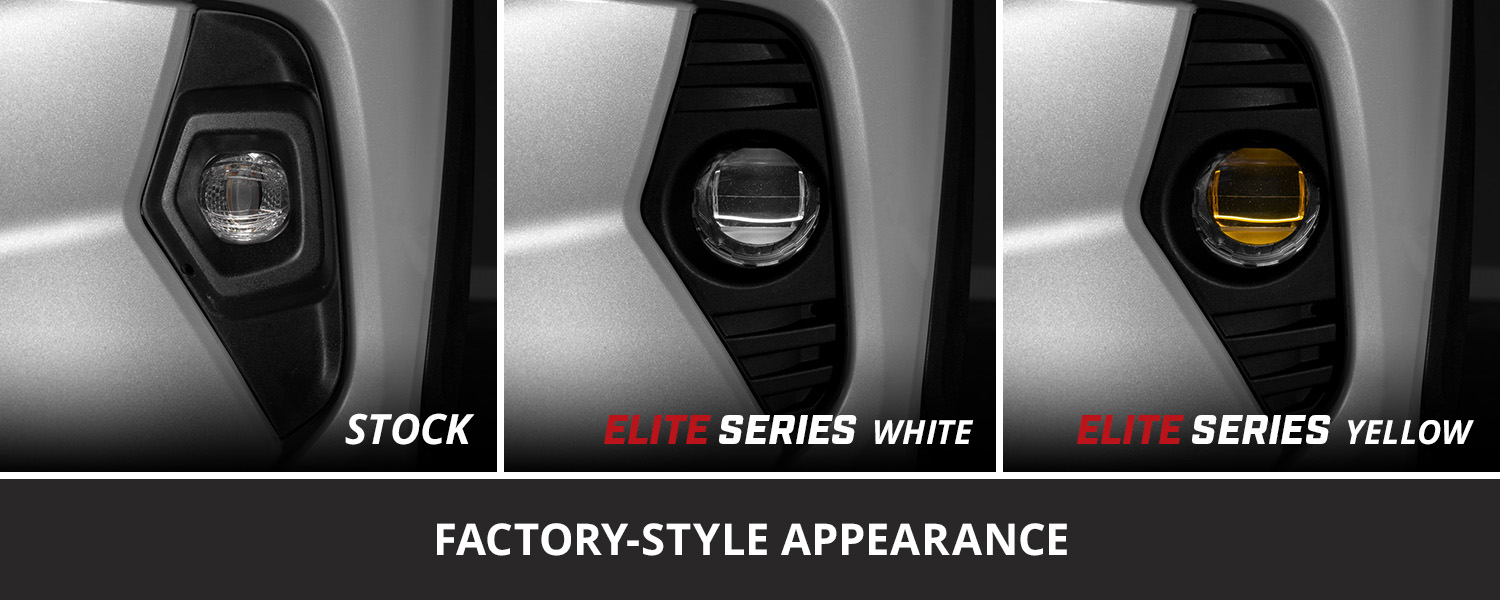

THE DETAILS MATTER
A closer look at the selected hardware
