Diode Dynamics H8/H9/H11 SL2 Pro LED Bulbs – 2400 Lumens of Focused Power with Next-Gen TST LED Technology
Elevate your vehicle’s lighting performance with the Diode Dynamics H8/H9/H11 SL2 Pro LED Bulbs, engineered with industry-leading 2400 lumens per bulb and Thermal Separation Technology (TST) for unmatched thermal efficiency. With a fully integrated, wire-free design and an internal cooling fan, these bulbs are a premium plug-and-play upgrade for those demanding maximum output, precision beam control, and long-term reliability.
Key Features:
✔ Unmatched 2400-Lumen Brightness
-
Delivers 2400 real, measured lumens per bulb—far brighter than halogen.
-

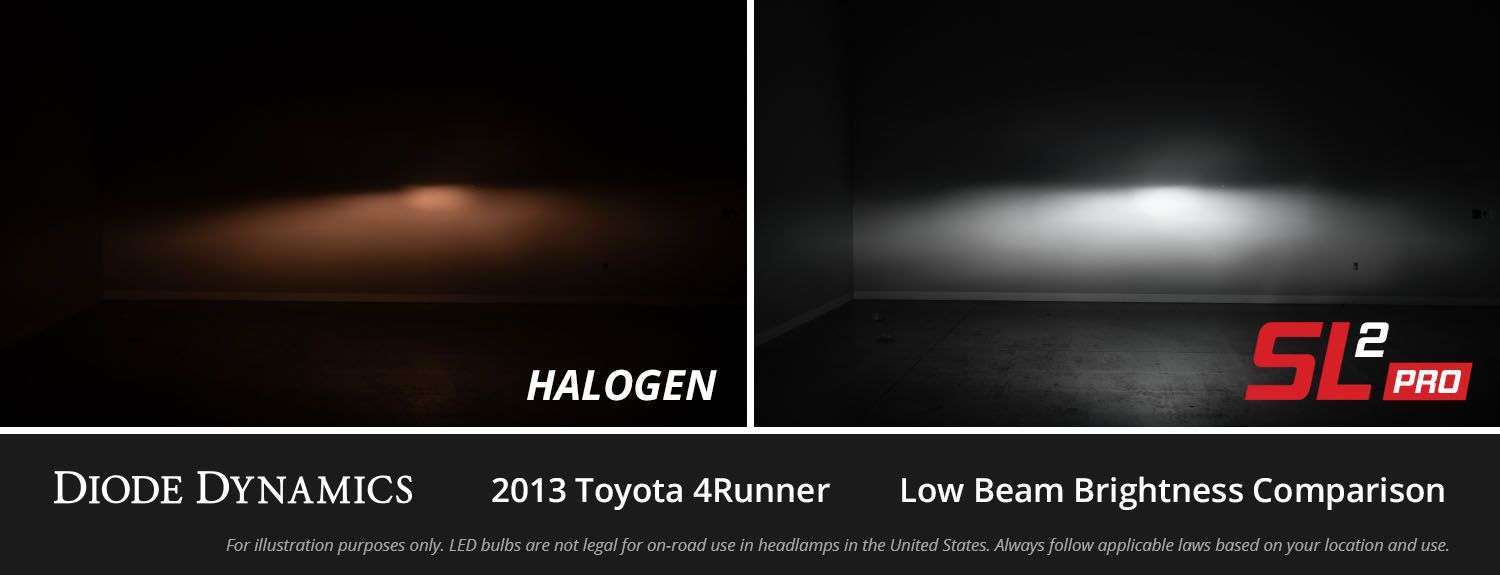

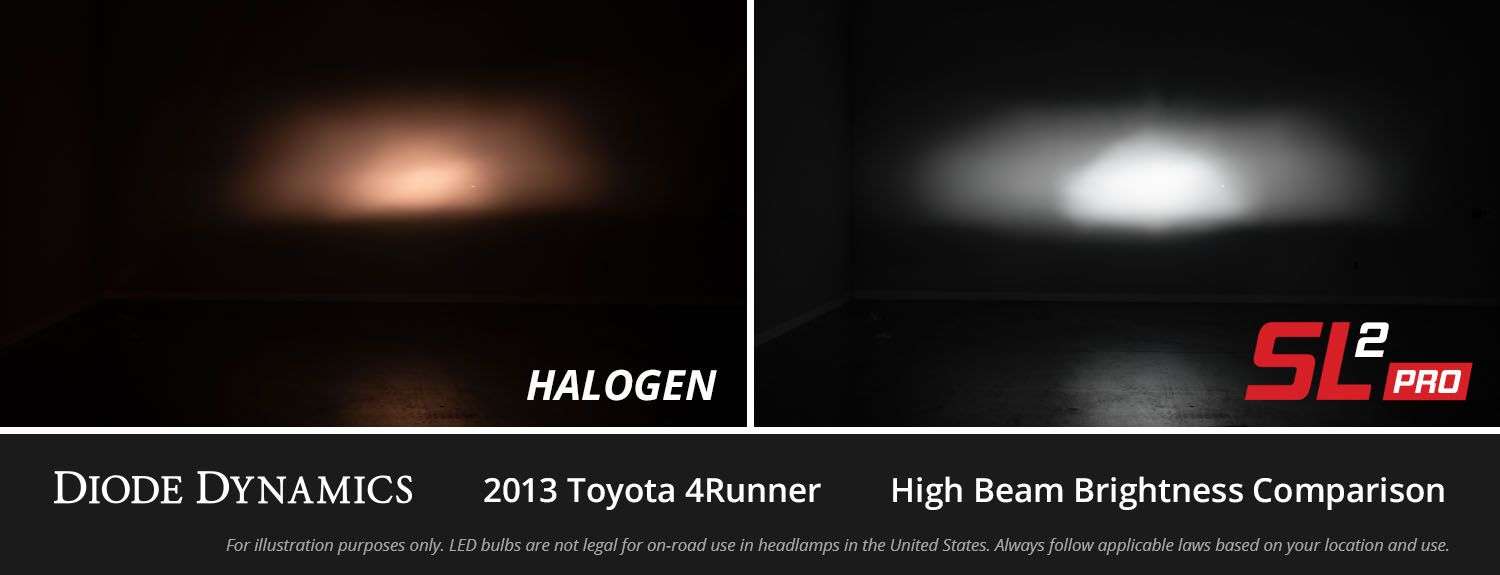

Maintains your factory beam pattern for optimal focus, distance, and minimal glare.
✔ Next-Gen Thermal Separation Technology (TST)
-
TST design channels heat away directly from the LED core, allowing higher sustained output.
-
Operates efficiently at higher power without sacrificing optical focus or LED lifespan.
✔ Fully Integrated, Compact Design
-
No external drivers or messy wiring—everything is built into the bulb housing.
-
Adjustable collar ensures correct alignment in angled or tight-fit H9 housings.

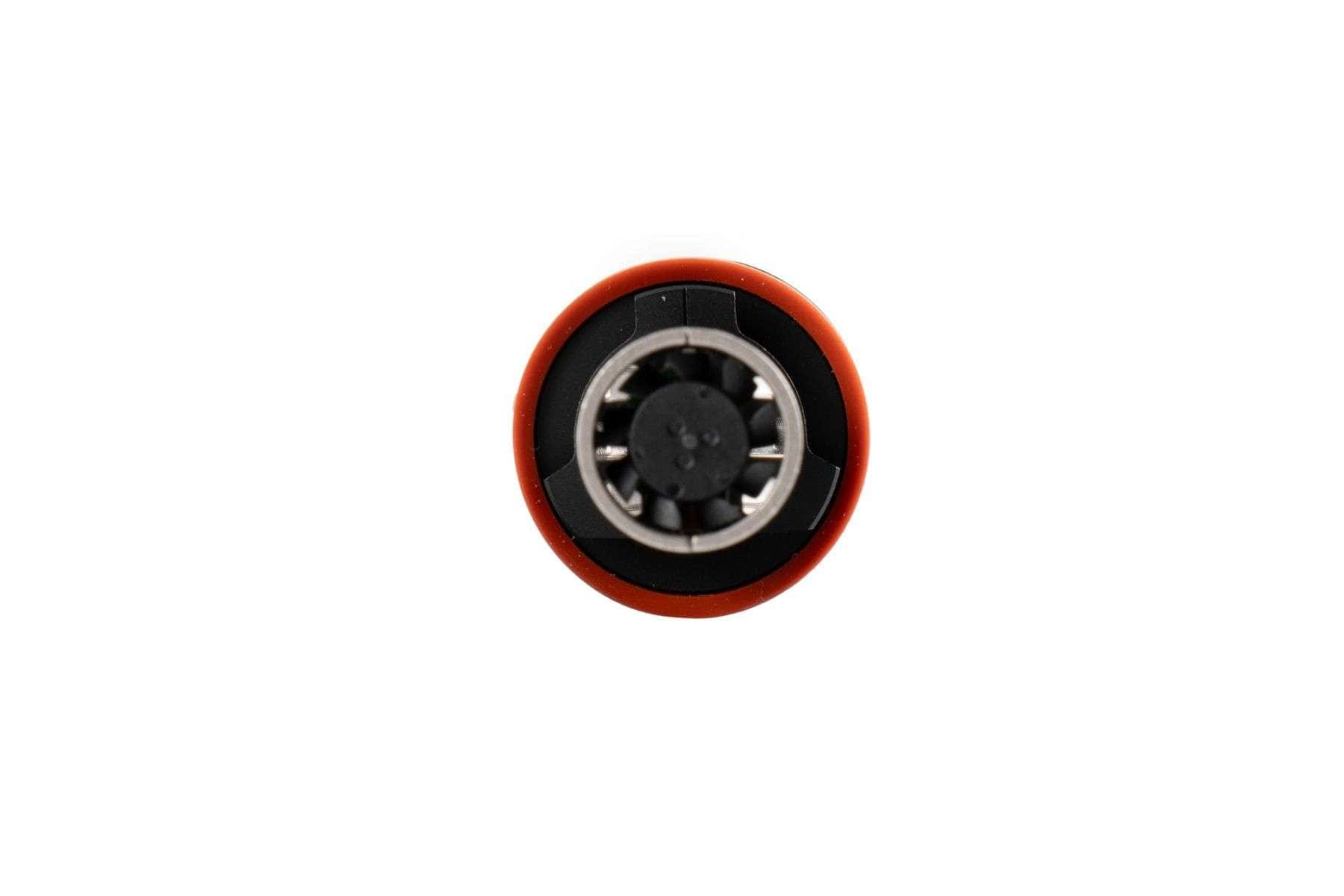

✔ Top-Mounted Internal Cooling Fan
-
Keeps the LEDs cool with direct, sealed internal cooling, preventing overheating.
-
Fan is fully protected against dust and moisture for consistent, quiet performance.
✔ Reliable, Road-Ready Construction
-
Made from die-cast A360 aluminum with a copper-core PCB for superior heat management.
-
Survives temperatures from -40°F to 185°F, voltage spikes, and environmental stress testing.
-
SAE J575 certified durability.
✔ Plug-and-Play for H8/H9/H11 Sockets
-
Direct-fit replacement for halogen H8/H9/H11 headlight or fog light bulbs (not compatible with OEM HID systems).
-

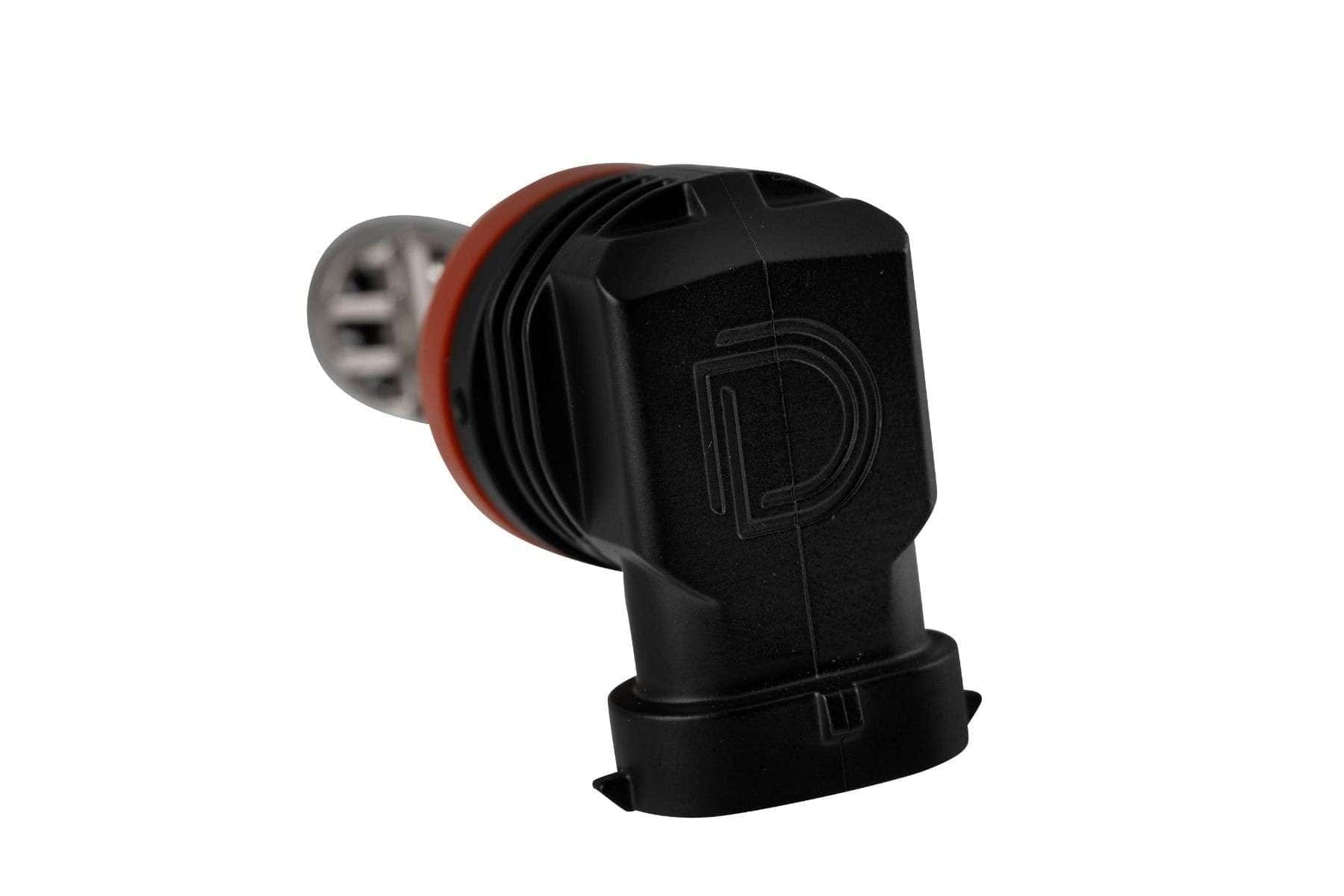

Polarity-specific OEM connectors ensure easy installation with no flickering or errors.
-
DRL Compatible – operates at full brightness in daytime running light mode.
✔ USA Engineered & Lifetime Warranty
-
Designed, tested, and assembled in the USA using cutting-edge LED tech.
-
Backed by a Limited Lifetime Warranty and a 30-Day Satisfaction Guarantee.
Specifications:
-
Bulb Size: H8/H9/H11
-
Lumens: 2400 (measured per bulb)
-
Color Temp: 6000K Cool White
-
Power Draw: 22W
-
Voltage Range: 9–30V
-
Current Draw: 1.7A @ 12.8V
-
Polarity: Polarity-specific
-
Cooling: Integrated, Top-Mounted Fan
-
LED Type: Automotive-Grade TST LEDs
-
Materials: Copper PCB, Die-Cast A360 Aluminum
-
Driver Type: Internal, Constant Current, Transient Protection
-
Compliance: SAE J575 Durability Rated
-
DRL Function: Yes – Operates at full brightness
-
Quantity: Pair (2 Bulbs) + Hex Tool
-
Warranty: Limited Lifetime Warranty
Important Fitment Note:
These bulbs are a direct replacement for halogen H9 bulbs only. They are not compatible with OEM HID systems. For fog or headlight use in halogen-equipped vehicles only. Always check local regulations for LED use.
