Diode Dynamics H8/H9/H11 SL2 LED Bulbs – 1400 Lumen Output with Compact, Fanless Design
Upgrade your vehicle’s fog lights or DRLs with the Diode Dynamics H8/H9/H11 SL2 LED Bulbs, engineered for superior brightness, focus, and long-term reliability. With 1400 lumens of measured output, precise beam control, and a compact, fully-integrated fanless design, the SL2 offers a true performance boost over stock halogen bulbs—available in 6000K Cool White or 3000K Selective Yellow.
Key Features:
✔ True 1400-Lumen Output
-

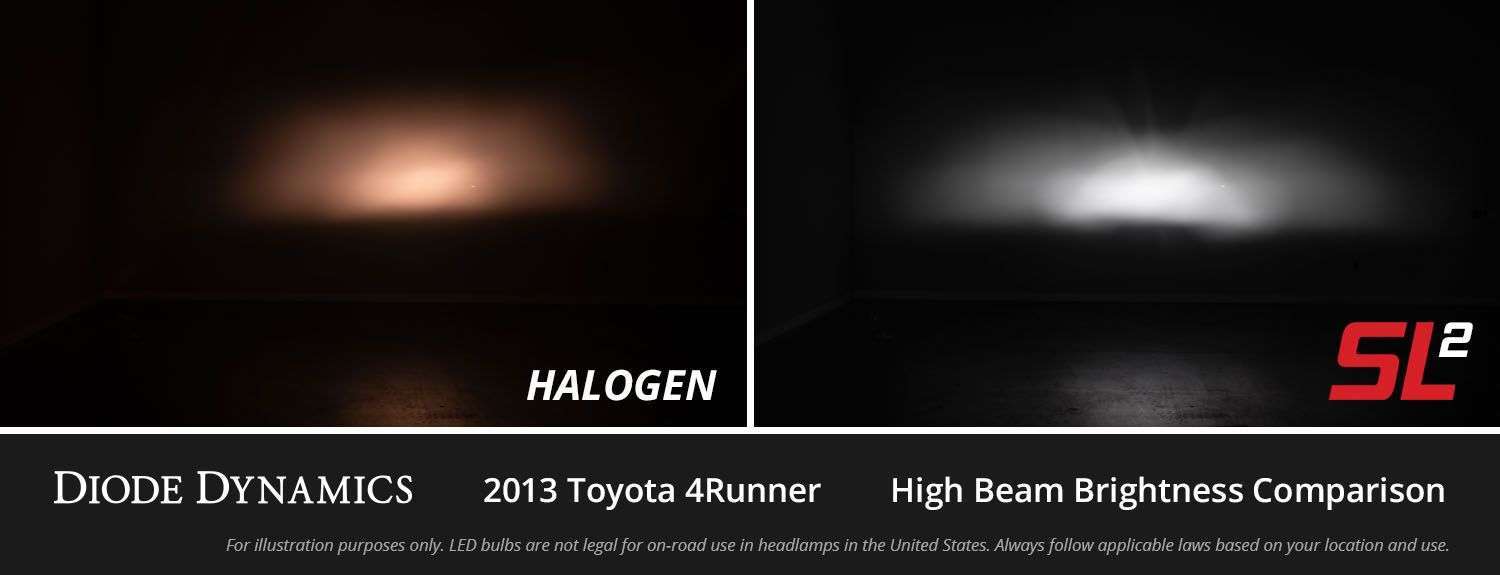

Delivers measured 1400 lumens per bulb, doubling brightness compared to factory halogens.
-
Maintains your factory beam pattern with accurate optical focus—no added glare.
✔ Choose Your Color – White or Yellow
-
6000K Cool White offers a crisp, modern appearance matching OEM LED systems.
-
3000K Selective Yellow improves contrast in fog, rain, and snow for enhanced safety.

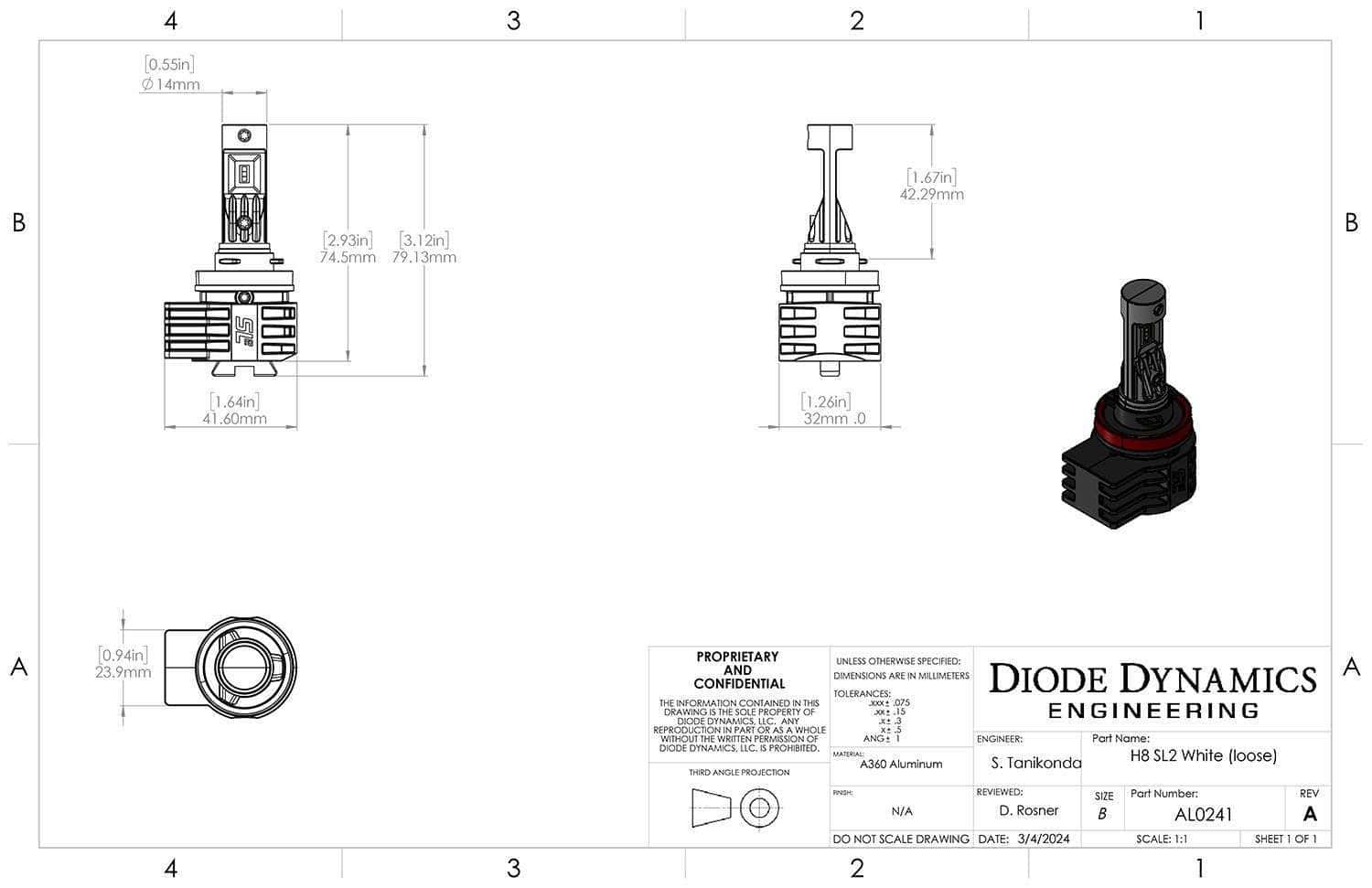

✔ Compact, Fully-Integrated Design
-
No external drivers or bulky wiring to manage—everything is built into the bulb for clean installation.
-
Fits easily into tight housings with no modification required.
✔ Reliable Fanless Cooling System
-
Advanced passive heatsink and copper-core PCB offer quiet, efficient cooling without moving parts.
-
No risk of fan failure or noise—built for long-lasting performance.
✔ Built for Real-World Conditions
-
Operates in extreme temps from -40°F to 185°F, with SAE J575 durability testing.
-
Handles electrical surges up to 30V and includes constant current circuitry with transient protection.
✔ Easy Plug-and-Play Installation
-

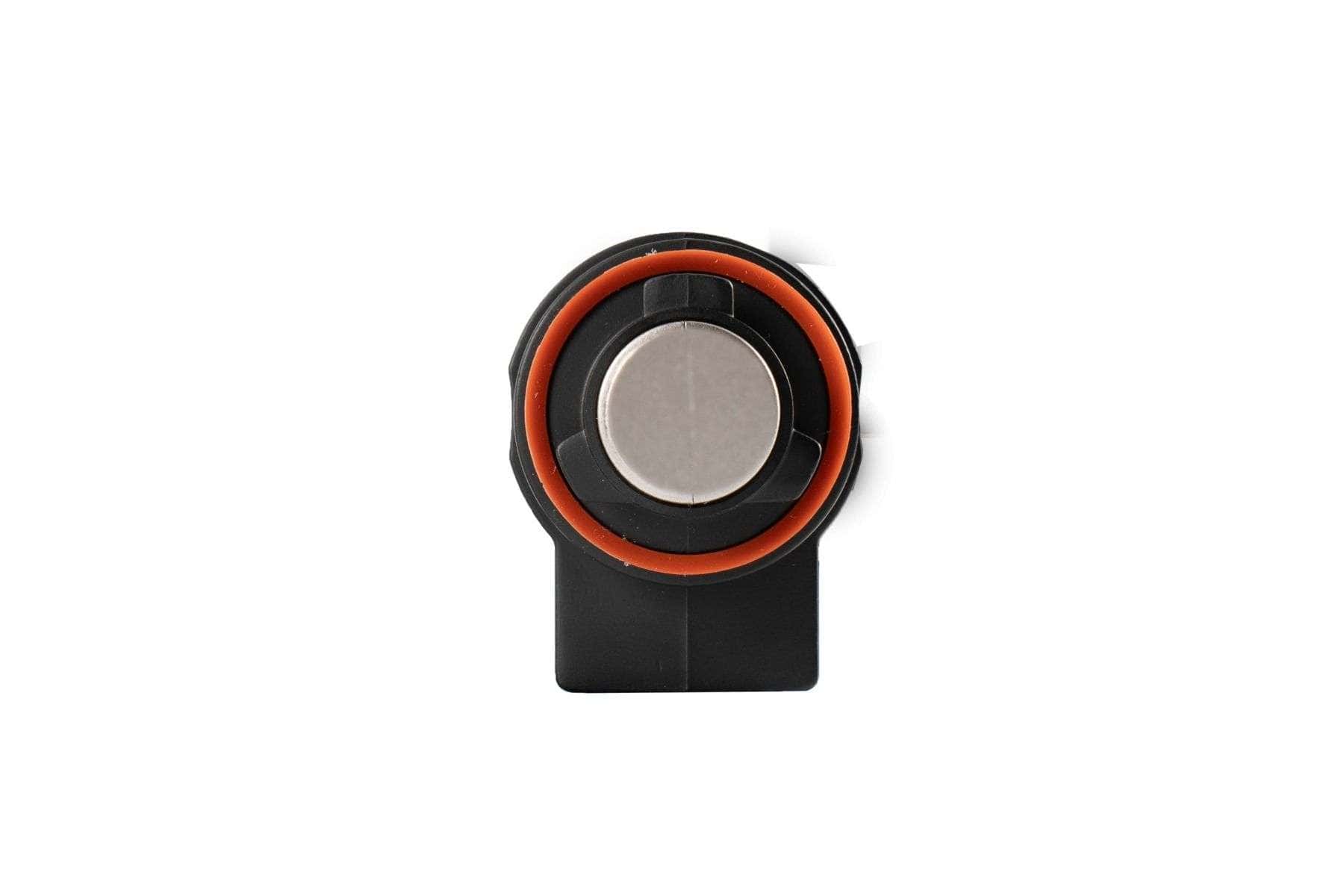

Direct-fit replacement for H8 sockets, with OEM-style polarity-specific connectors.
-
Fully compatible with DRL systems—runs at full brightness with no flicker.
✔ Engineered in the USA
-
Designed, tested, and assembled in the United States for performance and reliability.
-
Backed by a Limited Lifetime Warranty and 30-Day Satisfaction Guarantee.
Specifications:
-
Bulb Size: H8/H9/H11
-
Measured Lumens: 1400 (per bulb)
-
Color Temperatures: 6000K (Cool White) or 3000K (Selective Yellow)
-
Power Draw: 14W
-
Voltage Range: 9–30V
-
Current Draw: 1.1A @ 12.8V
-
Polarity: Polarity-specific
-
Cooling: Fanless passive heatsink
-
LED Emitter: Multi-Die Automotive LEDs
-
Construction: Copper PCB & Die-Cast A360 Aluminum
-
Operating Temp: -40°C to 85°C (-40°F to 185°F)
-
Driver Type: Internal, Constant Current with Transient Protection
-
Compliance: SAE J575 Tested
-
DRL Function: Operates at full brightness
-
Quantity: Pair (2 Bulbs)
-
Warranty: Limited Lifetime Warranty
Legal Use Notice:
These bulbs are legal for fog light use only in the USA. They are not DOT-compliant for use in headlights. Suitable for off-road, motorsport, and auxiliary lighting applications. Check local regulations for compliance.
