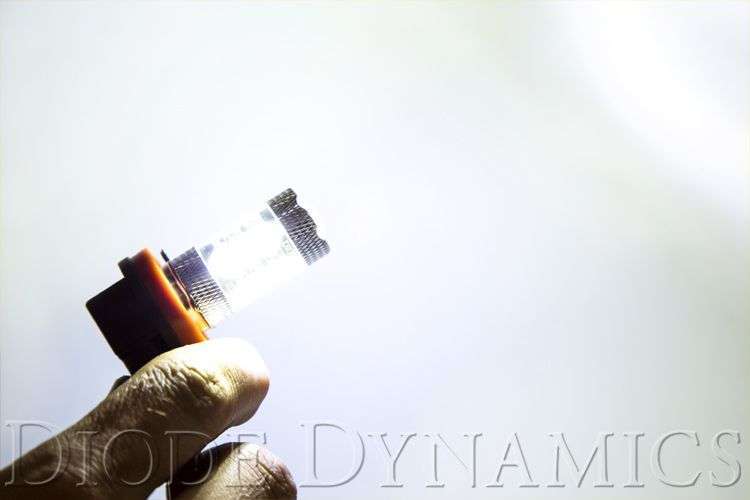

Diode Dynamics H11 XP80 LED bulb pair
The H11 XP80 LED bulb pair combines cool white output with a metal heat sink and an inductive constant-current drive circuit for a compatible fog lamp.
Pair details
- Manufacturer pair SKU: DD0165P
- Bulb designation: H11
- Light colour: Cool White
- Listed output: 510 lumens per bulb

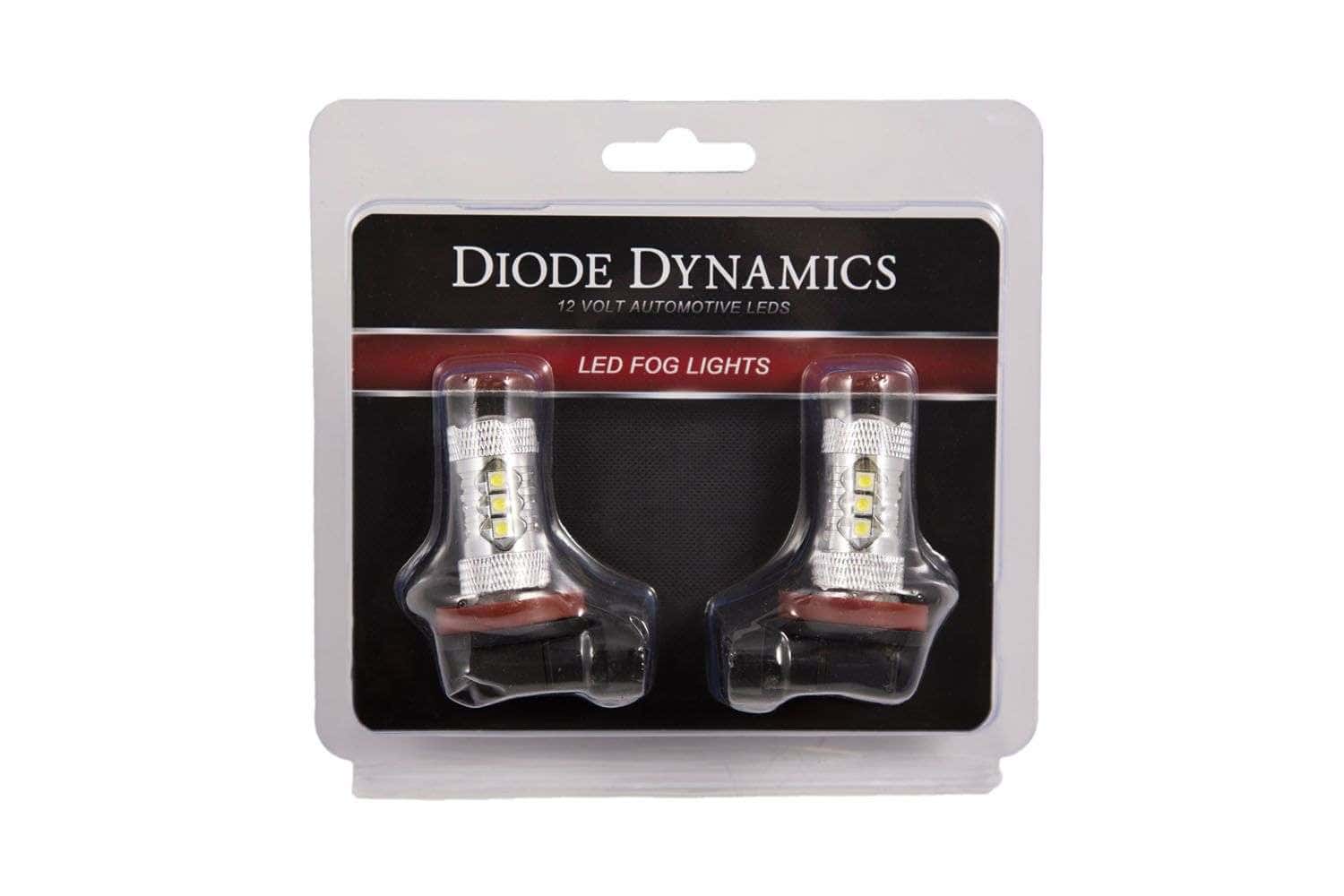

- Quantity: two bulbs
- Sixteen LEDs arranged around the bulb

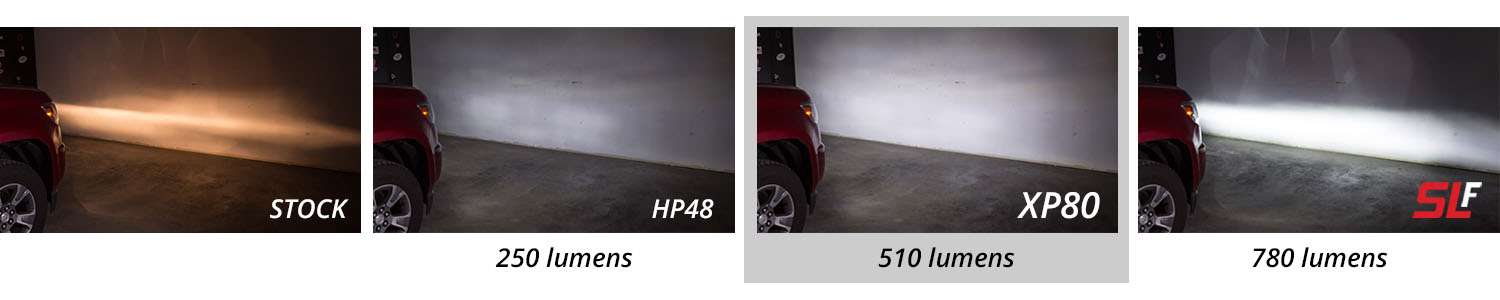

The lumen figure describes bulb output; the installed beam also depends on the lamp optics and bulb position.
Application and installation
As a documented example, Diode Dynamics lists this exact SKU for 2023–2026 Ford Super Duty F-250, F-350, F-450 and F-550 fog lamps with removable factory H11 halogen bulbs. Factory LED fog assemblies are excluded. Other vehicles and aftermarket housings need their own application check.
Compare the installed bulb marking, connector, retaining arrangement and rear clearance. Confirm that the bulb seats correctly, the lamp cover closes and the finished fog-light aim is appropriate.
For a cosmetic alternative in the same documented fog application, compare the H11 HP48 pair.
Browse LED bulbs by listed base.
Buying questions
Can these be used as headlight bulbs?
These bulbs are intended here for fog-light replacement. An H11 base alone does not establish suitability for a low-beam or high-beam headlight.
What if the vehicle shows a bulb warning or flicker?
Check the connections and diagnose the lighting circuit before selecting additional electrical components. The bulb’s connector does not guarantee compatibility with every vehicle’s monitoring system.
