A sharper third brake light for your Toyota

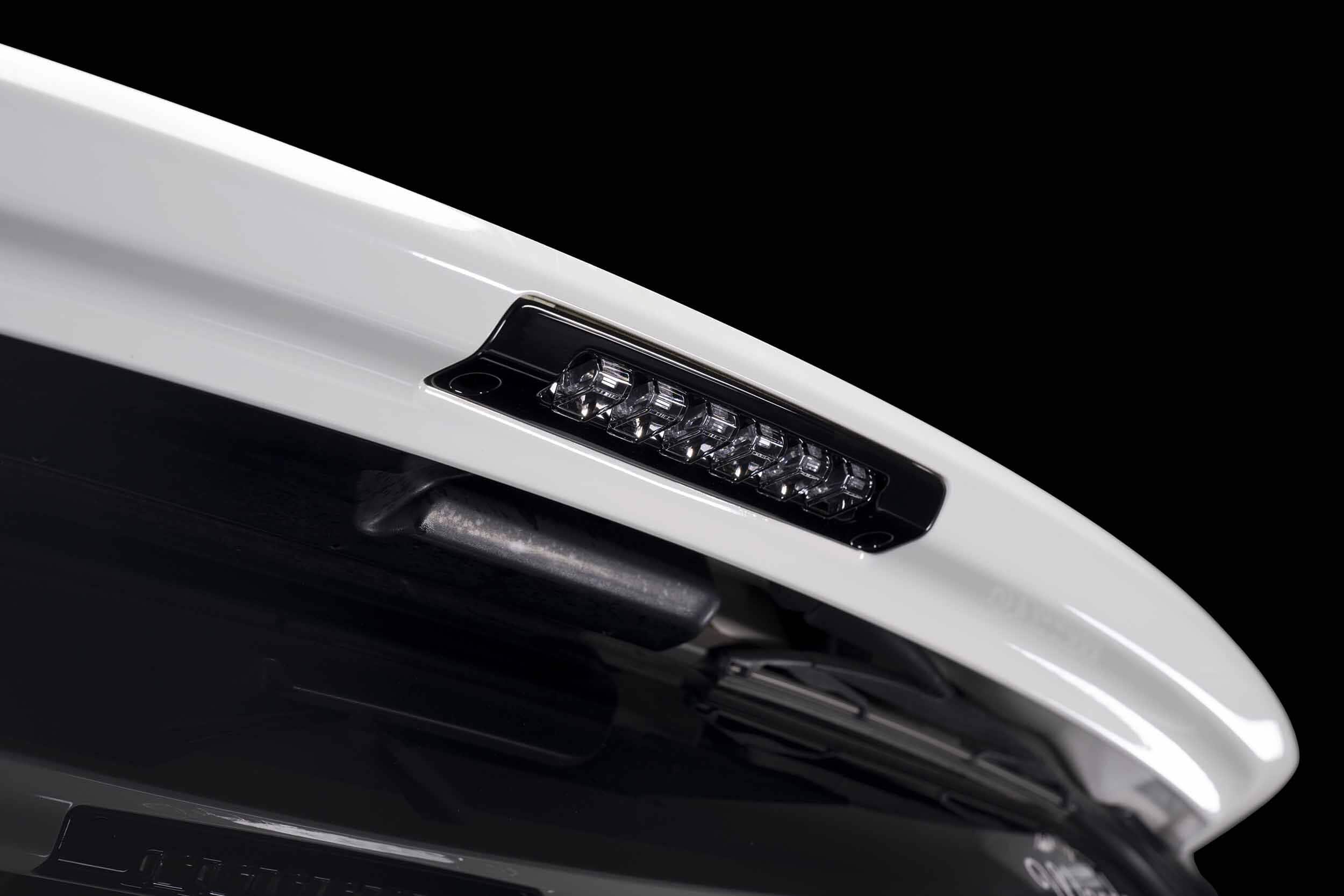

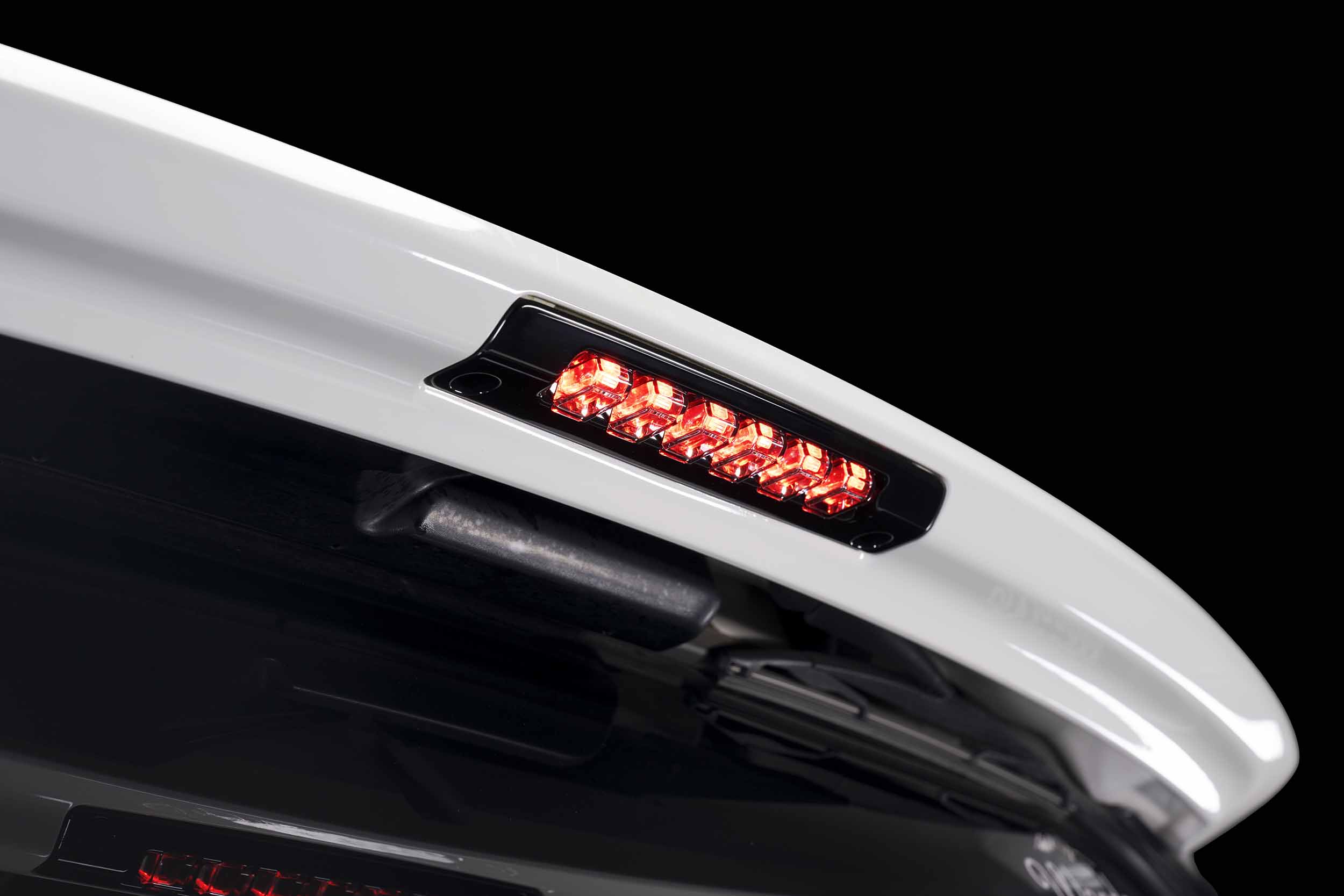

The Morimoto X3B70 replaces the compatible factory high-mounted stop lamp with six red LED optics in a piano-black housing. It reuses the original mounting points and plugs into the matching Toyota harness.
Check your application
| Toyota 4Runner | 2010–2024 |
|---|---|
| Toyota Highlander | 2014–2019 |
| Toyota Prius | 2010–2015 |
| Toyota Prius C / Prius V | 2012–2018 |
| Toyota Sequoia | 2022 onward, as listed by Morimoto; confirm the original lamp/part number |
| Toyota Sienna | 2011–2020 |
| Toyota reference part numbers | 81570-47051, 81570-47050, 81006-52050, 81570-58030 |

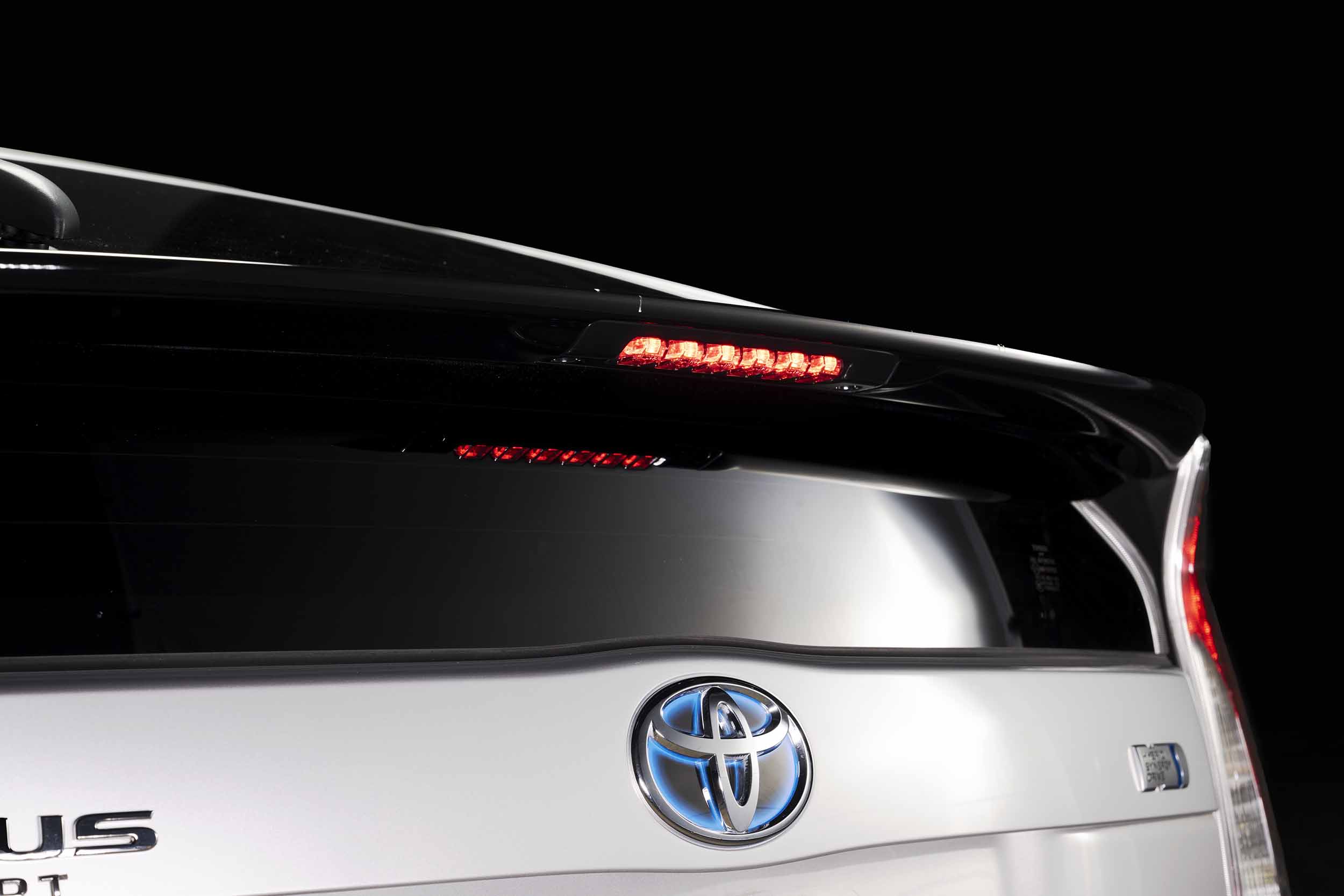

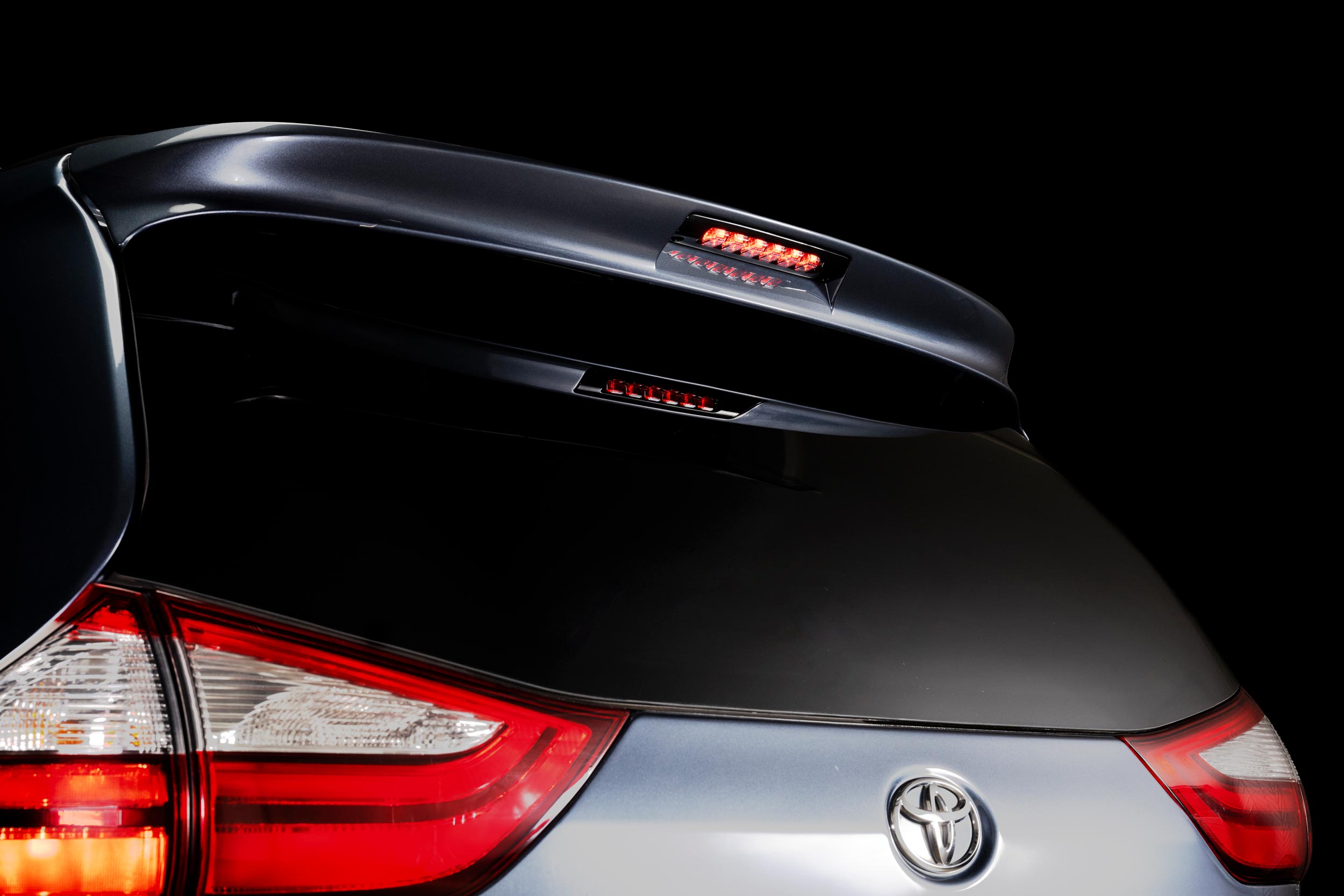

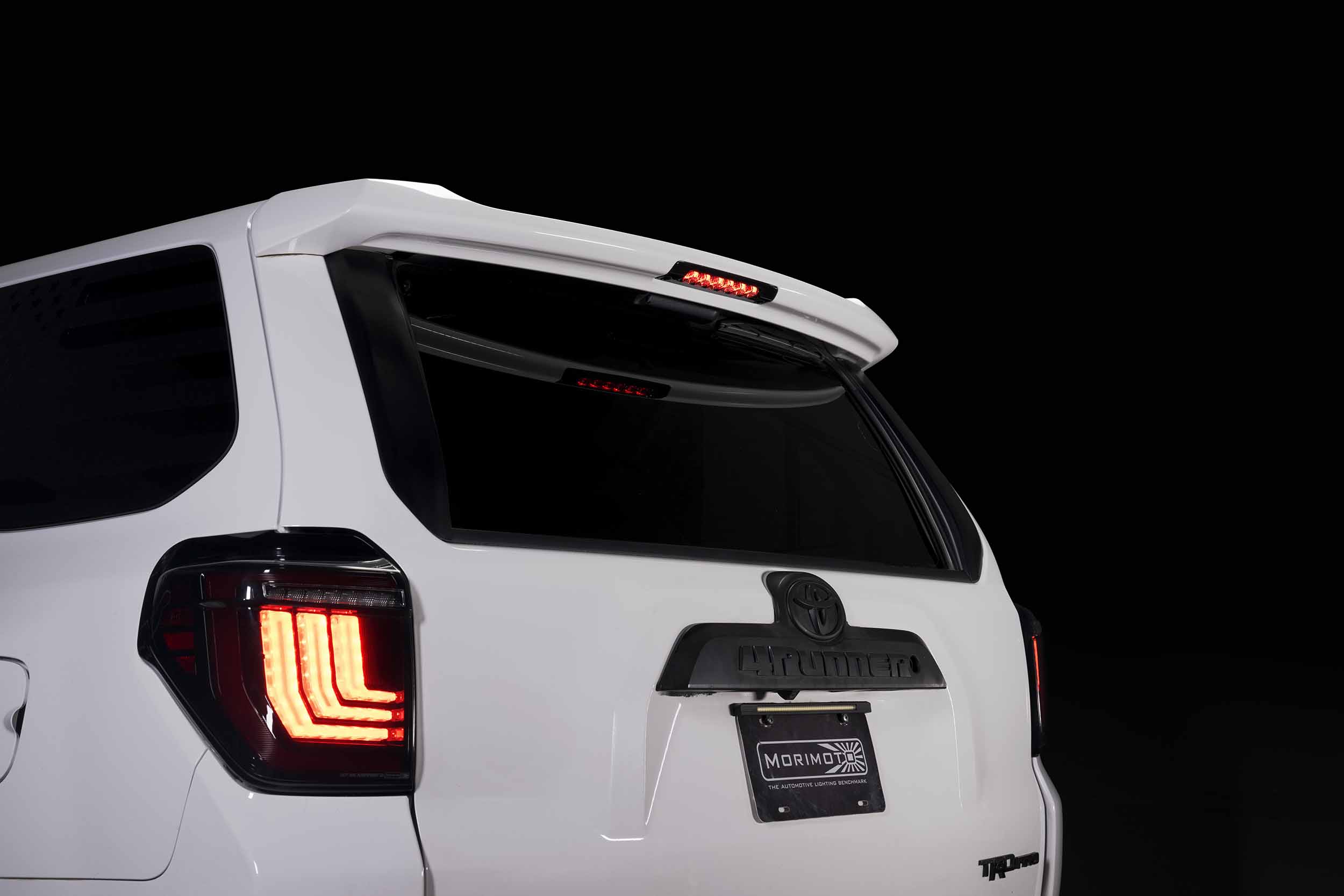

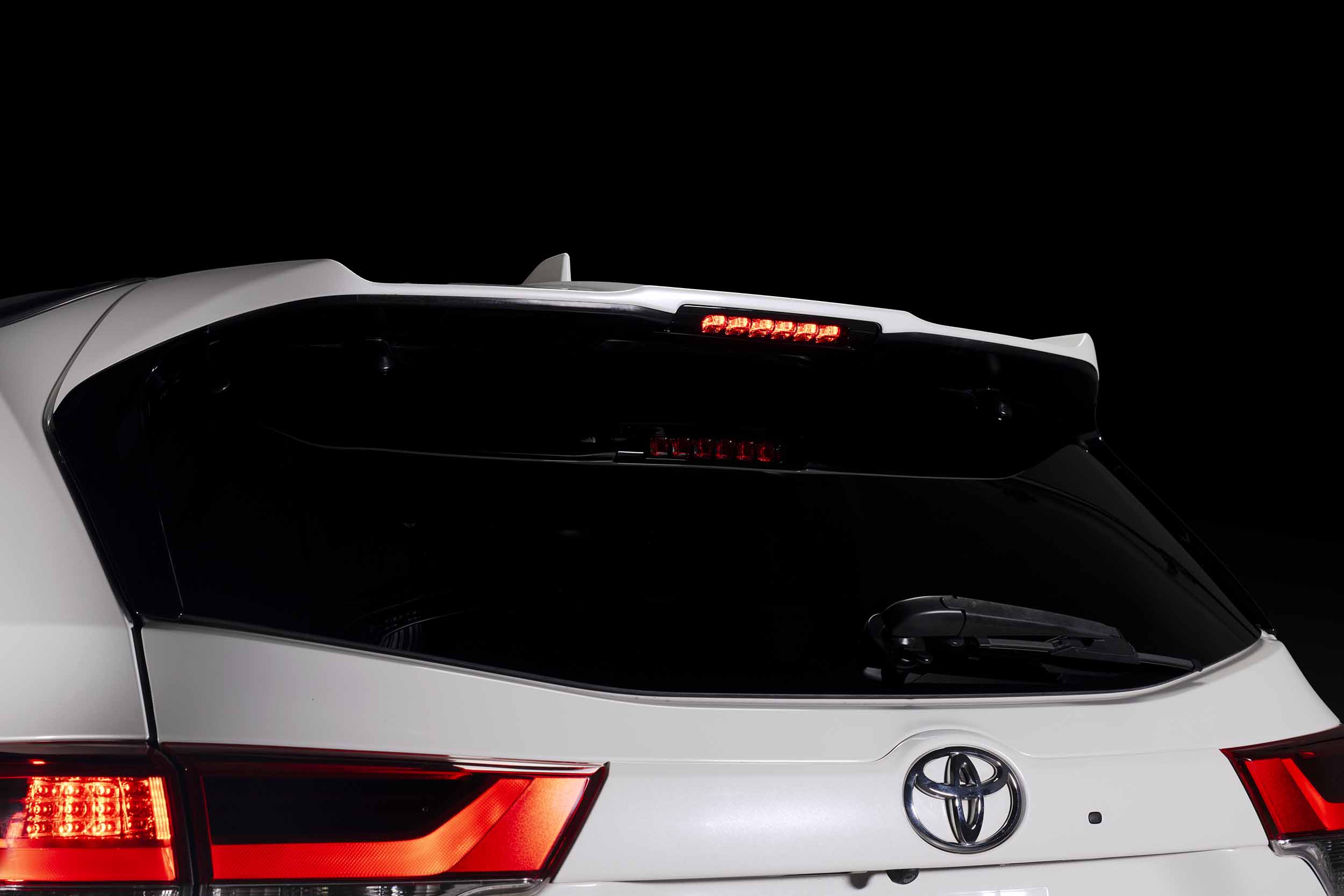

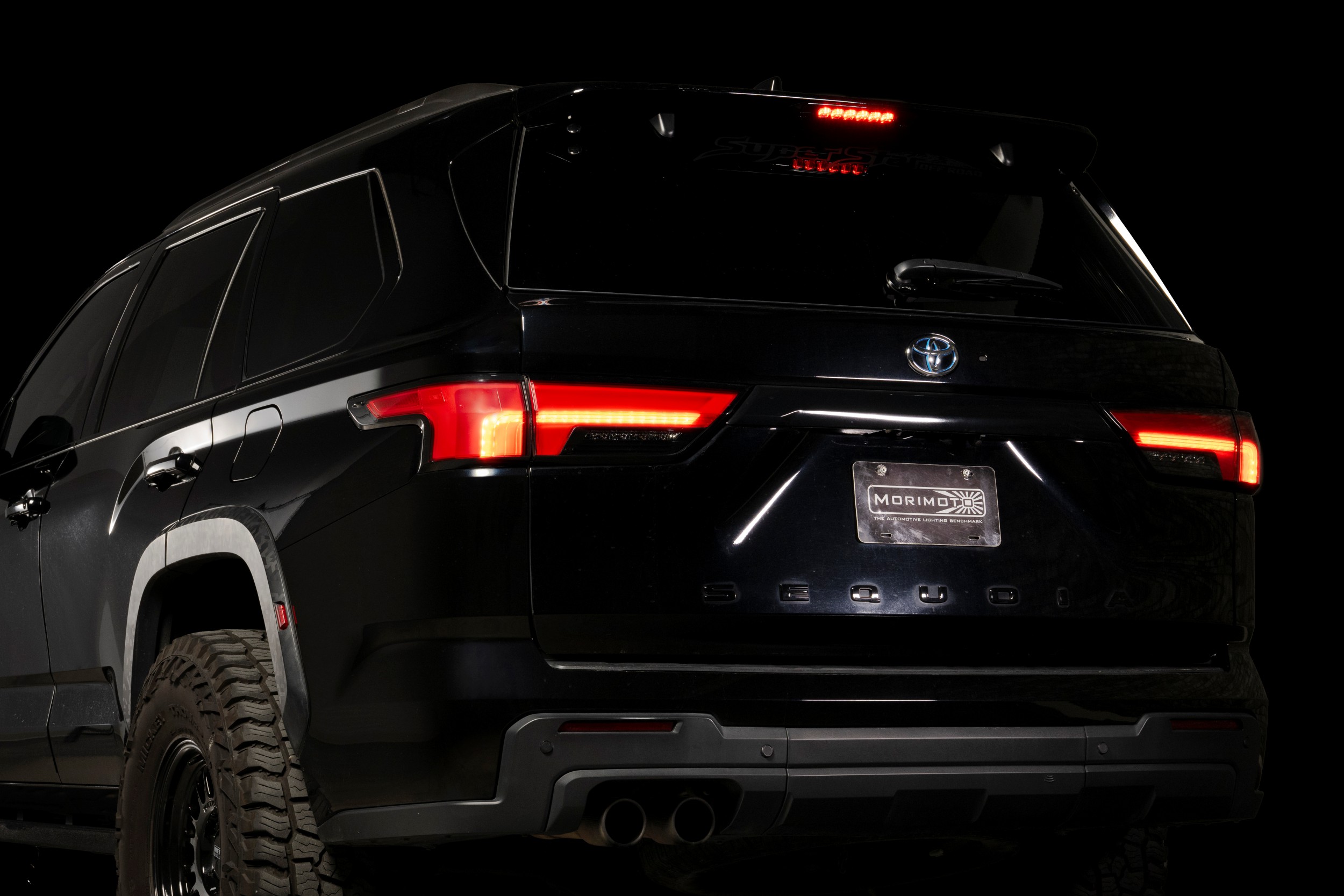

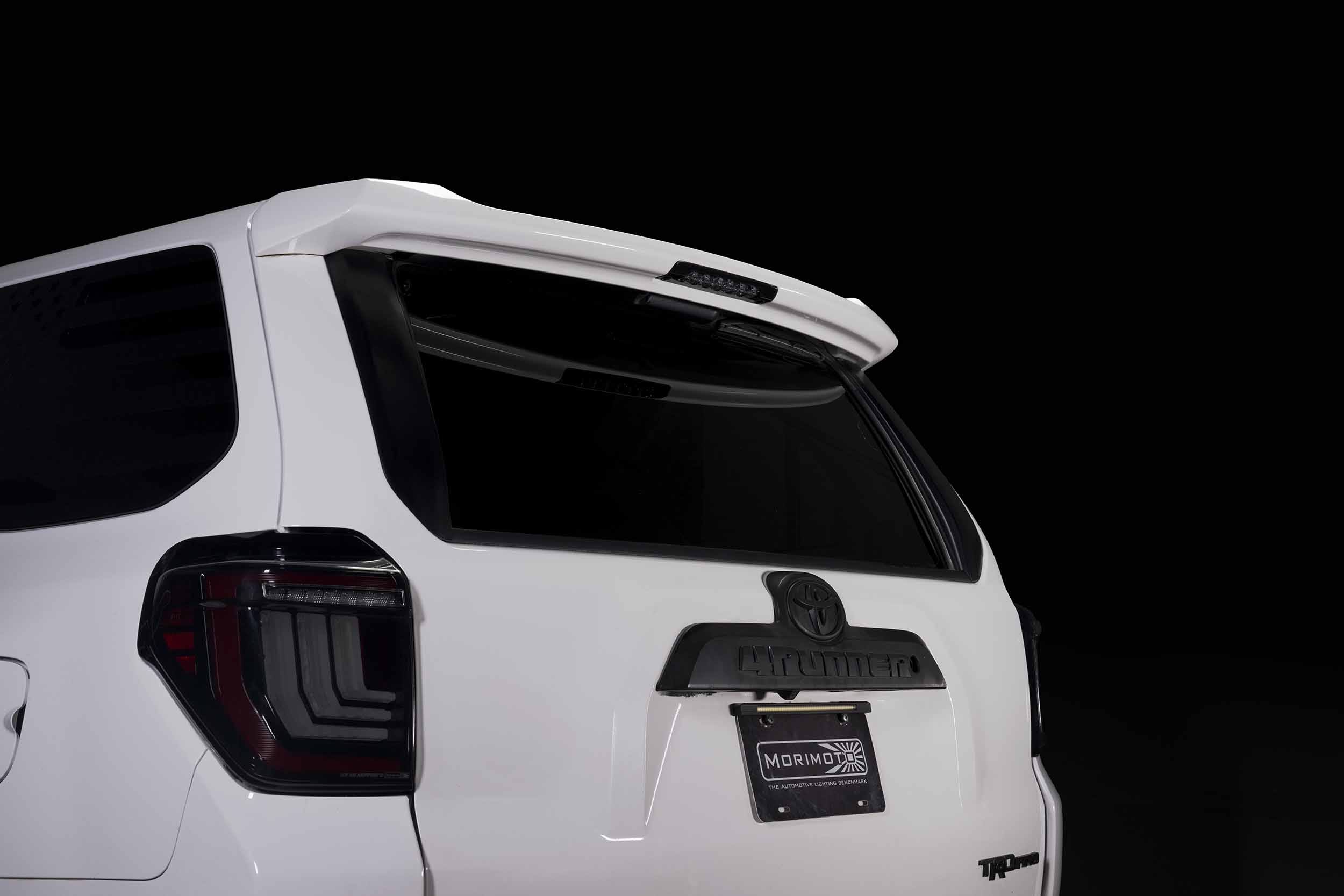

Morimoto specifies North American vehicles. Compare your original lamp and connector before ordering; other-market fitment is not guaranteed. Photos of other Toyota installations illustrate the lamp, not additional applications beyond this list.
What you get
| SKU | X3B70 |
|---|---|
| Included | One third brake-light assembly |
| Light function | Red brake light; six optics with high-power 3 W red LEDs |
| Housing / lens | Piano-black polycarbonate housing; clear UV-resistant polycarbonate lens |
| Input | Toyota multi-pin OEM connection |
| Warranty | Five-year manufacturer warranty |
4Runner installation
For a 2010–2024 4Runner, remove the two factory Phillips screws, disconnect the lamp, clean the sealing surface and fit the new assembly. Tighten by hand without power tools, then check the brake light.
Follow the illustrated 4Runner X3B70 installation guide · Original manufacturer PDF
Before installation
Is this a pair of tail lights?
No. X3B70 is one high-mounted third brake-light assembly. The left and right tail lights are separate products.
Does the 4Runner guide cover every Toyota in the fitment table?
No. The hosted guide and linked PDF show the 2010–2024 4Runner. Access and trim removal can differ on the other listed vehicles.
