MORIMOTO XB EVO · LF2-531
A sharper Toyota signature, ready for cold-weather driving.
Give your 2014–2024 Toyota 4Runner a complete left/right XB Evo headlight upgrade. Configurable white or amber running lights, distinctive turn signals and driver-requested Frost-Free lens heating bring style and function together.

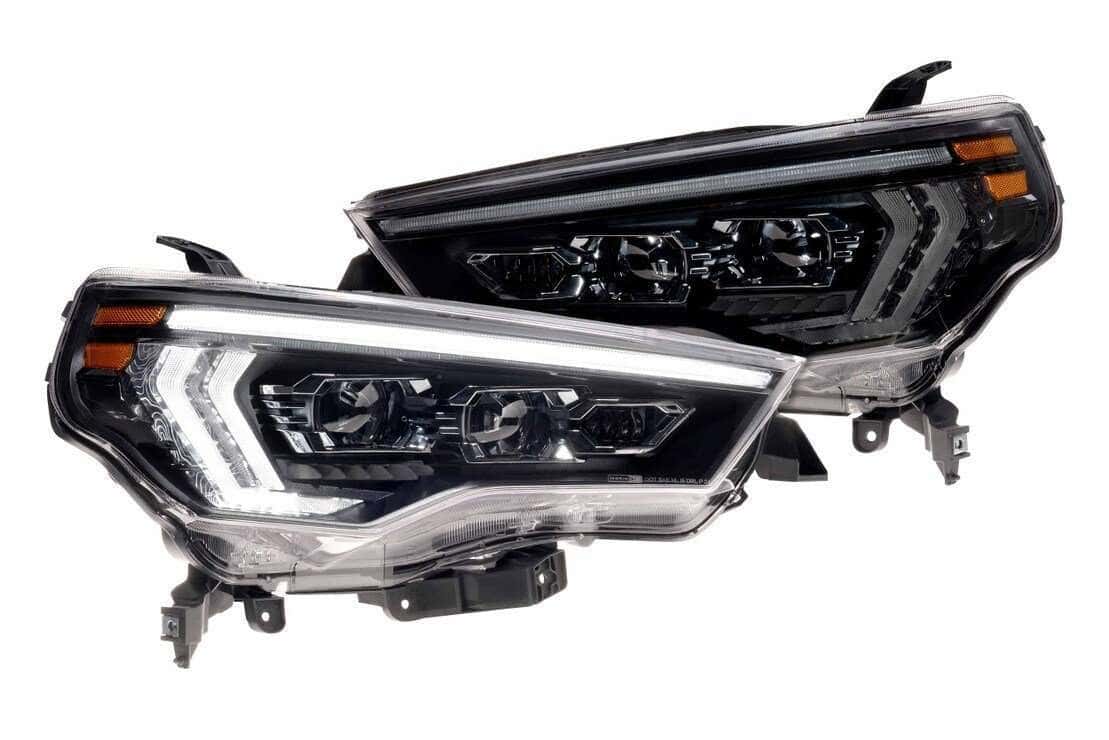

- Left + rightOne complete headlight pair
- White / amber DRLsConfigurable signal modes
- Dual Bi-LED opticsLow + high beam

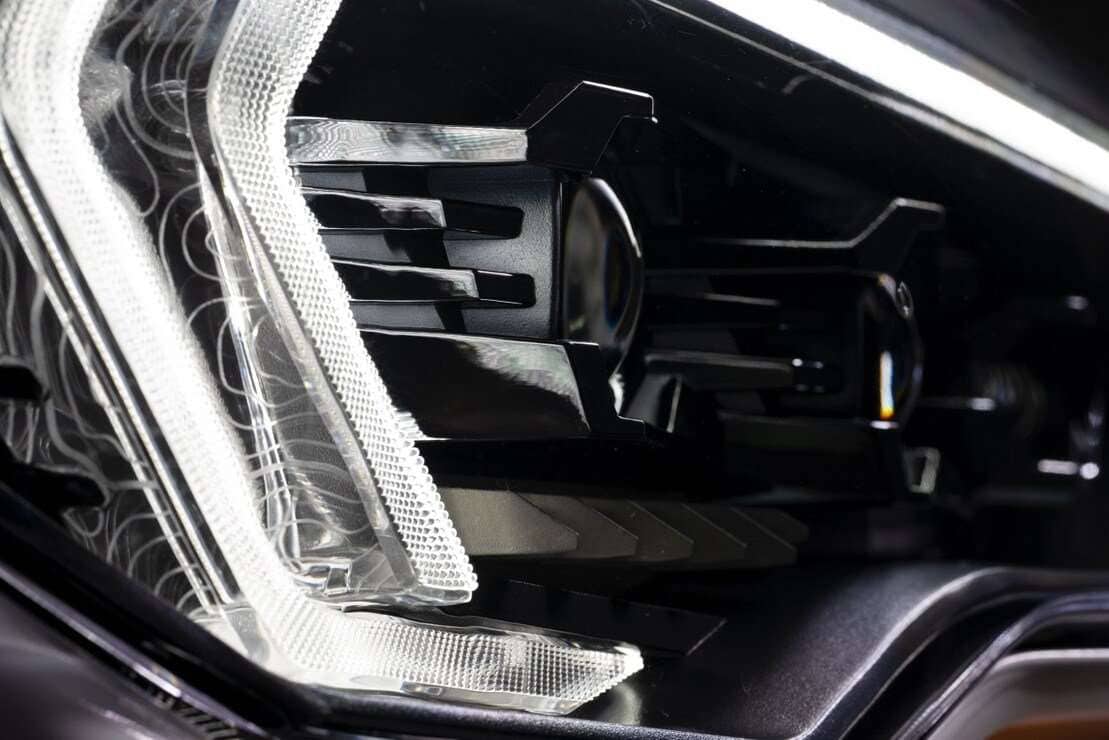

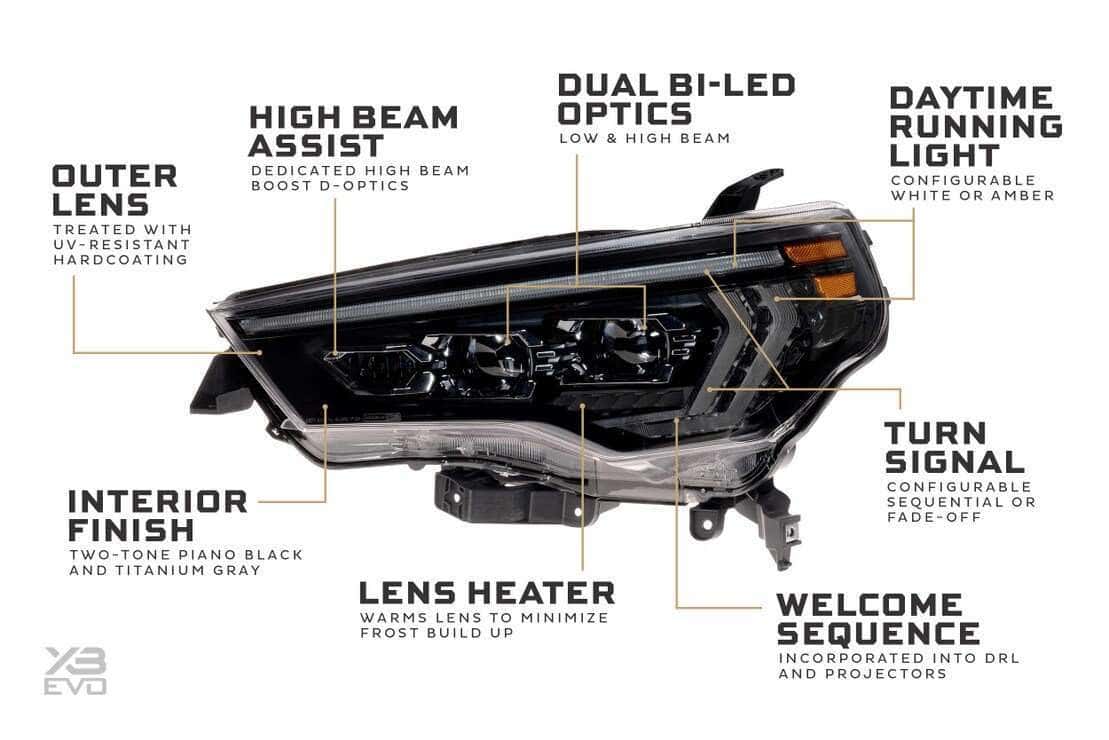

LIGHT WITH A PURPOSE

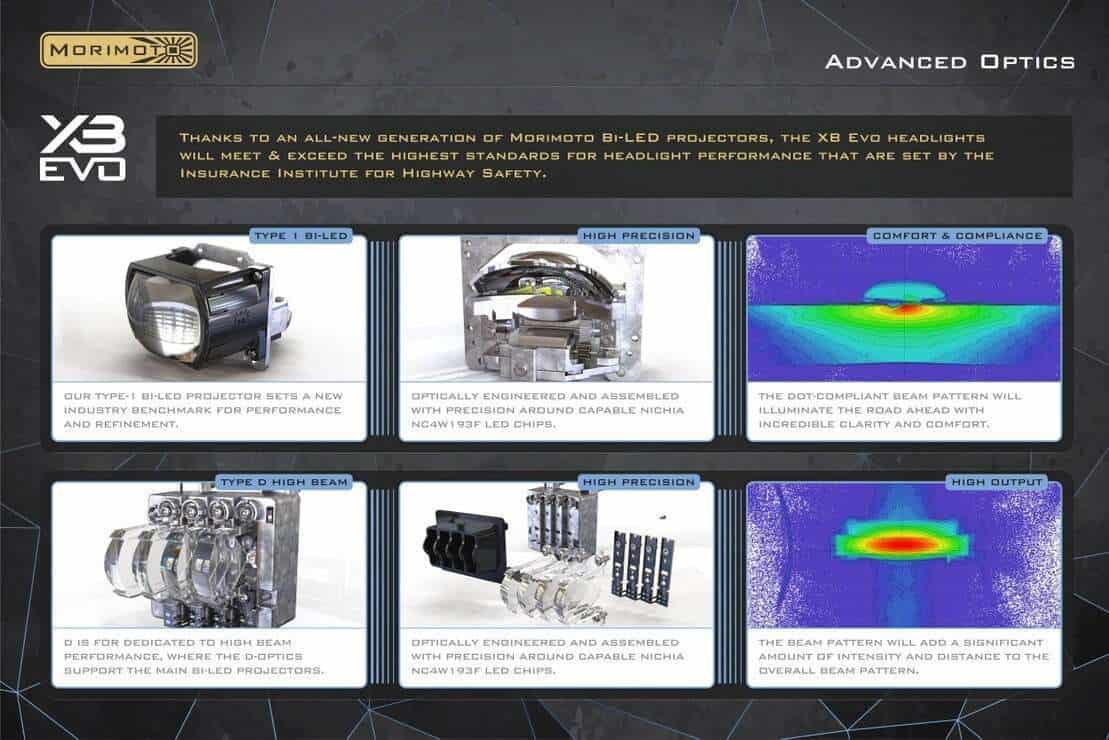

Dual Bi-LED + D-Optic high-beam assist
Optics matched to the application
Two Bi-LED projectors in each headlight produce the low- and high-beam patterns. A dedicated D-Optic high-beam assist supplements the main projectors when high beam is selected.
A complete assembly upgrade

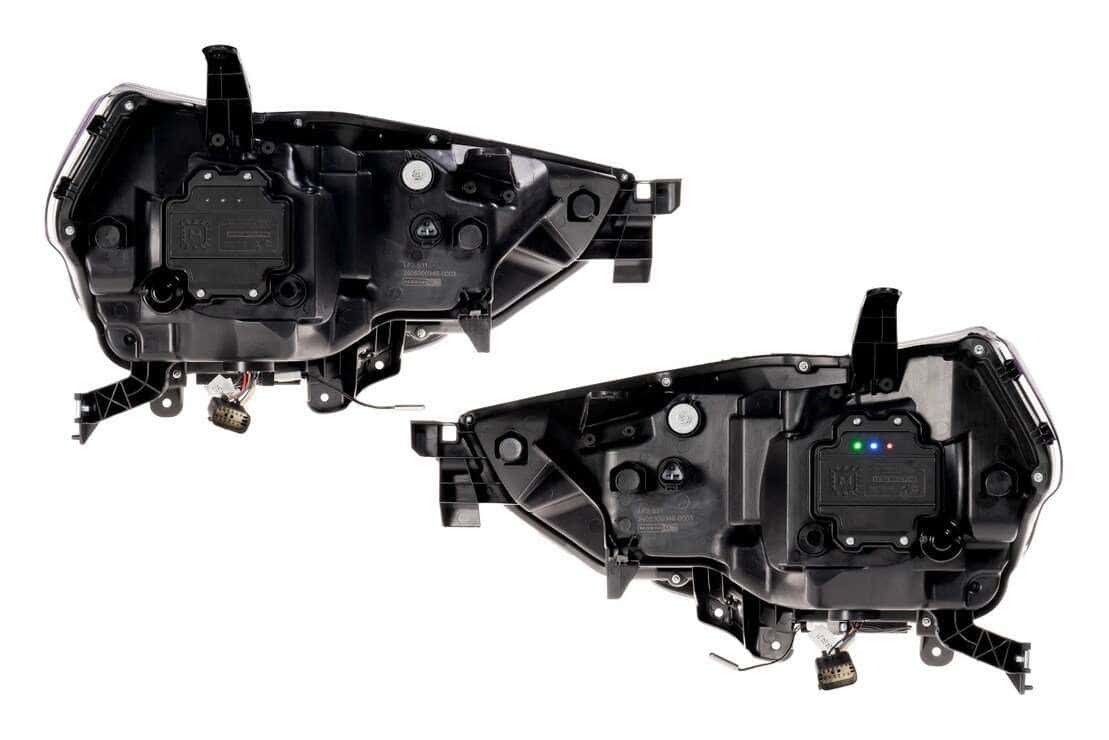

Both housings and the listed installation accessories are included. This is a matched headlight pair, not a bulb conversion.
Control the pattern
Check every function and aim the beams after installation. Original-style mounts do not guarantee correct aim, especially after changes to vehicle height.

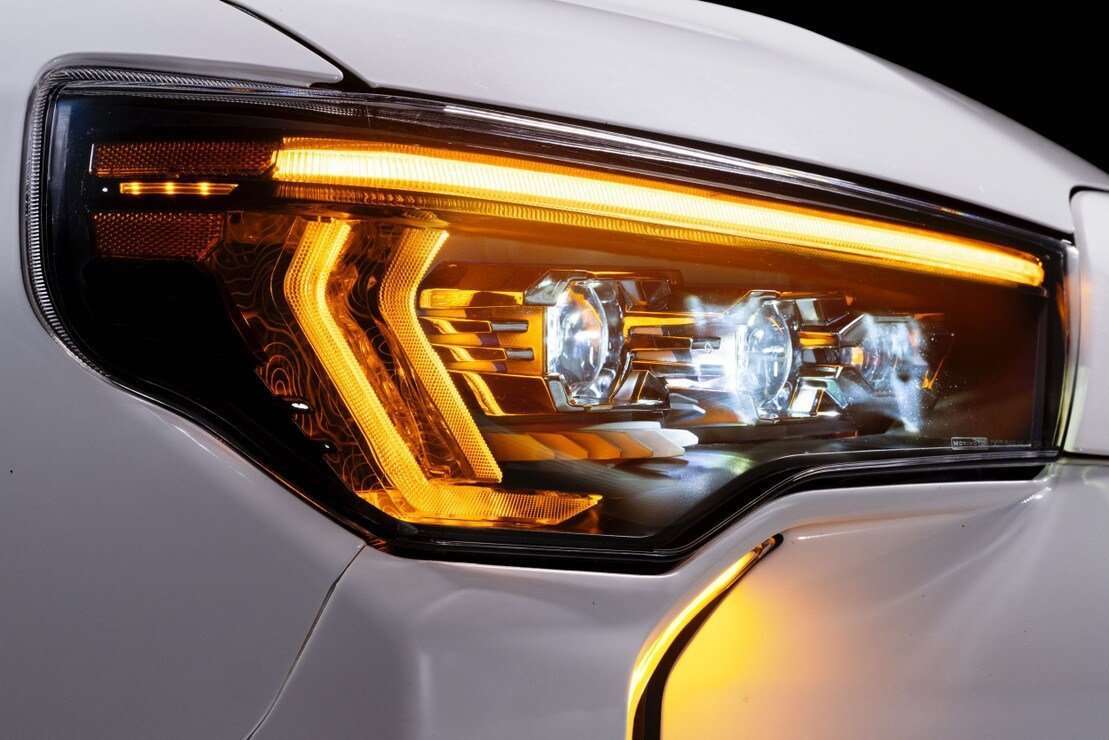

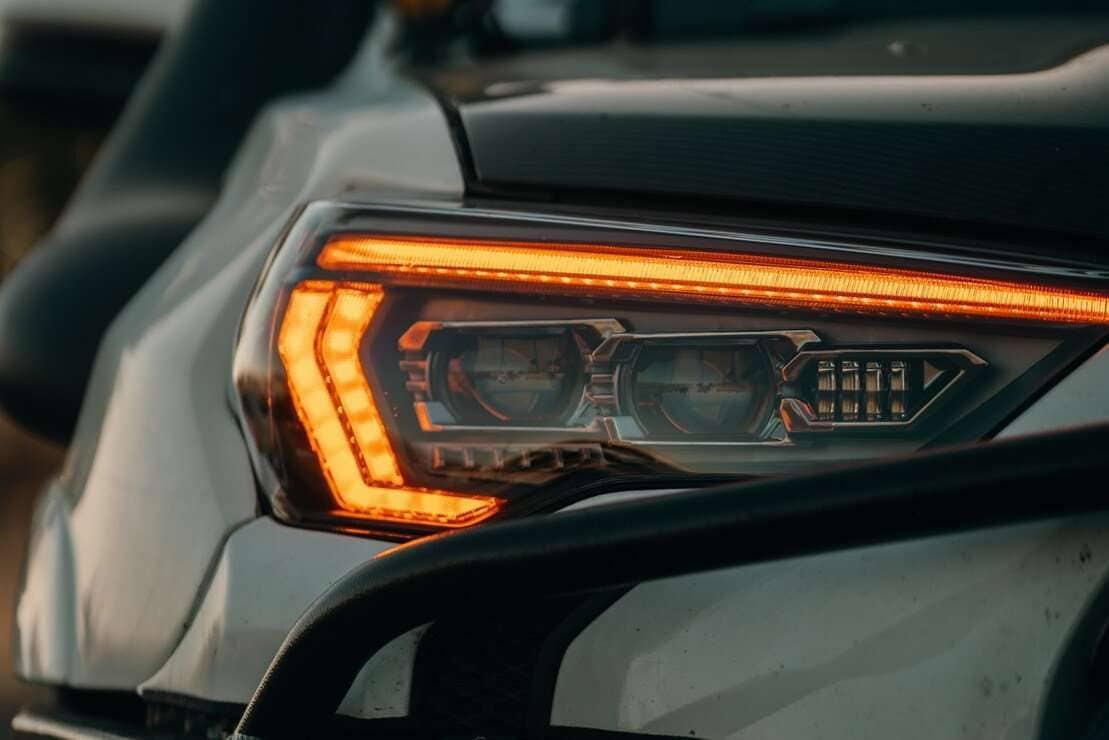

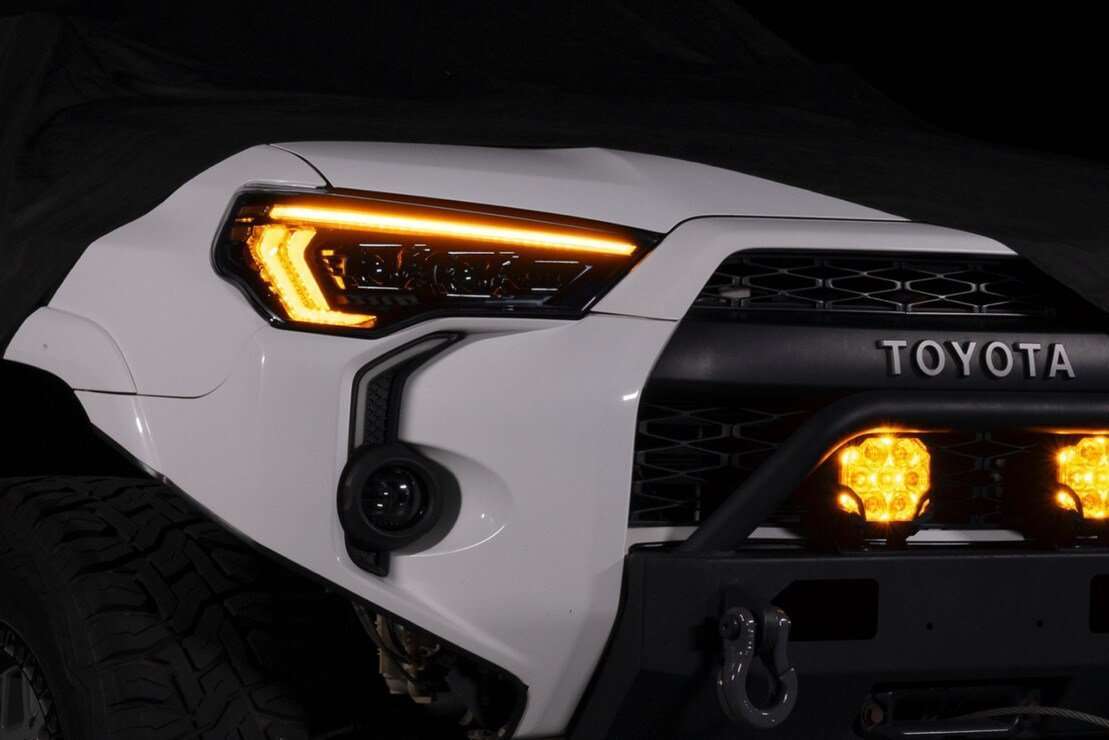

YOUR FRONT-END SIGNATURE

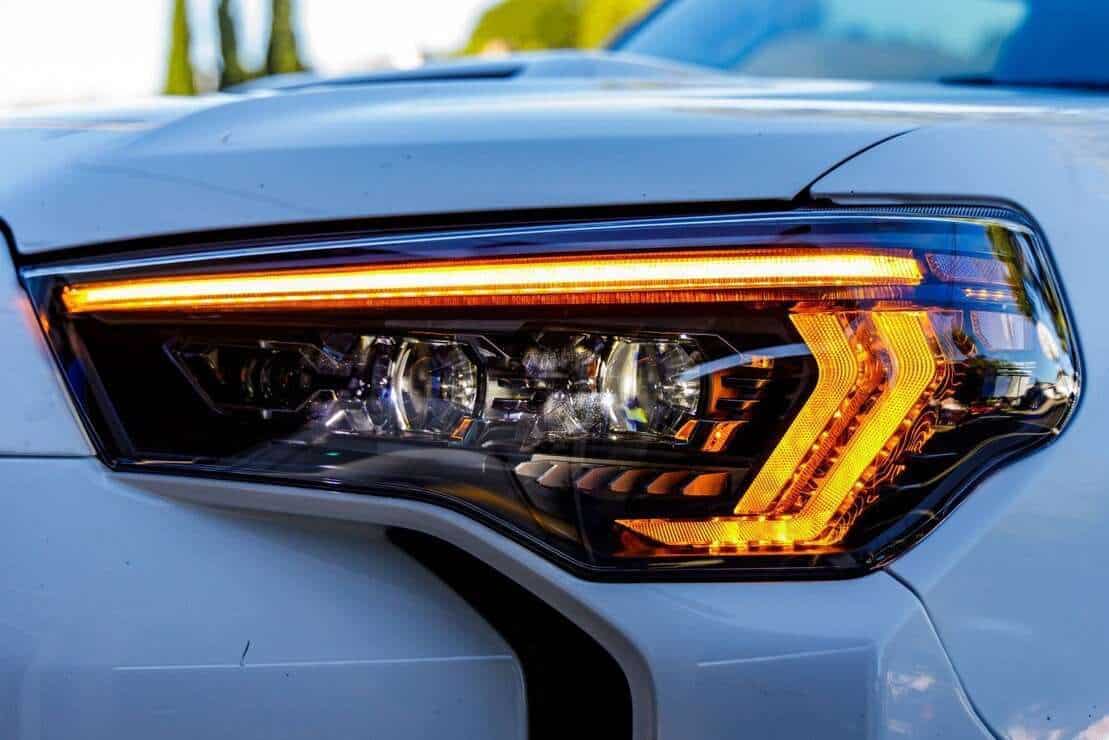

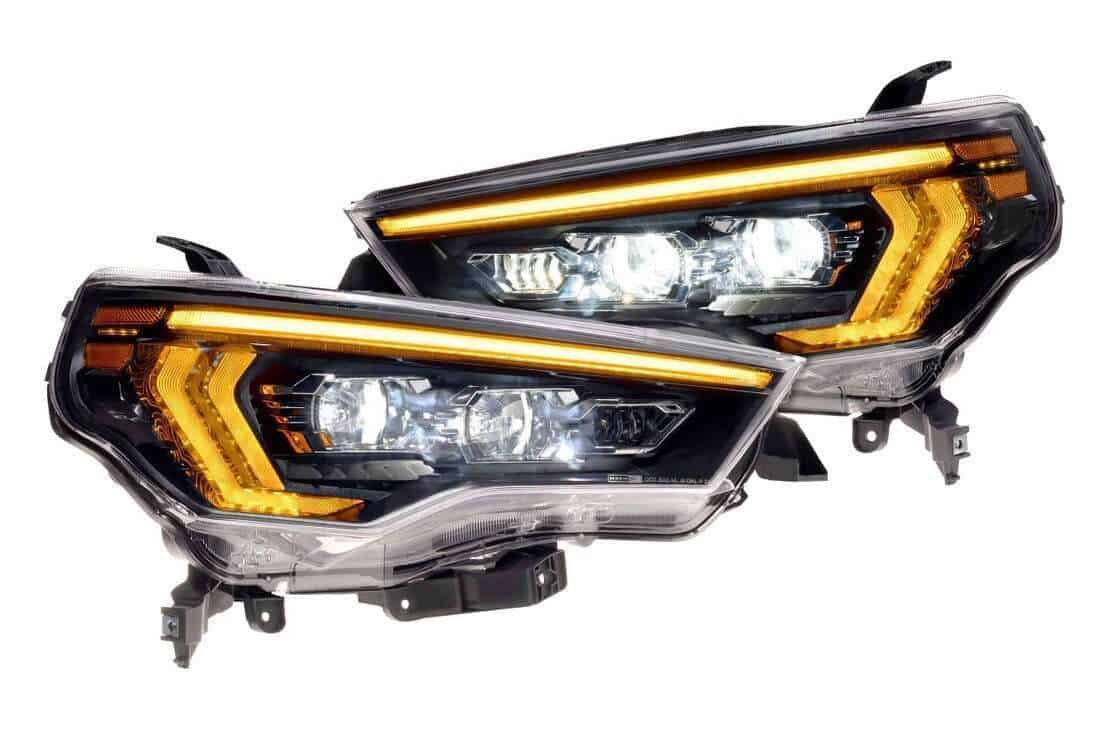

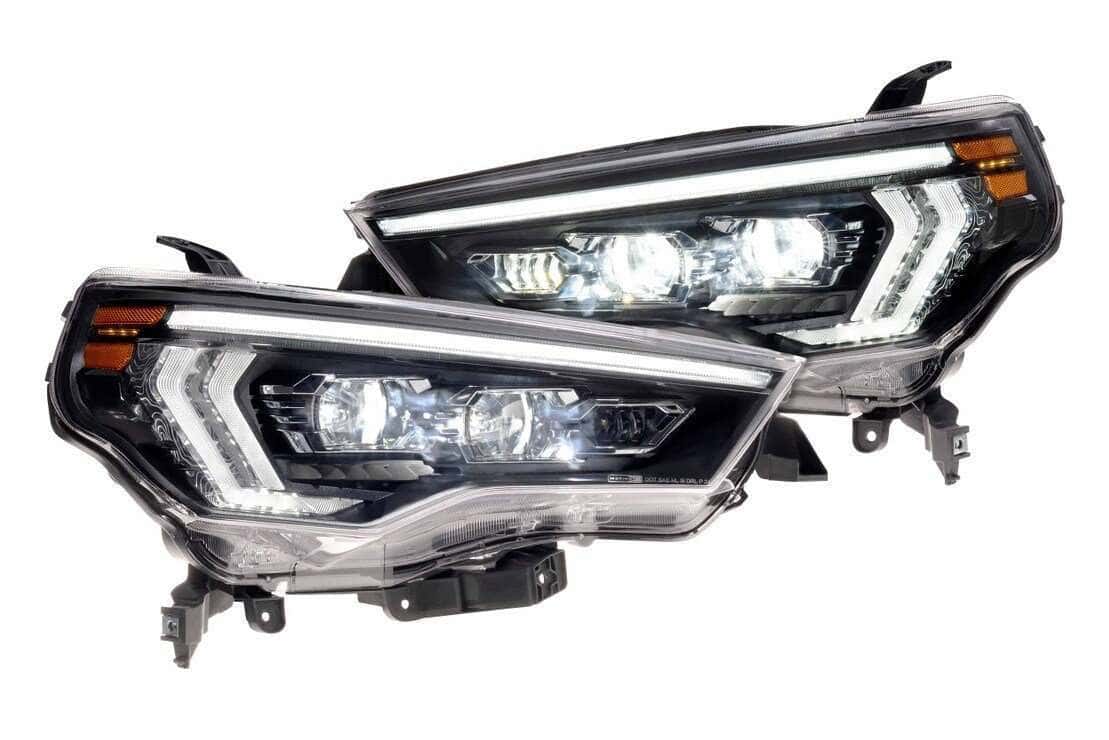

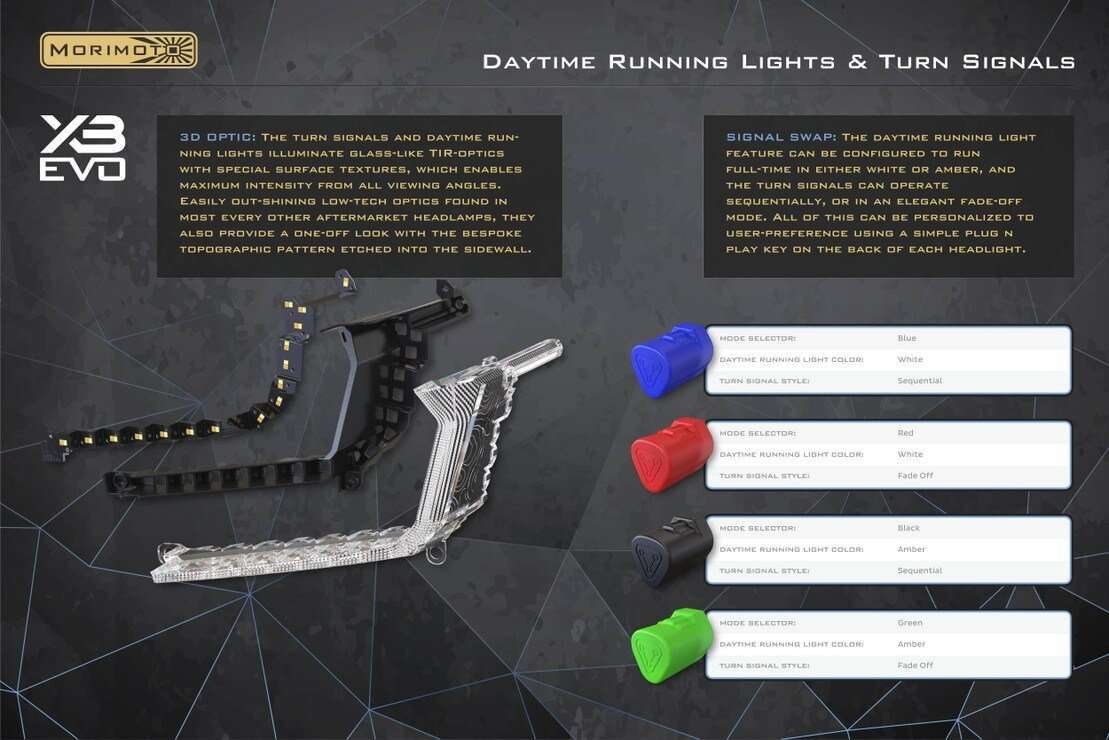

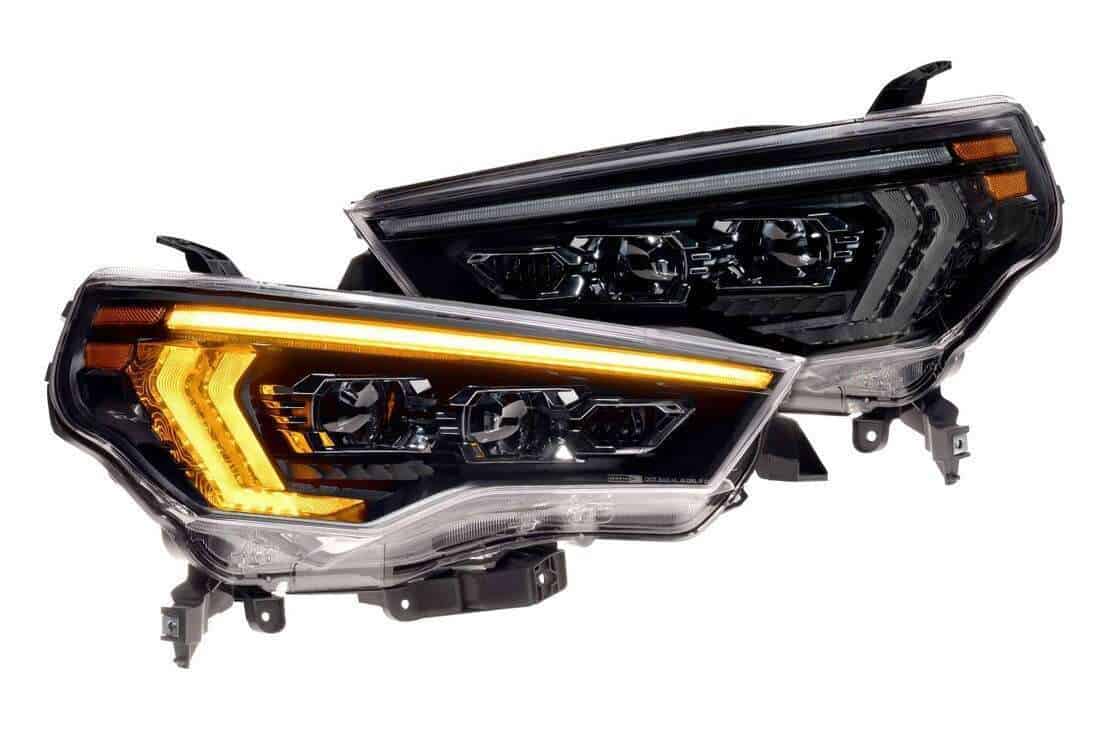

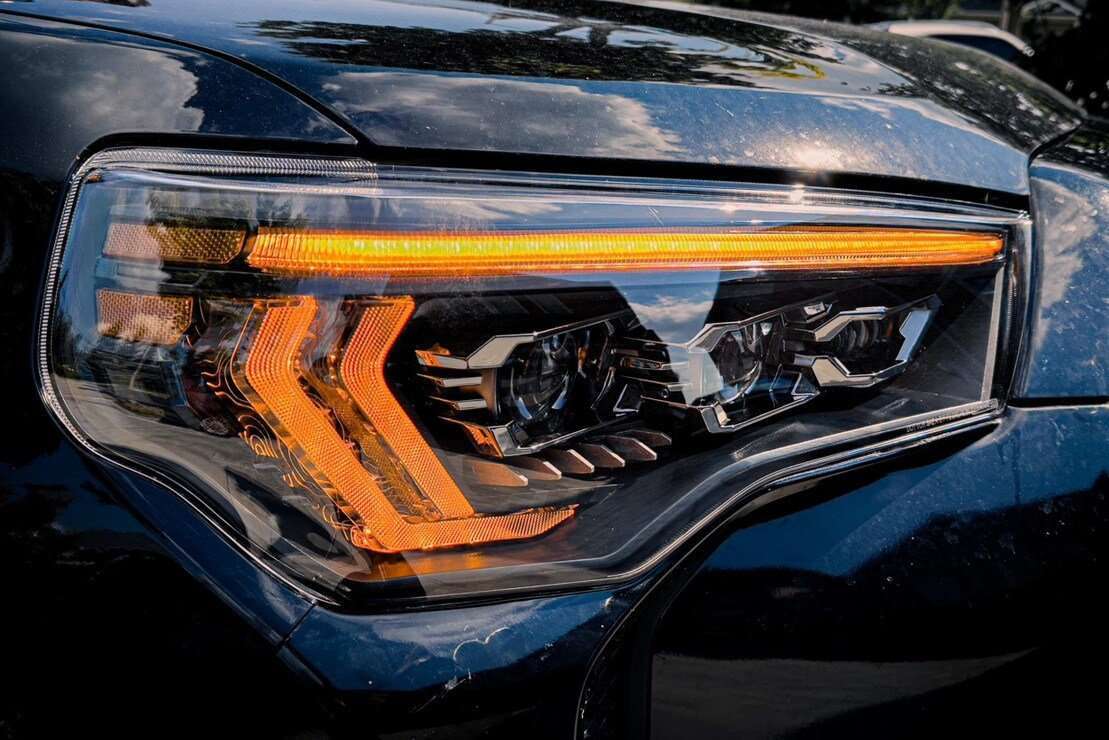

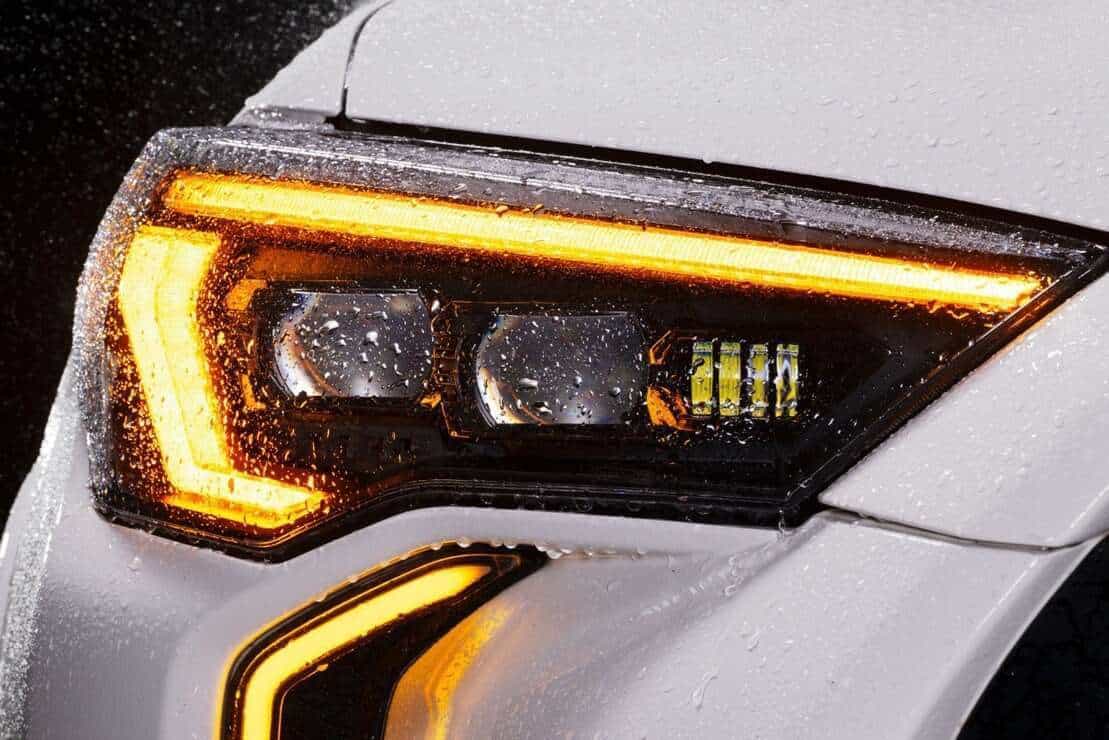

Choose white or amber, then your signal style.
The supplied selector keys configure white or amber DRLs and sequential or fade-off turn signals. Choose the correct keys and wiring positions in the exact installation guide.
A multistage welcome sequence animates the lights at startup. It is a styling feature, not an increase in driving-light output.

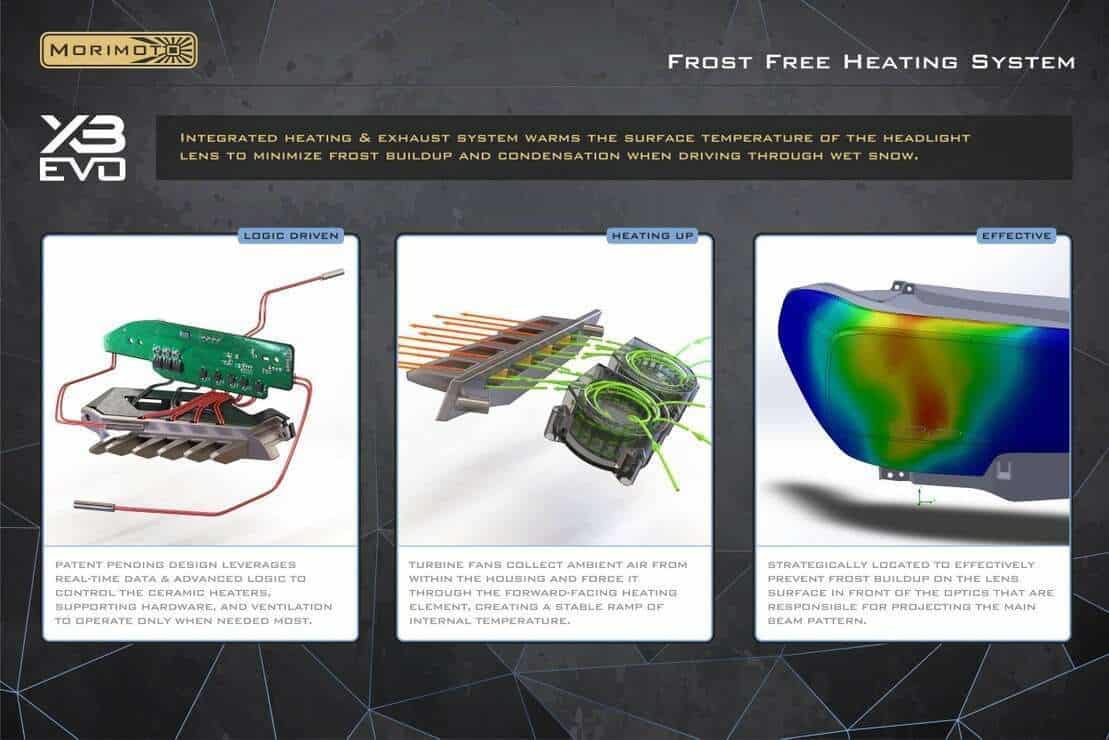

FROST-FREE LENS HEATING
Request it when cold-weather conditions call for it

The logic-controlled 50W ceramic heating element and circulation fans warm the housing to help mitigate lens frost, snow and ice buildup during driving.
- With the vehicle running, wait until the welcome sequence completes.
- Flash the high beams four times within four seconds. The ambient sensor must read at or below 5°C / 41°F, and the other operating conditions must be satisfied.
- Two return flashes indicate active heating and fans. One acknowledges the request with conditional standby.
The system monitors lens and heater temperatures and battery voltage. It starts off at every ignition cycle; request it again when needed. The same four flashes within four seconds manually disable it.
This is an aid during inclement driving, not a system intended to melt heavy overnight snow accumulation.
If the request is not acknowledged, the guide recommends turning off auto high beams and trying again.
CHOOSE THE FEATURES YOU WANT
XB Evo or Evo Hybrid?
This listing is the LF2-531 XB Evo for the 2014–2024 Toyota 4Runner. The other version is sold separately.
| Feature | XB Evo | XB Evo Hybrid |
|---|---|---|
| DRL colour | Configurable white or amber | Fixed white |
| Turn signals | Sequential or fade-off selectable | Fade-off |
| Frost-Free lens heating | Included; driver-requested | Not included |
| Standard welcome sequence | Included | Not included |
| Mode-selector keys | Included | Not included |
| Main optics | Dual Bi-LED + D-Optic high-beam assist | Dual Bi-LED; no D-Optic assist |
BEFORE YOU ORDER
Match the year, model and original lamps
2014–2024 Toyota 4Runner
Supports fully halogen headlights, LED low beam with halogen high beam, and LED low/high headlights using the correct input harness. Full LED vehicles leave one vehicle-side connector capped as instructed. Factory auto-level retention is not promised.
These are North American left-hand-drive/right-hand-traffic applications. Follow the exact equipment and connector path in the installation guide. Aftermarket exterior lighting can alter signal behavior.

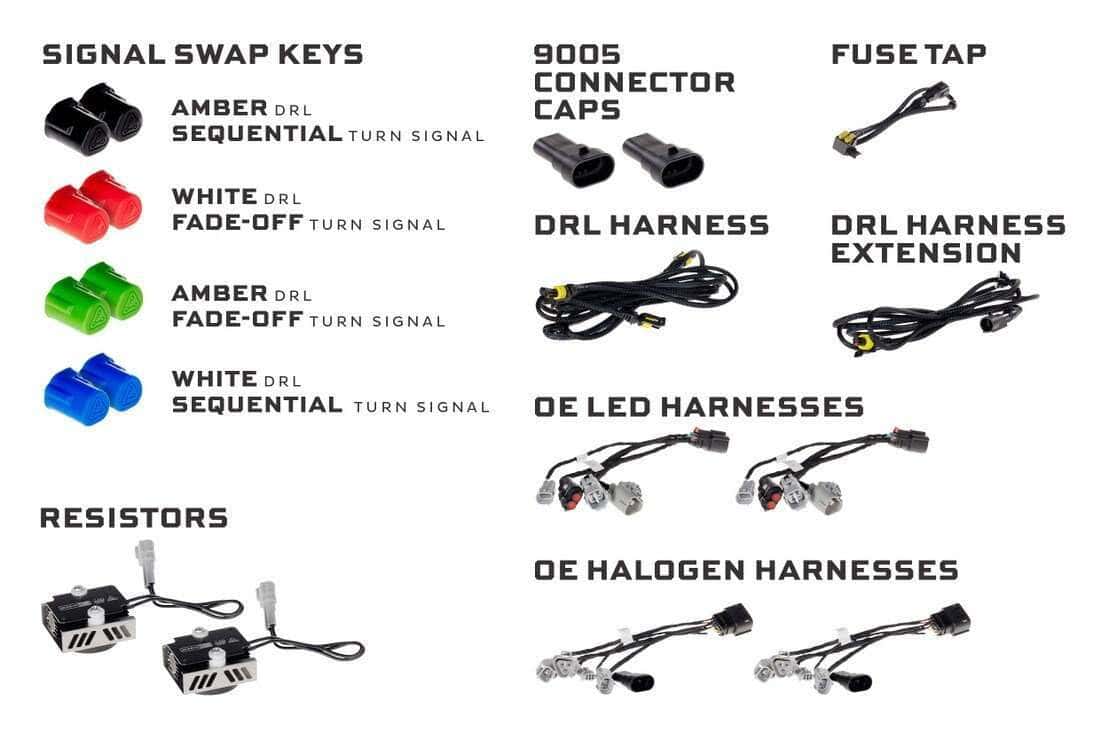

BOTH SIDES. THE MATCHED HARDWARE.
What is supplied

- Headlights: 2x (One Pair) 14-24 Toyota 4Runner XB Evo
- Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings
- Wiring: 2x Halogen Adapters, 2x LED Adapters, 2x Magnet Mount Resistors, 1x DRL Harness, 1x DRL Harness Extension, 1x Fuse Tap
Use the adapters and signal components appropriate to the truck’s original lighting. Optional Supercharged drivers and other accessories are separate selections; they are not required to complete the standard headlight pair.
The package illustration also identifies the blank caps required for factory Bi-LED high-beam connectors.
FACTORY MOUNTING. CAREFUL WIRING.
Plan the install, then set the aim
- Identify the original lamp equipment and select the exact wiring branch in the guide.
- Fit the housings at the original mounting points. Install the supplied input adapters, resistors and DRL components as directed.
- Follow the current model-year wiring branch: 2014–2018 uses the under-hood INJ fuse and a small lid notch; 2019–2024 uses the interior P/OUTLET fuse through the supplied firewall extension.
- Secure the wiring clear of heat and moving parts. Test all functions and adjust the beam aim.
Factory Bi-LED reminder: do not connect the original high-beam plugs; fit the supplied blank caps as shown.
Download the official LF2-531 model-family installation guide
Follow the exact heater request, acknowledgement and operating-limit instructions in the guide.

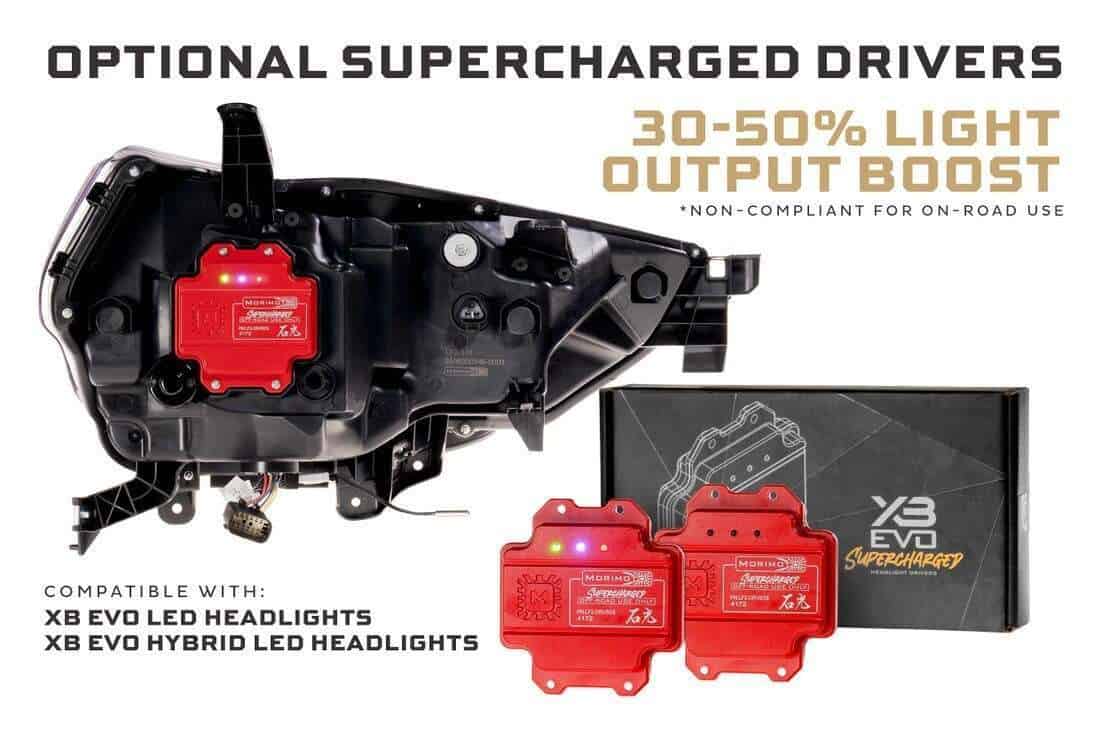

AN OPTIONAL OFF-ROAD CONFIGURATION
Add the exact Supercharged driver pair
The matching optional accessory is LF2-DRVSC8. The headlights already include standard LED drivers; the optional pair replaces them when you deliberately select the off-road configuration.
Morimoto describes a 30–50% greater low/high-beam intensity with this application’s Supercharged drivers. This is the manufacturer’s comparison, not a BTS measurement or a guarantee in every condition.

THE EXACT LF2-531 CONFIGURATION
Specifications and replacement references
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD / Right Hand Traffic Only |
| Output (Standard Drivers) | DOT (FMVSS108) Compliant (LB2V and UB2) |
| Output (Supercharged Drivers) | Non-Compliant |
| Main Optics | 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA) |
| High Beam Assist | 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA) |
| Functions | Low, High, Park, Turn, DRL, Welcome, and Lens Heating |
| Turn Signal Modes | Sequential or Fade Off (Integrated) |
| DRL Colors | White or Amber (Integrated) |
| DRL/Signal Optics | Glass-like 3D TIR Optics with Topography sidewall pattern |
| Frost-Free System | Logic Controlled 50W Ceramic w/ circulation fans |
Original-equipment reference numbers
81170-35571, 81170-35570, 81070-35600, 81070-35610, 81130-35541, 81140-35610, 81140-35620
Cross-check these with the listed year, model and original lamp equipment.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Morimoto’s official 2014–2024 Toyota 4Runner model-family presentation. The video may show both Evo and Hybrid versions; the exact specifications and package above describe this listing.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Evo questions
Is this a pair or a single headlight?
One order supplies the complete driver-side and passenger-side assemblies with the accessories listed above.
Which original lights can this replace?
Match the model year and original halogen or LED equipment to the correct branch of the linked manufacturer guide. Ask BTS with a photograph of the lights and connectors if the truck has been modified.
What changes if my 4Runner has factory Bi-LED headlights?
Leave the factory high-beam connectors unused and install the included blank caps. Follow the fully LED equipment branch in the exact guide.
Can I choose amber daytime running lights?
Yes. The supplied keys select white or amber DRLs and the supported sequential or fade-off turn-signal mode.
Does this exact version have heated lenses?
Yes. Request the Frost-Free system using the exact high-beam sequence after startup. It activates only when its temperature and operating checks allow.
Will Frost-Free clear heavy overnight snow?
It helps mitigate buildup during cold-weather driving. It is not a heavy overnight-snow defroster and defaults off after each ignition cycle.
Are Supercharged drivers included?
No. Standard drivers are supplied. LF2-DRVSC8 is the exact optional Supercharged pair for this application; it is for off-road use only in Canada and the United States.
Are these headlights road legal?
Morimoto identifies the standard-driver configuration as DOT/FMVSS108 compliant for its listed North American application. The optional Supercharged configuration exceeds the compliant intensity limits and is not for on-road use in Canada or the United States.
Is installation completely modification-free?
The housings use the original mounting points. The current guide specifies a fuse-box lid notch for 2014–2018 and a slit in the firewall grommet for the interior fuse-feed extension on 2019–2024. Follow the correct year and factory-light wiring branches, then aim the lamps.
What warranty is included?
Morimoto lists a five-year limited manufacturer warranty. Keep proof of purchase and contact BTS for installation help or a suspected warranty issue.
