FORM LIGHTING · FL0017
Triple projectors. Your choice of DRL.
A blacked-out housing, three-projector layout and selectable white or amber signature refresh the 4Runner without changing its character.
- Left + rightComplete headlight pair
- White / amber DRLIntegrated daytime signature
- 2-year warrantyLimited manufacturer coverage

A COMPLETE LIGHTING UPGRADE
Output, style and everyday function
Integrated LED optics
Two bi-LED projectors provide low and high beams. A third projector adds illumination with the high beams.
Daytime signature
Select white or amber daytime lights using the connector under the lower grommet. The running lights perform a two-stage startup sequence.
Amber turn signals
Amber LEDs sweep from the inside of the housing outward across its upper and lower edges, then return to the daytime-light setting.

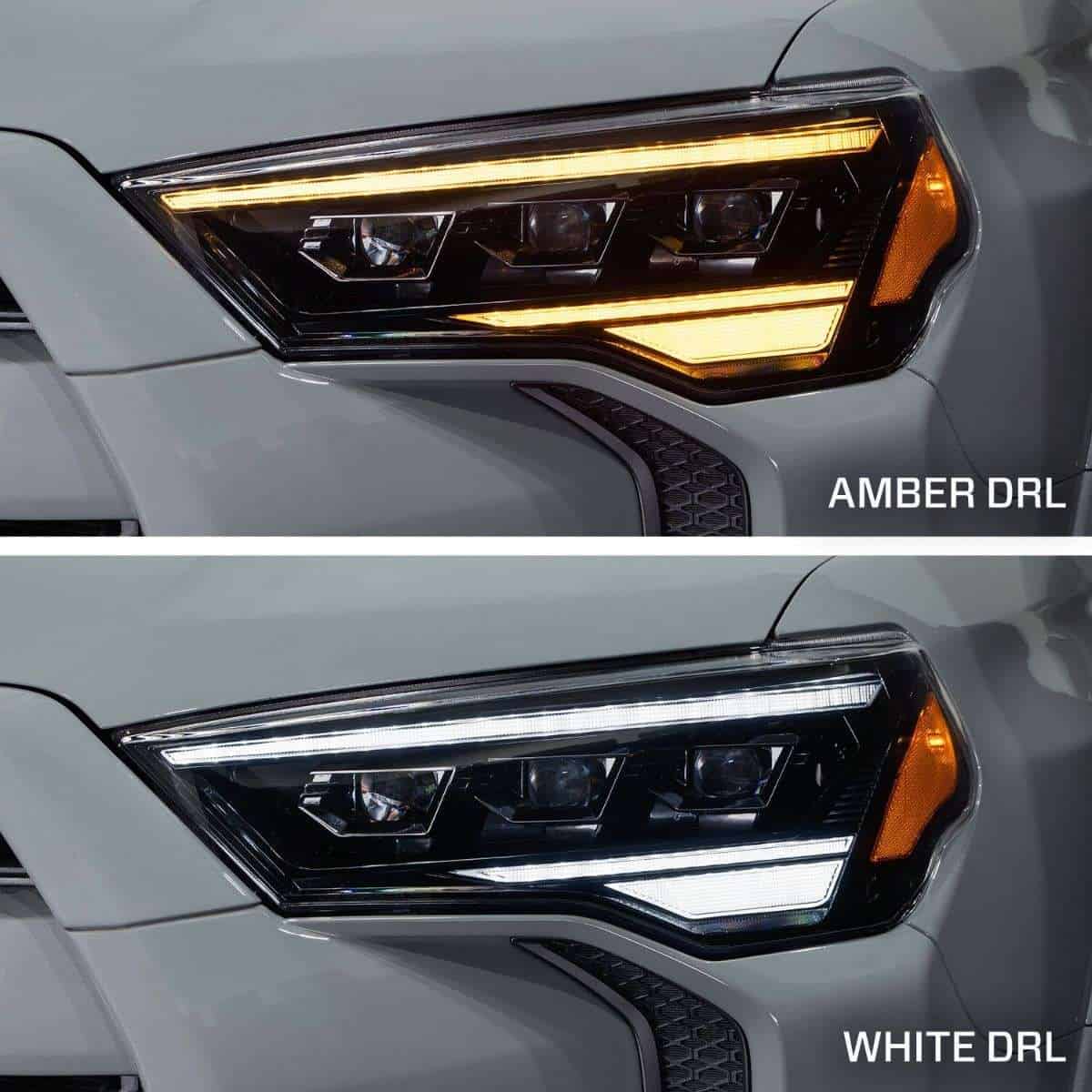

THE DAYTIME SIGNATURE
A closer look at the lighting functions
Select white or amber daytime lights using the connector under the lower grommet. The running lights perform a two-stage startup sequence.

MATCH THE TRUCK AND ORIGINAL LIGHTS
Exact fitment before you order
| Check | This application |
|---|---|
| Vehicle | 2014–2024 Toyota 4Runner |
| 2021–2024 adapter | Included harness is required |
| 2021 SR5 / TRD Off-Road | Connect the low-beam plugs; leave the 9006 adapter plugs disconnected, per FORM |
| 2021 Limited / TRD Pro / Nightshade; 2022–2024 | Connect both the low-beam and 9006 plugs, per FORM |
| Exact part | FL0017 |
| Package | Complete left and right headlight assemblies |
THE STANDARD PACKAGE
What comes with the pair

- Left and right headlight assemblies
- Model-specific adapters shown in the package image
- DRL fuse-tap harness
Use the included adapter and connectors appropriate to the original lighting and trim; the two 2021 wiring arrangements are different.
Other lighting, bodywork and accessories in vehicle photographs are separate products.
PLAN ACCESS, WIRING AND AIM
Installation details worth knowing
Remove the grille/bumper for access and transfer the original lower plastic headlight fastener. Vehicles with Toyota Safety Sense and 2020+ models have additional connectors to disconnect and reconnect. Select the DRL colour before installing the lamps, use the specified 2021–2024 adapter arrangement, and install the DRL fuse tap as directed. Check low beam, high beam and signals before reassembling and aiming.
Read the official FL0017 installation guide
Use the instructions supplied with your exact set. Secure wiring away from heat and moving parts, reconnect all original sensors and test every lighting function before final reassembly.

EXACT PART · FL0017
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Optics | Two bi-LED projectors plus a dedicated high-beam projector |
| DRL | Selectable white / amber |
| Turn signal | Sequential amber |
| Ingress rating | IP67 |
| Operating temperature | −40°C to 85°C |
| Finish | Black housing |
| Warranty | Two-year limited manufacturer warranty |
FORM states that these headlights meet applicable SAE, DOT, FMVSS and CMVSS requirements for road use in the United States and Canada when correctly installed and aimed. Set the low-beam cutoff on the actual vehicle.
FORM Lighting provides a 2-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
See the exact design and the installation process in FORM’s own videos. Match the written adapter and fitment notes above to your original lights.
Official FORM product overview

Official FORM installation guide

Choose a video to load it. No autoplay. Watch the overview or installation guide when you are ready; the videos load only after you choose them.
CLEAR ANSWERS BEFORE CHECKOUT
Your 4Runner projector questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this set fit?
2014–2024 Toyota 4Runner. Match your original lighting to the fitment and adapter notes above.
How do I choose the daytime lighting?
Select white or amber daytime lights using the connector under the lower grommet. The running lights perform a two-stage startup sequence.
Does this require replacing separate bulbs?
These are complete integrated LED assemblies, rather than replacement bulbs for the original housings.
Should the lights be aimed after installation?
Yes. Test all functions, then aim the low-beam cutoff on the actual vehicle. Load and suspension height can change the aim.
What warranty applies?
FORM Lighting provides a two-year limited manufacturer warranty. Coverage and exclusions follow its current terms. Retain proof of purchase and contact BTS for assistance.
THE FINISHED LOOK

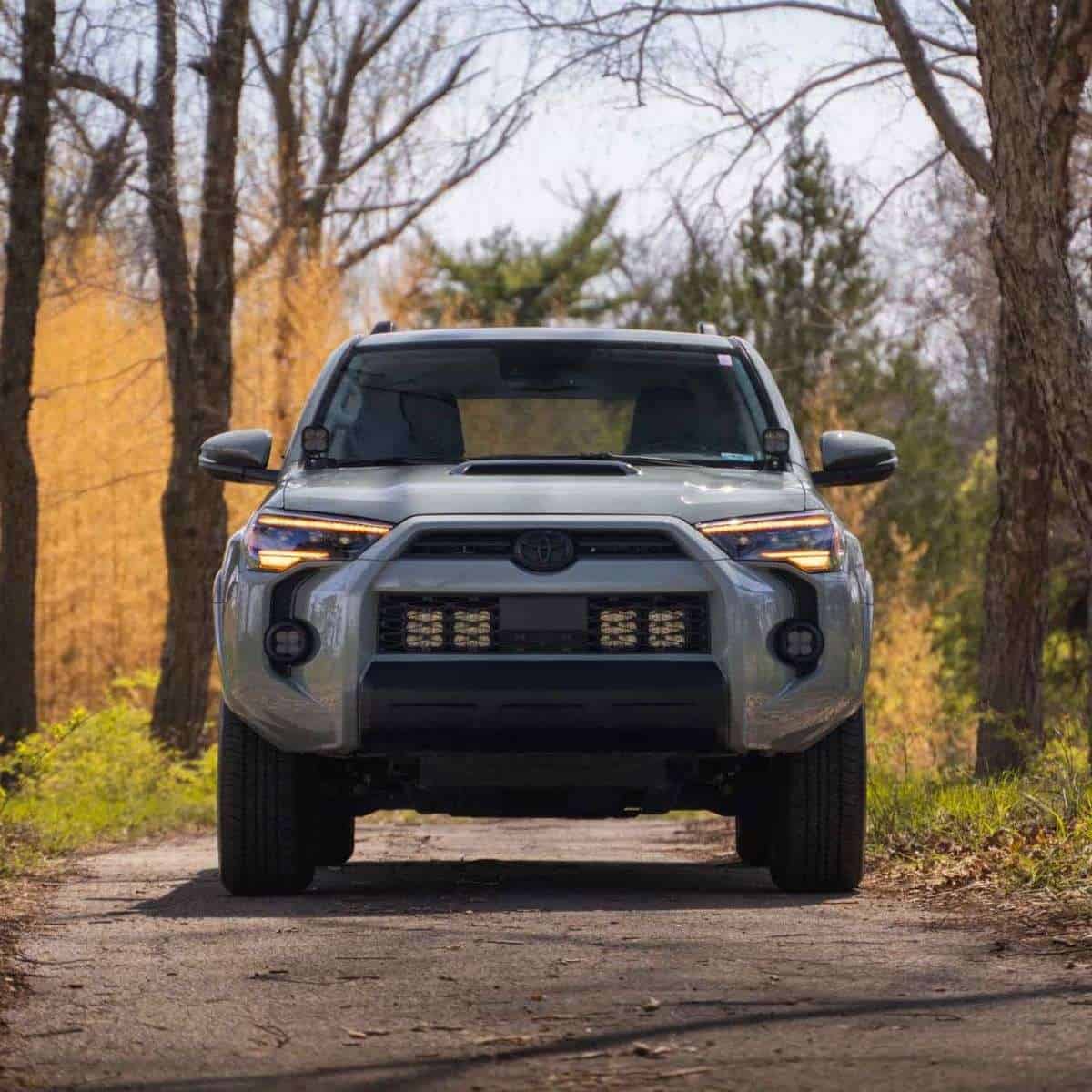

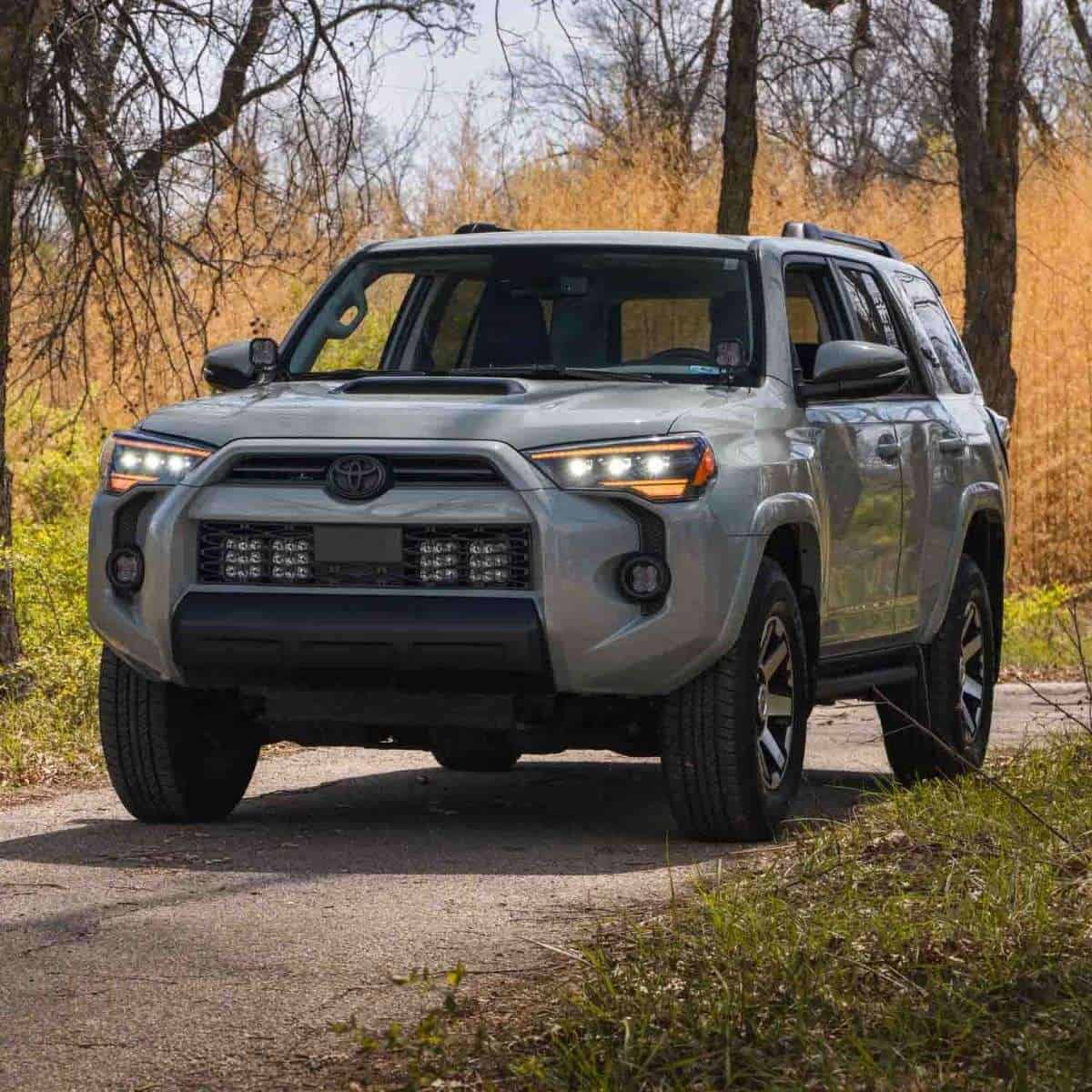

See the design on the truck
Original manufacturer photography; other vehicle equipment is separate.

BTS FORM 4Runner installation guide
See all removal photographs, white/amber DRL selection and the included 2021–2024 adapter connections.
